cy-1g large flow stainless steel magnetism forle pumps filling machine oil perfume chemical disinfection liquid beverage sub-filling machine

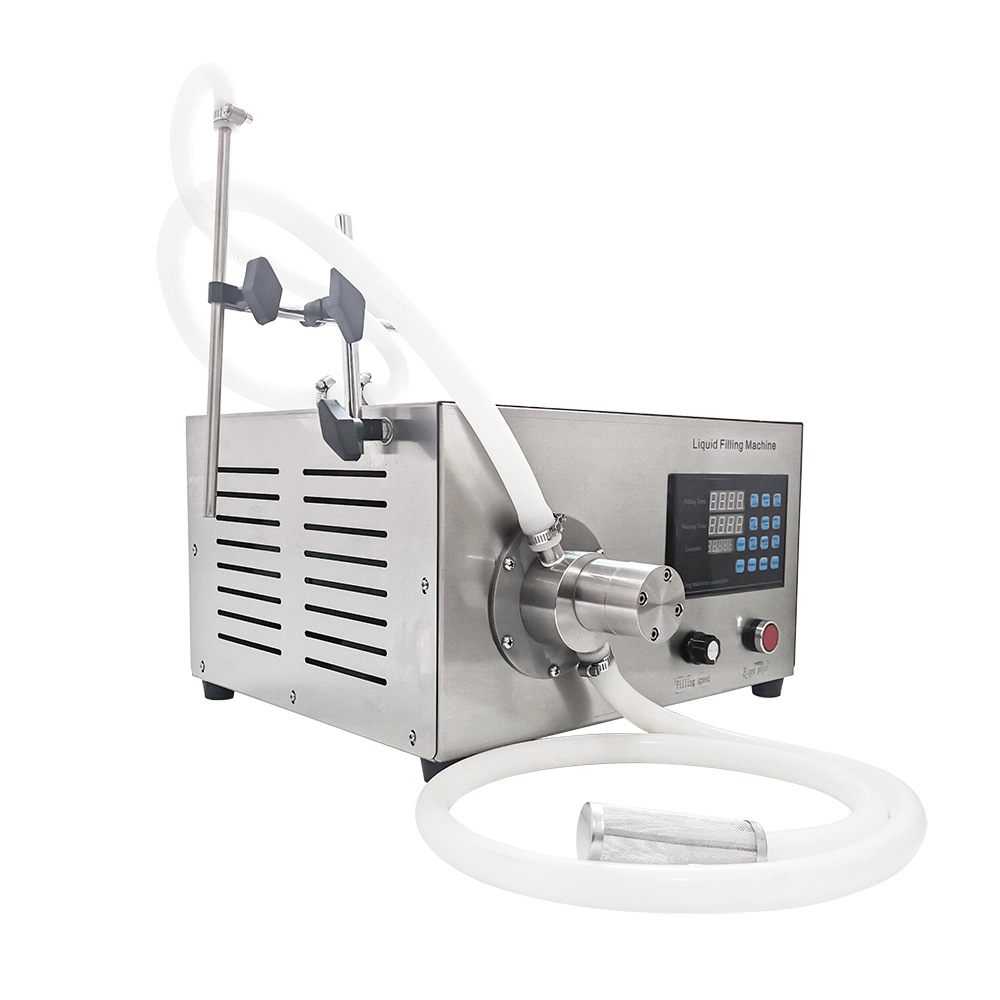

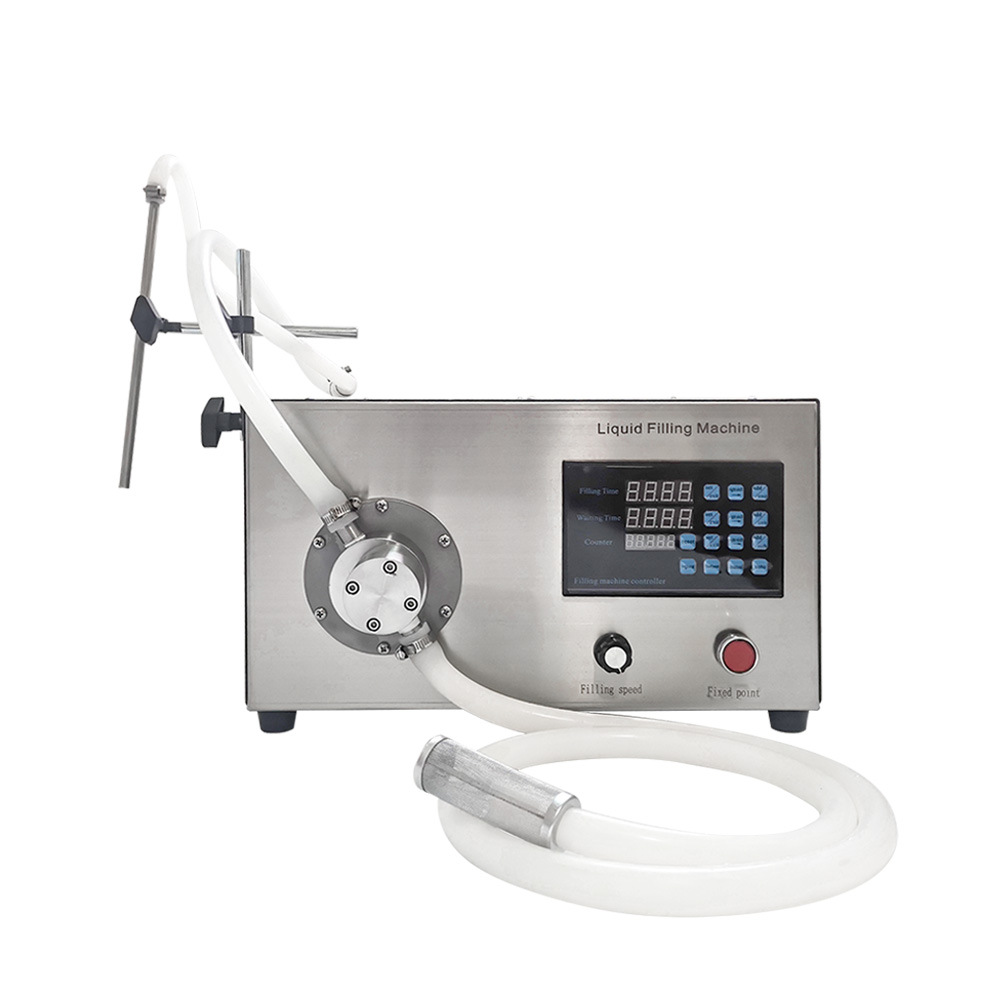

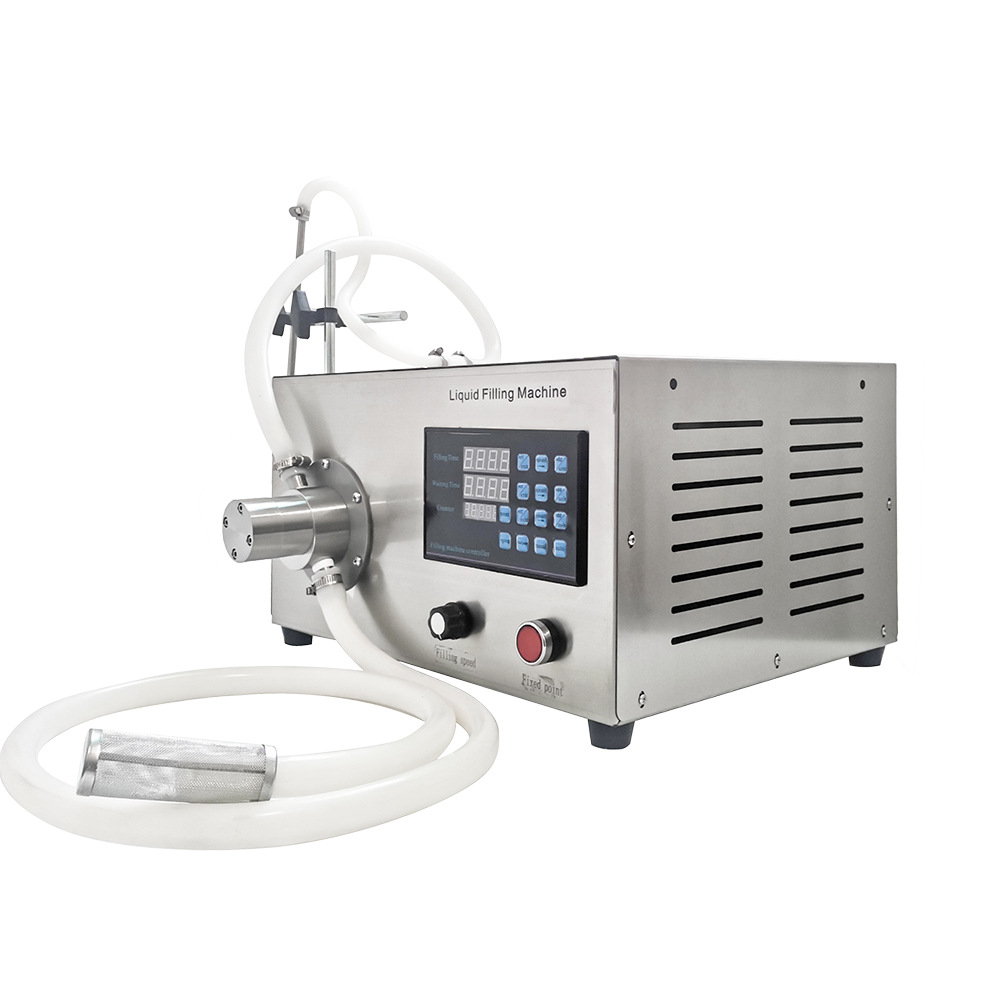

Magnetic Force Pump Liquid Filling Machine

By controlling the pump filling time, motor speed, and other factors using microcomputers, a uniform and repeatable error-minimized liquid filling method is achieved, widely applied in industries such as daily chemicals and industry. This is often suitable for small enterprises, small shops, and household use. Custom-made extended silicone tubes can be provided for convenient mobile filling, which is durable and practical.

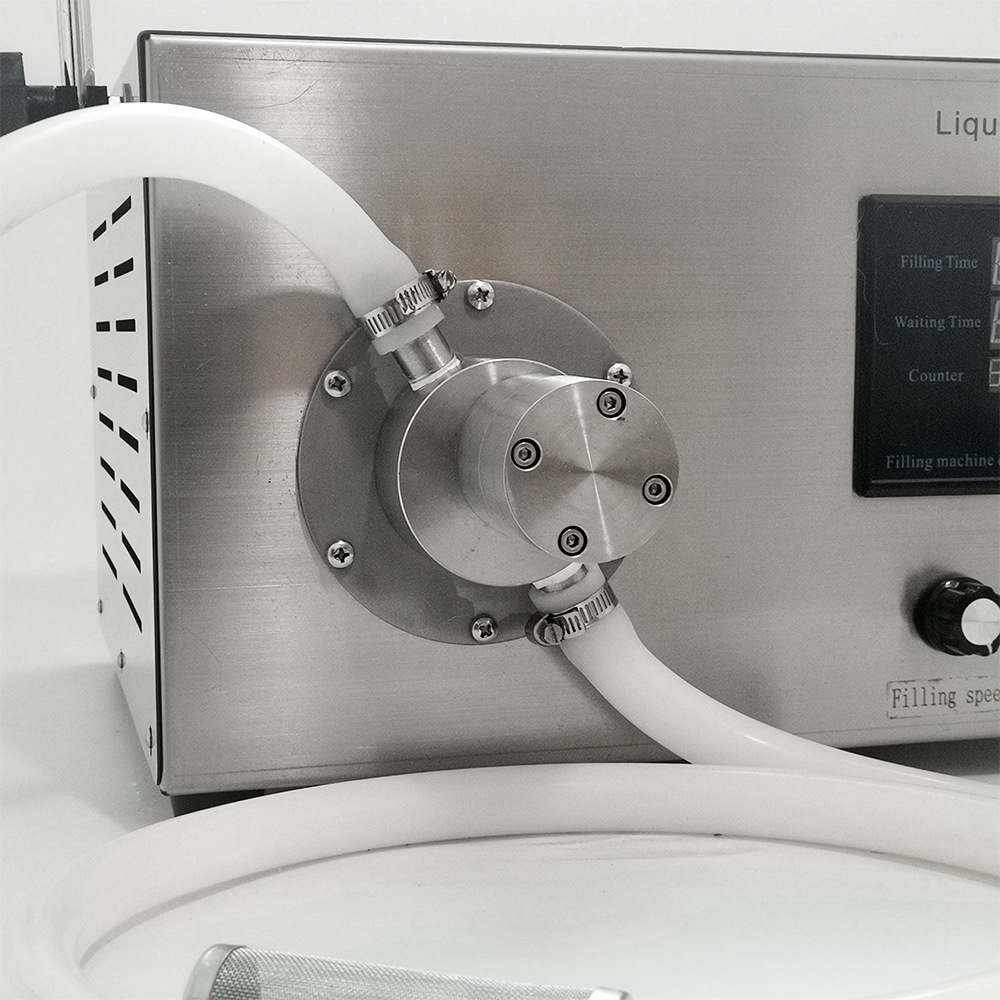

The gear pump head of the magnetic pump filling machine is driven by magnetism, and the pump wheel is not connected to the motor by a shaft, so there is no need to worry about shaft seal damage or leakage or the pump overloading and being burned out.

· The pump head is made of 316L stainless steel.Acid and alkali resistanceExcellent corrosion resistance.

· Suitable for aqueous solutions, oils, and other liquids, especially highly corrosive liquids. Can be filled with detergents, disinfectants, acid and alkali solutions, etc. (Please contact customer service for specific details).

· The machine has a simple structure and is easy to operate. It can be automatically filled by microcomputer, manually, or by foot, with multiple control methods for filling.

Applicable objects: juice drinks, carbonated drinks, alcoholic beverages, mineral water, pure water, oils, hair care products, skincare categories, cosmetics, cleaning products, oral liquid, medicine, perfume, essential oil, flower water, fuel additives, gasoline additives, organic solvents.
Applicable industries: catering, food, daily chemicals, medicine, chemistry

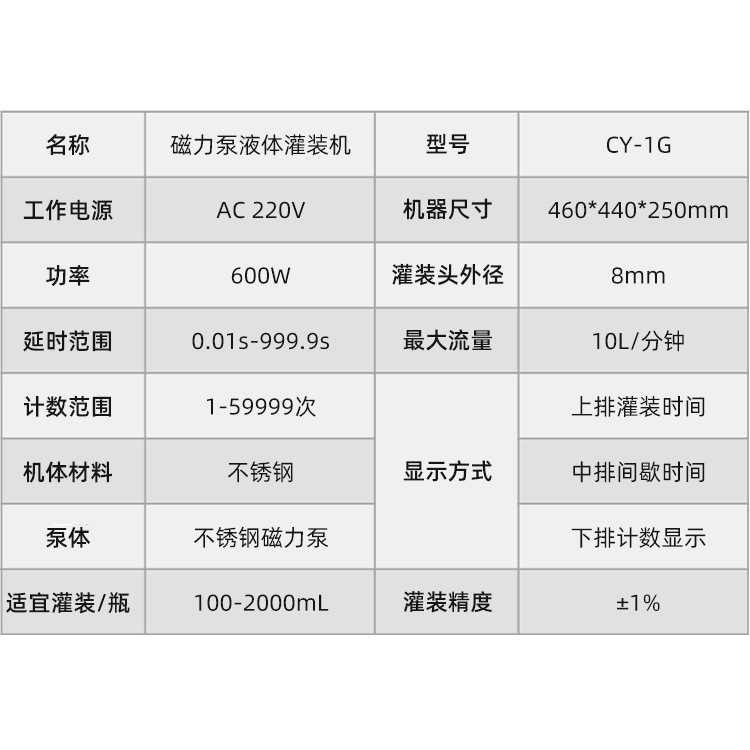

Material Type: Liquid

Model: CY-1G

Filling Accuracy: 1%

Flow rate: 10 liters per minute

Working Power Supply: AC220V
Power: 600W
Data program settings Display mode: Upper row shows filling time, middle row shows interval time, lower row shows count display
Dimensions: 460*340*250mm
Weight: 17.5kg
Filling nozzle diameter: 8mm
Body Material: Stainless Steel
Pump body material: Stainless steel

Usage Method

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps
1. Time Adjustment for Filling
A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.
Press the right shift key again to move to the specified position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.
Press the unit key to move the decimal point up and down to set the time unit.
Press the exit key to complete the setup.
2. Adjustment of Interval Time: The same as the adjustment of filling time. 3. Adjustment of Timer.
Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.
B. Press the pattern key, and when the light is on, the filler will stop working when the specified quantity is reached. If the light is off, it will continue to work and count continuously. 4. Filling Setting Press the filling setting key, and the filler will start working. When the amount you need is reached, press the filling setting key again. The time displayed on the filler time will be the time required to fill the amount.

1. Adjustable time range: 0.01-999.9 seconds

2.The pump body is made of 316 stainless steel.Excellent corrosion resistance, suitable for filling corrosive liquids.
3. With a function for quickly setting the filling time.
4. Easy to clean: When filling different liquids, you can simply remove the filling head to clean it, without opening the machine box.
5.Adopting digital microcomputer control, operation is simpler.Automatic, manual, and pedal control methods for operation and use

6.The motor has a large power and a large flow rate, and the fastest water flow rate is 10L per minute.
