double-headed multi-purpose uv glue gel nail polish mascara lipstick threadlocker sealant cream liquid filling machine lrdb-2a

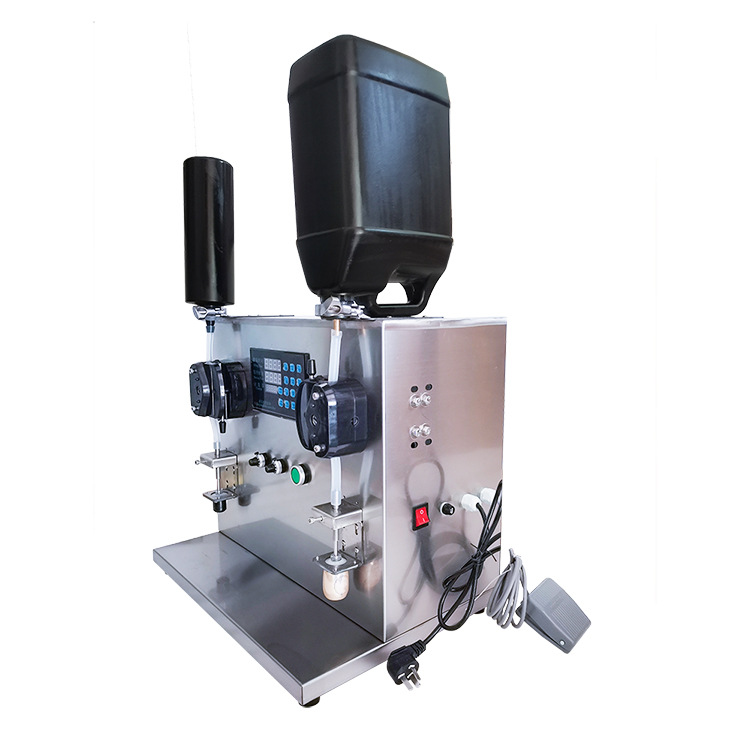

Attention:Two feed hoppers are included with the machine as a complimentary gift.The black raw material barrel shown in the picture is only used for demonstration purposes and is not included with the purchase of the machine!

Attention:Machine is equipped with two additional hoppers.The black raw material barrel shown in the picture is only used for demonstration purposes and is not included with the purchase of the machine!

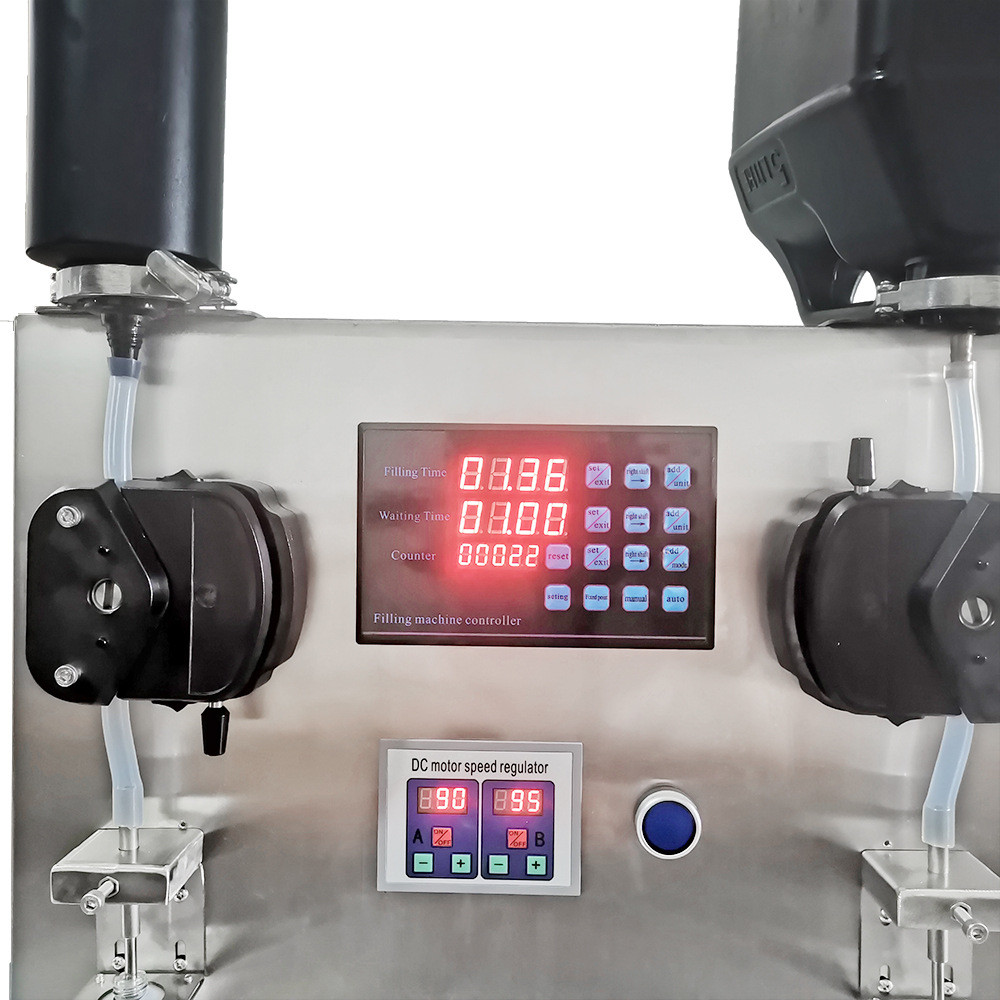

There is a new version.Electronic Speed Controland the old versionTurbo Speed AdjustmentOptional, please see the following pictures or consult the customer service for more details.

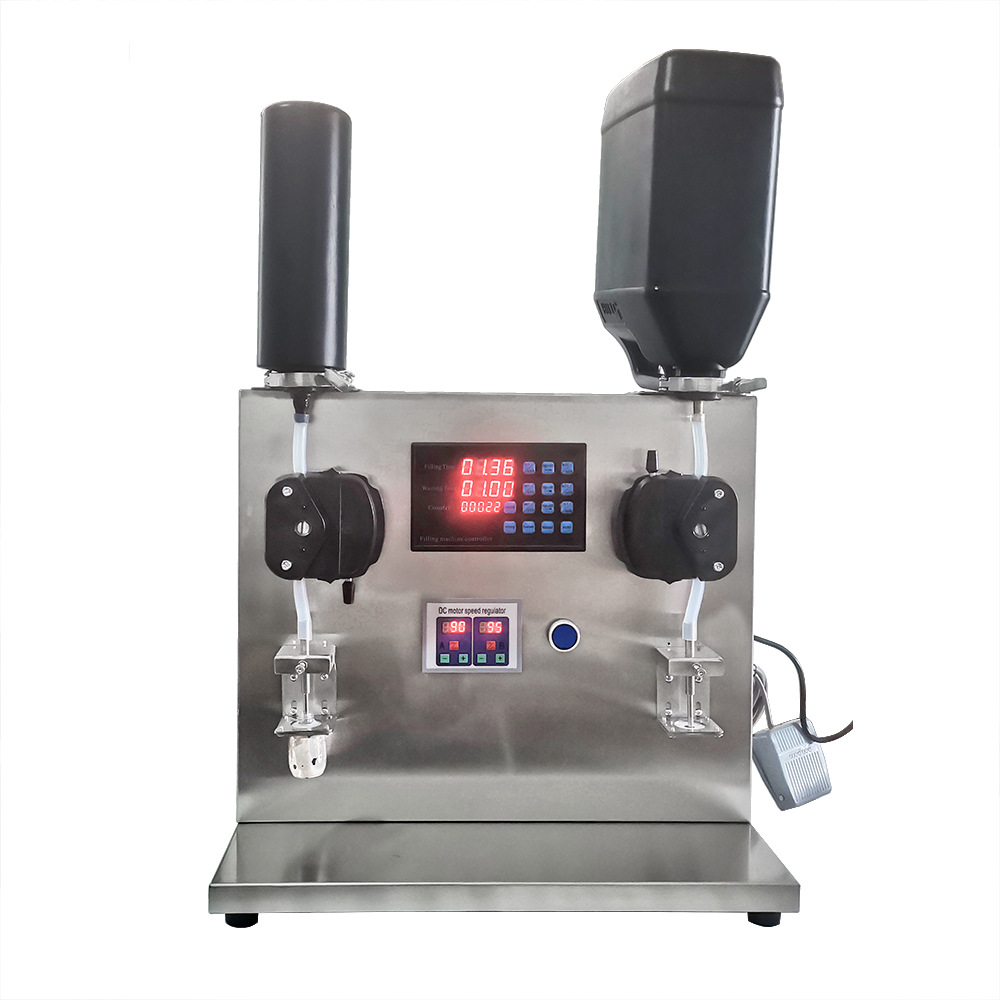

A. New version of electronic speed control: digital for easy memory, one-button on/off, simpler operation

- Customers who are using this product for the first time are recommended to use the new version, which is easier to use.

(Attention:Machine is equipped with two additional hoppers.The black raw material barrel shown in the picture is only used for demonstration purposes and is not included with the purchase of the machine!)

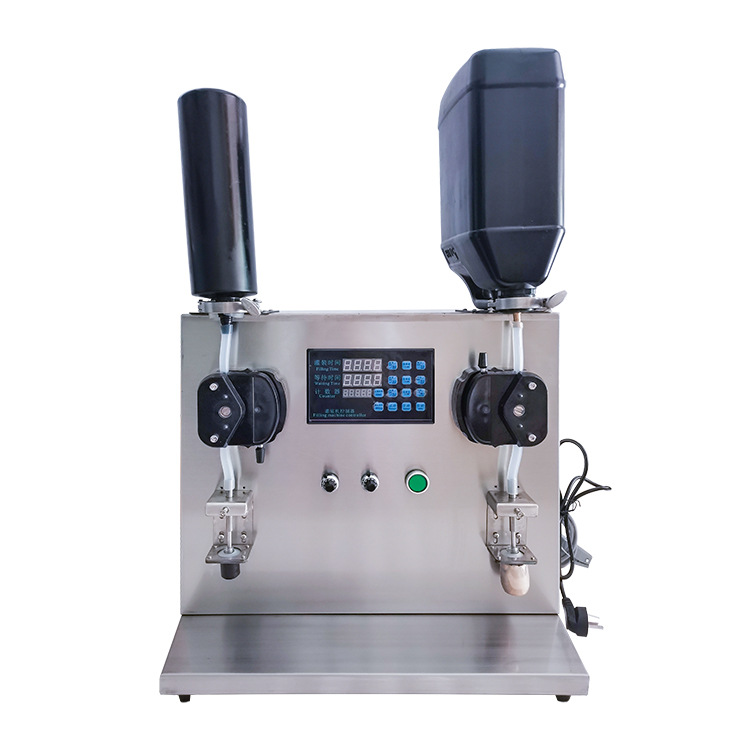

B. Old-style knob speed control: continuous adjustment for more precise control.

(Attention:Machine is equipped with two additional hoppers.The black raw material barrel shown in the picture is only used for demonstration purposes and is not included with the purchase of the machine!)

Note: The peristaltic pump has built-in check valve function, which may be affected by the properties of the liquid. For water-based liquids, the pump usually stops immediately when the liquid is stopped. However, for liquids such as nail polish and nail gel, which tend to pull strings due to their own properties, it is recommended to stay for a while after the material is discharged.

Usage Method:

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, and ensure that the motor is working normally. Then, press the manual button/foot switch to control the filling machine to work. Press/step once to make the filling machine work once. Press the automatic button, and the filling machine will work continuously automatically according to the set time.

Steps:

1. Time Adjustment for Filling

A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press the right shift key to move to the desired position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.

Press the unit key to move the decimal point up and down to set the time unit.

D. Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

A. Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setup

Press the filling setting, and the filling machine will start working. When the required amount is reached, press the filling setting key again. The time displayed on the filling time will be the time required to fill the amount.
