zrdb-1a weighing automatic liquid sub-installed machine lotion cosmetics 502 glue peristaltic pump filling machine

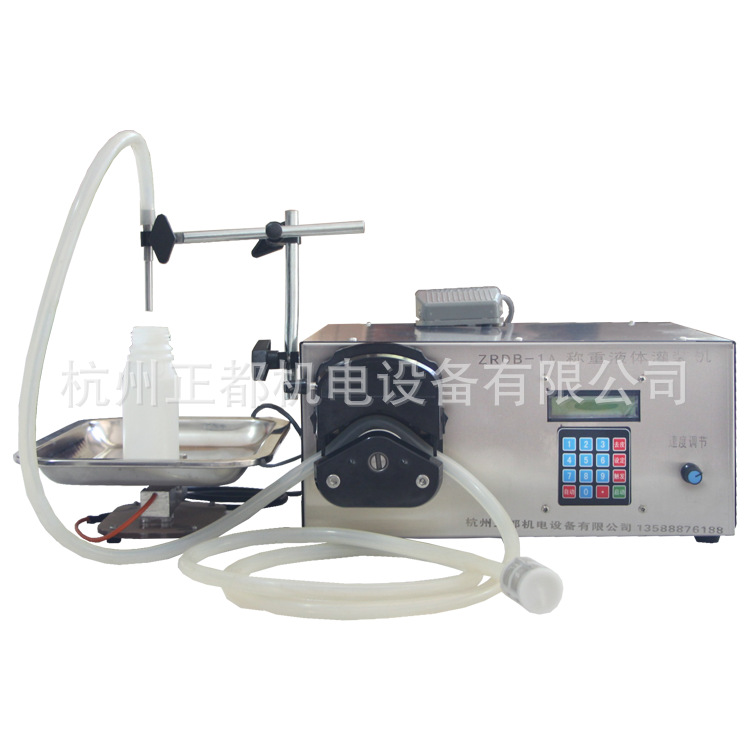

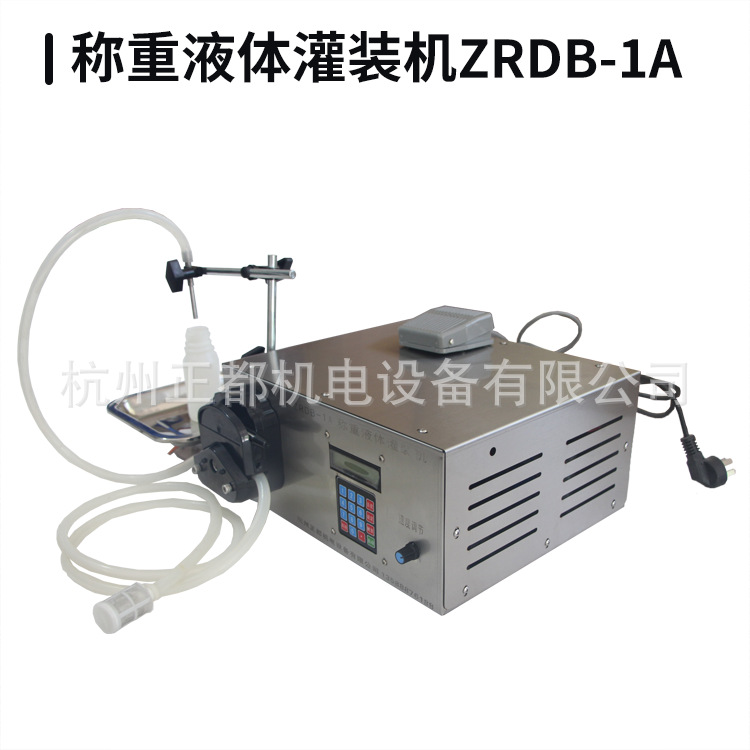

Name: Multi-functional Weighing and Filling Machine for Small Volume Liquids

Model: ZRDB-1A

Features: Directly input the weight, the filling will stop automatically when reaching the set amount, which is convenient.

This machine works without contact with the liquid, and the liquid does not pass through the pump body, flowing in the pipes. There is no contamination during the filling process, avoiding cross-contamination of liquids, no need for cleaning, and different liquids are equipped with a set of pipes, with an error of 1%. It can withstand high temperatures of up to 170 degrees, is corrosion-resistant, and for different corrosive liquids, it is equipped with pipes made of special materials, making it particularly suitable for filling corrosive liquids with strong corrosion and a wide range of high-temperature products. A set of pipes for each product is sufficient. It is hygienic, time-saving, convenient, and practical.

Features: Corrosion-resistant, heat-resistant up to 180 degrees Celsius, no need for cleaning.

Suitable for chemical solvents, sulfuric acid, hydrochloric acid, diluents, paraffin wax, oils, cosmetics, juice drinks, alcoholic beverages, mineral water, pure water, oils, hair care products, skin care products, cosmetics, cleaning and washing products, glue, oral liquid, medicine, paraffin wax, 502 glue. Organic solvents, chemical liquids, ink. Pigment. Paints, coatings, glass water, antifreeze, fuel additives, gels, emulsions; additives and other corrosive liquids that need to be packed at high temperatures, as well as viscous liquids with small particles.

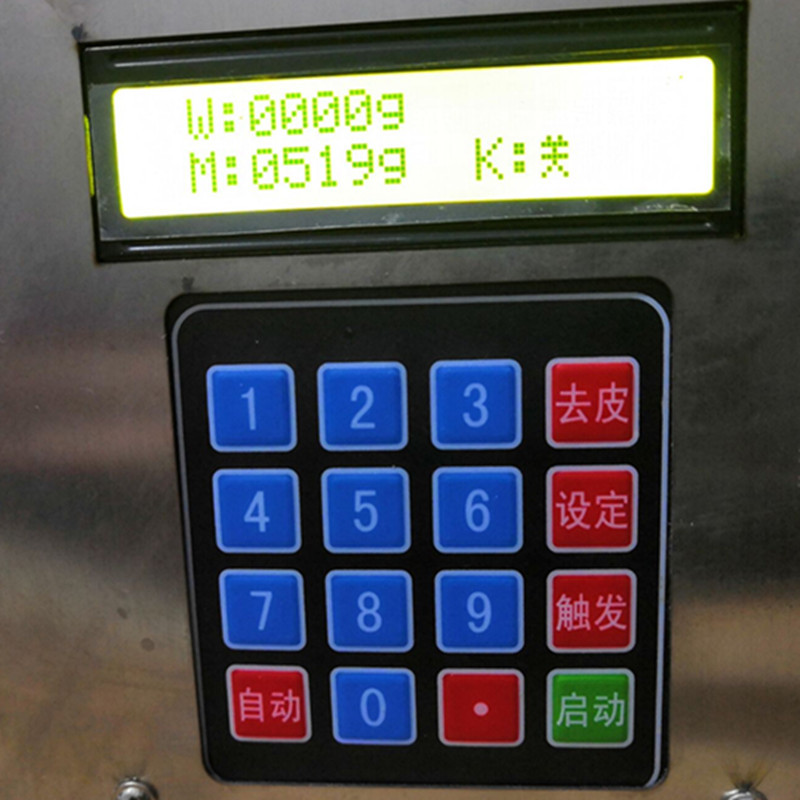

This machine is equipped with an automatic weighing controller that directly sets the filling weight, making operation convenient and overcoming the hassle of repeatedly adjusting the quantity setting based on time. The weighing machine has a very small error in filling large doses, usually around 2 grams.

Technical parameters:

Working Power Supply: AC220V

Power: 80W

Flow rate: 2000ml/minute

Weight: 8.0kg

Error: 0.5%

Filling nozzle diameter: 4mm

Body Material: Stainless Steel

Instructions: Prepare the liquid to be filled. Connect the 220V power supply, adjust the filling time, and ensure that the motor is operating normally. Press the manual button, and use the foot switch to control the filler's operation. Press once to operate the filler once. Press the automatic button, and the filler will automatically and continuously operate at the set time.

The feature of this machine is

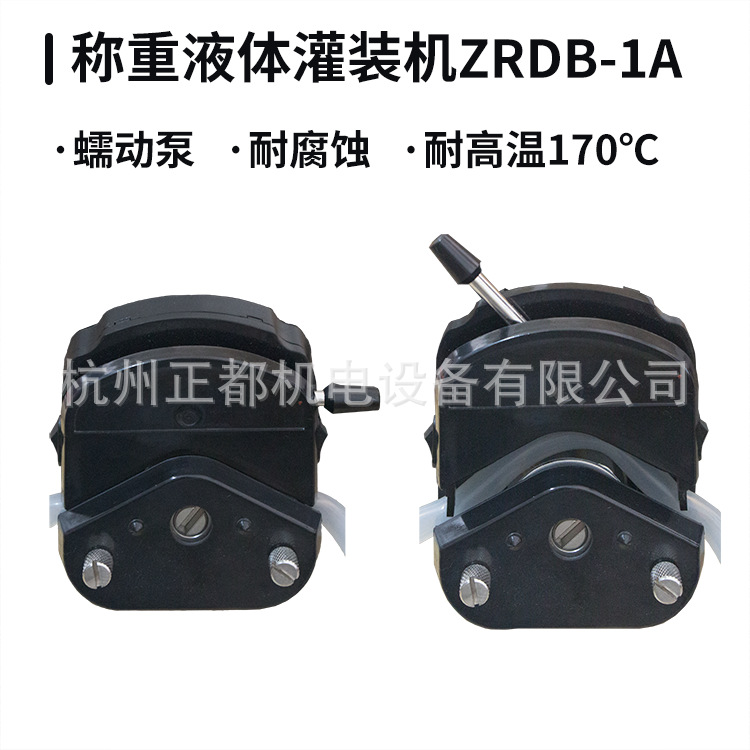

1. This machine is based on the principle of peristaltic pump, with an error of 1%, which is very stable.

2. The filling machine is particularly suitable for liquid with strong acid and alkali, corrosive chemical solutions, and organic solvents, and can also be used for the filling of liquids with small particles.

3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.

4. Micro-volume liquid filling, micro-volume can be 5ml

5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.

6. This machine is suitable for filling organic solvents and other chemical products. The liquid does not pass through the pump body, and a silicone tube is used to deliver the liquid, which is non-polluting and corrosion-resistant.

7. This machine is suitable for filling a variety of different liquids, without the need for cleaning. By simply changing the tubes, it can be used to fill different liquids, which is convenient, does not contaminate, and one machine can fill multiple liquids.
