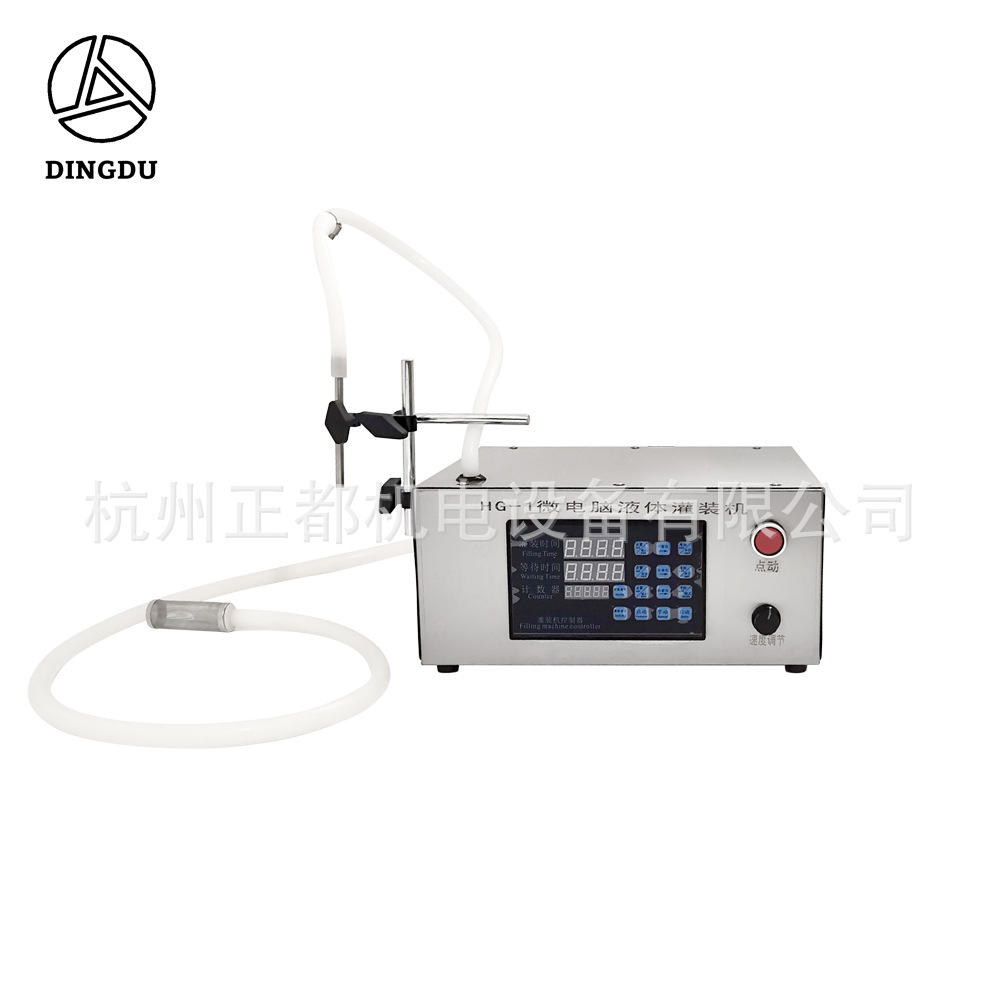

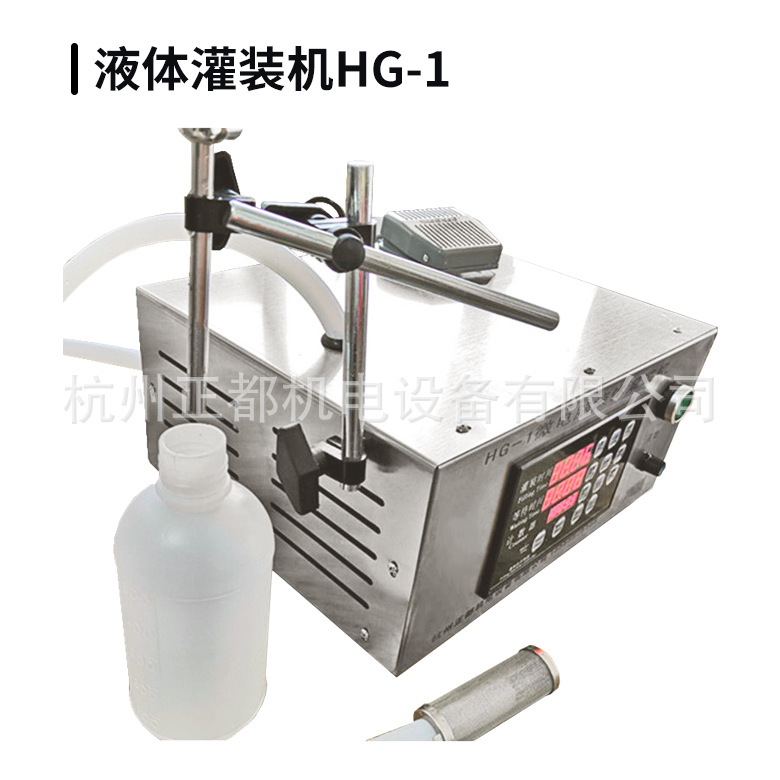

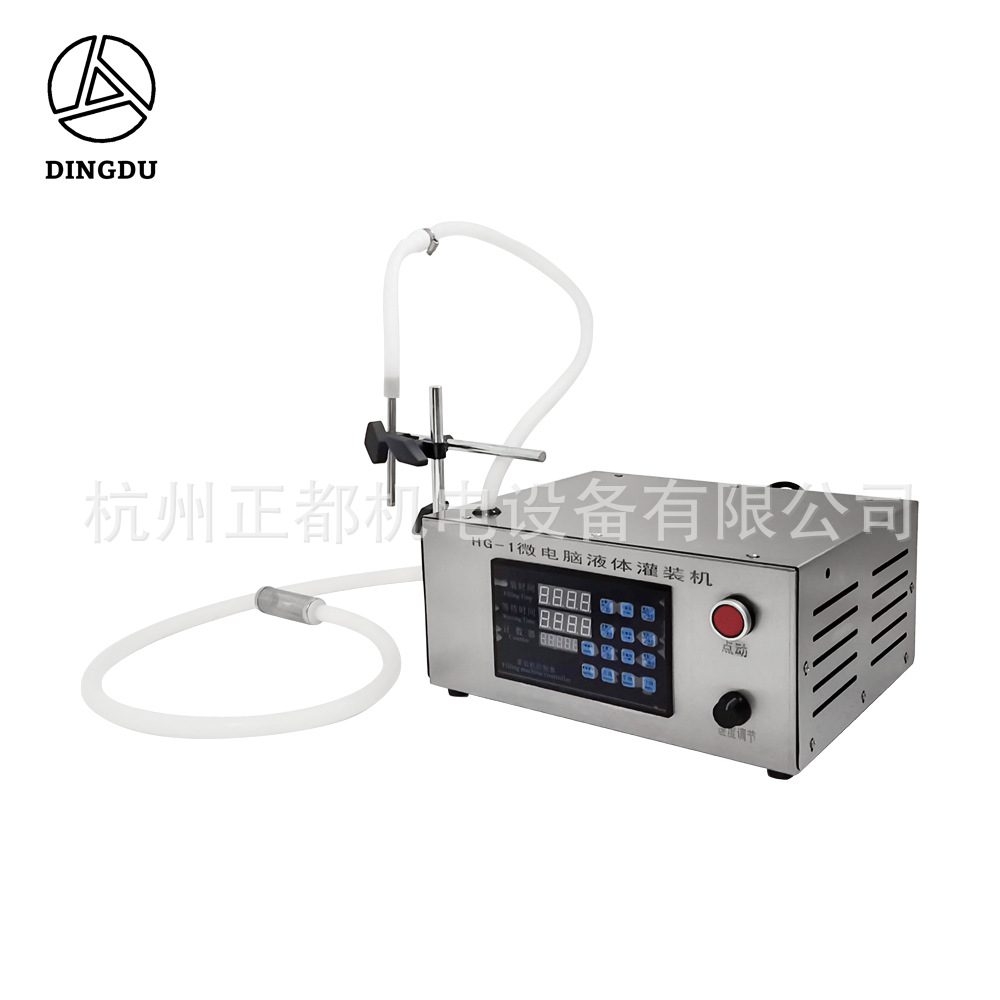

Model: HG-1

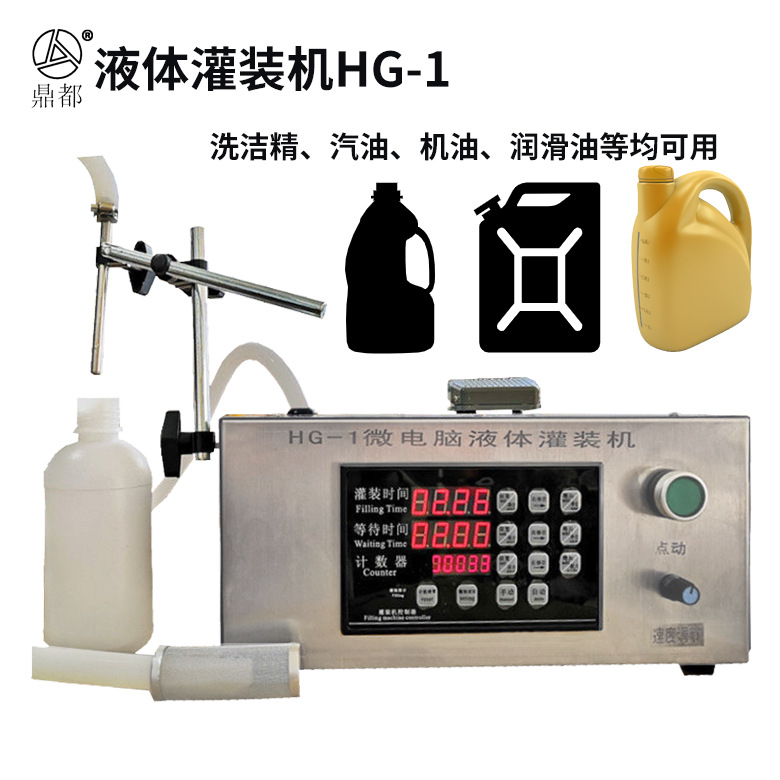

This machine uses a micro-motor self-suction gear pump, controlled by a microcomputer to set the working and pause times, and it is an automatic, quantifiable filling device. It is suitable for filling antifreeze, glass cleaner, or thick liquids such as engine oil, gear oil, diesel, canola oil, honey, and hand soap, with faster filling speeds.

Working Power Supply: AC220V

Power: 100W

Flow rate: 12,000 ml/minute

Delay Range: 0.01s～999.9s

Counting range: 1 to 59999 times

Work Mode: Power-on Delay Data Program Setting

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.

Dimensions: 150*350*350mm,

Weight: 10.0kg

Error: 1%

Filling nozzle diameter: 6mm

Body Material: Stainless Steel

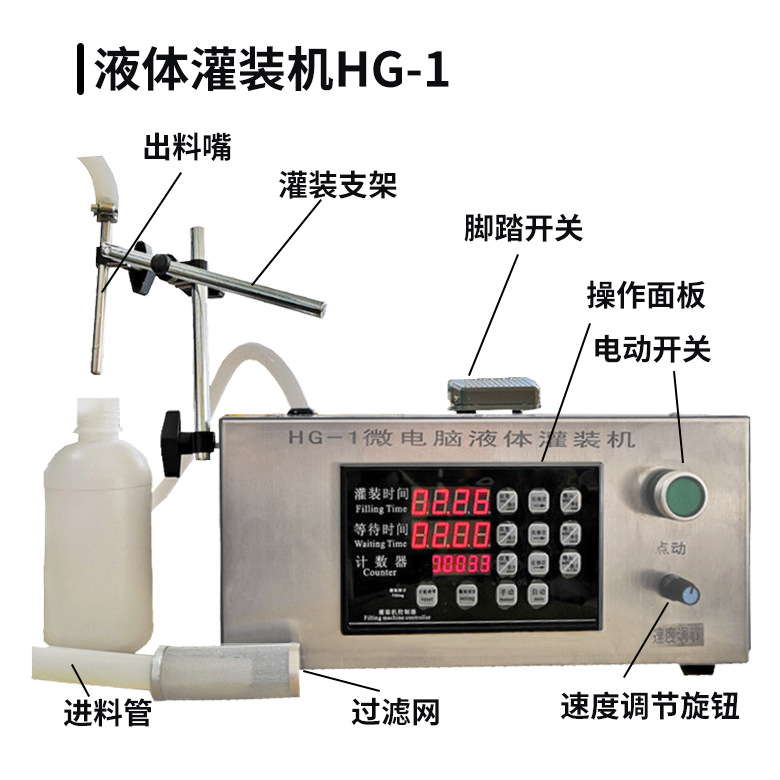

Instructions: Prepare the liquid to be filled. Connect the 220V power supply, adjust the filling time and the interval time, set the timer. First, press the point-and-click switch to test the machine. If the motor operates normally, press the manual button and use the foot switch to control the filler. Press once to operate the filler once. Press the automatic button, and the filler will automatically and continuously operate according to the set time.

Steps

1. Time Adjustment

A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press the right shift key again to move to the specified position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.

Press the unit key to move the decimal point up and down to set the time unit.

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

The feature of this machine is

1. Filling time can be adjusted from 0 to 999 seconds

The controller of this machine has the function of filling setting, which can quickly set the required time for the amount of filling you need.

3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.
