lrdb-1 vertical micro sub-installed machine small dose packaging shower gel shampoo filling machine wind medicated oil filling machine

Machine Model: Vertical LRDB-1

Power: 50W

Dimensions: 36*36*(42+23) cm

Weight: 10 kilograms

Flow: 200ml/min

More suitable for filling small amounts of viscous liquids, UV adhesive, nail polish, nail oil, essential oil, thread adhesive, sealant, etc.

Features:

1. Adjustable time range is large. 0.01-999.9 seconds

2, corrosion-resistant, heat-resistant, no cleaning required, can be filled with corrosive liquids, and high-viscosity liquids

3, accurate measurement, leak prevention, with a filter screen

4, Quickly set the filling time, this machine's computer version has the function of quick quantification.

5, no cleaning required. Fill with different liquids by simply changing the tube.

6, with the function of preventing leakage

7, Chinese panel display, intuitive, easy to use

8, using microcomputer control, operation is simpler, can be used for automatic, manual, foot control three methods to operate. More convenient,

9, the size of the discharge mouth can be replaced according to the size of your bottle opening.

10, the machine's flow rate is 200ml/minute

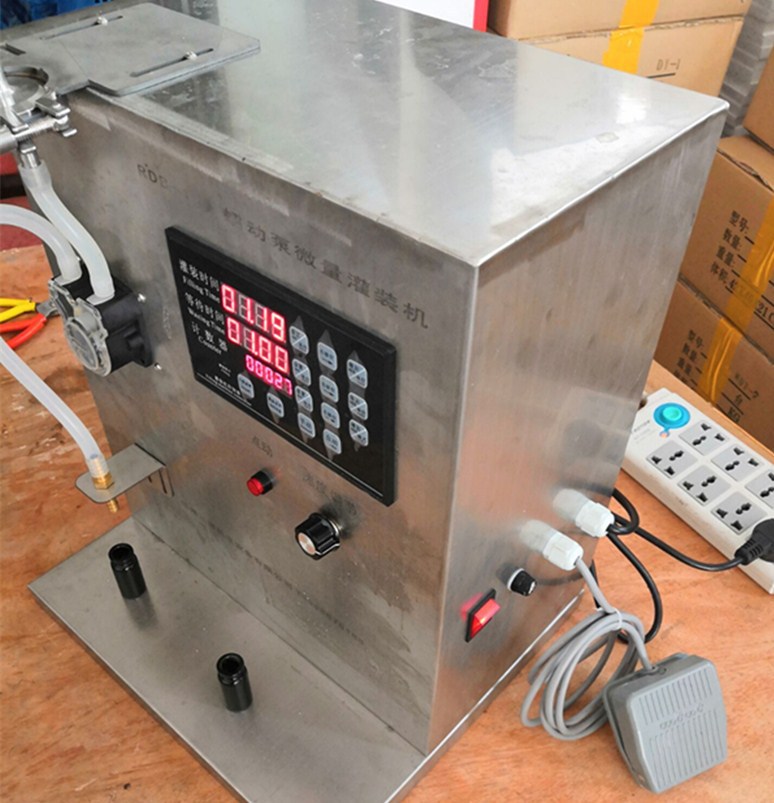

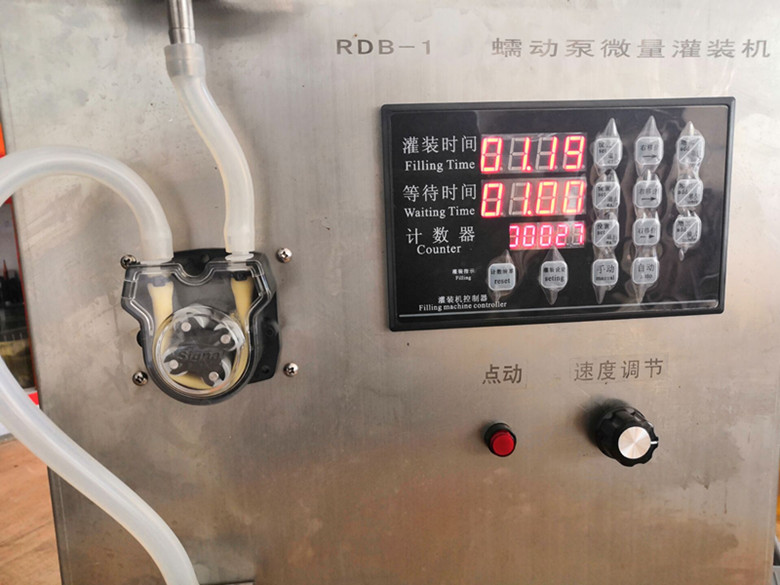

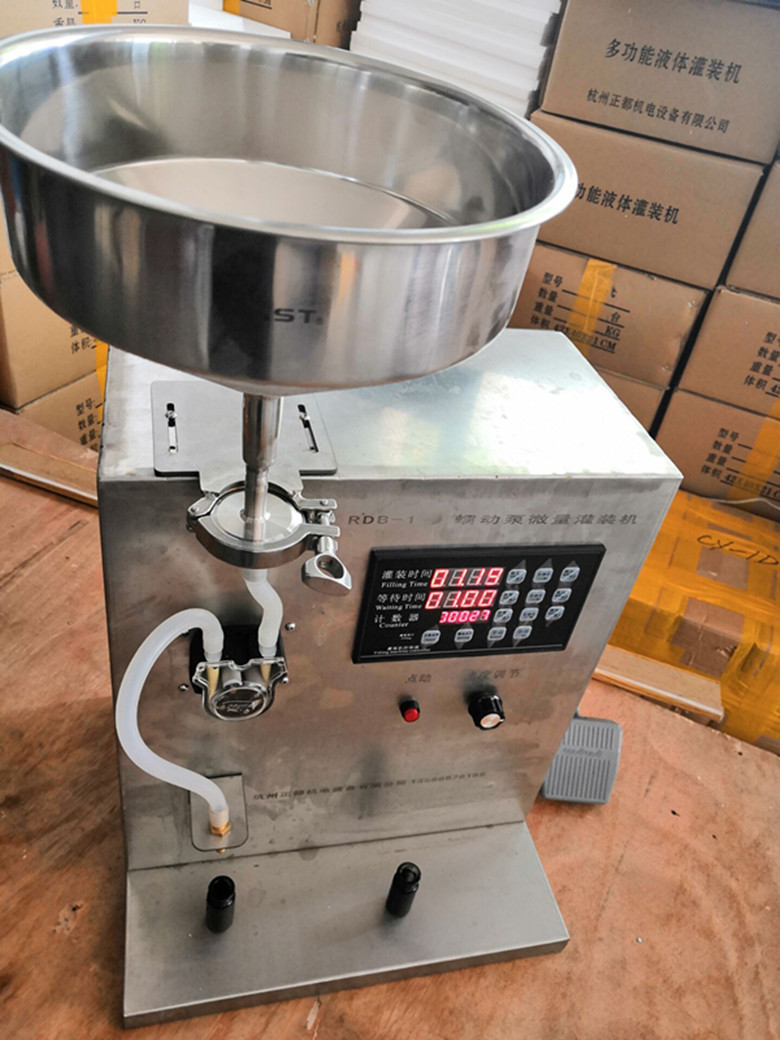

It is a control system that uses microcomputers to regulate factors such as filling time and motor speed of peristaltic pumps, achieving a uniform and repeatable error-free filling method. It is widely used in industries such as pharmaceuticals, chemicals, food, beverages, oils, cosmetics, and is resistant to acid and alkali, corrosion, suitable for almost all fluid that can flow, especially for oil, detergent, acid and alkali solutions, and highly corrosive liquids. The performance is stable and reliable. It can be used to fill daily chemicals, nail polish, VC gel, essential oils, pharmaceuticals, pesticides, and other liquids. It is suitable for corrosive liquids, acid and alkali resistance, corrosion resistance. This machine has a simple structure and is easy to operate. It can be microcomputer controlled, manually controlled, or foot pedal controlled for filling. It is often used in small enterprises, small shops, and families. It can be customized with an extended hose for mobile filling, which is convenient and practical.

Usage Method

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps

1. Time Adjustment

A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.

Press the unit key to move the decimal point up and down, and set the time unit

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of this position, and press the right shift to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.
