peristaltic pump liquid sub-installed machine chemical corrosion resistant constant flow pump agricultural medicine essential oil cosmetic filling machine rdb-1b

This machine works without contact with the liquid, and the liquid does not pass through the pump body, flowing in the pipes. There is no contamination during the filling process, avoiding cross-contamination of liquids, and no need for cleaning. Different liquids are equipped with separate sets of pipes.

Error of 0.5%. High-temperature resistance of 170 degrees, corrosion resistance, with different corrosion-resistant liquids, special pipes of different materials, suitable for filling machines for strong corrosion and high-temperature liquid varieties, one variety with one set of pipes, hygiene, time-saving, convenient, practical.

Model: RDB-1B
Filling Quantity: 1-1000 (ml)
Applicable industries: catering, food, daily chemicals, medicine, tobacco and alcohol, chemical industry
Applicable objects: juice drinks, alcoholic beverages, mineral water, pure water, oils, hair care products, skin care products, cosmetics, cleaning and washing products, glue, oral liquid, medicine, liquid alcohol, wax, 502 glue, organic solvents, chemical liquid
Filling Accuracy: 0.5%
Material Type: Liquid
Brand: Zhengdu
Filling Head Count: 1
Dimensions: 330*330*200

Technical parameters:
Working Power Supply: AC220V
Power: 100W
Flow rate: 2000ml/minute
Delay Range: 0.01s～999.9s
Counting range: 1 to 59999 times

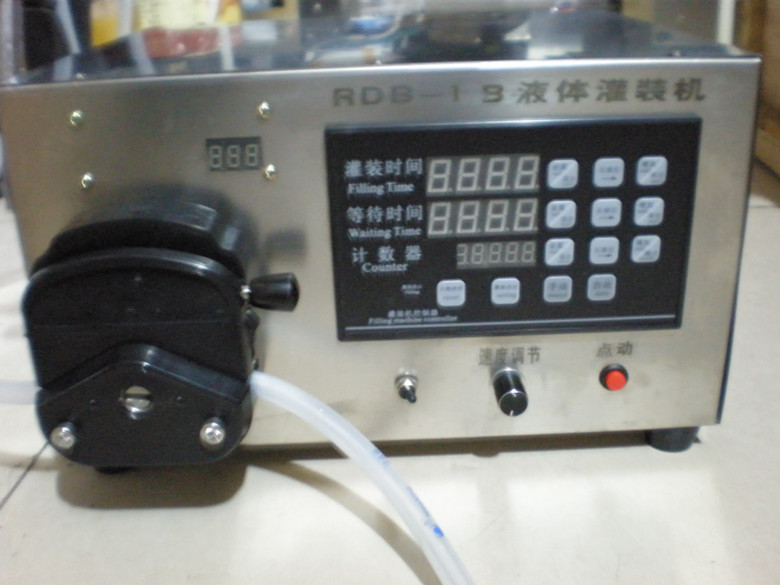

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.

Dimensions: 330*330*200mm
Weight: 10.0kg
Error: 0.5%
Filling nozzle diameter: 4mm
Body Material: Stainless Steel

Model: RDB-1B
Name: Micro-volume Liquid Multi-function Filling Machine

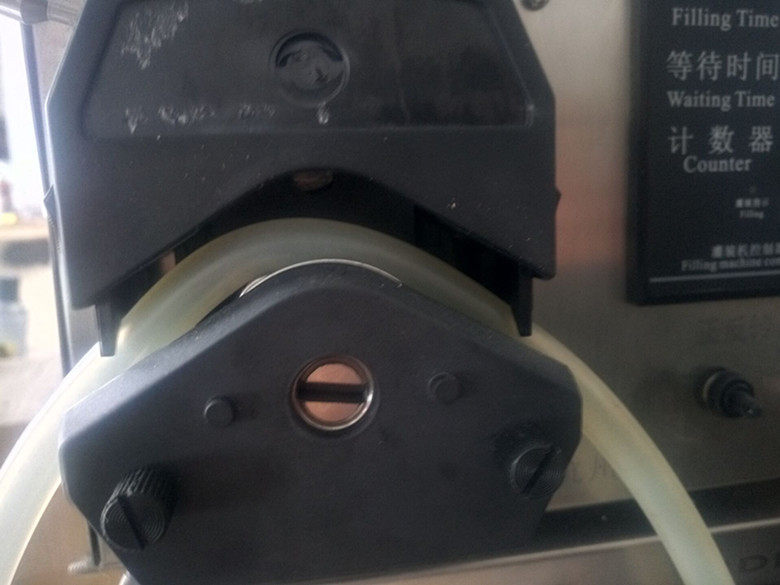

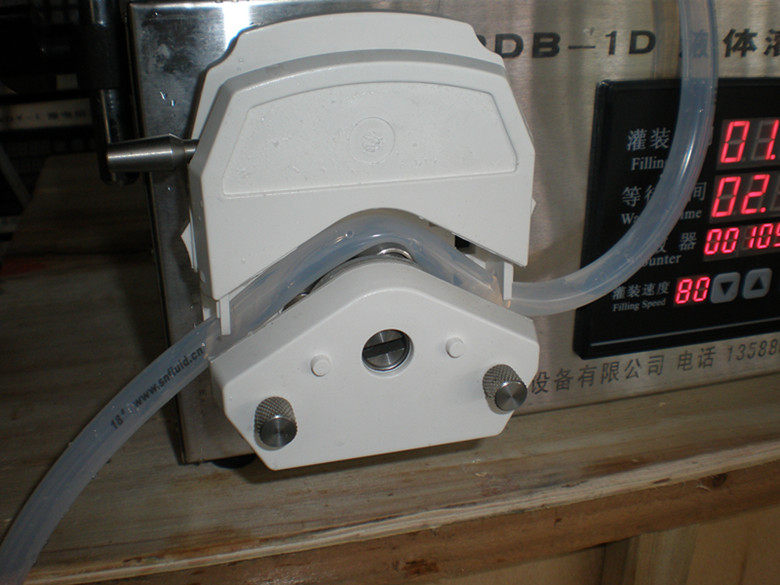

This machine uses a step motor self-suction peristaltic pump, controlled by a microcomputer to set the working time and the interval time, and it is an automatic dosing device that can automatically set the filling time. It is suitable for the filling of micro-liquids over 1ml, with small error.

Usage Method
Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps
1. Time Adjustment for Filling
A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.
Press the right shift key again to move to the specified position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.
Press the unit key to move the decimal point up and down to set the time unit.
Press the exit key to complete the setup.
2. Adjustment of Intermission Time: The same as the adjustment of filling time.
3. Timer Adjustment
Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.
Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.
4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

The unique feature of this machine is
1. Filling time can be adjusted to 999 seconds, whereas for similar products, it is only 99 seconds.
2. This machine's controller has the function of filling setting, which can quickly set the required time for the amount of filling you need. Similar machines generally do not have this function.
3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.
4. Small volumes of liquid filling, up to 3ml

5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.
6. This machine is suitable for filling organic solvents and other chemical products. The liquid does not pass through the pump body, and a silicone tube is used to deliver the liquid, which is non-polluting and corrosion-resistant.
7. This machine is suitable for filling a variety of different liquids without the need for cleaning. Simply changing the tube allows for the conversion to filling different liquids, which is convenient, does not contaminate, and one machine can fill multiple liquids.
8. This machine is based on the principle of peristaltic pumps, with an error of 0.5%, which is very stable.It is a type of filling machine with relatively high precision.
9. The filling machine is particularly suitable for liquid with strong acid and alkali, corrosive chemical solutions, and organic solvents, and can also be used for the filling of liquids with small particles.
