rdb-1 quantitative miniature small dose 502 glue chemical inspection test agent experimental agent essential oil sub-filling machine

Model: RDB-1

Working Power Supply: AC220V

Power: 50W

Dimensions: 160*250*330
Filling Head Count: 1

Filling Volume: 0.2-20 (ml)
Packing Type: Can/Bottle

Working Principle: At Normal Pressure
Applicable objects: chemical reagents, cleaning products.Oral liquid, medicine, eye drops, eucalyptus oil, flower water, 502 adhesive, etc. Small doses of 0.2ml-20ml, small bottles with small holes for filling

Flow rate: 100ml/minute for four-rollers.
Delay Range: 0.01s～999.9s
Counting range: 1 to 59999 times
Work Mode: Power-on Delay Data Program Setting

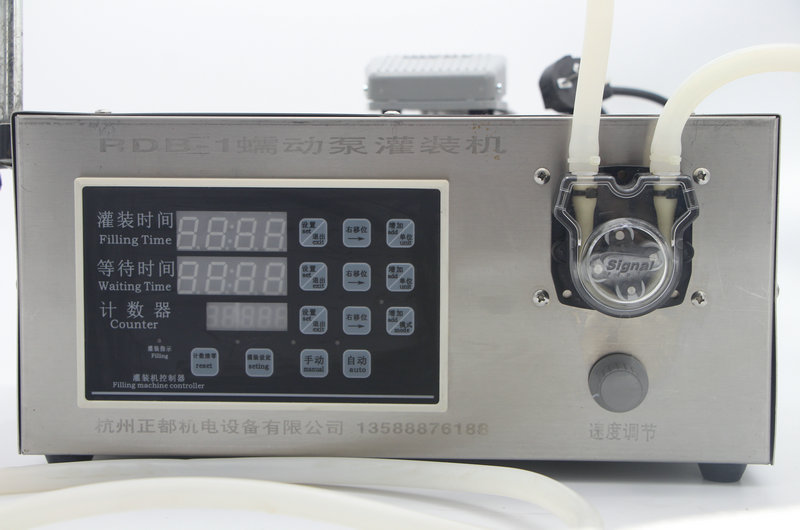

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.
Dimensions: 160*250*330mm
Weight: 6.0kg
Error: 0.5%
Filling nozzle diameter: 2mm (for bottle openings larger than 0.5mm, for smaller bottle openings, use a needle tip)

Body Material: Stainless Steel

Model: RDB-1

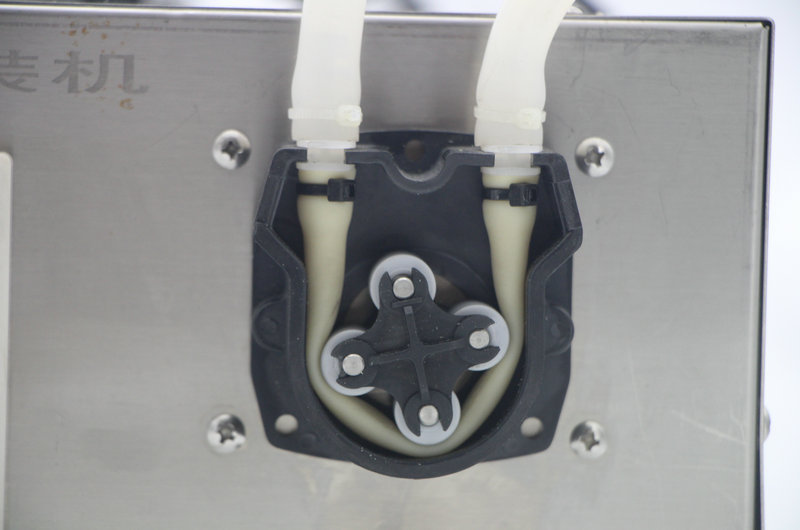

This machine uses a micro step motor self-suction peristaltic pump, controlled by a microcomputer to set the working time and the interval time, and it is an automatic dosing device that can automatically set the filling time. It is suitable for the filling of micro-liquids over 0.2ml, with small error.

The unique feature of this machine is
1. Filling time can be adjusted to 999 seconds, whereas that of similar products is usually only 99 seconds.
2. This machine's controller has the function of filling setting, which can quickly set the required time for the amount of filling you need. Similar machines generally do not have this function.
3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.
4. Small volumes of liquid filling, as little as 0.2ml
5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.
