industrial constant flow pump peristaltic pump quantitative ink mute liquid booster pump self-priming pump filling machine rdb-1a

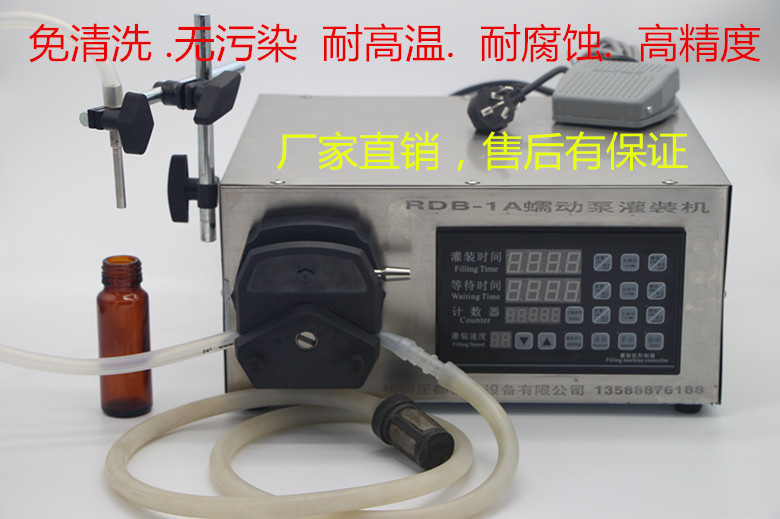

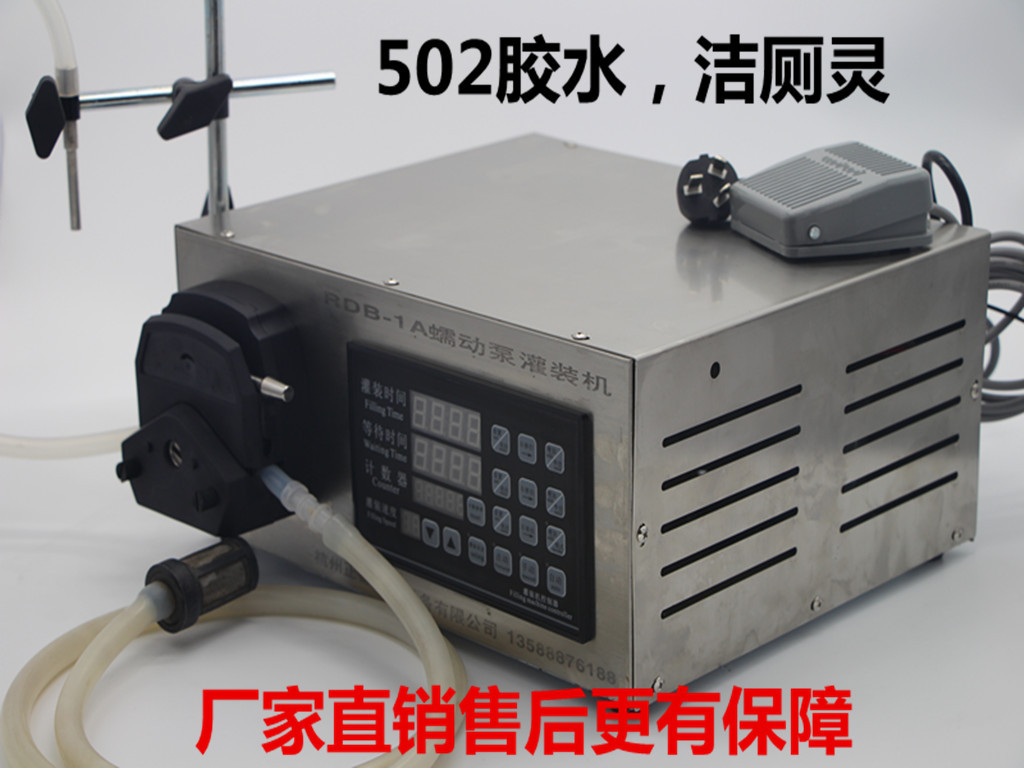

Name: Micro-volume Liquid Multi-function Filling Machine

Model: RDB-1A

This machine uses a micro-motor peristaltic pump with self-suction, controlled by a microcomputer to set the working and rest periods, and to automatically dispense a precise amount of liquid. It is designed to set the tube filling time automatically. It is suitable for filling liquids over 5ml with small error margins.

Working Power Supply: AC220V

Power: 80W

Flow rate: 2000ml/minute,

Delay Range: 0.01s～999.9s

Counting range: 1 to 59999 times

Work Mode: Power-on Delay Data Program Setting

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.

Dimensions: 150*350*350mm

Weight: 7.0kg

Error: ±1.0%

Filling nozzle diameter: 4mm

Body Material: Stainless Steel

Instructions: Prepare the liquid to be filled. Connect the 220V power supply, adjust the filling time and the interval time, set the timer. First, press the point-and-click switch to test the machine. If the motor operates normally, press the manual button and use the foot switch to control the filler. Press once to operate the filler once. Press the automatic button, and the filler will automatically and continuously operate according to the set time.

Steps:

1. Time Adjustment for Filling

A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press the right shift key again to move to the specified position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.

Press the unit key to move the decimal point up and down to set the time unit.

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

The unique feature of this machine is:

1. The filling time can be adjusted within a wide range, from 0 to 999 seconds.

2. The controller of this machine has the function of filling setting, which can quickly set the required time for the amount of filling you need;

3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.

4. Adopting the peristaltic pump principle, with an error of 1%, it is very stable and suitable for the filling of small amounts of liquid.

5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.

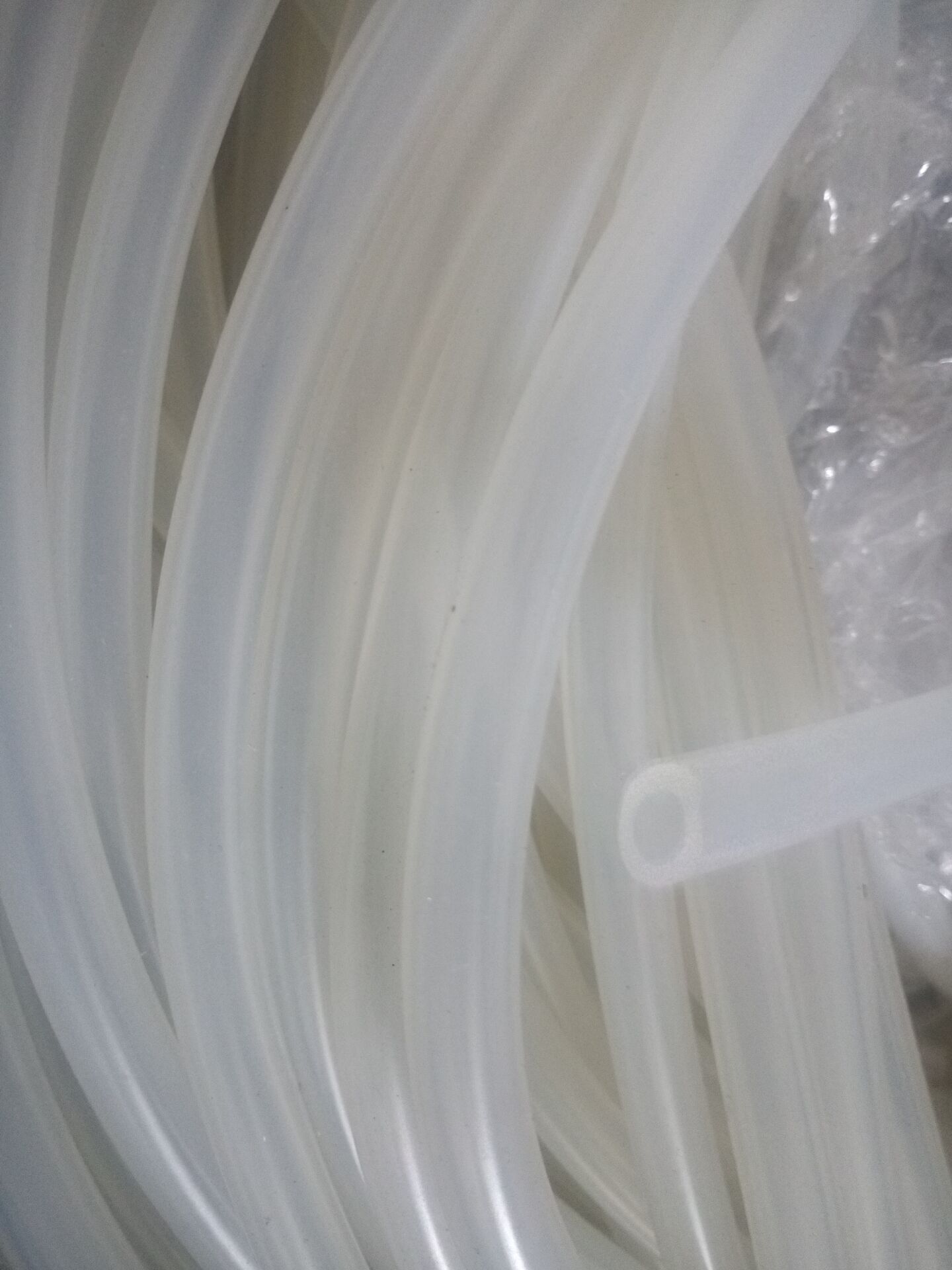

6. This machine is suitable for filling organic solvents and other chemical products. The liquid does not pass through the pump body, but is delivered through a silicone tube, which prevents contamination and corrosion resistance.

7. This machine is suitable for filling a variety of different liquids. By simply changing the tube, it can be converted to fill different liquids, which is convenient, does not contaminate, and one machine can fill multiple liquids.

8. Especially suitable for strong acid-alkali, corrosive chemical solutions, or organic solvents, liquids with small particles, etc.

Value-added tax plus 10%, ordinary invoice plus 1%

We can customize filling machines to meet various specifications, and our distributors can contact us directly for negotiations.
