foliar fertilizer stainless steel magnetism forle pumps sub-installed machine chemical organic solvent high temperature corrosion resistant filling machine cy-1a

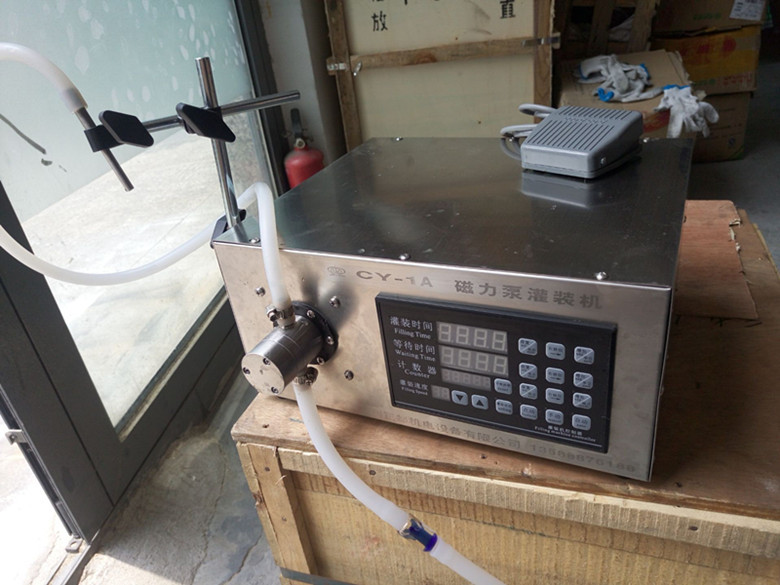

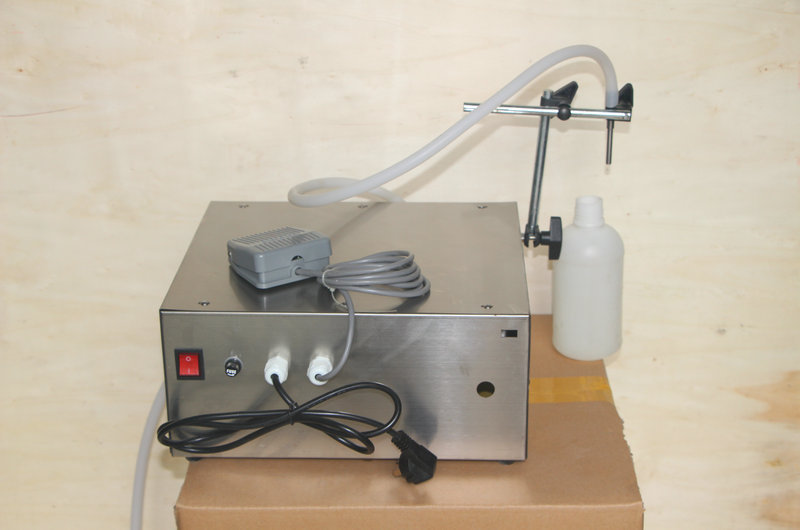

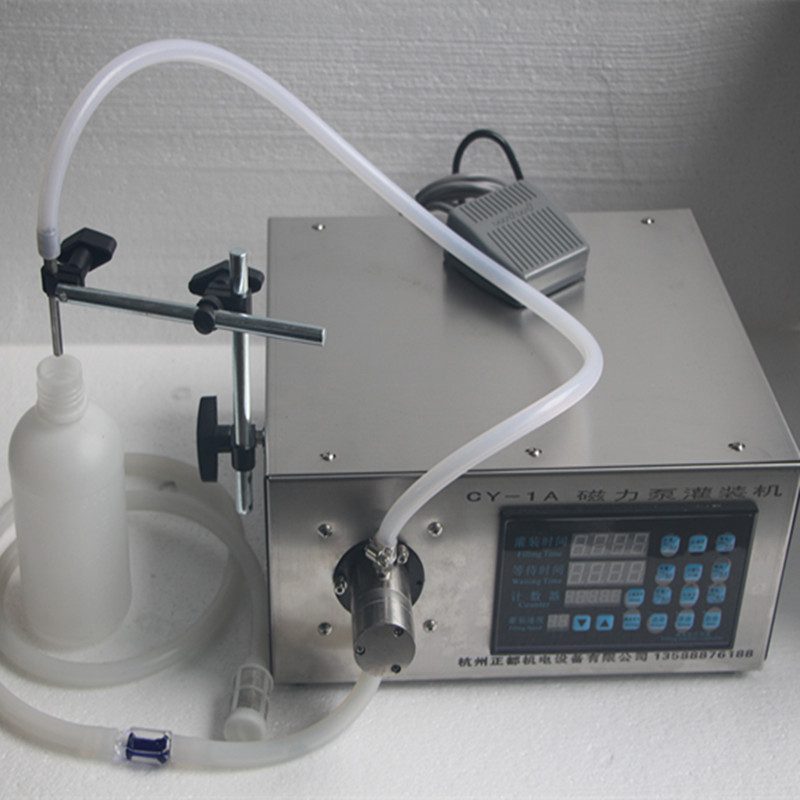

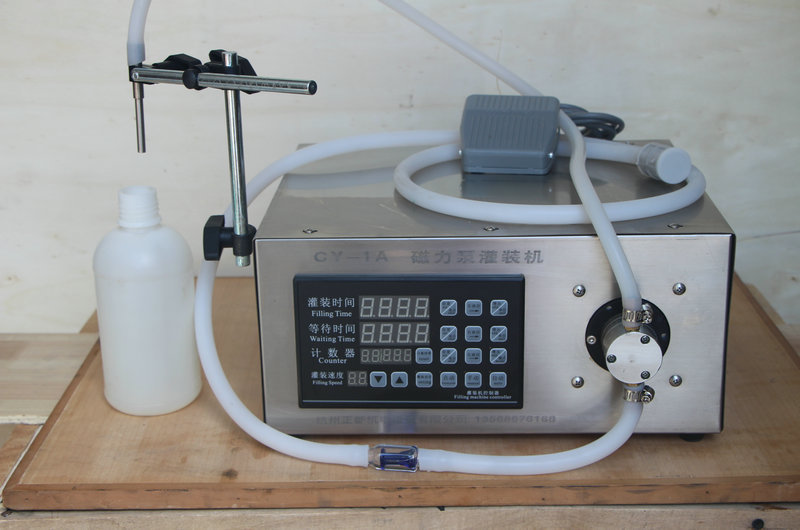

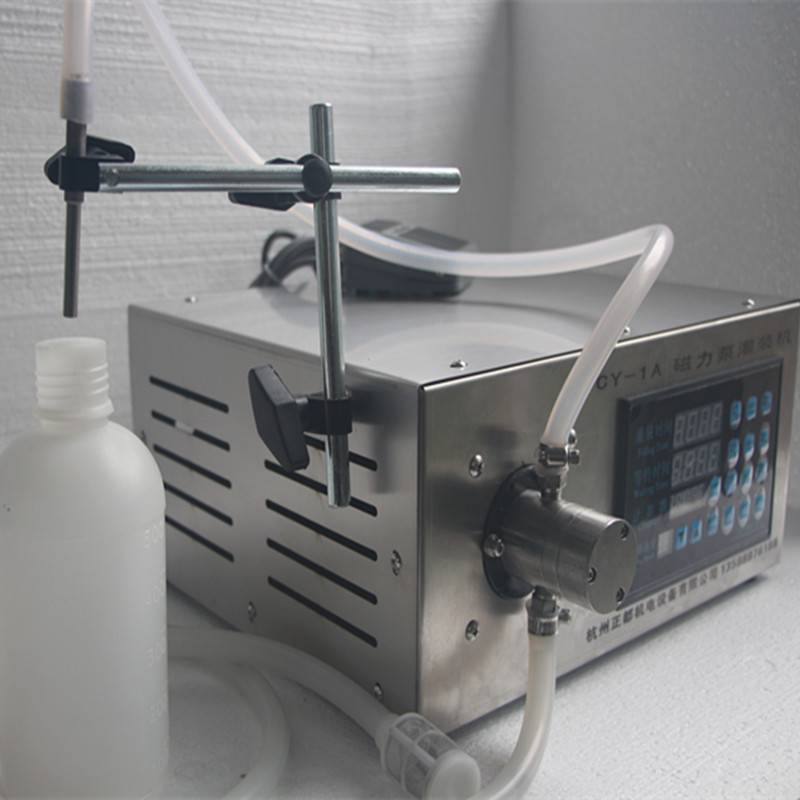

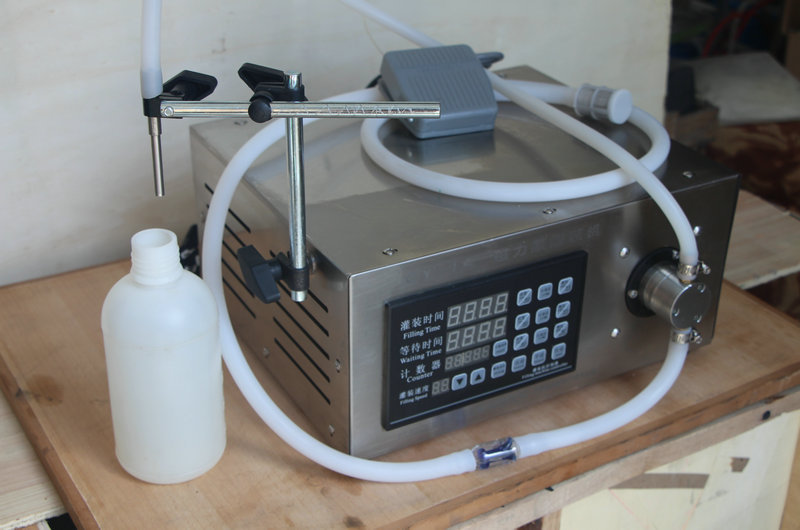

Model: CY-1A
Filling Accuracy: ± 1 (%)
Applicable objects: juice drinks, carbonated drinks, alcoholic beverages, mineral water, pure water, oils, hair care products, skin care categories, cosmetics, cleaning products, oral liquid, medicine, perfume, essential oil, flower water, fuel additives, gasoline additives, organic solvents
Applicable industries: catering, food, daily chemicals, medicine, chemistry
Material Type: Liquid

Technical parameters:
Flow rate: 3 liters per minute
Working Power Supply: AC220V
Power: 80 W

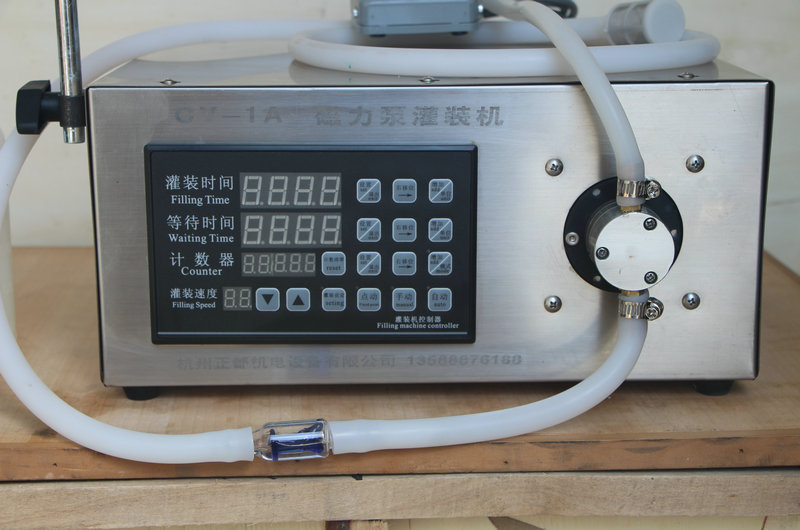

Data program settings Display mode: Upper row shows filling time, middle row shows interval time, lower row shows count display
Dimensions: 160*280*330mm
Weight: 8kg
Filling nozzle diameter: 4mm
Body Material: Stainless Steel
Pump body material: Stainless steel

The characteristics of the Magnetic Pump Liquid Filling Machine:

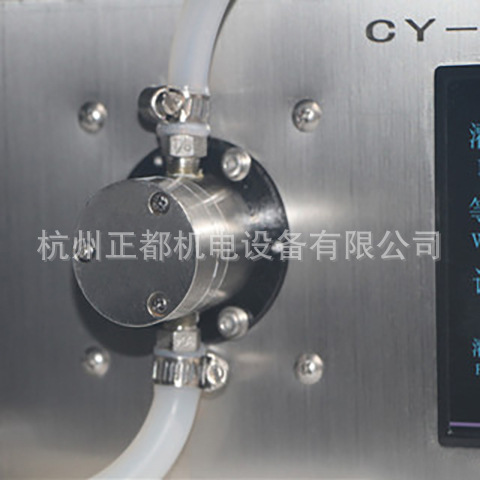

It is a control method that uses microcomputers to control factors such as filling time and motor speed of a micro pump, achieving a uniform and repeatable error-small liquid filling method. It is widely applied in industries such as pharmaceuticals, chemicals, food, beverages, oils, cosmetics, etc. The gear pump head of the magnetic pump filler is driven by magnetic force, and the pump wheel is not connected to the motor by a shaft, so there is no need to worry about damage to the shaft seal or overloading and burning of the pump. The pump head is made of stainless steel, which is resistant to acid and alkali, corrosion, and can be used to fill almost all fluid that can flow. It is especially suitable for filling oils, detergents, acid and alkali solutions, and highly corrosive liquids. The performance is stable and reliable, and the service life is long.

This machine uses special materials corrosion-resistant stainless steel micro-suction magnetic pump, controlled by a microcomputer to set the working time and the interval time, and to quantitatively automatically fill, automatically set the filling time equipment. It can be used to fill beverages, wine, daily chemicals, cooking oil, medicine, pesticides and other various liquids. Suitable for corrosive liquids, acid and alkali resistant, corrosion resistant. This machine has a simple structure and convenient operation. It can be microcomputer controlled, manually controlled, and also foot controlled filling. And the material mouth can be extended, the skin tube can be freely moved to fill, and can meet the capacity of more than 5 grams, it is a reliable and durable filling equipment. It is often suitable for small enterprises, small shops, and families. It can be customized to extend the skin tube to move filling, convenient and practical.

Usage Method
Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps
1. Time Adjustment for Filling
A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.
Press the right shift key again to move to the specified position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.
Press the unit key to move the decimal point up and down to set the time unit.
Press the exit key to complete the setup.
2. Adjustment of Interval Time: The same as the adjustment of filling time. 3. Adjustment of Timer.
Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.
Press the mode key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously. 4. Filling setting Press the filling setting key, the filling machine will start working. When the amount you need is reached, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

Model: CY-1A (This model is a self-priming magnetic pump made of corrosion-resistant stainless steel.)

Features:
1. Adjustable time range is large. 0.01-999.9 seconds
2. Corrosion-resistant and high-temperature resistant, the pump body is made of 316 stainless steel, which can be filled with corrosive liquids.
3. Metering Accuracy
4. Quickly set the filling time
5. Easy to clean, when filling different liquids, you only need to remove the filling head to clean it, without opening the machine box.
6. With the function of preventing leakage
7. Chinese panel display, intuitive
8. The use of microcomputer control makes operation simpler, with the ability to operate using automatic, manual, and foot-operated methods. This is more convenient and more effective.
The size of the discharge nozzle can be replaced according to the size of your bottle opening.
The motor power is large, with a large flow rate. The flow rate of this machine is 3000ml/minute.
