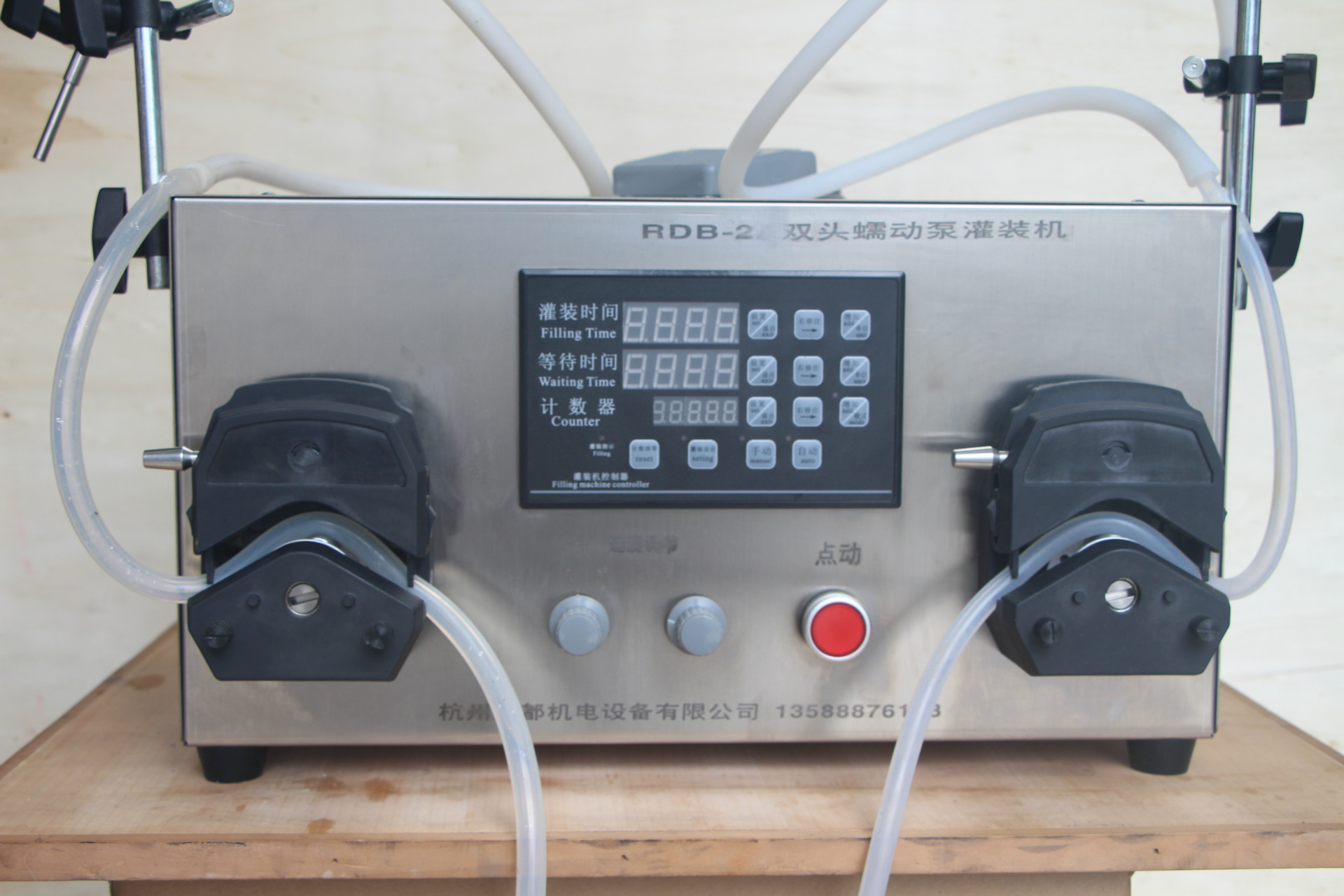

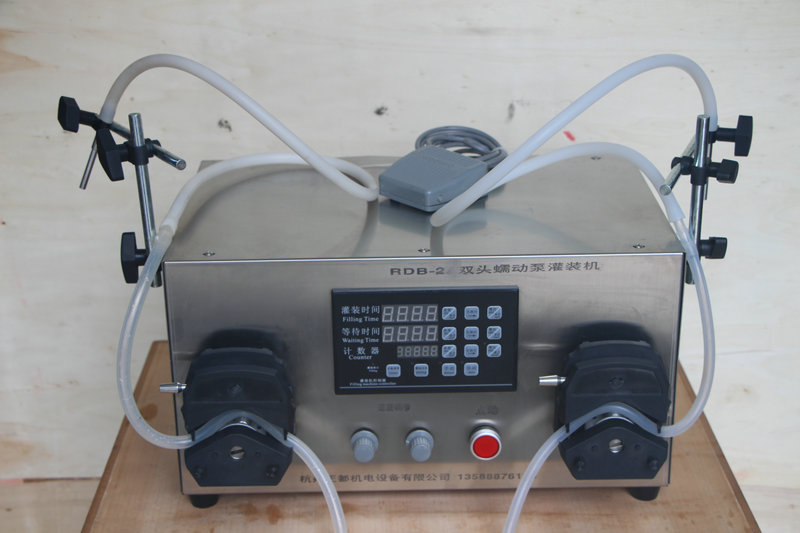

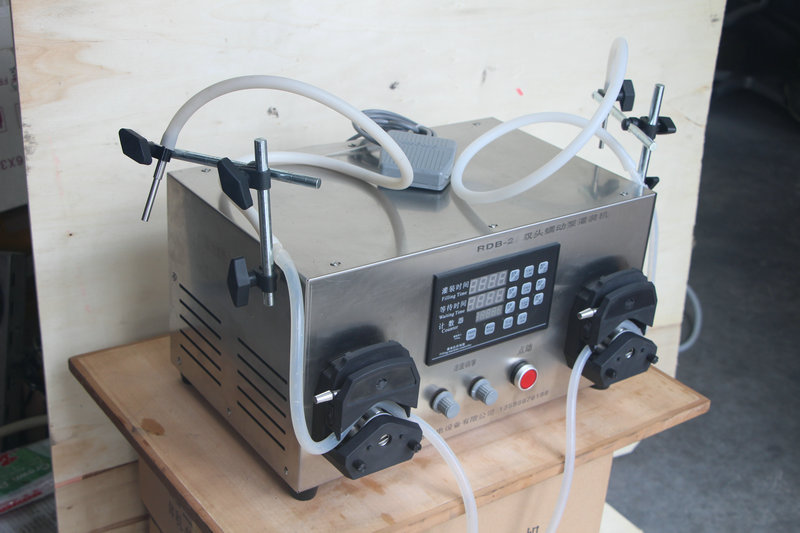

rdb-2a double-headed filling machine dual-channel liquid adding machine peristaltic pump filling machine double-headed liquid sub-installed machine

Technical parameters:
Working Power Supply: AC220V
Power: 150 W
Flow rate: 2*2000ml/minute,
Delay Range: 0.01s～999.9s
Counting range: 1 to 59999 times
Work Mode: Power-on Delay Data Program Setting
Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.
Dimensions: 250*350*500mm,
Weight: 12.5kg
Error: 1%
Filling nozzle diameter: 4mm
Body Material: Stainless Steel

Name: Dual-Head Liquid Multi-Functional Filling Machine
Model: RDB-2
This machine uses a self-priming peristaltic pump, controlled by a microcomputer to set the working and pause times, and to automatically dispense a precise volume of liquid. It is suitable for the filling of liquids over 1ml with small error margins.

Instructions: Prepare the liquid to be filled. Connect the 220V power supply, adjust the filling time and the interval time, set the timer. First, press the point-and-click switch to test the machine. If the motor operates normally, press the manual button and use the foot switch to control the filler. Press once to operate the filler once. Press the automatic button, and the filler will automatically and continuously operate according to the set time.
Steps
1. Time Adjustment for Filling
A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.
Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.
Press the unit key to move the decimal point up and down, and set the time unit
Press the exit key to complete the setup.
2. Adjustment of Intermission Time: The same as the adjustment of filling time.
3. Timer Adjustment
Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.
Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.
4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

The unique feature of this machine is
1. Filling time can be adjusted to 999 seconds, whereas for similar products, it is only 99 seconds.
2. This machine's controller has the function of filling setting, which can quickly set the required time for the amount of filling you need. Similar machines generally do not have this function.
3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.
4. Small volumes of liquid filling, up to 3ml
5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.
6. This machine is suitable for filling organic solvents and other chemical products. The liquid does not pass through the pump body, and is delivered through a silicone tube, which prevents contamination and is corrosion-resistant.
7. This machine is suitable for filling a variety of different liquids, without the need for cleaning. By simply changing the tubes, it can be used to fill different liquids, which is convenient, without contamination. One machine can be used to fill a variety of liquids.
This machine is based on the principle of peristaltic pumps, with an error of 0.5%, which is very stable.
9. The filling machine is particularly suitable for liquid with strong acid and alkali, corrosive chemical solutions, and organic solvents, and can also be used for the filling of liquids with small particles.
