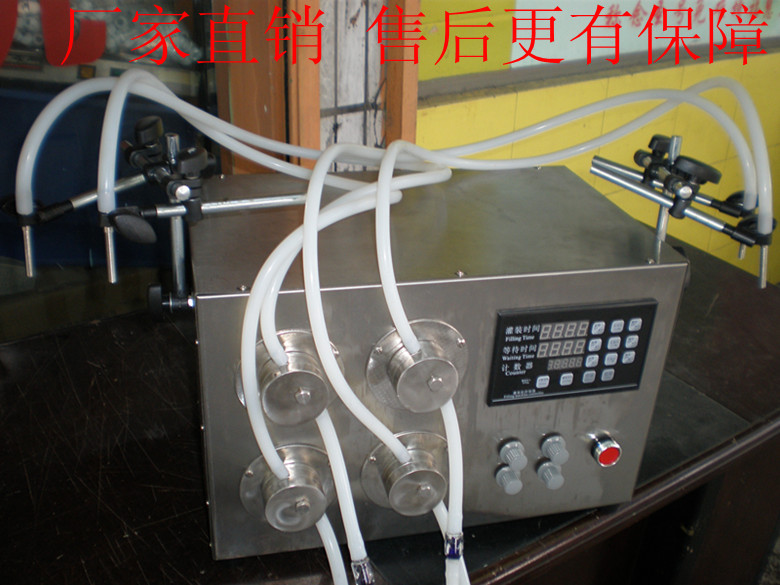

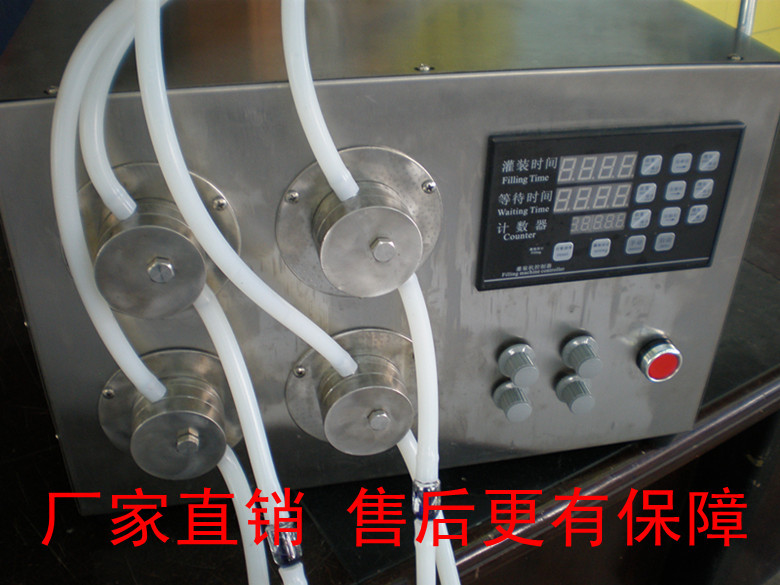

4-head filler liquid filling machine 4-head stainless steel filling machine 4-head magnetism forle pumps filling machine cy-4a

Name: Stainless Steel Magnetic Pump Microcomputer Liquid Multi-Functional Filling Machine

Features:

1. Adjustable time range is large. 0.01-999.9 seconds

2, corrosion-resistant, the pump body is made of 316 stainless steel, which can be filled with corrosive liquids.

3, Quickly set the filling time

4, Easy to clean, when filling different liquids, you only need to remove the filling head to clean, without opening the machine box.

5, with leak-proof function

6, CNC panel display, intuitive

7, using microcomputer control, operation is simpler, can be operated by automatic, manual, and foot-operated methods.

8, the size of the discharge mouth can be changed according to the size of your bottle opening at will.

9, the motor power is large, and the flow rate is high. The flow rate of this machine is 3200ml/minute.

The characteristics of the Magnetic Pump Liquid Filling Machine:

It is a control method that uses microcomputers to control factors such as filling time and motor speed of a micro pump, achieving a uniform and repeatable error-small liquid filling method. It is widely applied in industries such as pharmaceuticals, chemicals, food, beverages, oils, cosmetics, etc. The gear pump head of the magnetic pump filler is driven by magnetic force, and the pump wheel is not connected to the motor by a shaft, so there is no need to worry about shaft seal damage or leakage or damage to the pump due to excessive load. The pump head is made of 316L stainless steel, which is resistant to acid and alkali, corrosion, especially suitable for oil, detergent, acid and alkali solutions, and high-corrosive liquid filling. The performance is stable and reliable, and the service life is long.

The machine has a simple structure and is easy to operate.Can be microcomputer controlled, manual control, and also foot pedal control for fillingThe filling device can be extended with a longer nozzle, and the skin tube can be moved freely for filling, which can meet the capacity of more than 5 grams. It is a reliable and durable filling equipment. It is often used in small enterprises, small shops, and families. It can be customized with an extended skin tube for moving filling, which is convenient and practical.

Technical parameters:

Flow: 4*3 liters per minute

Working Power Supply: AC220V

Power: 300W

Delay Range: 0.01s～999.9s

Counting range: 1 to 59999 times

Work Mode: Power-on Delay Data Program Setting

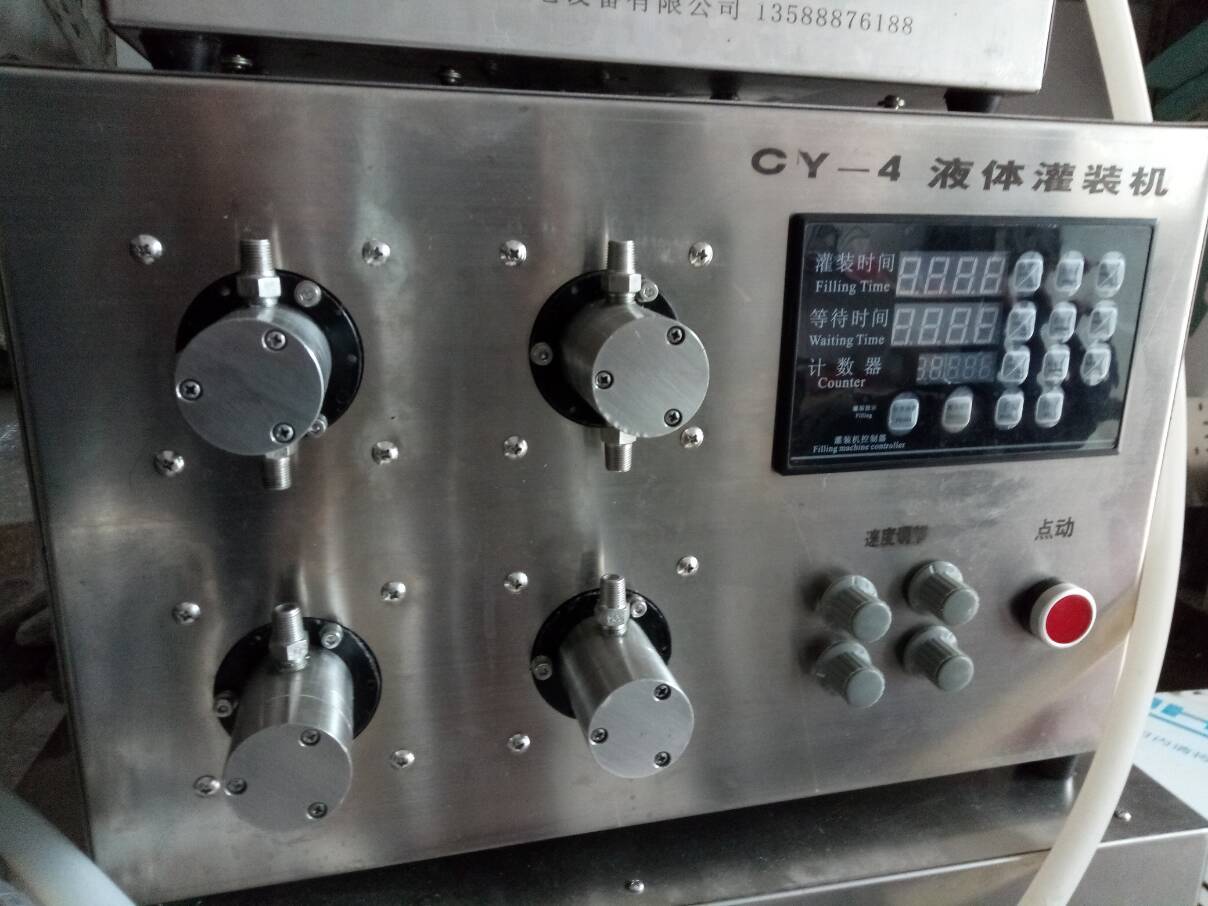

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.

Dimensions: 280*300*460mm

Weight: 20kg

Filling nozzle diameter: 4mm

Body Material: Stainless Steel

Pump body material: Stainless steel

Instructions: Prepare the liquid to be filled. Connect the 220V power supply, adjust the filling time and the interval time, set the timer. First, press the point-and-click switch to test the machine. If the motor operates normally, press the manual button and use the foot switch to control the filler. Press once to operate the filler once. Press the automatic button, and the filler will automatically and continuously operate according to the set time.

Steps

1. Time Adjustment for Filling

A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.

Press the unit key to move the decimal point up and down, and set the time unit

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.
