rdb-1 micro sub-installed machine laboratory biochemical detection diagnostic medium reagent penicillin bottle filling machine

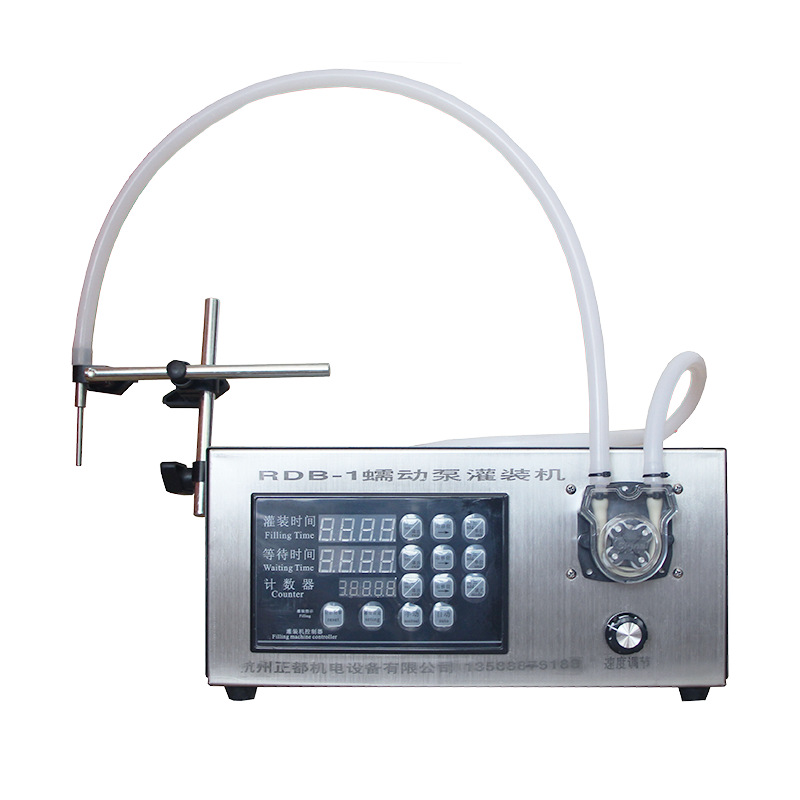

Name: Micro-volume Liquid Multi-function Filling Machine

Model: RDB-1

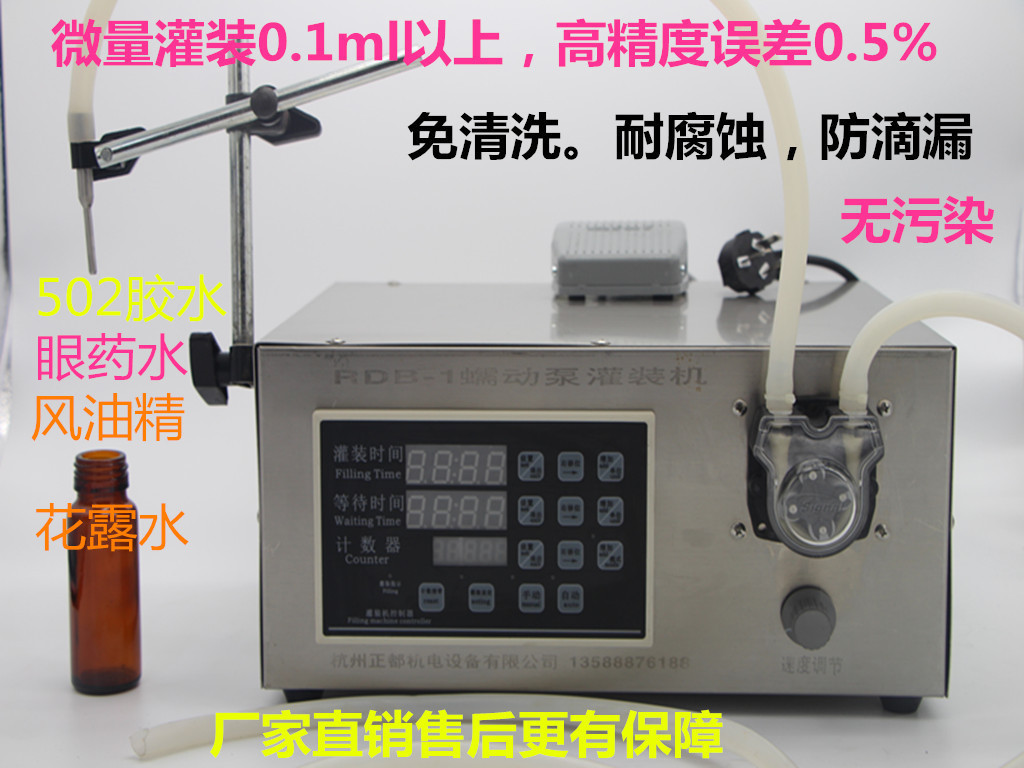

This machine uses a micro step motor self-suction peristaltic pump, controlled by a microcomputer to set the working time and the interval time, and it is an automatic dosing device that can automatically set the filling time. It is suitable for the filling of micro-liquids over 0.5ml, with small error.

Technical parameters:

Working Power Supply: AC220V

Power: 50W

Flow: 100ml/minute for four-rollers

Delay Range: 0.01s～999.9s

Counting range: 1 to 59999 times

Work Mode: Power-on Delay Data Program Setting

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.

Dimensions: 160*250*330mm

Weight: 6kg

Error: 0.5%

Filling nozzle diameter: 2mm, can be matched with 0.5mm or larger.

Body Material: Stainless Steel

Usage Method

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps

1. Time Adjustment for Filling

A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press the right shift key again to move to the specified position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.

Press the unit key to move the decimal point up and down to set the time unit.

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

The unique feature of this machine is

1. Filling time can be adjusted from 0 to 999 seconds

The controller of this machine has the function of filling setting, which can quickly set the required time for the amount of filling you need.

3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.

4. Small volumes of liquid filling, as little as 0.2ml

5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.
