wdy-d soup beverage juice yellow liquor disinfectant glass mineral water antifreeze liquid car wash liquid can filling machine

Working Power Supply: AC220V

Power: 80W
Delay Range: 0.01s～999.9s
Counting range: 1 to 59999 times
Work Mode: Power-on Delay Data Program Setting

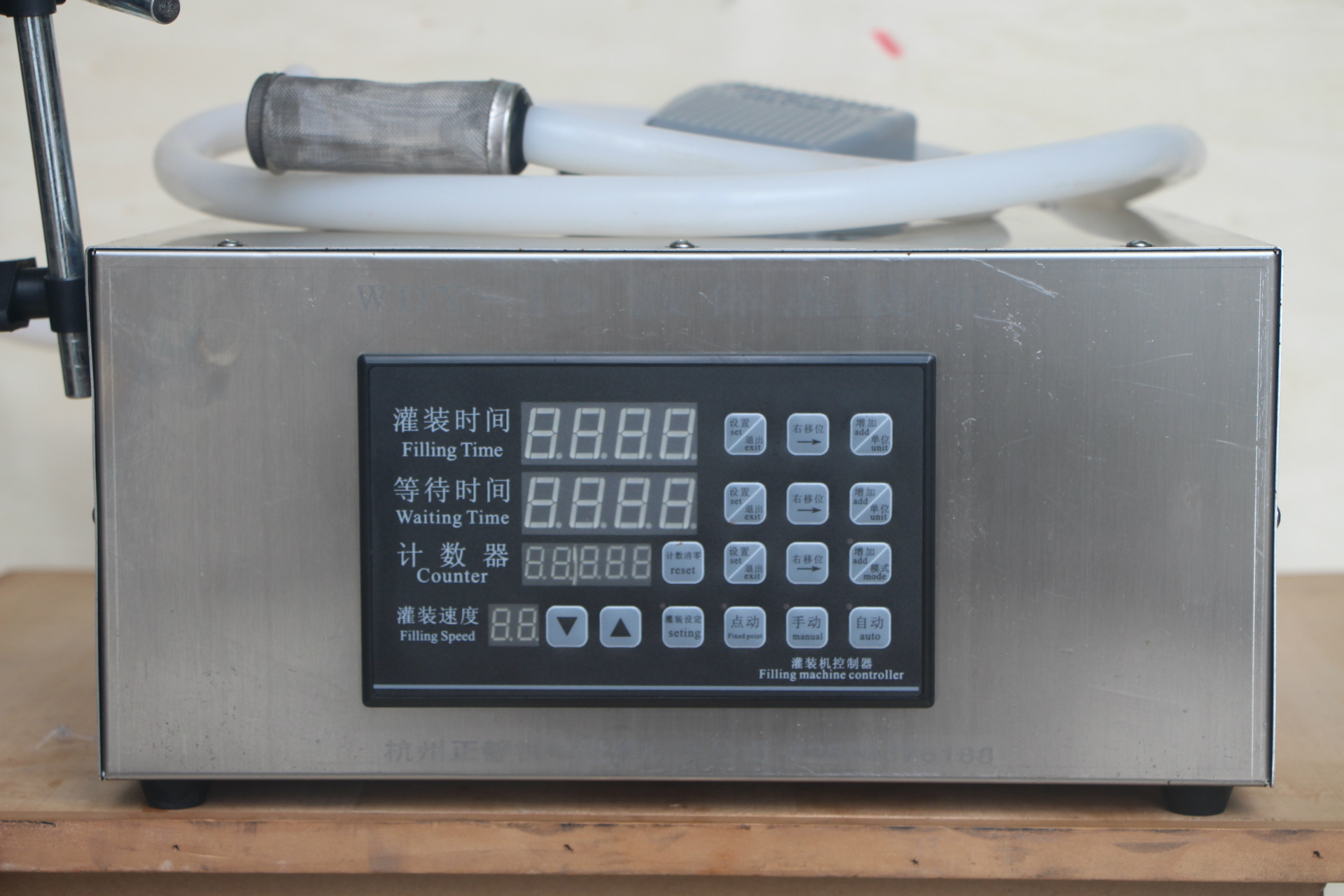

Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.
Dimensions: 160*300*330mm
Weight: 10kg

Filling Head Diameter: Outer Diameter 8mm (Customizable to 6mm upon request)
Body Material: Stainless Steel
Instructions: Prepare the liquid to be filled. Connect the 220V power supply. Adjust the filling time and the interval time. Set the timer. First, press the point-and-click switch to test the machine. Ensure that the motor is operating normally. Press the manual button and use the foot switch to control the filler. Press once to operate the filler once. Press the automatic button, and the filler will automatically and continuously operate according to the set time.

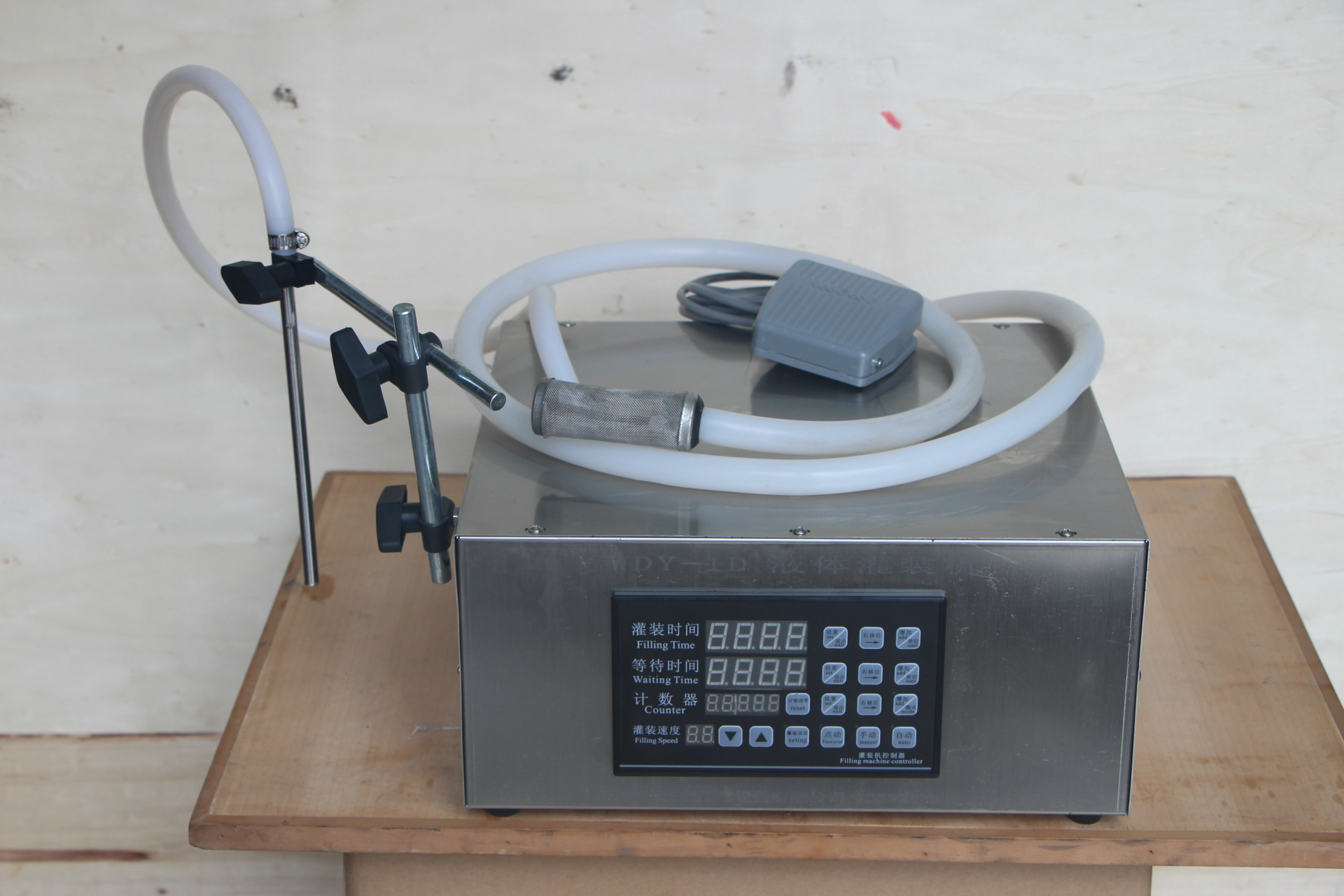

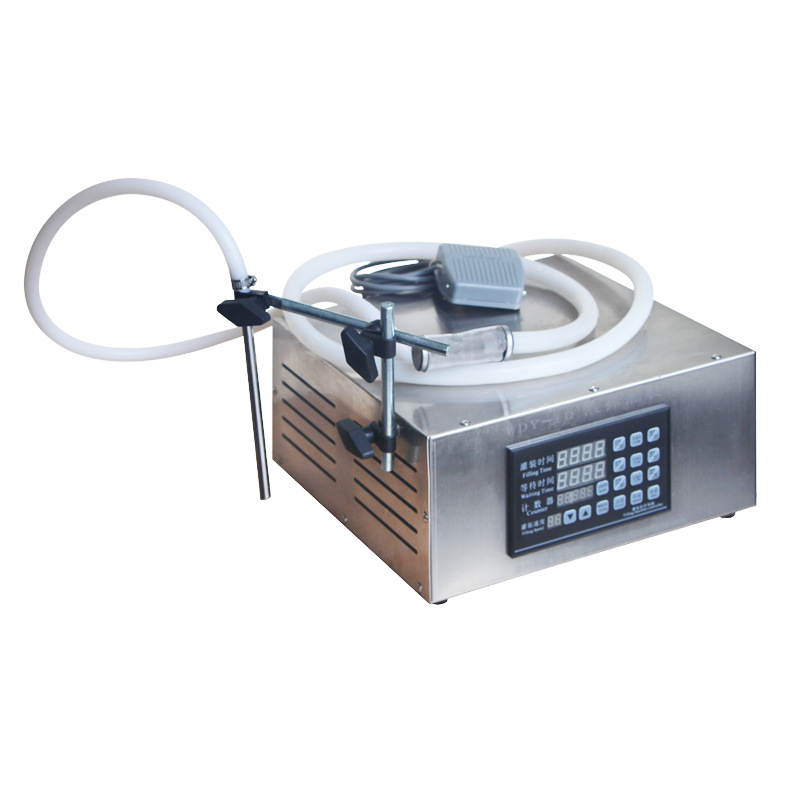

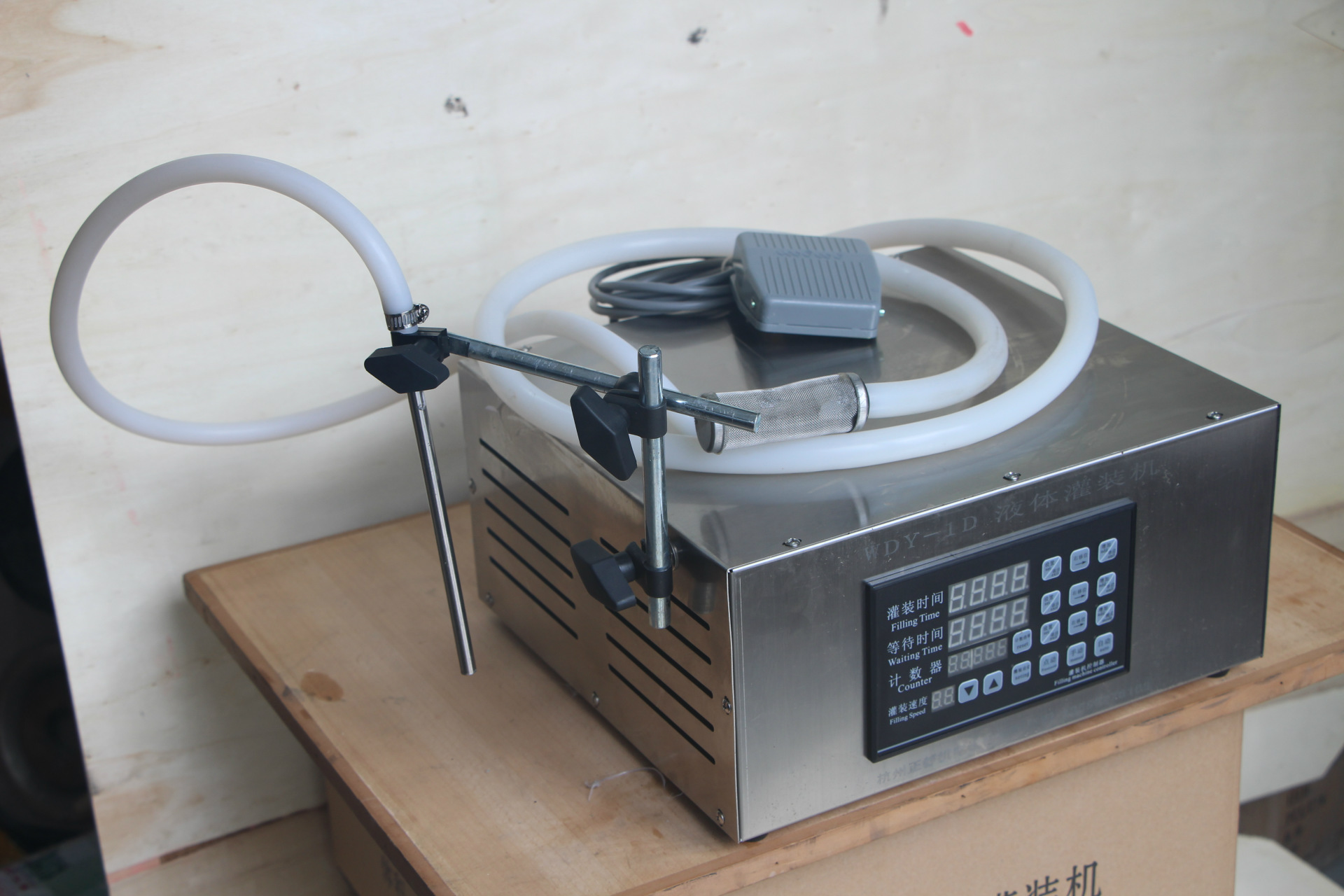

Name: Microcomputer Liquid Multi-Functional Filling Machine
Model: WDY-1D
This machine uses a micro-suction diaphragm pump, controlled by a microcomputer to set the working and rest periods, and it is an automatic, quantifiable filling device with an automatic tube setting time.It can be used to fill antifreeze, glass cleaner, drinks, wine, oil, daily chemicals, cooking oil, medicine, pesticides, and other kinds of liquids. Suitable for corrosive liquids. Resistant to acid and alkali.This machine has a simple structure and is easy to operate. It can also extend the material nozzle and move the skin tube freely for filling, making it a reliable and durable filling equipment. It is resistant to corrosion and acid and alkali, and is often suitable for small enterprises, small shops, and families. It can be custom-made to extend the skin tube for mobile filling, which is convenient and practical.

Steps

1. Time Adjustment
A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.
Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.
Press the unit key to move the decimal point up and down, and set the time unit
Press the exit key to complete the setup.
2. Adjustment of Intermission Time: The same as the adjustment of filling time.
3. Timer Adjustment
Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.
Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.
4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.
