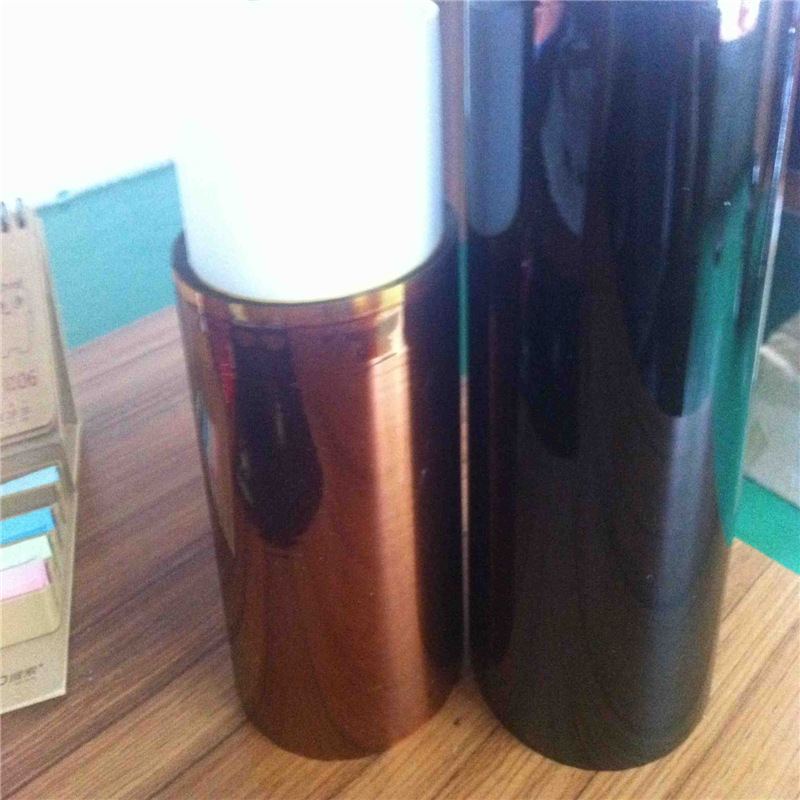

anti-static pi tape anti-static golden finger tape esd polyimide tape non-residual adhesive delivery is fast

Warm Tip:

The images, prices, and product attributes are for reference only and should not be used as a basis for transactions.

Please refer to the actual item for details. Welcome to call for consultation!

★★★ Sample for Free Testing ★★★

 Sample Description: Samples are available for free, and they will be sent out the same day! (For special materials, a sample fee is required.)

Direct factory sales of high-temperature adhesive tape, can produce different specifications and widths according to customer requirements!

Specifications you report, we produce the products!

From 10MM wide to 50MM/60MM/100MM/300MM/up to 500MM

etc., etc.

All sizes and widths can be produced, as promised by the manufacturer!

Ordered on the same day, shipped on the same day!

Workers are sufficient, and supplies are abundant!

                                     Custom-made without processing fee! No setup fee, no mold fee!

This factory can custom-make according to customer requirements, including slitting, rewinding, die-cutting, and stamping (the tape specifications can be made according to any customer requirements, without any restrictions on the number of meters).

Product Attributes:

      Color: Amber

      Substrate: Polyimide

      Thickness: 0.06 0.12 (mm)

      Adhesion force: 6.5 (N/25mm)

      Tensile strength: 14 (kg/25mm)

      Elongation: 65%

      Temperature resistance: 280°C (30 minutes without residual glue)

      Voltage Resistance: 4,000 Volts

      Length: 33 (36 yards)

      Width: 0-500mm (Customizable according to customer's requirements)

      The above data are the average values obtained through multiple tests conducted by our company using recognized testing methods. If the customer has any special requirements, please contact our company, and we will provide you with further services.

Product Features:

 Anti-static gold finger tape, also known as PI tape or polyimide tape, is made of polyimide film as the base material. It is coated with high-performance organic silicon pressure-sensitive adhesive on one side, and there are two types of materials: single-sided fluoroplastic release material with or without composite materials. The coating precision is ±2.5um, without scratches, pulling strands, etc. The cutting property is good, easy to punch and die cutting processing, and has excellent high-temperature resistance and solvent resistance!

     Can be customized with low static and flame-retardant polyimide tape! High-temperature surface reinforcement protection, metal material high-temperature spray painting, spray sand painting masking surface protection, after high-temperature spray painting baking, easy to peel without residual glue. It has high temperature resistance, high tensile strength, good chemical resistance, no residual glue, and meets the advantages of ROHS environmental protection and halogen-free.

Product Usage:

      1. High-temperature spraying and powder coating masking for cases and steel cups, etc.

      2. High-temperature shielding for PCB boards;

      3. Soldering and gold plating on PCB boards;

      4. LED Matrix, LED displays, and electrical LED display panels, etc., are high-temperature encapsulated to shield

      5. In the electronic and electrical industry, it can be used for H-level motors and transformer coil insulation wrapping with high requirements, high-temperature resistance at the coil ends, temperature measurement heat resistance protection, capacitors and wire winding, and other pasting insulations under high-temperature working conditions. In the circuit board manufacturing industry, it can be used for electronic protection pasting, especially suitable for SMT temperature resistance protection, electronic switches, PCB board gold fingers protection, electronic transformers, relays, and other electronic components that require high-temperature resistance and moisture proof protection.
