| stc-1000 | ¥0.0 | 99999 table available |
|
A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.
Packaging information
CTN Size: 42 × 38 × 38 cm
G.W./CTN:17 kg
QTY/CTN:100 table/carton
This product is available in 220V and 110V. Please note when placing your order. If no note is made, we will default to sending the 220V version.
Product Introduction:
|

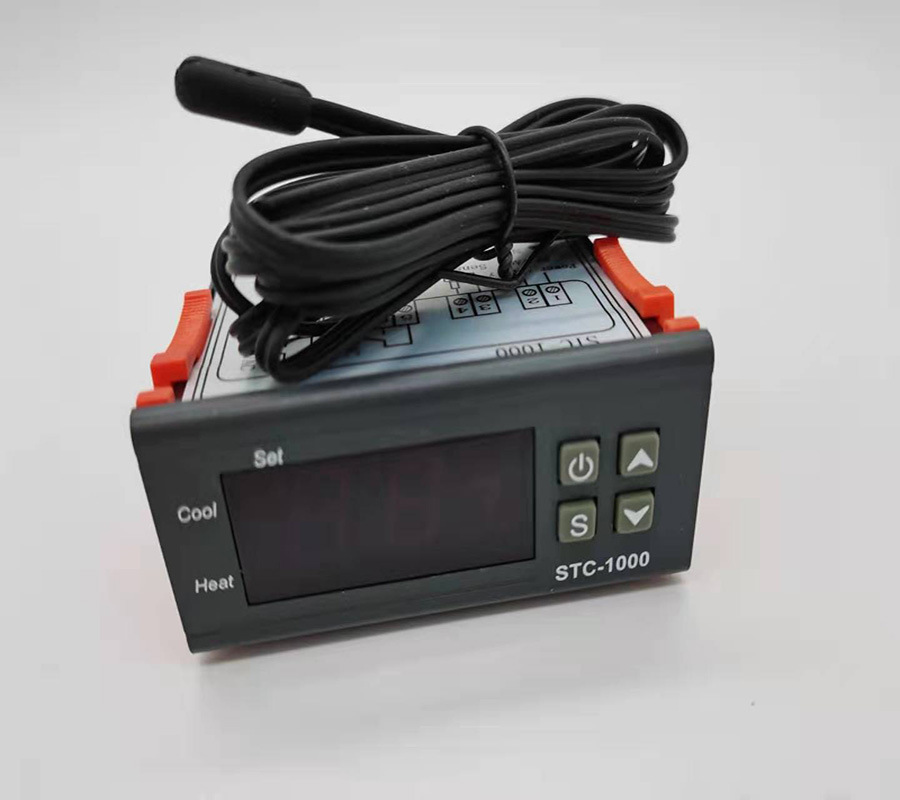

STC-1000
I. Product Overview:
Suitable for incubators, seafood machines, seafood pools, chiller machines, and equipment that requires automatic switching between cooling and heating.
Product Features
1. Auto-switching between cooling and heating modes.
2. Temperature Control by Back-and-Forth Deviation;
3. Temperature Calibration;
4. Refrigeration control output protection.
5. Overrange and sensor fault alarm.
Section Three: Main Features
Cooling, heating, single sensor, temperature calibration.
Section 4: Technical Specifications
Measuring range: -50℃～99℃;
Temperature resolution: 0.1℃.
Temperature measurement accuracy: ±1°C; (-50°C to 70°C).
☆ Power consumption of the entire machine: less than 3W;
Sensor: 1 piece of NTC sensor
Power supply: 220VAC ±10%, 50/60Hz;

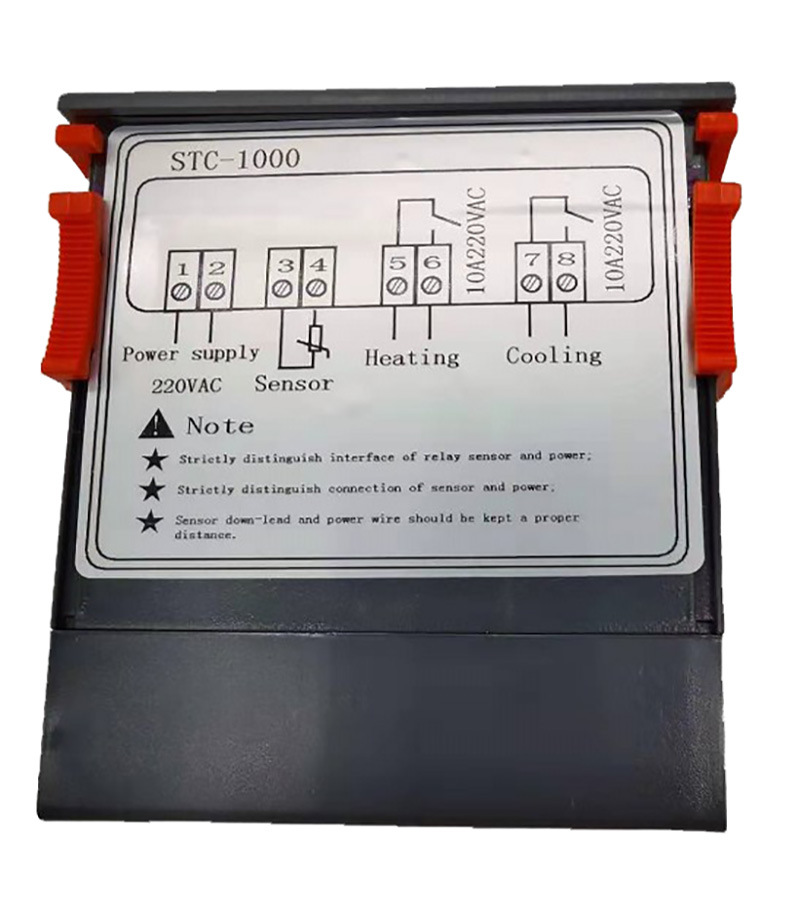

Relay Output Capacity:
Cooling: 10A/250VAC, Heating: 10A/250VAC,
Front panel protection level: IP65;
☆ Operating temperature: 0℃ to 60℃;
Storage temperature: -30°C to 75°C;
Relative Humidity: 20～85％ (No Condensation).
Specifications and Dimensions

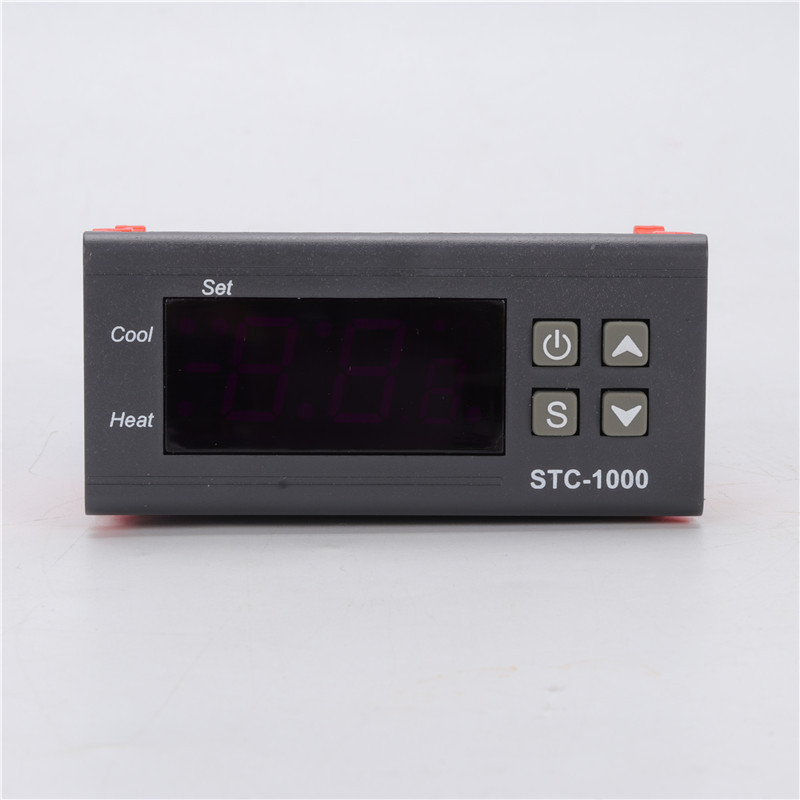

Panel size: Length 75×Width 34.5 (mm);
☆ Installation hole size: Length 71×Width 29 (mm);
☆ 整机尺寸：长75×宽34.5×深85（毫米） |
