0.3kw
|
CN¥ 755.0 | 49975 set available |
|
0.4kw
|
CN¥ 777.0 | 50000 set available |
|
0.5kw
|
CN¥ 799.0 | 50000 set available |
|
0.6kw
|
CN¥ 821.0 | 50000 set available |
|
0.7kw
|
CN¥ 857.0 | 50000 set available |
|
0.8kw
|
CN¥ 894.0 | 50000 set available |
|
0.9kw
|
CN¥ 923.0 | 50000 set available |
|
1kw
|
CN¥ 1059.0 | 50000 set available |
|
1.6kw
|
CN¥ 1439.0 | 50000 set available |
|
1.8kw
|
CN¥ 1605.0 | 50000 set available |
|
2kw
|
CN¥ 1678.0 | 50000 set available |
|
A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

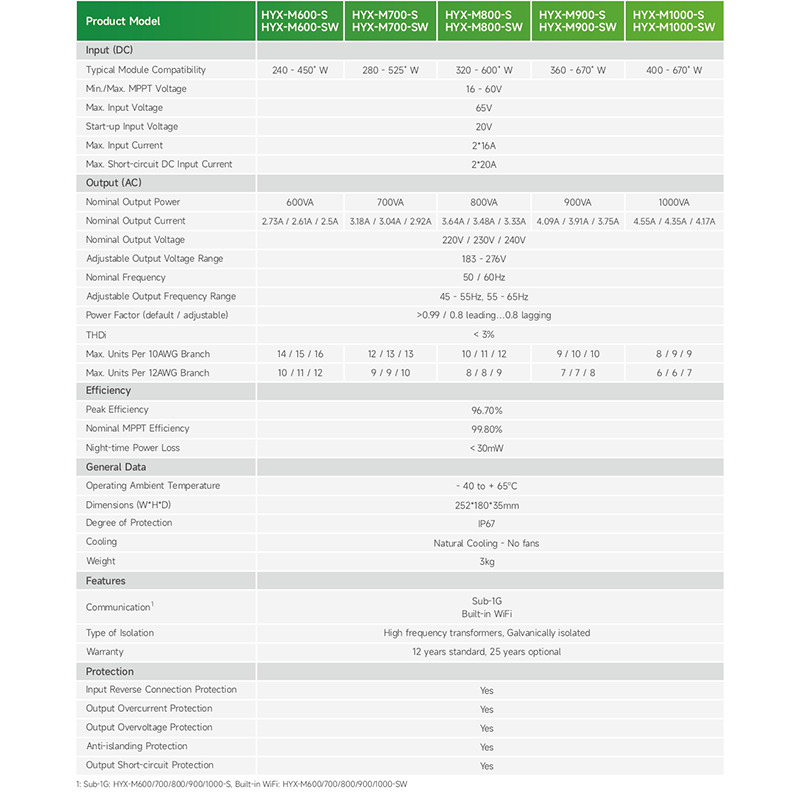

Product Model
HYX-M600-S
HYX-M600-SW
HYX-M700-S
HYX-M700-SW
HYX-M800-S
HYX-M800-SW
HYX-M900-S
HYX-M900-SW
HYX-M1000-S
HYX-M1000-SW
Input (DC)
Typical Module Compatibility
240 - 450⁺ W
280 - 525⁺ W
320 - 600⁺ W
360 - 670 W
400 - 670 W
Min./Max. MPPT Voltage
16 - 60V
Max. Input Voltage
65V
Start-up Input Voltage
20V
Maximum Input Current
2*16A
Maximum Short-circuit DC Input Current
2*20A
Output (AC)
Nominal Output Power
600VA
700VA
800VA
900VA
1000VA
Nominal Output Current
2.73A / 2.61A / 2.5A
3.18A / 3.04A / 2.92A
3.64A / 3.48A / 3.33A
4.09A / 3.91A / 3.75A
4.55A / 4.35A / 4.17A
Nominal Output Voltage
220V / 230V / 240V
可调节输出电压范围
183 - 276V
Nominal Frequency
50 / 60Hz
可调节输出频率范围
45 - 55Hz, 55 - 65Hz
Power Factor (default / adjustable)
>0.99 / 0.8 leading…0.8 lagging
THDi
< 3%
Maximum Units Per 10AWG Branch
14 / 15 / 16
12 / 13 / 13
10 / 11 / 12
9 / 10 / 10
8 / 9 / 9
Maximum Units Per 12AWG Branch
10 / 11 / 12
9 / 9 / 10
8 / 8 / 9
7 / 7 / 8
6 / 6 / 7
Efficiency
Peak Efficiency
96.70 percent
Nominal MPPT Efficiency
99.80%
Night-time Power Loss
＜30mW
General Data
Operating Ambient Temperature
- 40 to + 65℃
Dimensions (W*H*D)
252*180*35mm
Degree of Protection
IP67
Cooling
Natural Cooling - No fans
Weight
3kg
Features
Communication
Sub-1G
Built-in WiFi
Type of Isolation
High frequency transformers, Galvanically isolated
Warranty
12 years standard, 25 years optional
Protection
输入反向连接保护
Yes
Output Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Anti-islanding Protection
Yes
Output Short-circuit Protection
Yes

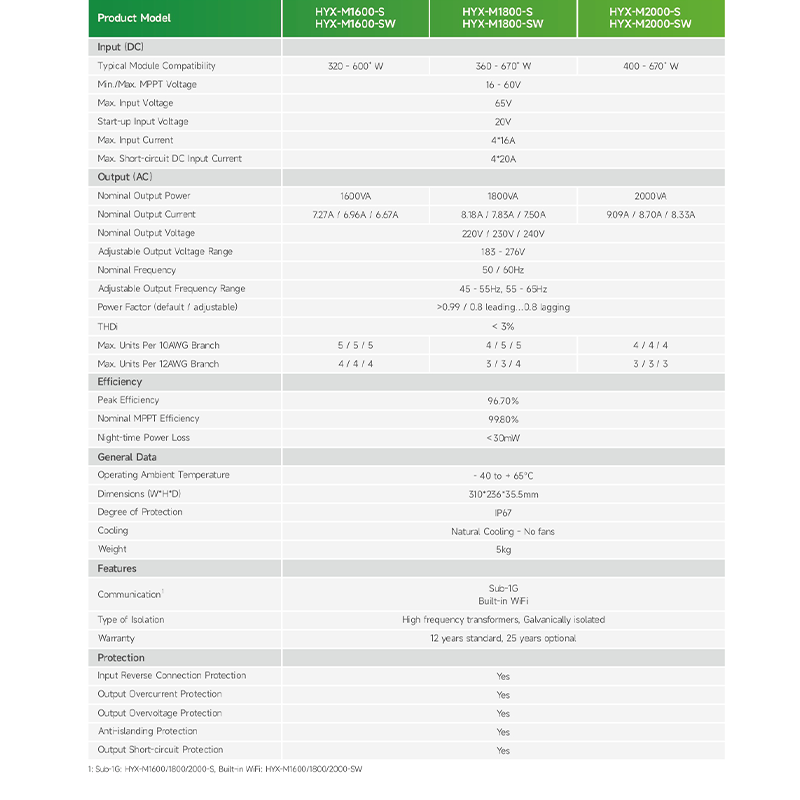

Product Model
HYX-M1600-S
HYX-M1600-SW
HYX-M1800-S
HYX-M1800-SW
HYX-M2000-S
HYX-M2000-SW
Input (DC)
Typical Module Compatibility
320 - 600⁺ W
360 - 670 W
400 - 670 W
Min./Max. MPPT Voltage
16 - 60V
Max. Input Voltage
65V
Start-up Input Voltage
20V
Maximum Input Current
4*16A
Maximum Short-circuit DC Input Current
4*20A
Output (AC)
Nominal Output Power
1600VA
1800VA
2000VA
Nominal Output Current
7.27A / 6.96A / 6.67A
8.18A / 7.83A / 7.50A
9.09A / 8.70A / 8.33A
Nominal Output Voltage
220V / 230V / 240V
可调节输出电压范围
183 - 276V
Nominal Frequency
50 / 60Hz
可调节输出频率范围
45 - 55Hz, 55 - 65Hz
Power Factor (default / adjustable)
>0.99 / 0.8 leading…0.8 lagging
THDi
< 3%
Maximum Units Per 10AWG Branch
5 / 5 / 5
4 / 5 / 5
4 / 4 / 4
Maximum Units Per 12AWG Branch
4 / 4 / 4
3 / 3 / 4
3 / 3 / 3
Efficiency
Peak Efficiency
96.70 percent
Nominal MPPT Efficiency
99.80%
Night-time Power Loss
＜30mW
General Data
Operating Ambient Temperature
- 40 to + 65℃
Dimensions (W*H*D)
310*236*35.5mm
Degree of Protection
IP67
Cooling
Natural Cooling - No fans
Weight
5kg
Features
Communication
Sub-1G
Built-in WiFi
Type of Isolation
High frequency transformers, Galvanically isolated
Warranty
12 years standard, 25 years optional
Protection
输入反向连接保护
Yes
Output Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Anti-islanding Protection
Yes
Output Short-circuit Protection
Yes
