tianwin tm1651 sop-16 led driver chip ic small household appliances digital tube panel display

Global Commodity Supplier 1yr.

Contacts Wei Fengwei Chat

Mobile 15356982475

E-mail 416074625@qq.com

WeChat 15356982475

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

minimum supply voltage: reference specification

brand: tianwin

maximum supply voltage: reference specification

operating temperature: reference specification

topological structure: reference specification

product status: reference specification

dimming: reference specification

working frequency: reference specification

model: tm1651 1651

chip application: display drivers for induction cooker, microwave oven and small household appliances

original agent certificate

specification reference


tianwin

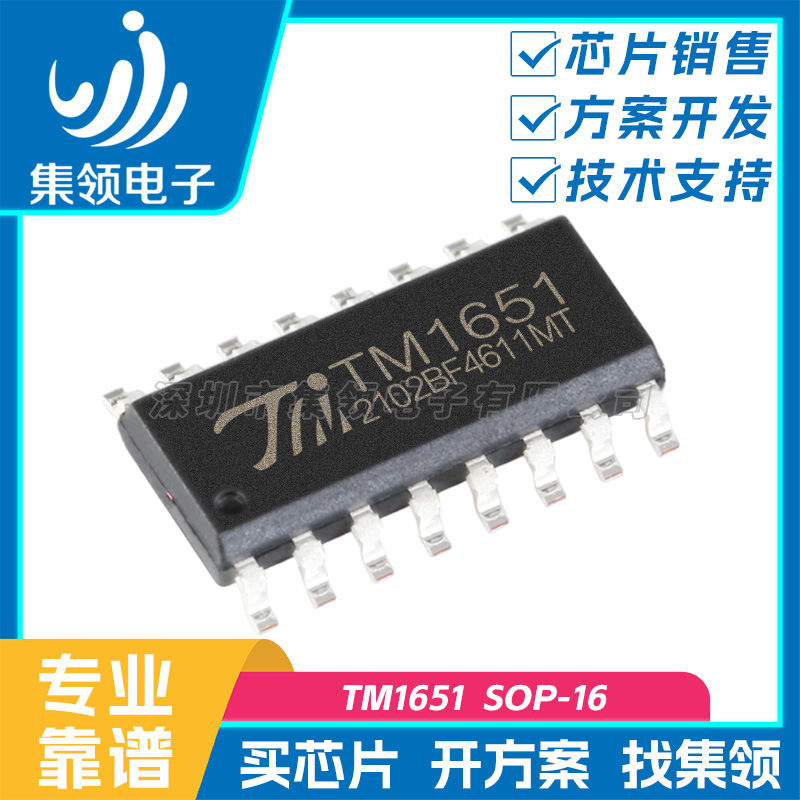

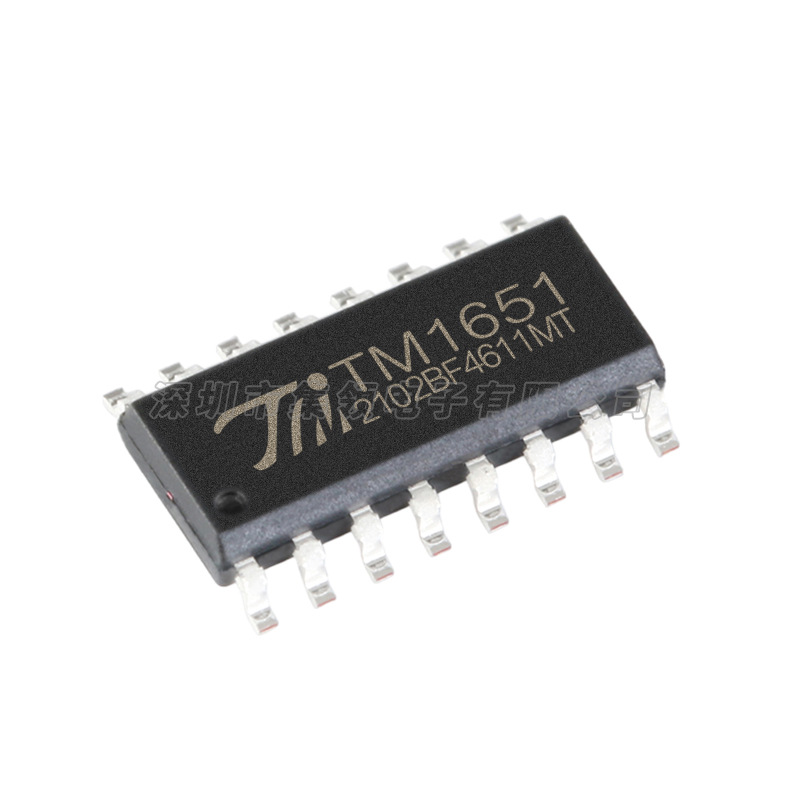

tm1651 sop-16

led driver control special circuit

i. overview

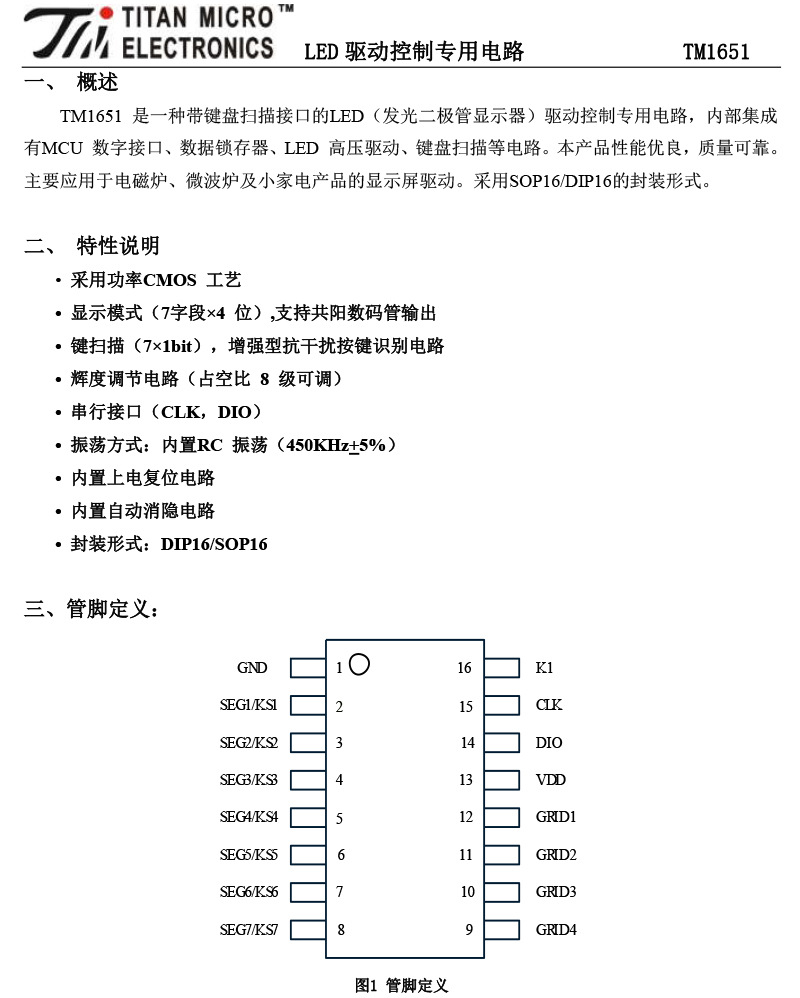

tm1651 is a special circuit for led (light emitting diode display) drive control with keyboard scanning interface, which is internally integrated with mcu digital interface, data latch, led high voltage drive, keyboard scanning and other circuits. this product has excellent performance and reliable quality. it is mainly used for display screen driving of induction cooker, microwave oven and small household appliances. the package form of sop16/dip16 is adopted.

2. feature description

• adopt power cmos process

• display mode (7 fields × 4 bits), support co-positive digital tube output

• key scanning (7 × 1bit), enhanced anti-interference button identification circuit

brightness adjustment circuit (8-level adjustable duty cycle)

• serial interface (clk,dio)

• oscillation mode: built-in rc oscillation (450khz + 5%)

• built-in power-on reset circuit

• built-in automatic blanking circuit

• package form: dip16/sop16
