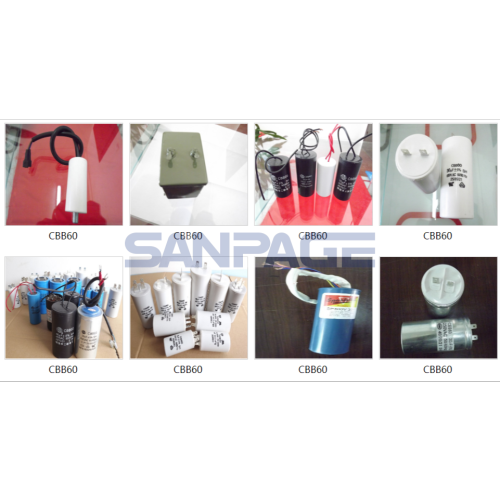

air conditioning capacitors refrigerator capacitor compressor capacitor plastic case capacitor cbb60cbb61cbb65 cd60 capacitor

EXW Price: Min. order:

CN¥ 4.0
500 piece

500 piece

Weight 0.08 kg/piece
Item No. CBB60

nominal capacity

Specifications

sixteen

CN¥ 0.0

Send Inquiry Chat with supplier

SANSUN electrical power 2yr.

Contacts:SANSUN Chat

Mobile:86-18664350107

E-mail:1131934692@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

application scope: low voltage

model: cbb60

temperature coefficient: 25/70/21

loss: 0.0020/1000hz

dielectric material: metallized film

Capacity Range	3 μF～150 μF
Capacity Deviation	+/- 5% or as per customer's requirement
Rated Voltage	125V～500VAC、50/60Hz
Temperature Range	-25℃～+70℃
Tangent of the loss angle	C.50/60Hz
Inter-terminal withstanding voltage	"AC >= 1.75Un 5S no breakdown
The insulating voltage resistance between the lead and the shell	AC >= 2000V 10S no breakdown
Insulation Resistance	The resistance between the leads Rj.C is greater than or equal to 3000MΩ.μF; The resistance between the lead end and the shell is greater than or equal to 1000MΩ
Execution Standard	GB/T3667.1-2005 IEC60252-1：2001
