adjustable stroke tattoo machine hollow cup motor tattoo pen new tattoo machine all-in-one machine tattoo material

product no.: cnc-m-p6

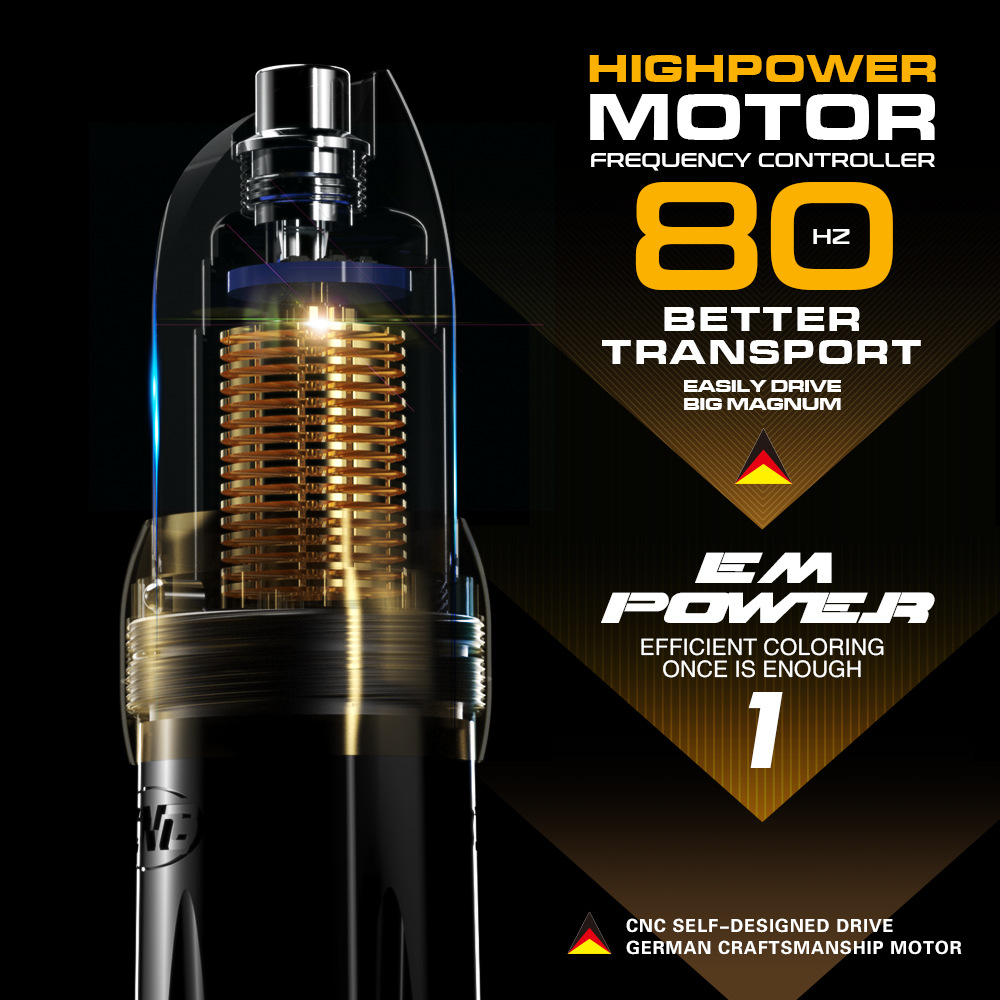

motor: imported hollow cup

body material: aviation aluminum alloy

power interface: rca

body net weight: 172g

starting voltage: 5.0v

rated voltage: 12v

rated power: 4.8w

pin length: 0-5.0mm

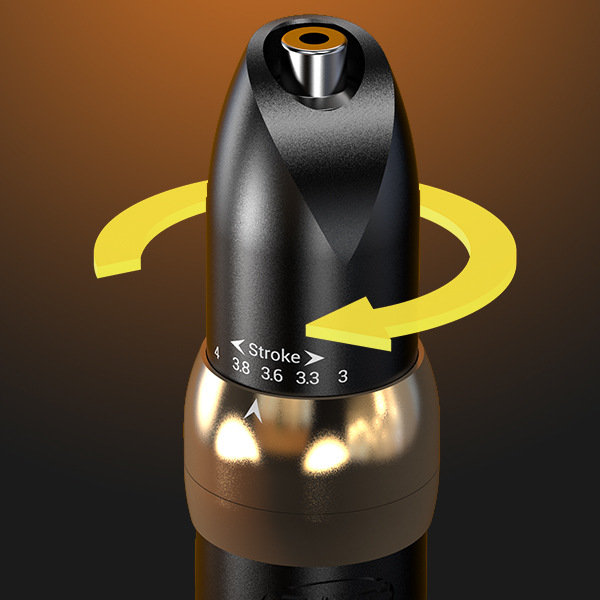

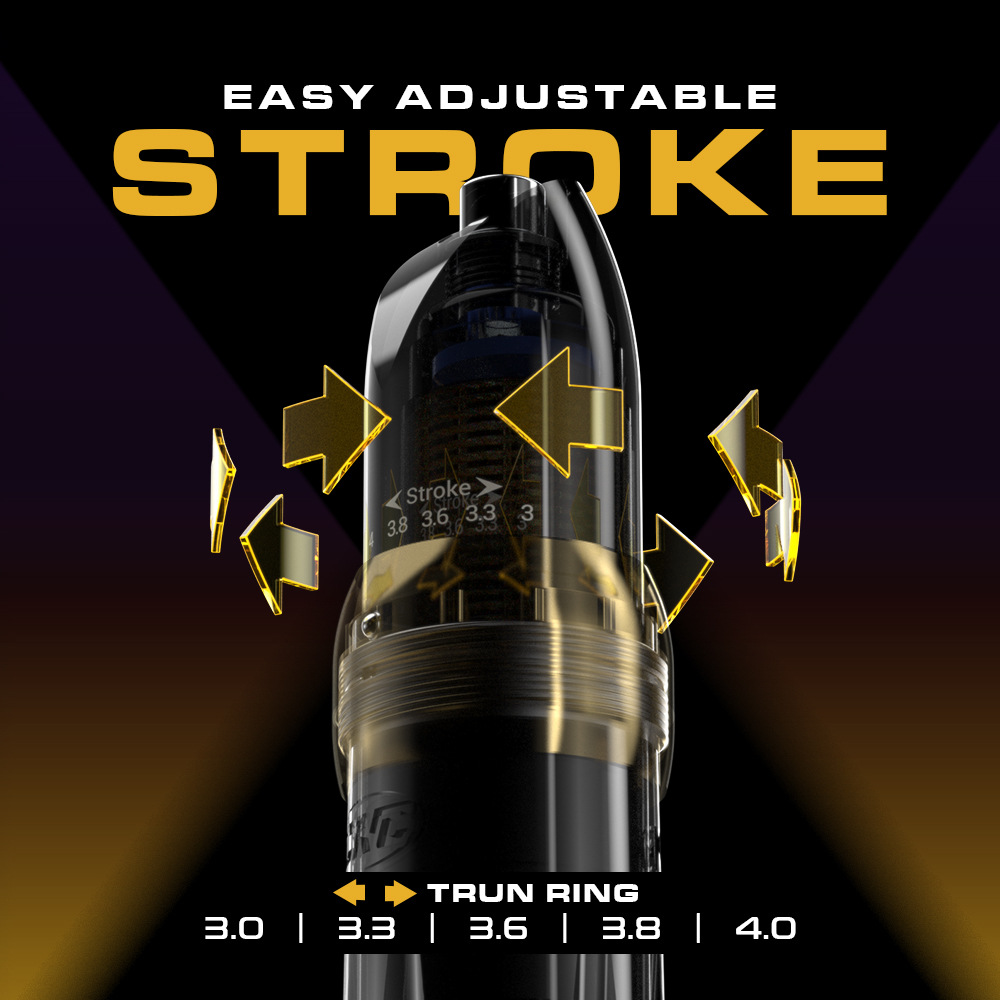

needle travel: 3.0mm,3.3mm,3.6mm,3.8mm, 4.0mm(5-speed travel adjustable)

voltage speed: 6v 7012rpm,8v 8766rpm,9v10000rpm (actual speed of driving integrated needle, non-idling speed)

note: the working voltage is 7-11v, which cannot be overloaded for a long time. the minimum allowable torque is ≥ 95.0g.cm.

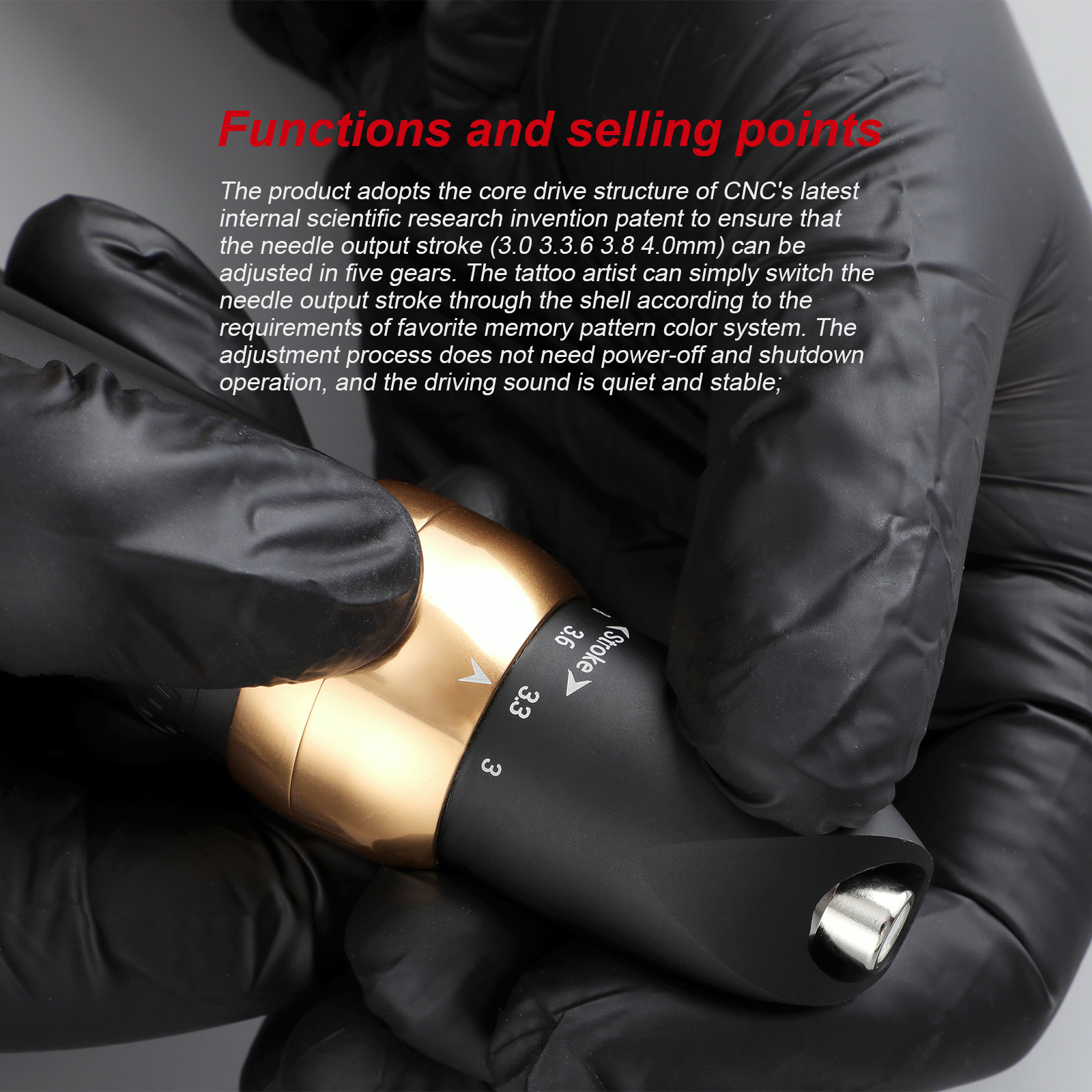

product features: the core drive structure of cnc internal scientific research and invention patents is adopted inside the machine to ensure that the needle travel (3.0 3.3 3.6 3.8 4.0mm) can be adjusted in five gears, the tattoo artist can simply switch the needle travel through the shell according to the color system requirements of the memory pattern. the adjustment process does not need to be powered off and shut down, and the driving sound is quiet and stable.
