Kaptons Polyimide Tape Heat-Resistant Sublimation Adhesive Tape for Masking Printing Hot Melt Sublimation Applications

YIWU HIGHPURE TAPE Co.,LTD 4yr.

Contacts:谭女士 Chat

Mobile:86-13566964017

E-mail:betty@poguan.com.cn

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

Industrial Use	Consumer Electronics
	mobile phone accessories, Mobile Phone, Speakers, Camera, Smart Watch, Smart Electronics, COMPUTER, Projector, Other Consumer Electronics
Material	Polyimide
Type	Stretch Film
Usage	Packaging Film
Feature	Moisture Proof
Hardness	Soft
Processing Type	Multiple Extrusion
Transparency	TRANSLUCENT
Place of Origin	Zhejiang China
Brand Name	HIGHPURE
Product name	High Temperature Insulation PI Polyimide Film
Color	Transparent ,Yellow.Gold

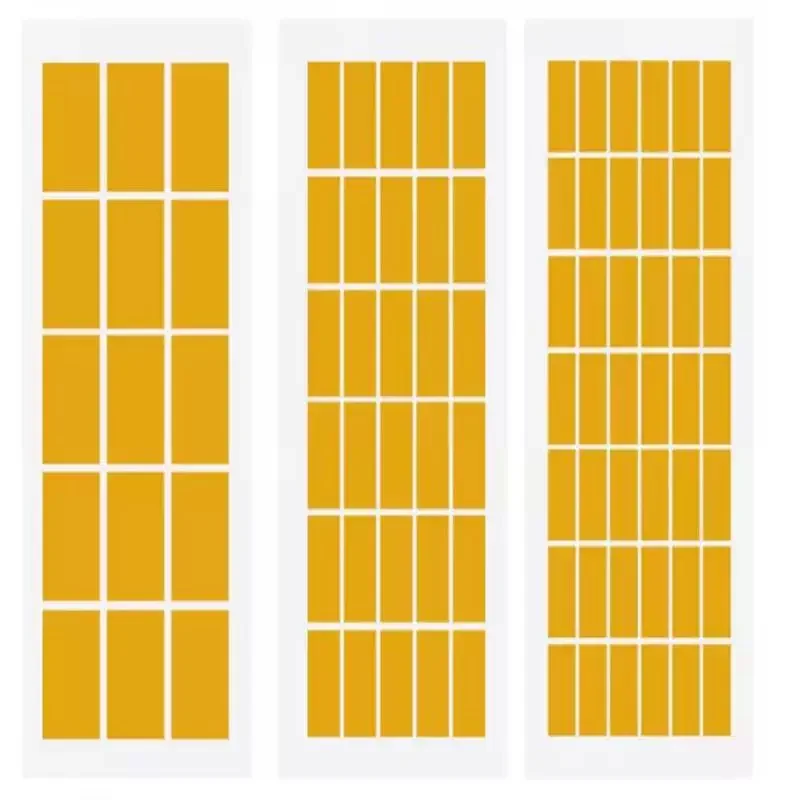

Size	If you need customized sizes or die cut parts please feel free to contact us.
Product Features	fire proof ,heat resistance
Useage	Electrical insulation

Product name	Base Film	Total Thickness	Adhesion to Steel
	25 microns	50 microns	9 N/25mm
	25 microns	70 microns	15 N/25mm
	50 microns	80 microns	10 N/25mm
Note: Custom thickness available.

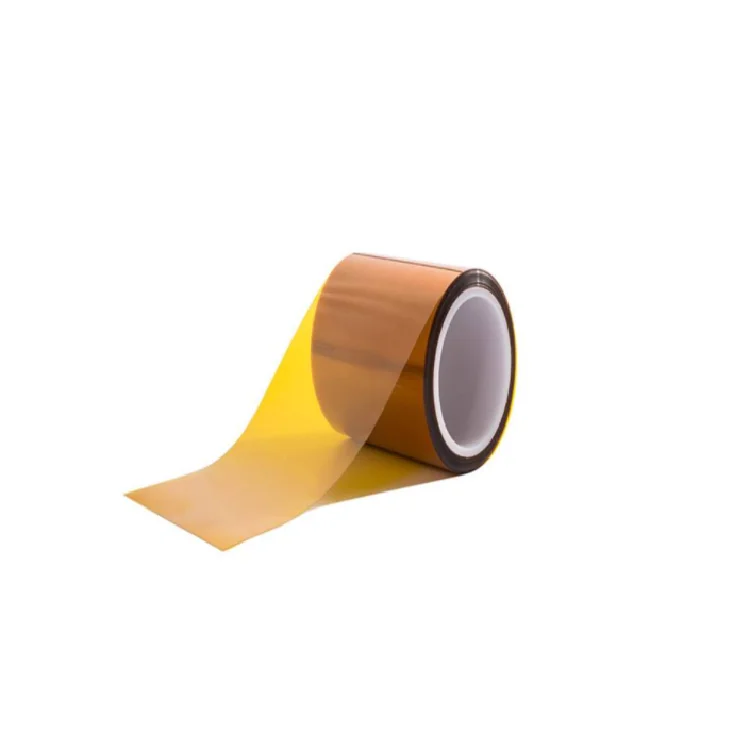

Polyimide Acrylic Tape

Polyimide Acrylic Tape is made of polyimide film single side coated with acrylic adhesive. It is used in applications as high as

200°C temperature without glue and color residual.

Polyimide Acrylic Tape has excellent thermal and electrical insulation properties, making it suitable for use in high temperature
masking.
It can flame retardant withstand temperature range up to 200°C without losing its properties or adhesive strength, and also has
good chemical resistance and is resistant to most solvents, acids, and oils.

Features 1. Thin and flexible for uneven surfaces. 2. Can stand heat up to 260C. 3. Remove clearly without adhesive residue after high temperature exposure. 4. High temperature silicone adhesive. 5. High strength polyimide film which is puncture and tear resistance. 6. Chemical resistant.

Usage: It is used for lithium battery tabs protection and fixation, as well as lithium battery folding edge fixation

1. Electrical insulation: It is often used as an electrical insulation material due to its excellent dielectric properties and high temperature resistance. It can be used to wrap wires, cables, transformers, and other electrical components.
2. 3D printing: It is used as a bed surface for 3D printing because it provides a smooth and stable printing surface that resists high temperatures.
3. Aerospace and aviation: It is used in the aerospace and aviation industries to protect wires and cables from heat, abrasion, and other environmental factors.
4. Automotive industry: It is used in the automotive industry for engine harness wrapping, brake hose wrapping, and other high temperature applications.

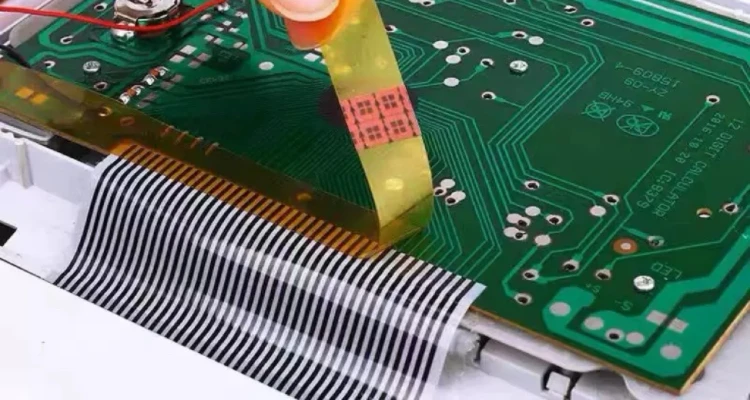

5. Masking: It is used as a masking tape in various industries, especially in electronic manufacturing, where it is used to mask gold fingers on circuit boards during soldering.
6. Thermal insulation: It is used as a thermal insulation material in high temperature applications such as furnace doors, heat exchangers, lithium battery, and boilers.
7. Powder coating: It is used as a high temperature masking tape, especially in powder coating industry.

Update time：20250405143227
