single-stage centrifugal pump is suitable for various working conditions and can be used in industrial circulating water transportation chemical process

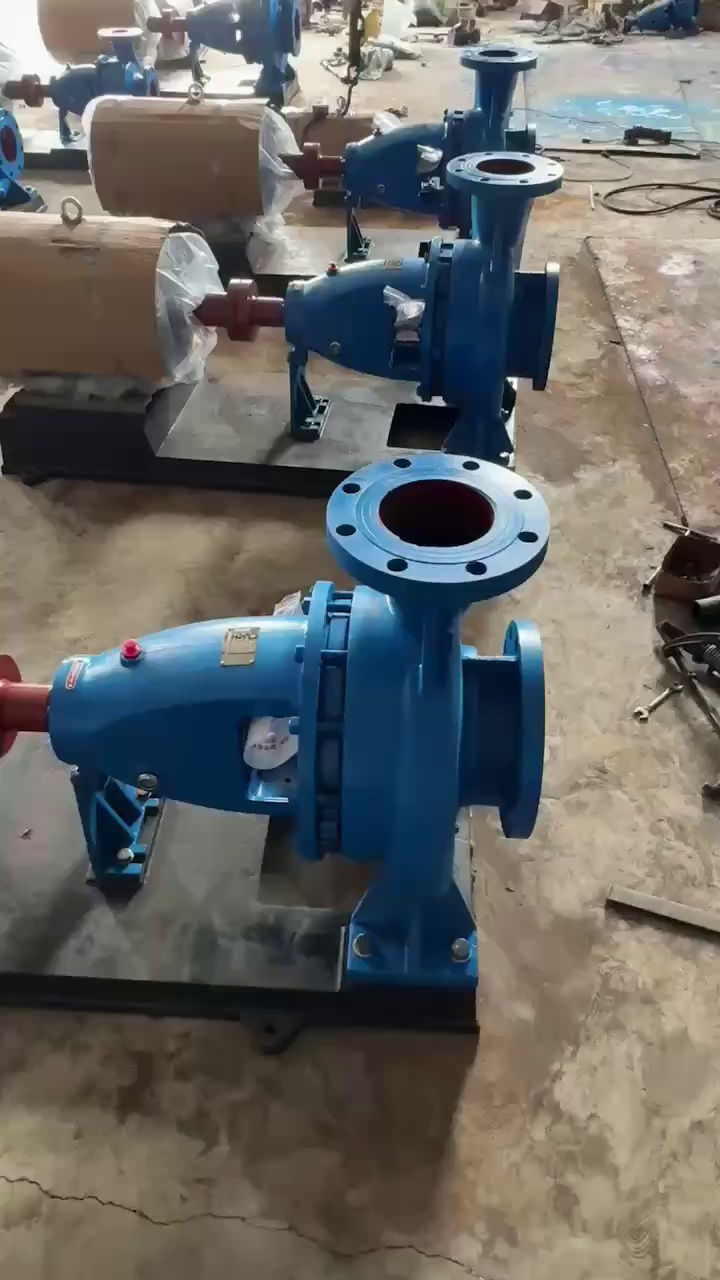

This is a single-stage centrifugal pump composed of a blue pump body and a motor wrapped in protective material. A single-stage centrifugal pump works on liquid through a single impeller, which has a relatively simple structure and is suitable for a variety of operating conditions. It can be used in industrial applications for the transportation of circulating water and the transmission of liquids in chemical processes; in the construction field, it can be used in water supply and drainage systems; and in agriculture, it can be used for irrigation, etc.Pump Type and Application Scenario

- IS型 series single-stage single-suction centrifugal clean water pumps: Single-stage single-suction (axial suction) centrifugal pumps, used to transport clean water or liquids with physical and chemical properties similar to clean water with a temperature below 80°C, suitable for industrial and urban water supply and drainage, agricultural irrigation and drainage.

- IR Series Single Stage Single Suction Hot Water Centrifugal Pump: A energy-saving product derived from the IS Series, used to transport clean water and similar media with temperatures below 150°C, suction pressure not exceeding 0.8MPa, suitable for hot water boilers and heat exchangers (as circulation pumps and feed pumps), and also suitable for urban water supply, mine drainage, and other applications.

- IHF type single-stage single suction fluorinated anti-corrosion pump: suitable for transporting corrosive liquids, utilizing the corrosion resistance of fluorinated materials to protect the pump body from corrosion, applied in fields with requirements for the transportation of corrosive media such as chemical industry.

- IY type single-stage single-suction oil pump: Used to transport hot oil media, suitable for industrial and petrochemical industries where it is necessary to transport high-temperature oil products.

- IH type single-stage single suction chemical pump: mainly used in the chemical industry, to transport various chemical liquid media, and can meet the requirements of the transport of different chemical properties of liquid.

Model Meaning Interpretation

以" IY IHF IH IS IR 80 - 65 - 160 A”为例 ：

- Letter part: "IY" represents a single-stage single suction oil pump; "IHF" represents a single-stage single suction fluorine-lined corrosion-resistant pump; "IH" represents a single-stage single suction chemical pump; "IS" represents a single-stage single suction clean water centrifugal pump; "IR" represents a single-stage single suction hot water centrifugal pump.

- The '80' indicates the pump inlet diameter (mm); the '65' indicates the pump outlet diameter (mm); the '160' indicates the impeller diameter (mm).

- Letter A: Indicates the first cut of the impeller outer diameter (B indicates the second cut of the impeller outer diameter).
