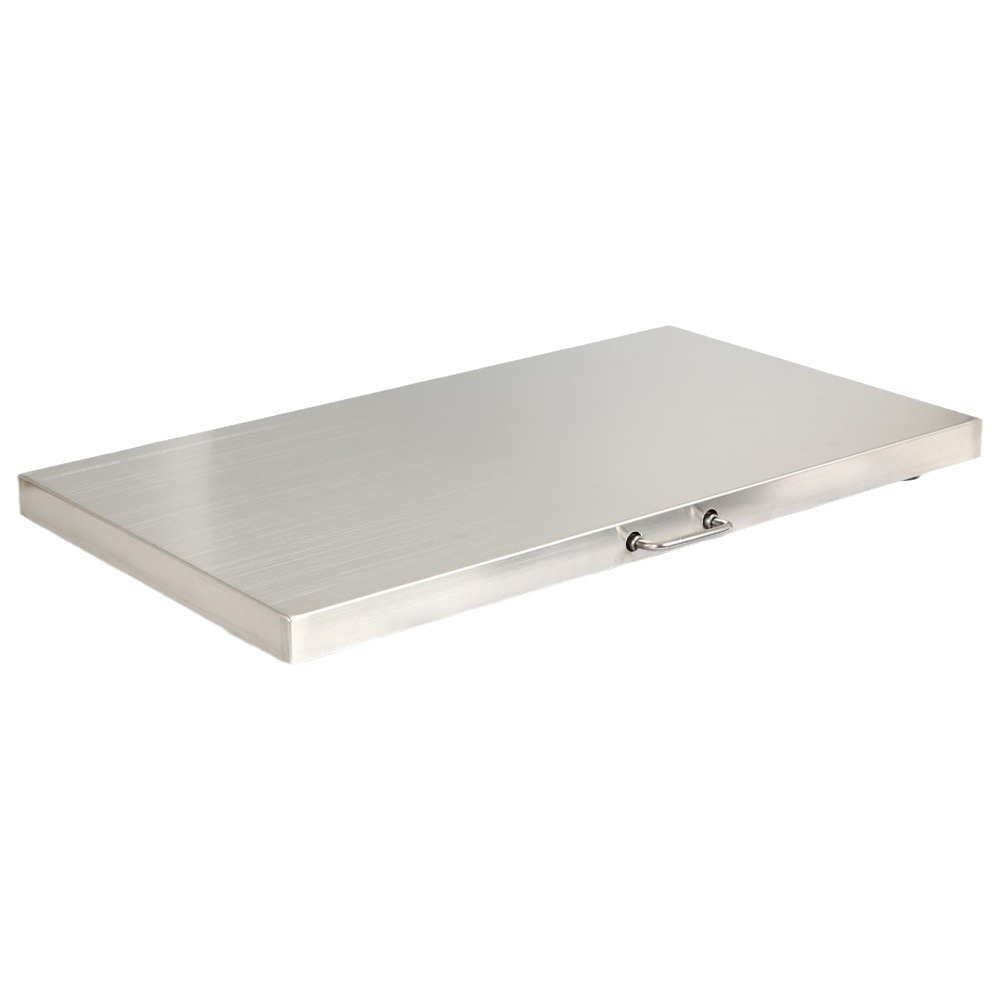

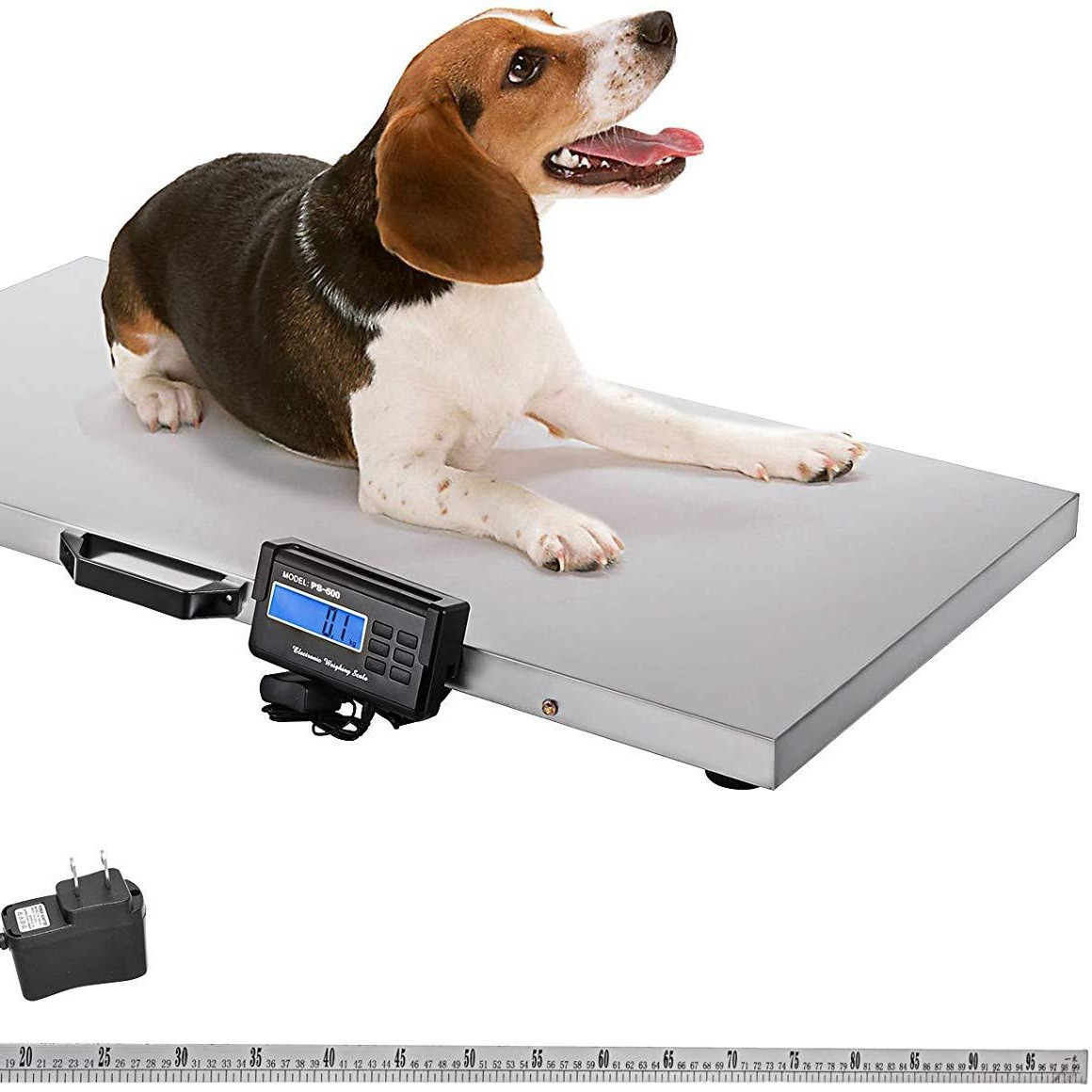

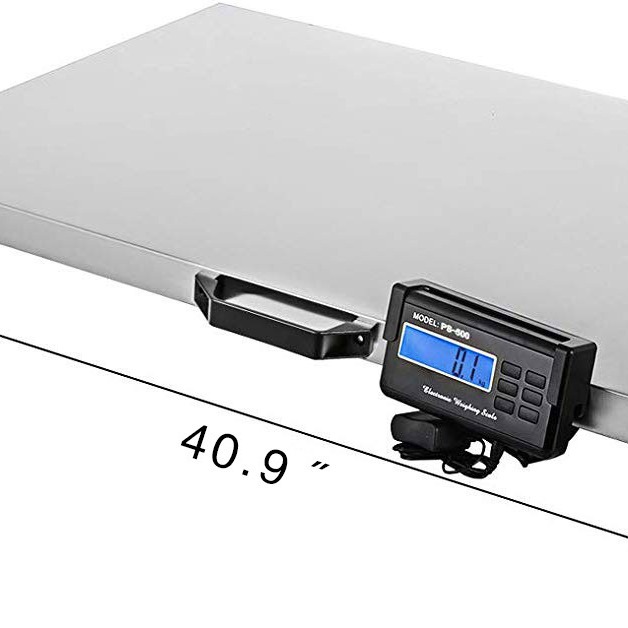

Ultra-thin and cost-effective high-precision platform scales feature four custom high-precision sensors, offering high accuracy and stability. They can automatically center-correct and accurately measure the weight of pets during movement with special software design, making them an ideal choice for pet shops and veterinary clinics.

Shenzhen Xidian Baoao Technology Co., Ltd.

      We rely on“Integrity as the foundation, innovation at the forefront”Corporate spirit, strong scientific research capabilities, advanced detection systems, and complete quality system supervision, combined with outstanding product performance and comprehensive service, long-term mutually beneficial cooperation with our vast customer base, has established a good reputation in the fierce market competition. Now, it has developed into a series of household electronic scales..Diversified Sensor-based Modern Company.

     We meet the needs of different applications with our advanced manufacturing technology and strong design and production capabilities. Our products are sold in Europe, Asia, South America, and North America, and have developed into one of the leading domestic household electronic scales and low-cost sensor companies in China.

     XiDian BoAo is committed to providing excellent service and maintaining a good reputation to work with you to develop together.

     XiDian BoAo is willing to embrace a warm and expansive spirit, working with you to create brilliant achievements!

Electronic Scale Instruction Manual

 Thank you for purchasing and using this model of product. Please read the instructions carefully before using this product.This product is a household item and cannot be used for trade settlement.

Important

1. 1. Must be used on a flat, solid, non-vibrating surface;
2. 2. Cannot be used in an environment with large temperature changes.
3. 3. Avoid using in places with strong electromagnetic changes.
4. 4. Only neutral detergent should be used for cleaning.

Power supply

1.Powered by 4 AA-size batteries or an AC adapter.

2.The power adapter cannot be shared with high-power appliances on the same line, as high-power appliances can generate interference when they are turned on.

Note: If the product is not used for more than one month, please remove the battery.

Button Function

"ON/OFF": Turn on and turn off the power.

“MODE”: Unit conversion and other functions.

"TARE": 去皮。

"HOLD": Keep the display reading unchanged.

"C/R": Range conversion.

PCS": Counting function.

Weighing

1.Press "ON/OFF" to perform a self-test, and after 2-3 seconds, the display will show "0.0"._kilogram”或“0.00_kilogram”Enter the weighing mode.

2.Weight Units: The default weight unit after power-on is "kg". You can convert the unit by pressing the "MODE" key. Each time you press it, the unit will cycle through "kg" - "oz" - "lb".

3.Do not place an item on the scale that exceeds the maximum capacity, or it may damage the sensor.

4.When referring to animals, they should be placed in a tray or cage.

5.Press the "C/R" key to select the appropriate range and precision.

6.Counting:

（1）In the weighing mode, press the 'PCS' key to enter the counting mode. Then press the 'MODE' key to return to the weighing mode.

Sampling: After pressing the 'PCS' key, the display shows '0', and then pressing the 'PCS' key again, the display shows 'PC-25'. Place 25 items to be counted on the scale plate, and then press the 'PCS' key once more. When the instrument displays 25, the sampling is completed. If the number of items to be sampled is 50 or 100, after the instrument displays 'PC-25', press 'PCS', and the displays will show 'PC-50' and 'PC-100', respectively. Repeat the above steps to perform the sampling. After completing the sampling, place the items to be counted on the scale plate, and the number of items on the scale plate will be displayed.

Calibration

The product has been calibrated before leaving the factory, but due to changes in temperature, humidity, etc., it may cause deviations. You can calibrate the product using the following method: in the weight mode, press the 'ON/OFF' and 'MODE' keys simultaneously for about three seconds, then release them simultaneously. The instrument will display '000000' and 'E-100' in turn, and then press the 'MODE' key to cycle through 'E-100', 'E-50', and 'E-25', respectively indicating the calibration weights needed are 100kg, 50kg, and 25kg. Place the 100kg standard weight on the scale until it automatically turns off to complete the product calibration.

Technical parameters

Note: The minimum weight of this product0.5kg

'H' exceeds the maximum weighing range.

-E" Battery power is low, needs to be replaced.
