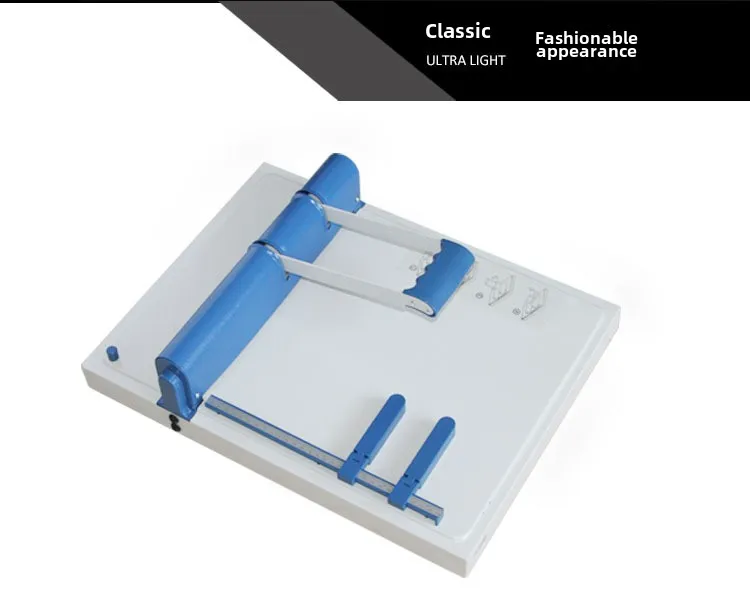

A4 Multifunctional 360mm Crease Punching Machine Single and Double Indentation with Dotted Line Free Switching

Yiwu OFIS machinery co., ltd 14yr.

Contacts:WANGJUNChat

Mobile:86-15657988879

E-mail:ofis@cnofis.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

Product descriptions from the supplier

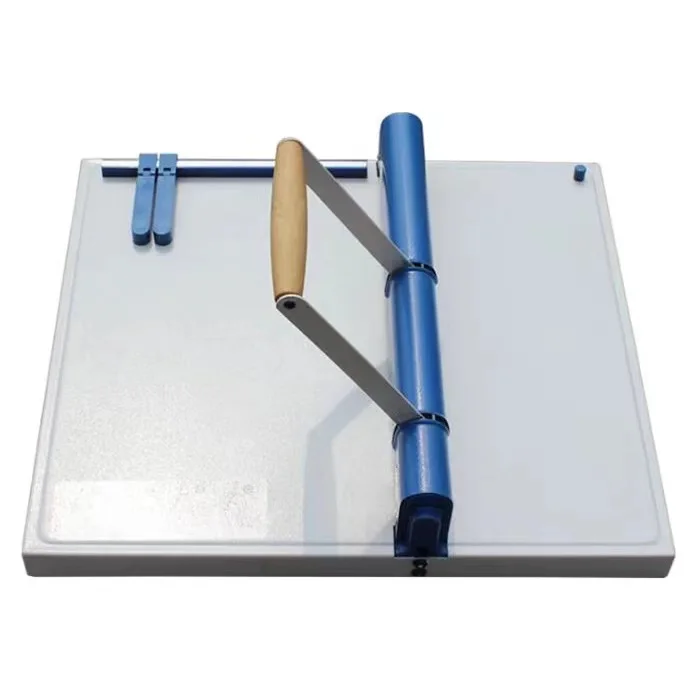

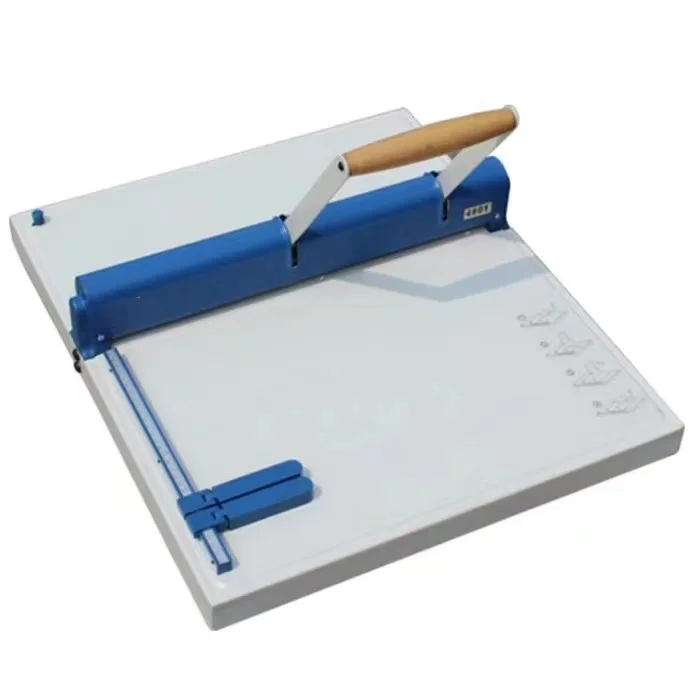

A4 Multifunctional 360mm Crease Punching Machine Single and Double Indentation with Dotted Line Free Switching

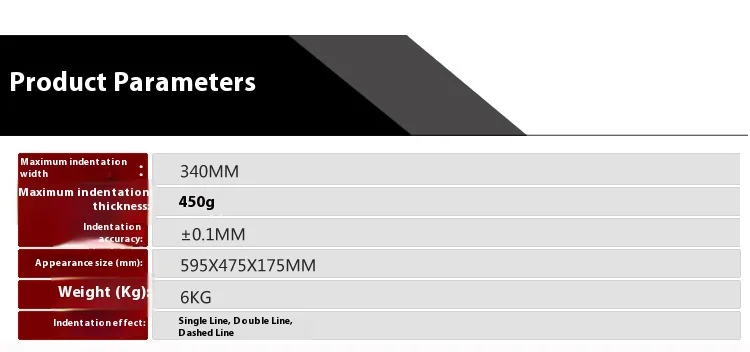

	name	size
1	Machine weight	9KG
2	Maximum indentation width	340MM
3	Maximum indentation thickness	450grams
4	Indentation accuracy	0.1mm

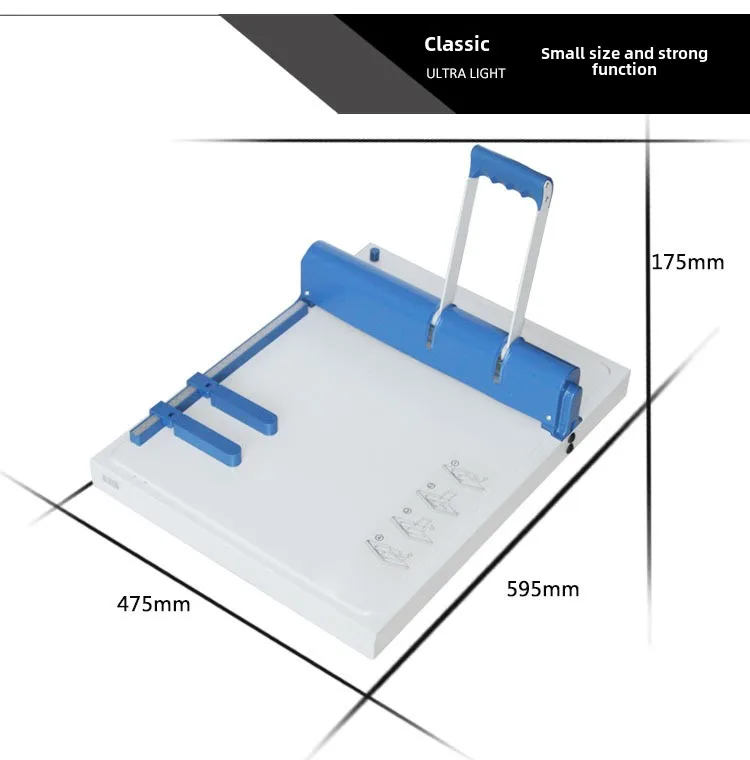

5	Overall dimensions	675X590X175MM

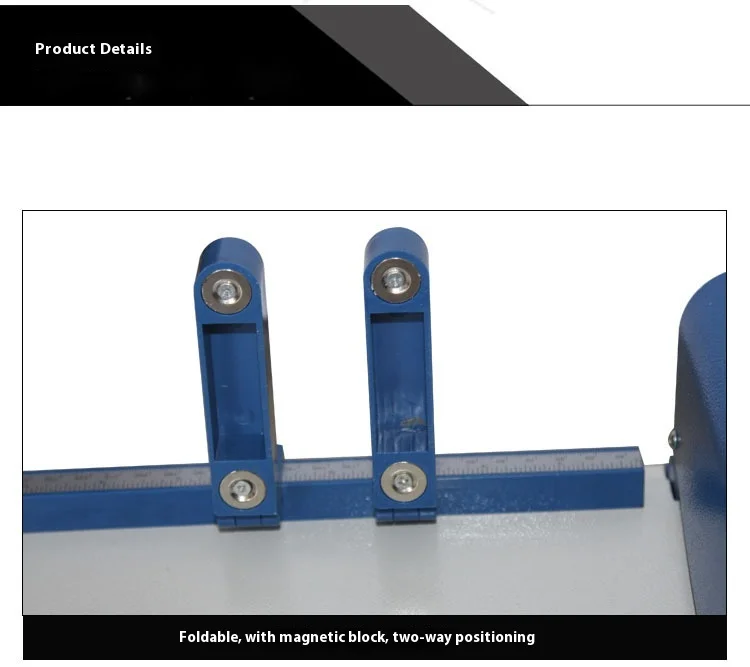

1.Place the indentation machine on a flat countertop,Clip the thickness of all the indentation paper to the middle of the two paper blocks,Adjust the size in the center of the cover.

2.At the same time, close the paper against the first paper block,Press the handle,Turn the paper over and flip up the first paper block,Then press the handle tightly against the second paper block,It forms a book back line and turning line.

3.This machine has:Single line,Double line,Three types of dotted lines,Can be replaced at will.

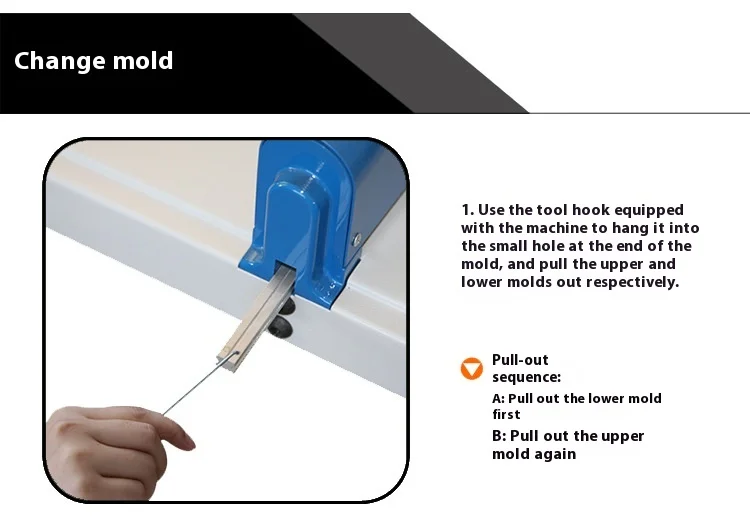

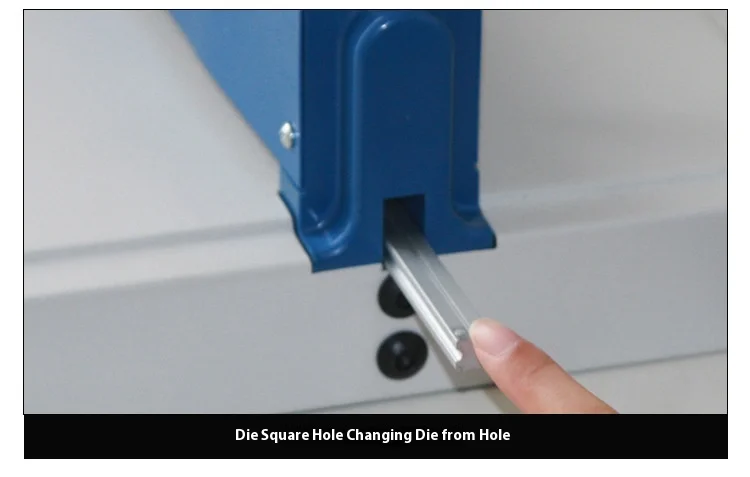

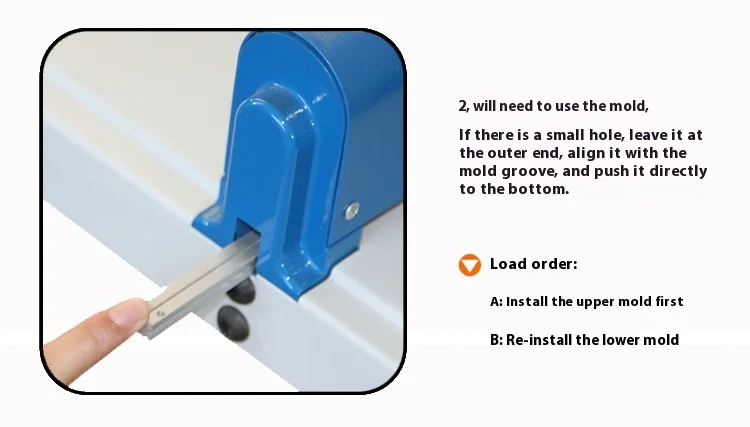

4.Method of changing the strips:First pull out the lower pressure strip from the square hole next to the right side of the machine,Then pull out the upper pressure strip,Then insert the required pressure strip.

5.If the indentation is dark on one side and shallow on the other,Need to adjust the high and low knobs inside the machine,Open the upper cover to view the high and low knob pieces,Adjust the height of the indentation knife.If the wear is serious,It will need to be replaced.

Specification

Type	Punching Machine
Condition	New
Automatic Grade	MANUAL
Brand Name	OFIS
Voltage	220v
Dimension(LWH)	675x590x175'
