for export medical trolley stainless steel treatment car medical mobile trolley medicine delivery car dressing change hospital cart

Product Name

Medication changer cart

Product Model

B29

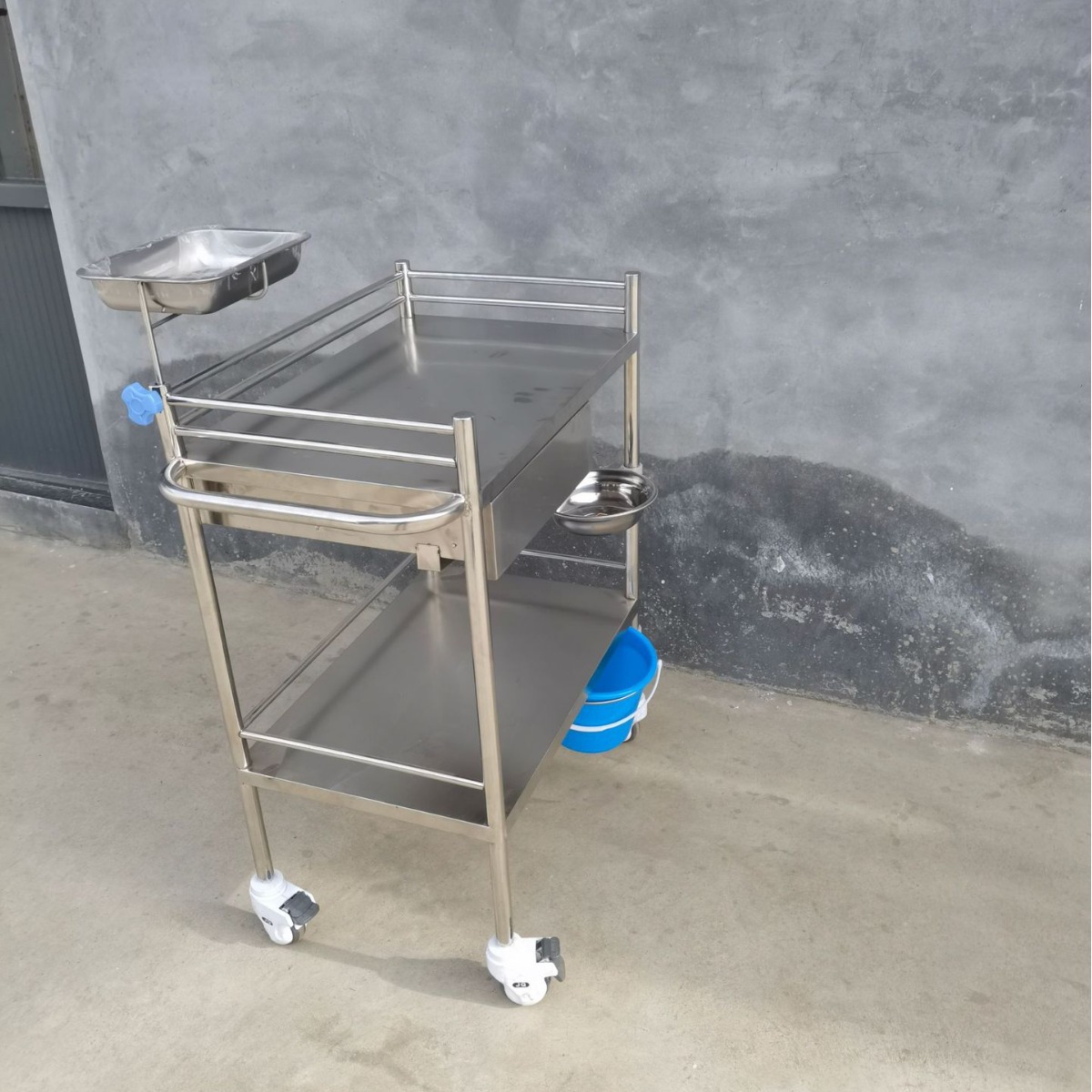

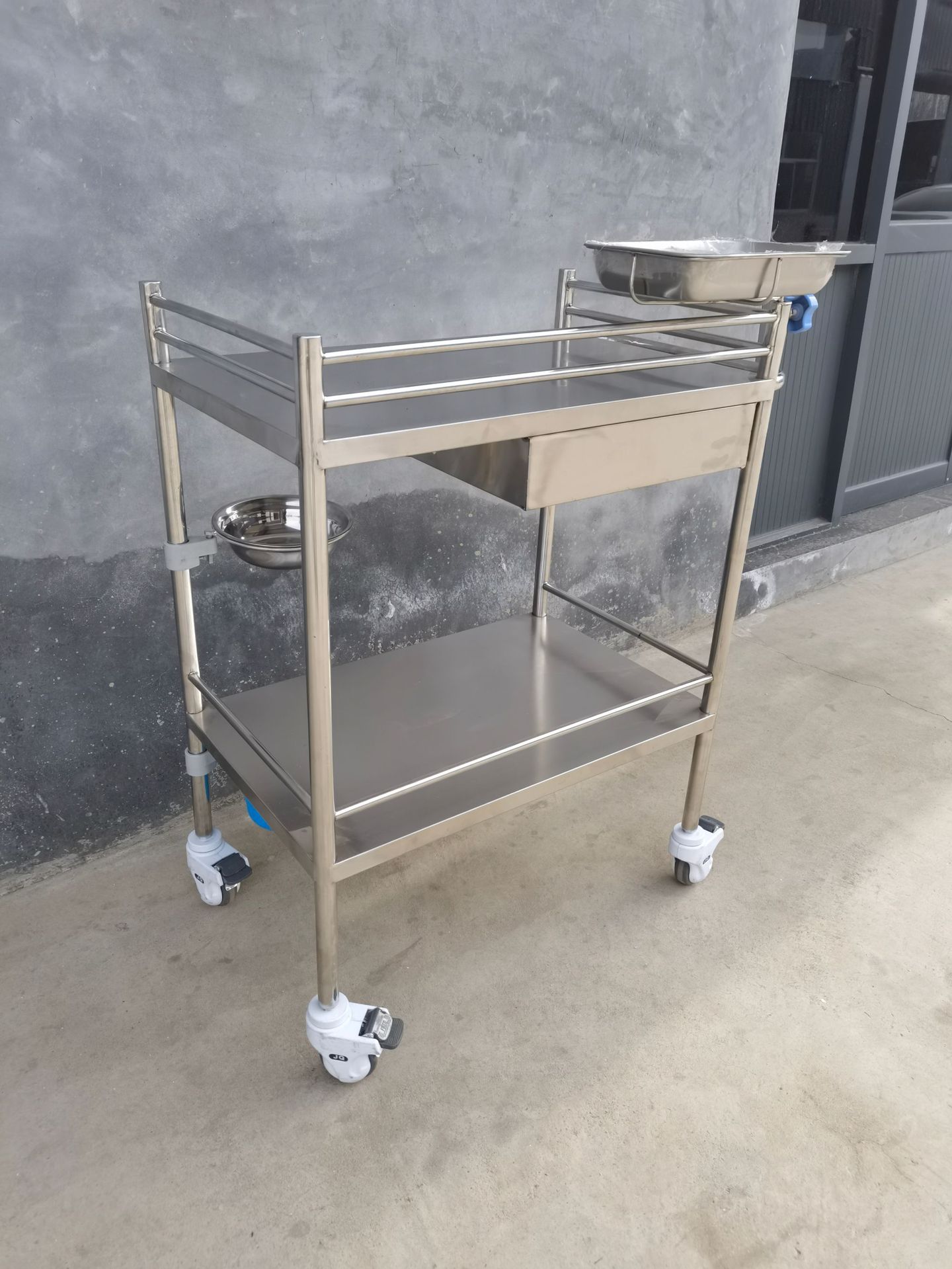

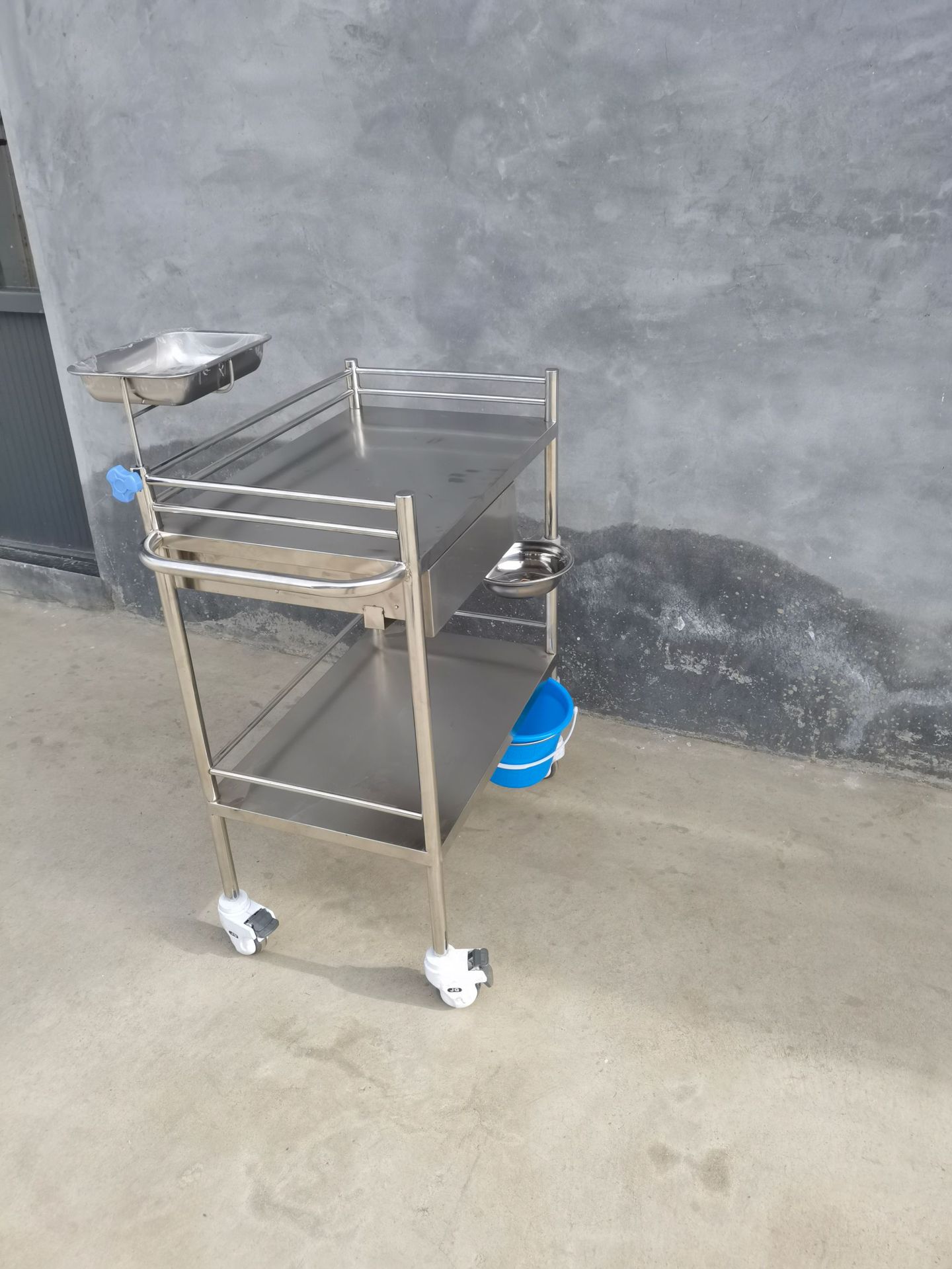

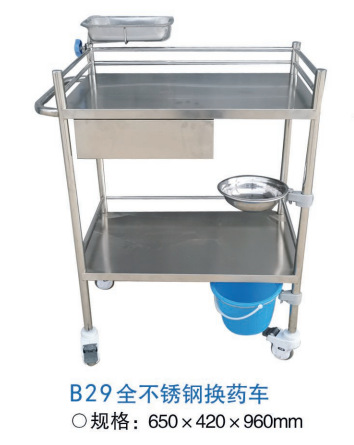

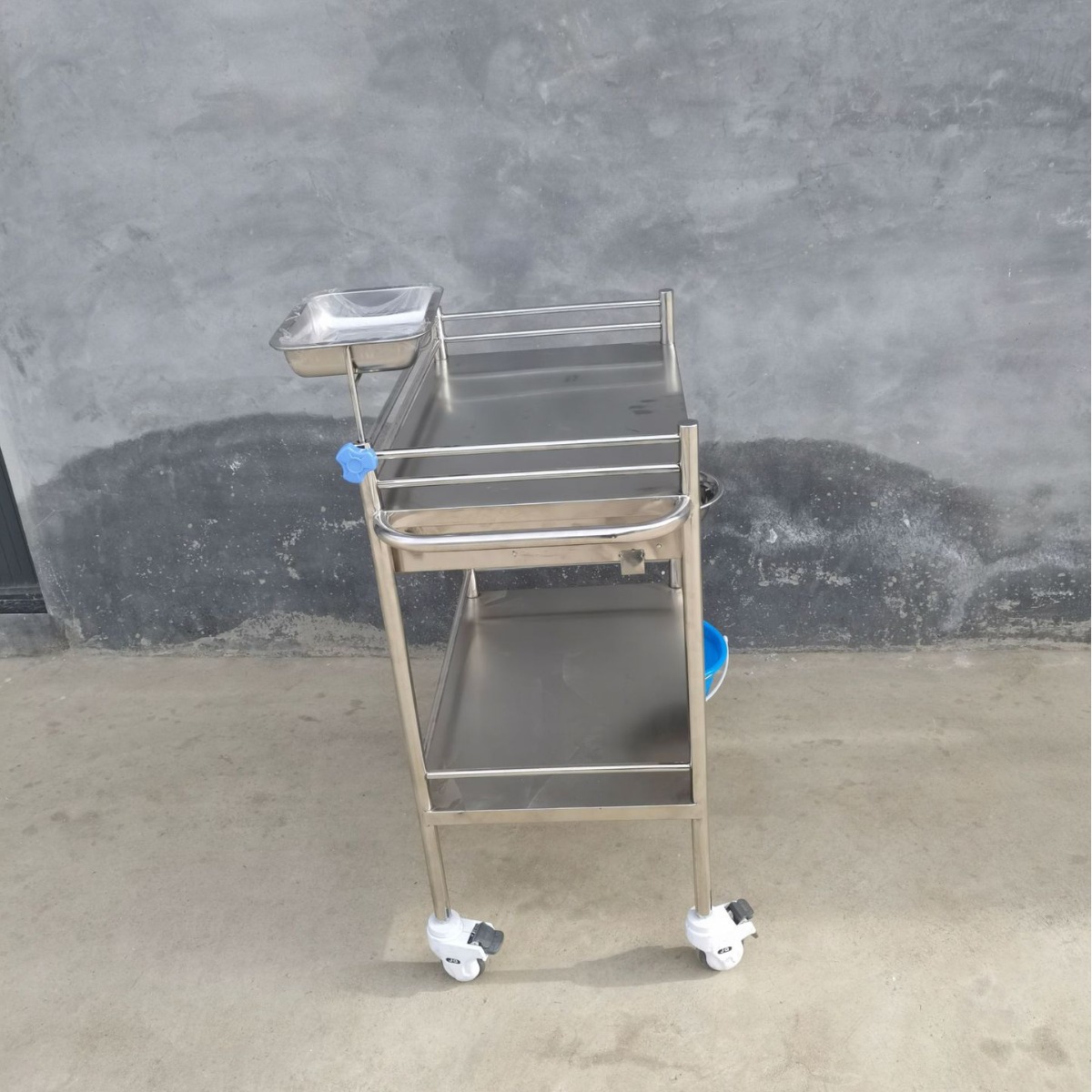

Product images

Technical Parameters

1

Product Model

B29

2

Product dimensions

Physical dimensions:730*420*960 mm (±10 mm)

3

Size from ground to countertop:810 mm (±5 mm)

4

Distance between the two layers of countertops:450 (±10 mm) (optional layer height (300–600 mm))

5

Height from countertop to guardrail: 75mm

6

Length from countertop to armrest:80mm

7

Product Material

stainless steel201#

8

Square countertop

The equipment cart has a double-layer platform, and the platform dimensions are:650*420*25 mm (±3 mm).

9

Pillars

4 stainless steel 25# round tubes welded together; 2 sets of columns with waste bucket (pan) and accessories.

10

upper levelcountertop

Three side guardrails;

11

All three side guardrails have the same diameter12.7 Round tube bending formation;

12

The guardrails on all three sides are made of two-layer circular pipes;

13

The upper left front area is equipped with a square plate.195*265mm) set.

14

lower level

Three side guardrails;

15

All three side guardrails have the same diameter12.7 Round tube elbow forming;

16

The guardrails on all three sides are made of a single layer of circular pipes;

17

The lower part is equipped with a disc.19#a set;

18

A trash bin is located below the lower level.21#A set.

19

drawer

Drawer panel dimensions:350*100*15 mm

20

Inner diameter of the drawer:295 * 270 * 75 mm

21

Slide to activate the three-section silent slide rail;

22

Caster

4 high-end silent universal casters, each measuring 3 inches (75#);

23

All 4 are equipped with braking functions.

24,

Material

Made by bending, pressing, and welding using stainless steel material;

2_5

Universal Wheel

Adopt3-inch universal wheels, 4 pieces; highly wear-resistant, no noise, with brakes, and excellent stability;

26

Panel

Panel, body, paneling, drawer, thickness of door materials1.0 mm;

27

car body

The vehicle is sturdy, stylish, and easy to operate.

28

drawer

Two drawers, two levels.

29

Under the car

There are debris plates and double-layer guardrails under the vehicle, allowing for the placement of items while maintaining stability and reliability.

Functional Features

1

Medication replacement cartIt has excellent corrosion resistance and wear resistance;

2

Medication replacement cartLightweight design, easy for medical staff to push;

3

Medication replacement cartEasy to install;

4

Medication replacement cartLonger service life;

5

Medication replacement cartLow maintenance cost.

6

Made by bending, pressing, and welding using stainless steel material;

7

Adopt3Inch Universal Wheels4Only, highly wear-resistant, no noise, comes with brakes, and offers good stability;

8

Panel, body, paneling, drawer, thickness of door materials0.71mm;

9

The vehicle is sturdy, stylish, and easy to operate.

10

Two drawers, two levels.

11

There are debris plates and double-layer guardrails under the vehicle, allowing for the storage of items while maintaining stability and reliability.

Configuration List

Serial Number

Name

Quantity/<t_UNIT/>

1

Body of the vehicle

one vehicle

2

drawer

One

3

Waste Bin

One

4

Waste Bin Accessories

a set

5

Square plate

One

6

Panel accessories

a set

7

Fixed knob

One

8

disk

One

9

Disc accessories

a set

10

Brake casters

4 pieces
