led reversing radar small crescent 8 probe voice reversing radar automobile reversing radar LED倒车雷达 小月牙8探头语音倒车雷达汽车倒车雷达

Xiaoyueya (Model C-020) Product Function Description:

• When shifting into reverse gear, the system automatically enters the detection working state.
• 30CM～250CM, centimeter-level display accuracy, showing the distance of obstacles;
• Green, yellow, red three-color 5-segment LED strip indicates obstacle distance;
• Left and Right Obstacle Position Indication;
• Bi.Bi.Bi.Buzzing sound gradually alerts, the closer you are, the more urgent the alarm sound;
• The dual CPU system responds quickly. The probe self-check function and abnormal probe status prompt help prevent rear-end collisions caused by damaged probes.

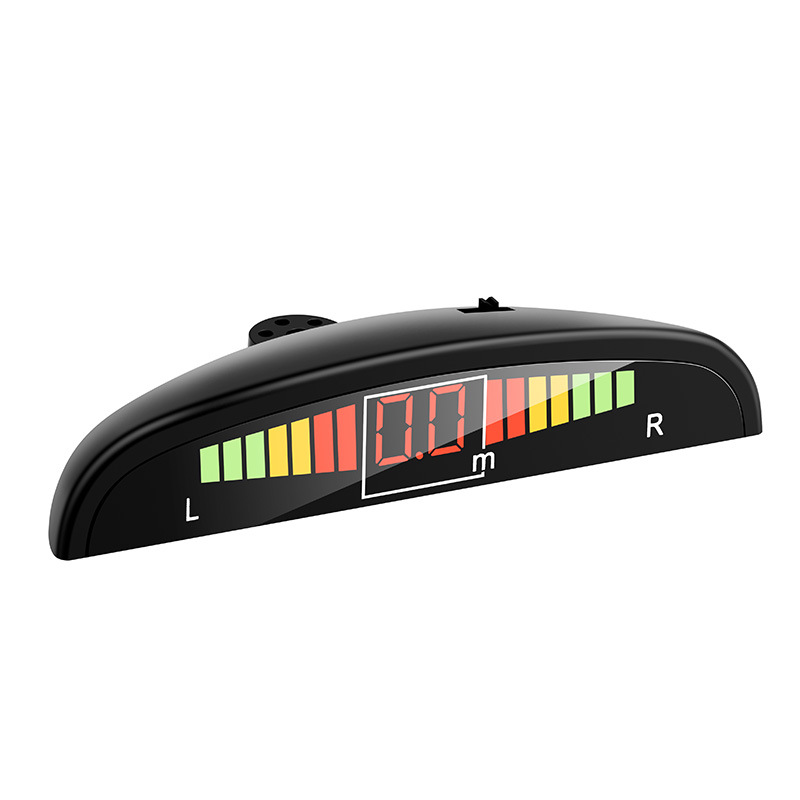

• High-quality faux cowhide pattern ultra-compact LED digital display, compatible with car dashboard style, easy to install;

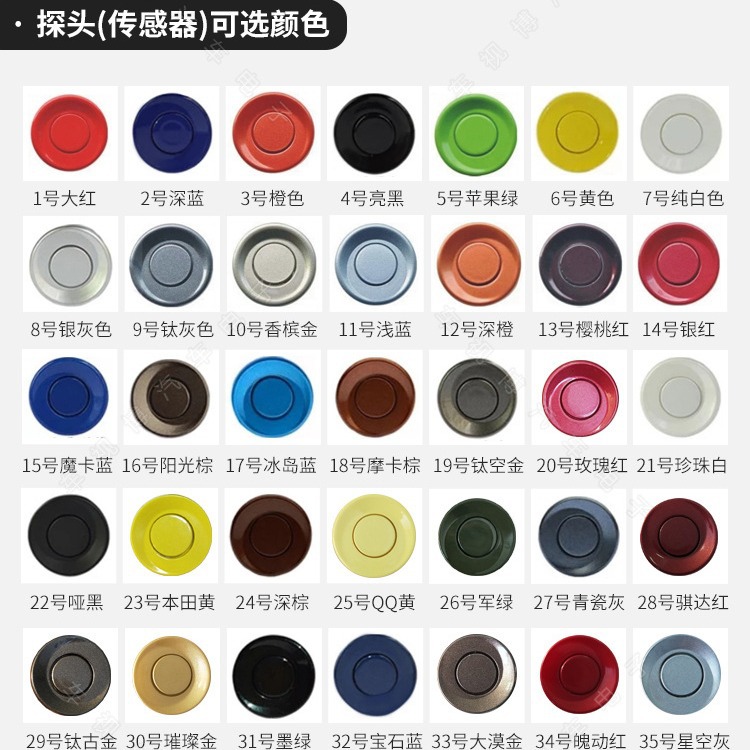

• Embedded probe installation method, installation is simple and convenient, probe color is optional.

Product Technical Parameters:

• Rated operating voltage: 12V DC (wide operating voltage range from 9.6V to 16V DC).
• Working current: 20～180mA;
• Detection range: 30CM～250CM
• Display distance: 30CM to 250CM (centimeter-level display accuracy);
• Alarm volume: ≥80dB;
• Working temperature: -40～+80℃;
• Ultrasonic Frequency: 40kHz ± 1kHz;

Product Standard Packaging:

Neutral packaging; Quantity: 20 pieces per box; Net weight: 9kg; Gross weight: 10kg; Outer box size: 49×33×35cm

Product Configuration:

• Controller host: 1 unit;
• LED display: 1 unit (standard cable length: 5m);
• Ultrasonic Probe: 4 pieces (Standard cable length: 2.5m);
• Power cord: 1 piece (standard length: 0.8m);
• Drill bit: 1 piece (standard diameter ￠22mm);
• Product Instruction Manual: 1 (English and Chinese instruction manual available upon request).

承诺：

• This product will be replaced for free with a new one within one year if it experiences any quality issues that are not caused by user misuse. The shipping fee will be the responsibility of the user.

The reasons for choosing our company's rear-view radar products:

1. All component suppliers undergo strict audits, and all integrated circuits are selected from internationally renowned brands.
2. The production process requires strict and standardized specifications. Before leaving the factory, the main controller, probes, and displays are all subjected to aging treatment to ensure stable operation after product delivery.
3. Each product's host and probe are selected with 100% matching to ensure the consistency of all probe detection accuracy;
4. Commit to product warranty periods and establish a comprehensive after-sales service system to eliminate any concerns of our users.
5. The company has strong technical development capabilities and can design and develop products according to customer requirements or produce for customers under their own brand.
