Warm Tip
This product requires a certain level of DIY skills and knowledge of robot installation and troubleshooting. It requires buyers to have patience. The seller will provide some technical support, but we do not accept returns for non-quality issues. Please understand, and those who disagree should be cautious when purchasing.Documentation is accessible at: cn.doit.am, wiki.doit.am, or the provided document link. Please review carefully.
Product Parameters:
Option Explanation:
-

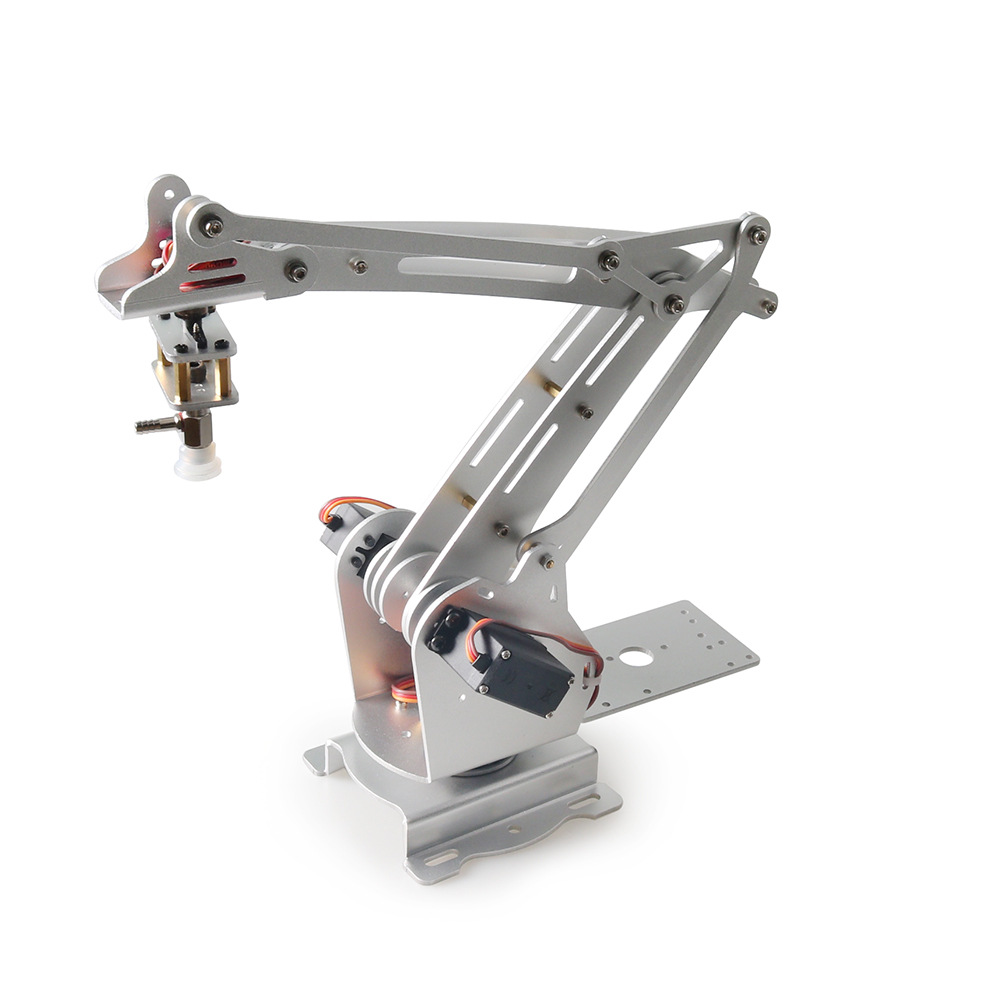

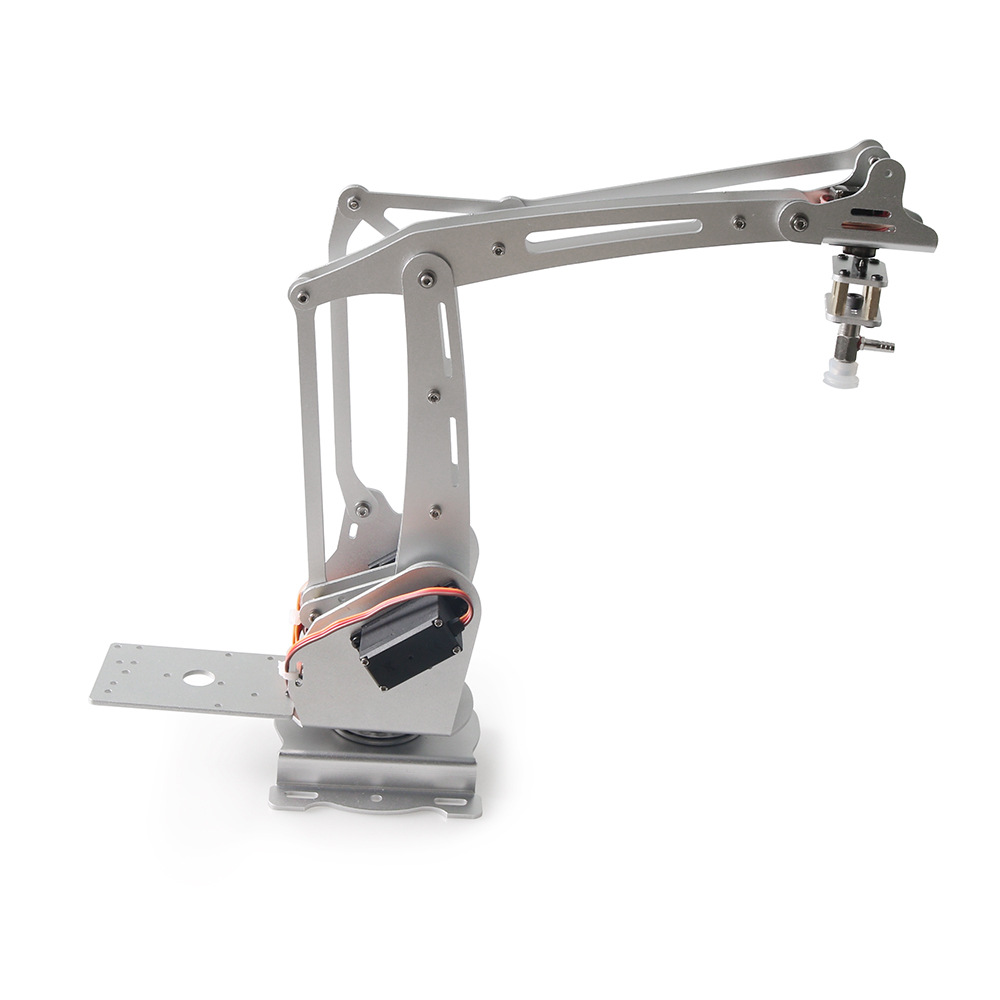

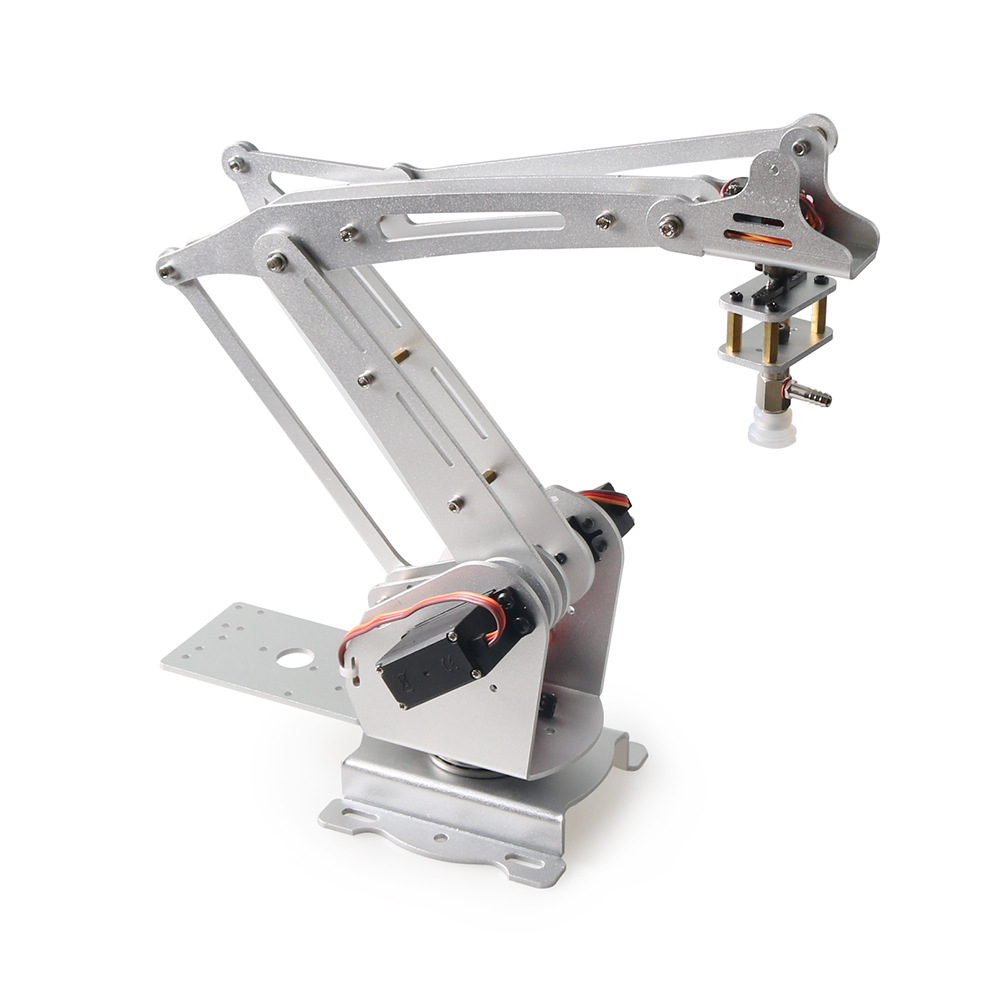

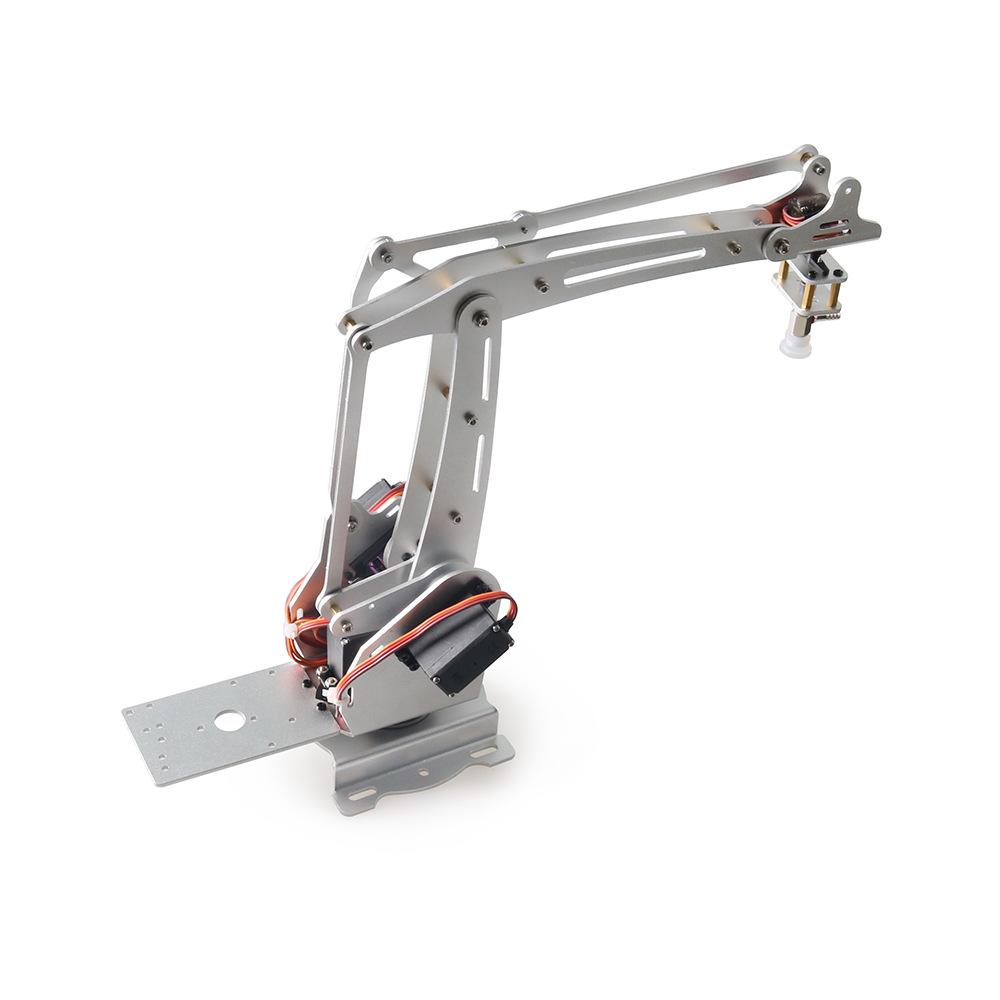

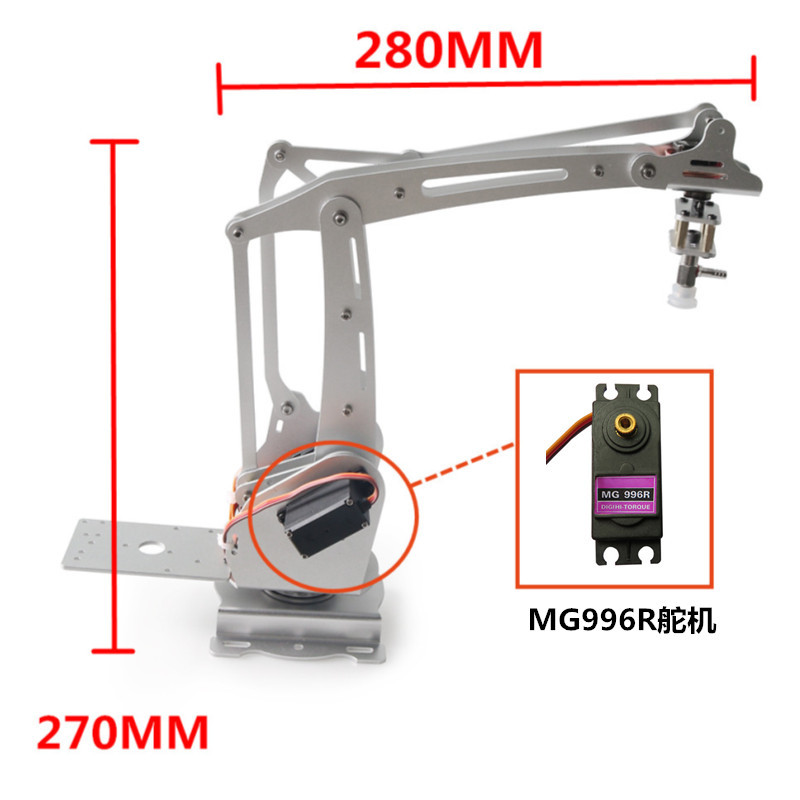

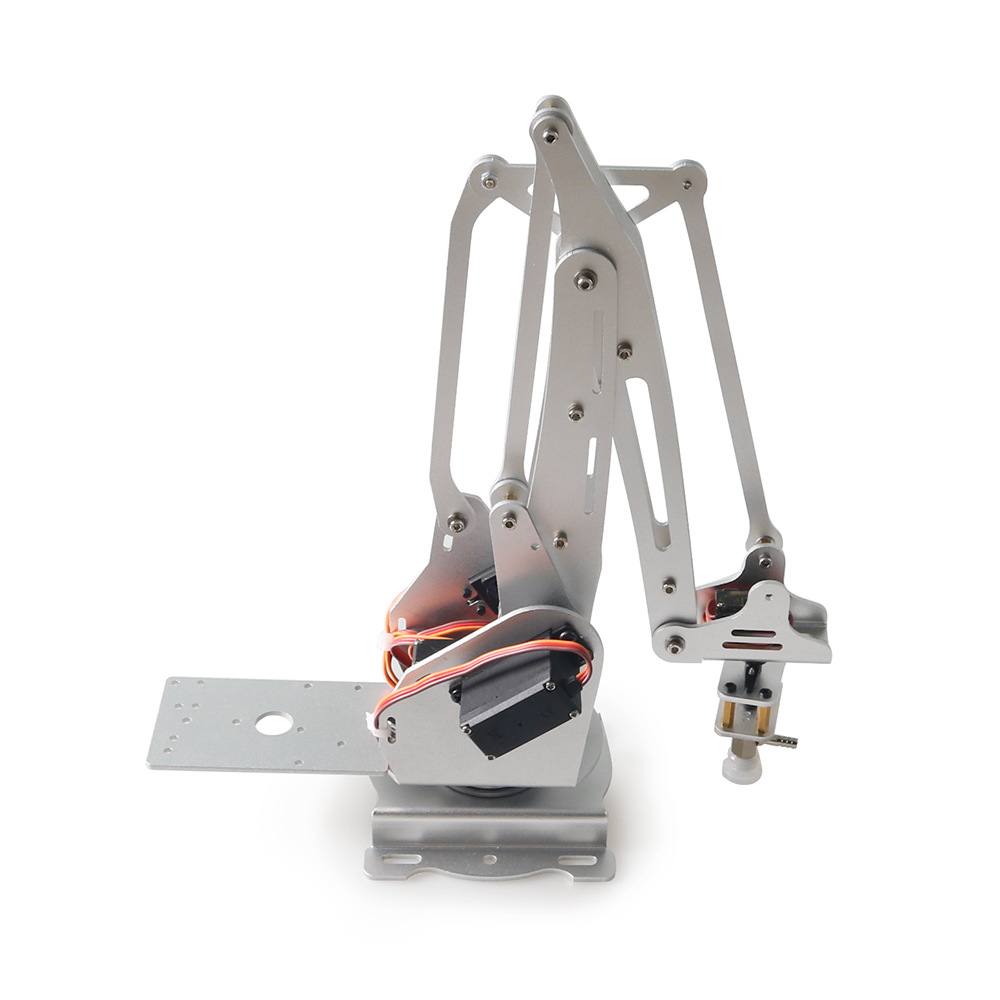

Robot Arm Kit: The robot arm is shipped in bulk, including 4 servos and oneMG90Metal gear mini servo.
-
Mechanical arm main material: Aluminum alloy
-
Weight: 0.76kg (including the servo motor weight)
-
Color: Silver
-
Servos available: MG996r, MG995r, DS3218 metal gear large servos; MG90s metal gear small servos
-

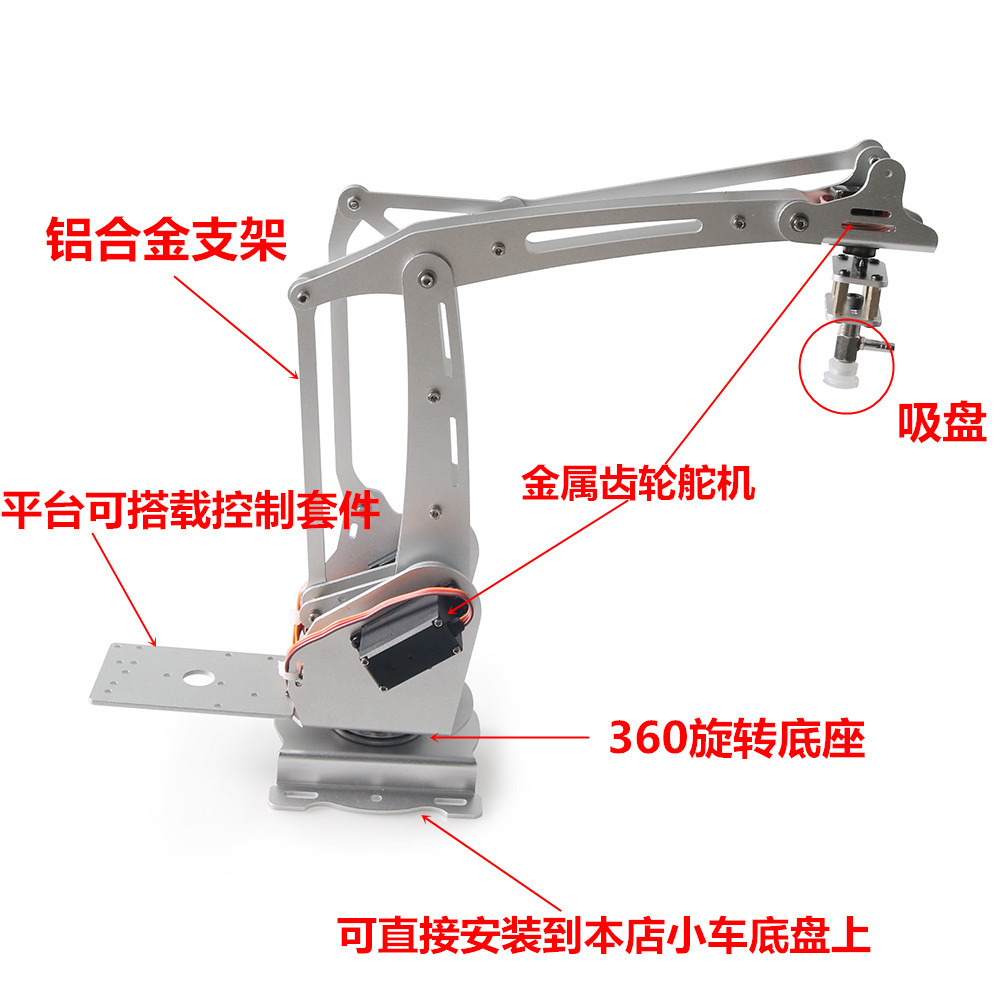

Features: The head of the robotic arm can be equipped with suction cups, and the base can rotate 360 degrees.
-

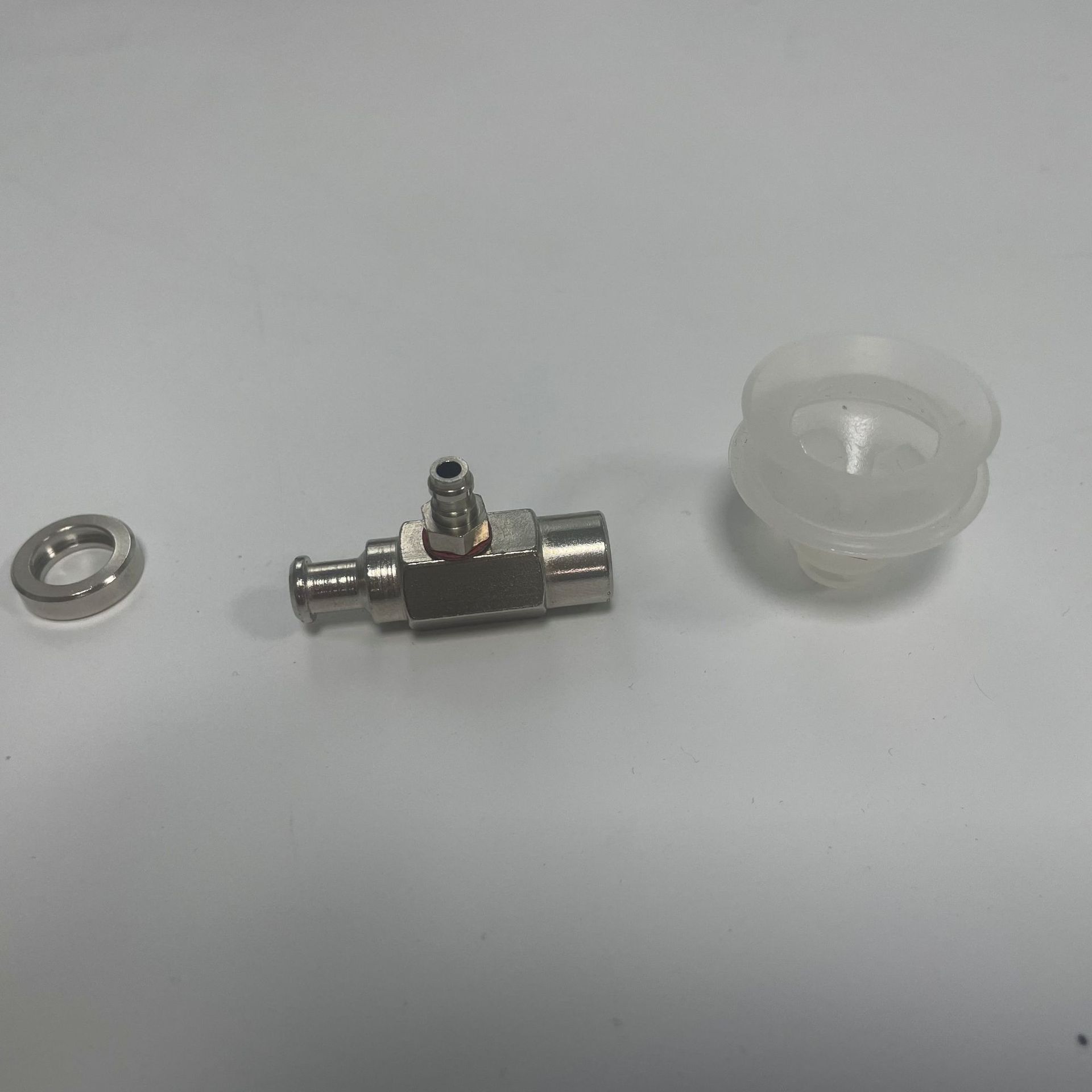

A set of suction nozzles

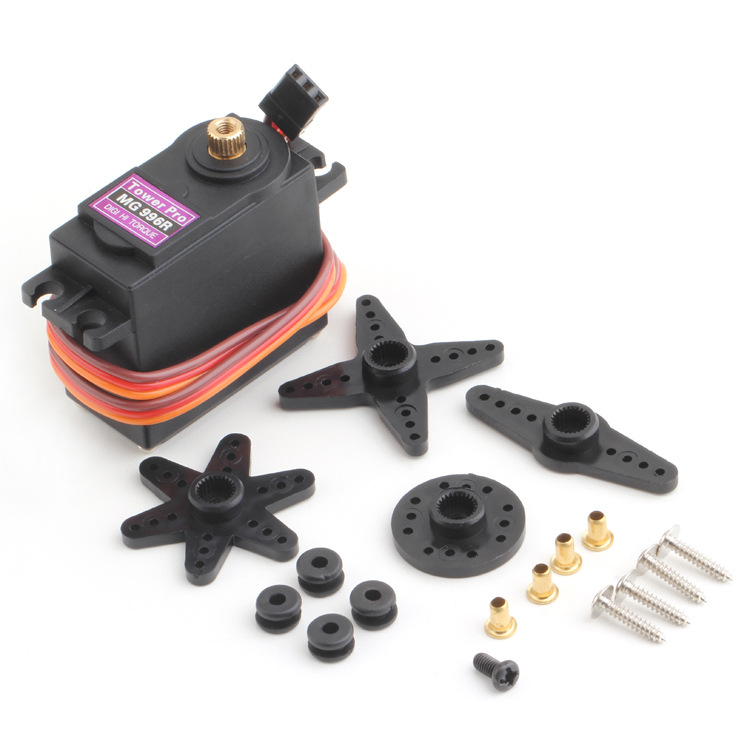

Standard version servo motor:
-
Model: MG996r
-
Product dimensions: 40.7*19.7*42.9mm
-
Product Tension: 15kg/cm (6V)
-
Weight: 55 grams
-
Work speed: 0.17sec/60 degrees (4.8V no-load)
-
Work speed: 0.13sec/60 degrees (6.0V empty load)
-
Stall Torque: 9 kg - cm (180.5 oz-in) at 4.8V
-
Stall Torque: 12 kg - cm (208.3 oz-in) at 6V
-
Working Voltage: 4.8 - 7.2Volts
-
Gear: Metal Gear
-
Color: Black
-
Connector cable: Heavy duty, 11.81" (300mm)
Servo connector with three wires: Yellow - Signal, Red - Positive, Brown - Negative.

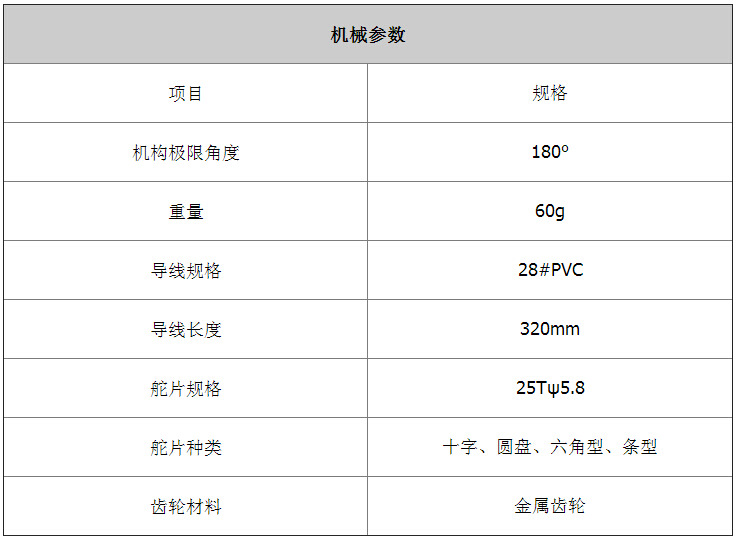

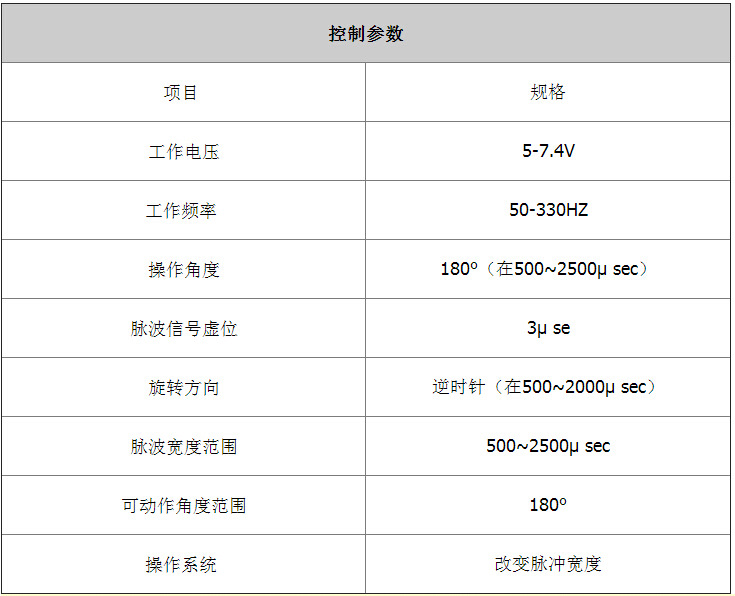

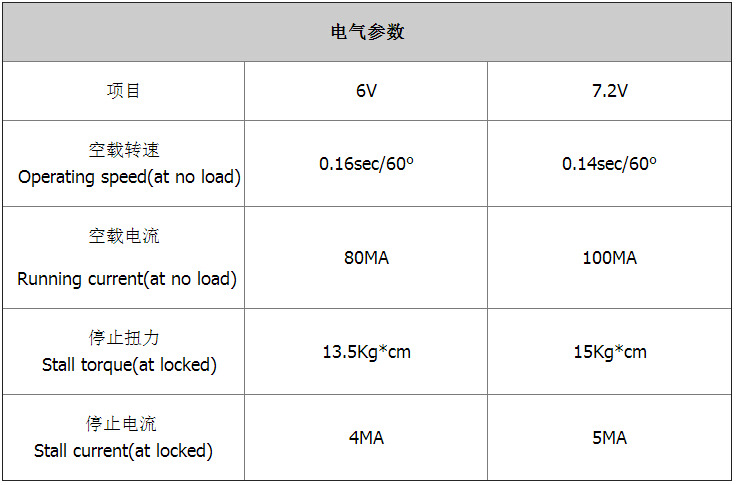

DS3218 servo

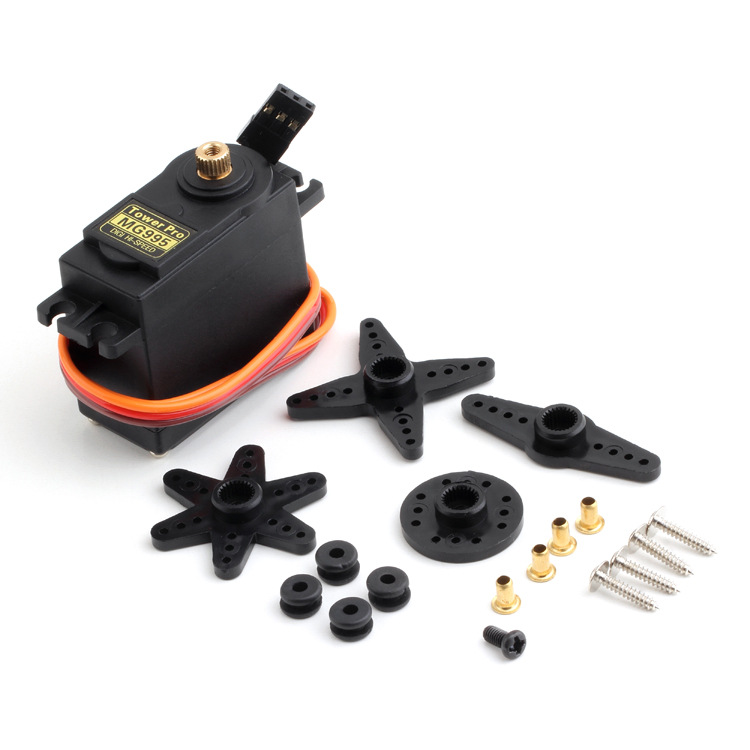

MG995R servoParameter:
-
Size: 40.7*19.7*42.9mm
-
Weight: 55g
-
Voltage: 4-7.2V
-
Torque: 13kg/cm
-
RPM: 0.17sec/60° (4.8V)
-
Dead Zone: 4us
-
Angle of rotation: 360° (discontinuous)
-
Material: Metal copper gears, hollow cup motor, double bearings.
-
Interface: Orange (Signal), Red (Power Positive), Brown (Power Negative)
-
A 360° servo can only control the rotation speed, not the angle, and the difference from a regular servo control is as follows:
-
~~180-degree servo motor~~~~~~~~360-degree servo motor~~~~
-
***-90度==========反转最大速度***
-
***-45 degrees ========== Reverse speed 50% ***
-
*** 0 degrees ========== Stop ***
-
*** 45 degrees ========== Forward rotation speed: 50% ***
-
*** 90 degrees ========== Forward rotation maximum speed ***
Features:
-
All metal gears, wear-resistant and less likely to be damaged by scratching.
-
Double bearings, fixed copper sleeve, stable operation
-
High torque, suitable for robot servo platforms, robotic arms, and mechanical arms, etc.

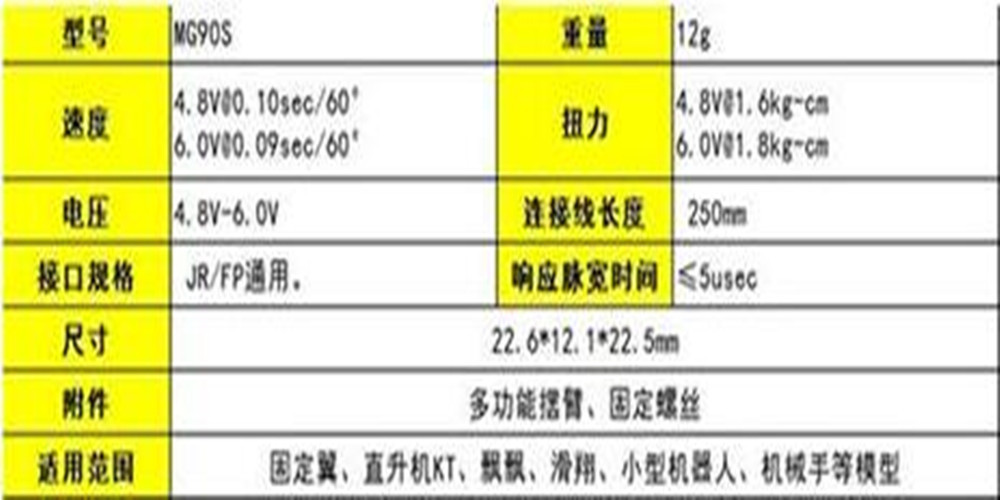

MG90S Servo:

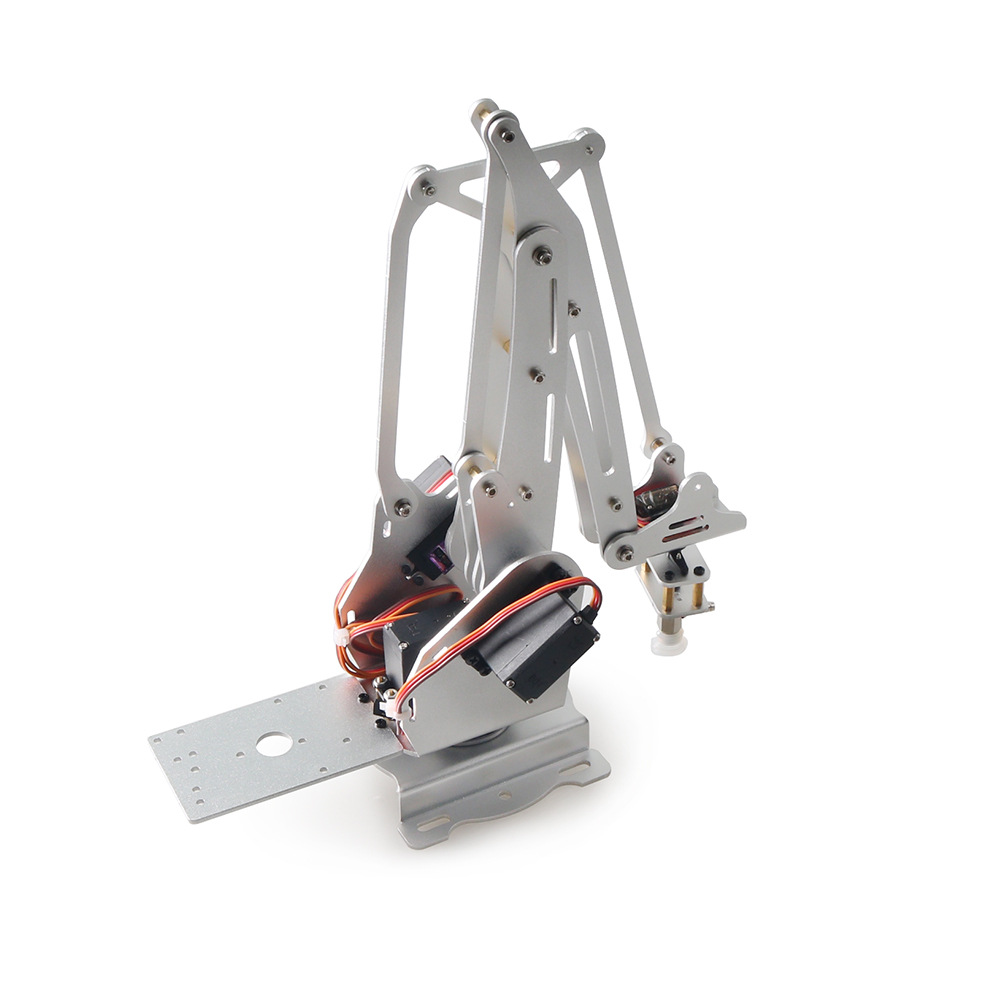

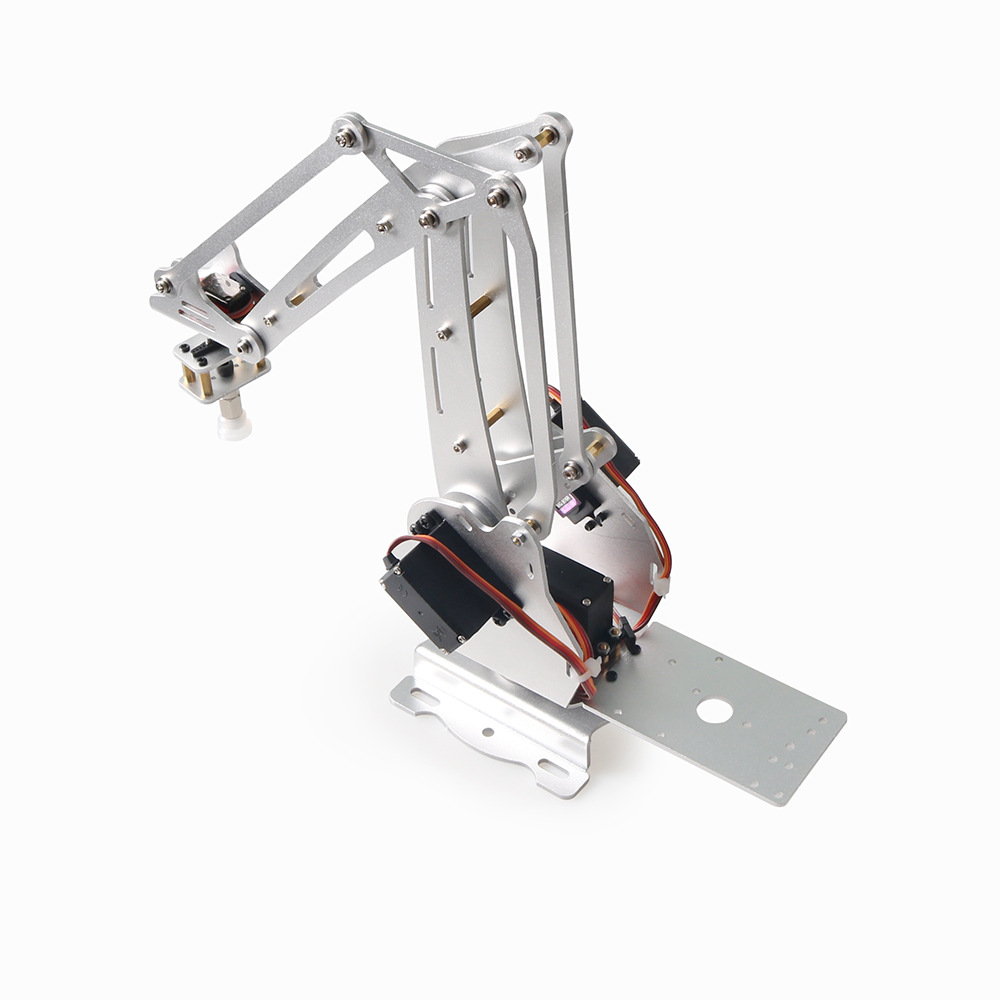

Product images:
Shipping List:
-
3-DOF Small Arm Support: 1 Set
-
MG996r/DS3218/MG995r servos (optional): 3 pieces
-
MG90s servo: 1 (head)
Note: Shipped in bulk!!! Does not include batteries!!
