wifi control open source maker 7-degree-of-freedom mechanical arm robot model 360-degree rotating base robot WIFI控制 开源创客7自由度机械臂机器人模型360度旋转底座机器人

86 + 15392033619
WeChat: 15355350932
WeChat: 15392033619
Shop address: 2nd Floor, Door 22, No. 9 Street, Area F2-13554, Yiwu International Commerce City, Yiwu City, Jinhua City, Zhejiang Province
Miss Li 18958493554
15392033619 Mr. Li

Welcome to foreign trade wholesale, providing English and Chinese materials.

Parameter:

• Mechanical arm main material: Aluminum alloy
• Weight: 0.82kg (including the servo motor weight)
• Color: Black, Silver（Color to be noted or contact customer service, otherwise default to silver）
• Servo options: MG996r, DS3218 metal gear large servos

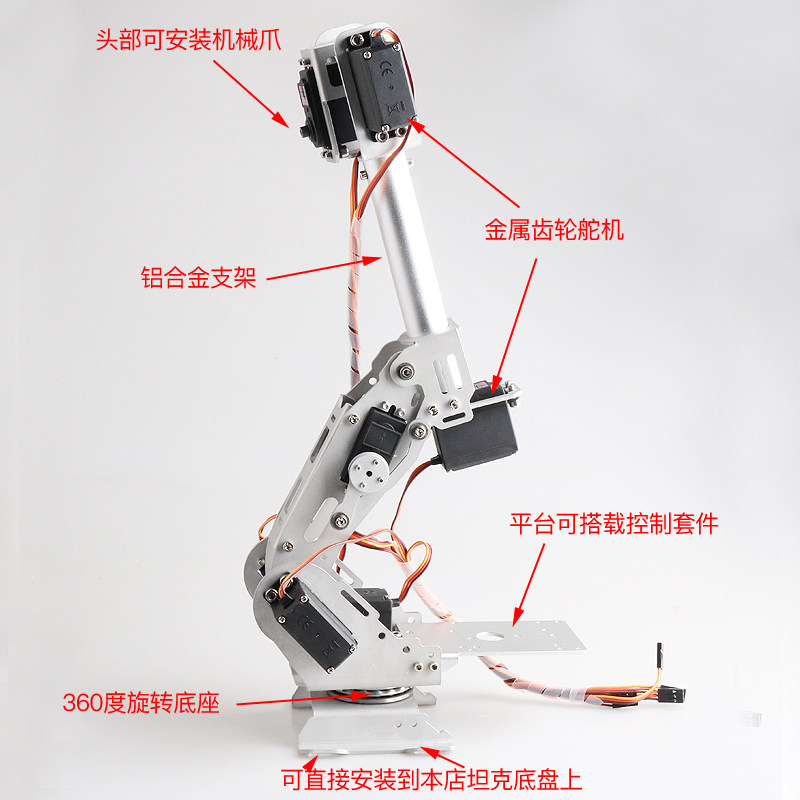

• Features: The robotic arm head can be equipped with a robotic gripper, capable of grasping objects weighing approximately 500g; the base of the robotic arm can rotate 360 degrees.

MG996r servo:

• Model: MG996r
• Product dimensions: 40.7*19.7*42.9mm
• Product Tension: 15kg/cm (6V)
• Weight: 55 grams
• Work speed: 0.17sec/60 degrees (4.8V no-load)
• Work speed: 0.13sec/60 degrees (6.0V empty load)
• Stall Torque: 9 kg - cm (180.5 oz-in) at 4.8V
• Stall Torque: 12 kg - cm (208.3 oz-in) at 6V
• Working Voltage: 4.8 - 7.2Volts
• Gear: Metal Gear
• Color: Black
• Connector cable: Heavy duty, 11.81" (300mm)

Servo connector with three wires: Yellow - Signal, Red - Positive, Brown - Negative.

DS3218 servo

Shipping List:

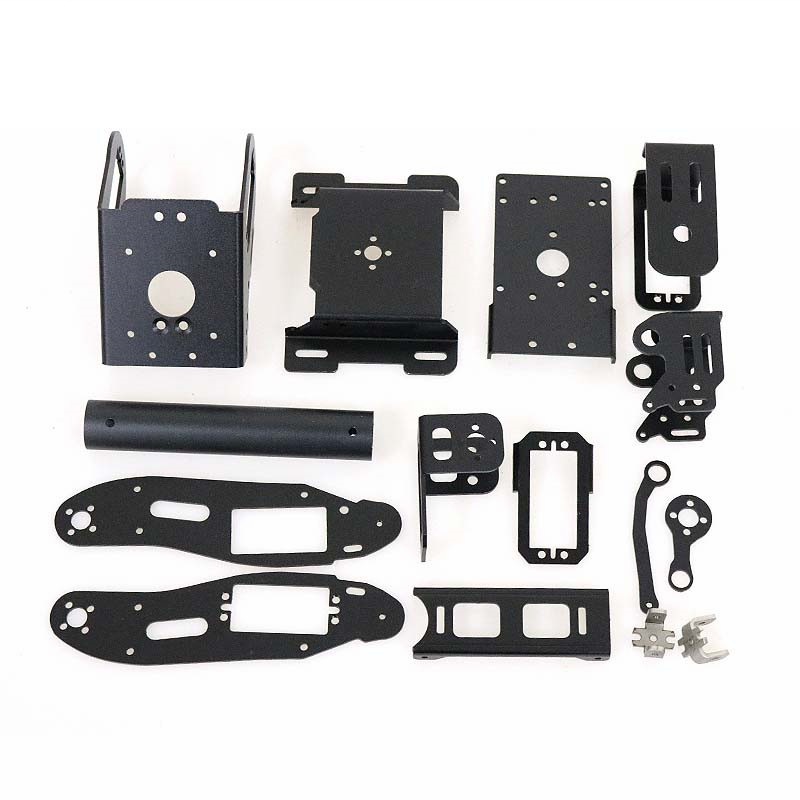

• 7-DOF Mechanical Arm Support: 1 Set
• MG996r/DS3218 servo: 7 pieces (optional)
• Wifi Control Kit: 1 set

Note:

• All mechanical arms are shipped in bulk, and assembly instructions will be provided after purchase. For those who order the control kit, the source code will be included as a gift.
• The assembly of robotic arm parts requires a lot of patience.
• Does not include battery, can be purchased separately.

Image:
