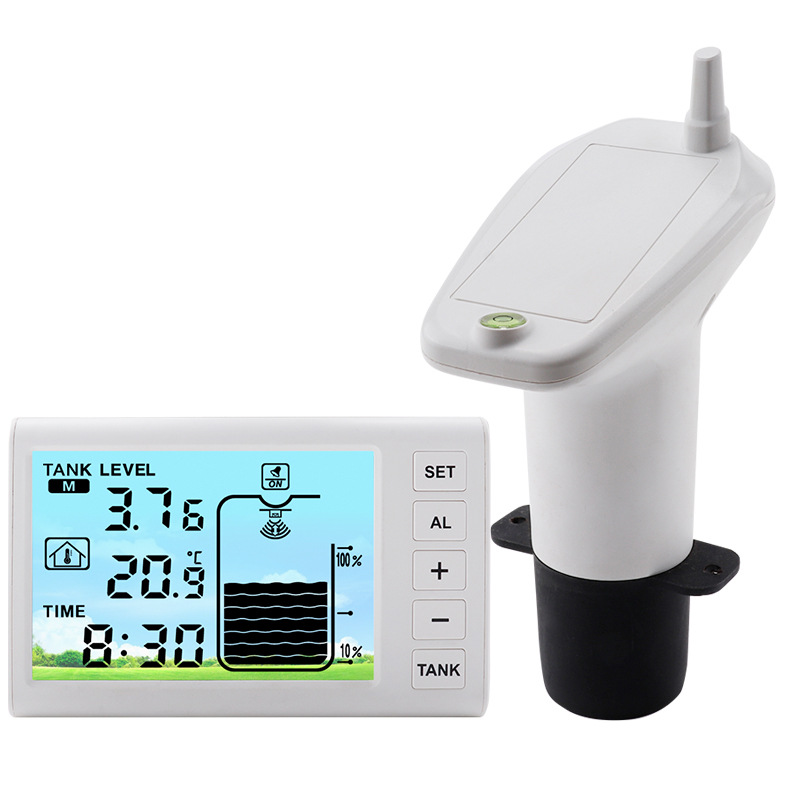

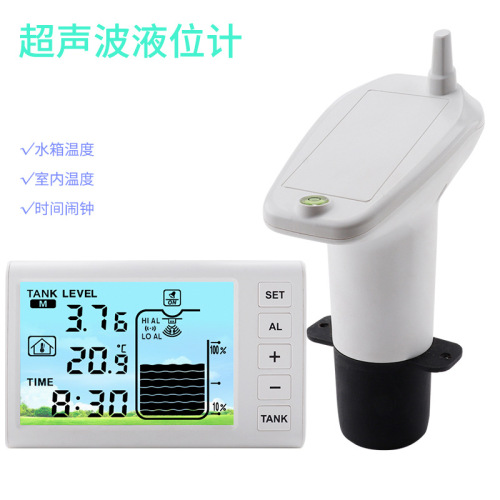

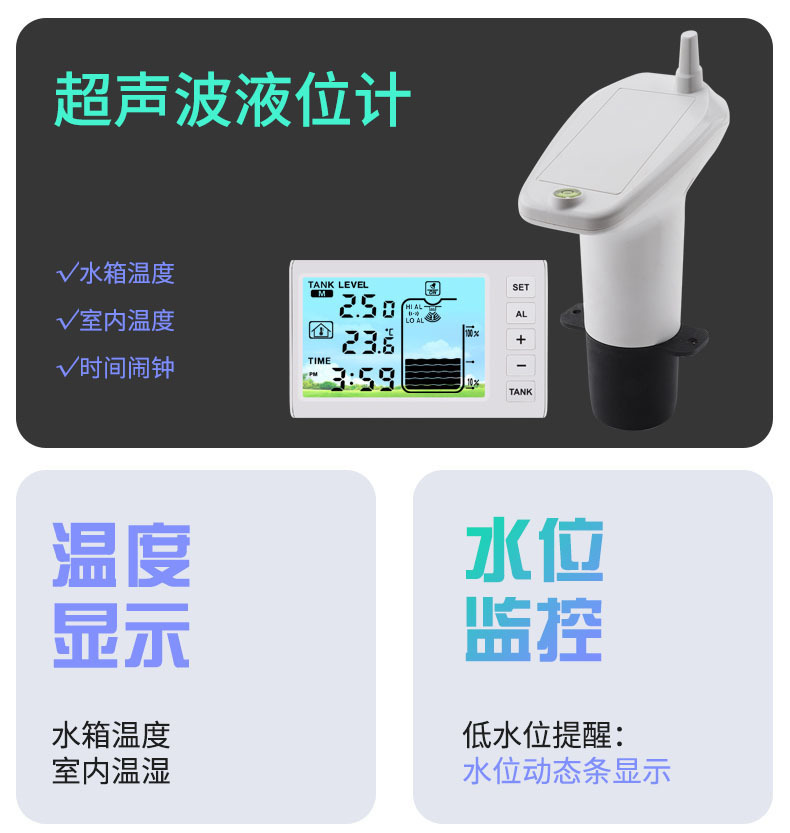

ultrasonic level gauge multi-functional household digital display water tank water level gauge water level monitor high and low water level alarm apparatus

Additional tax points will be added to the invoice, please consult the customer service for more details!

TS-FT005 Product Function Introduction:

1. Backlight On/Off Function
2. Time function 12H/24H system (default display on power-on: 0:00 24-hour format)
3. Low Battery Reminder for the Transmitter
Alarm function (default display: 0:00 upon power-on)
5. Beeper on/off (The activation or deactivation of the beeper function only affects the button sound; the alarm sound mode is not affected by this)

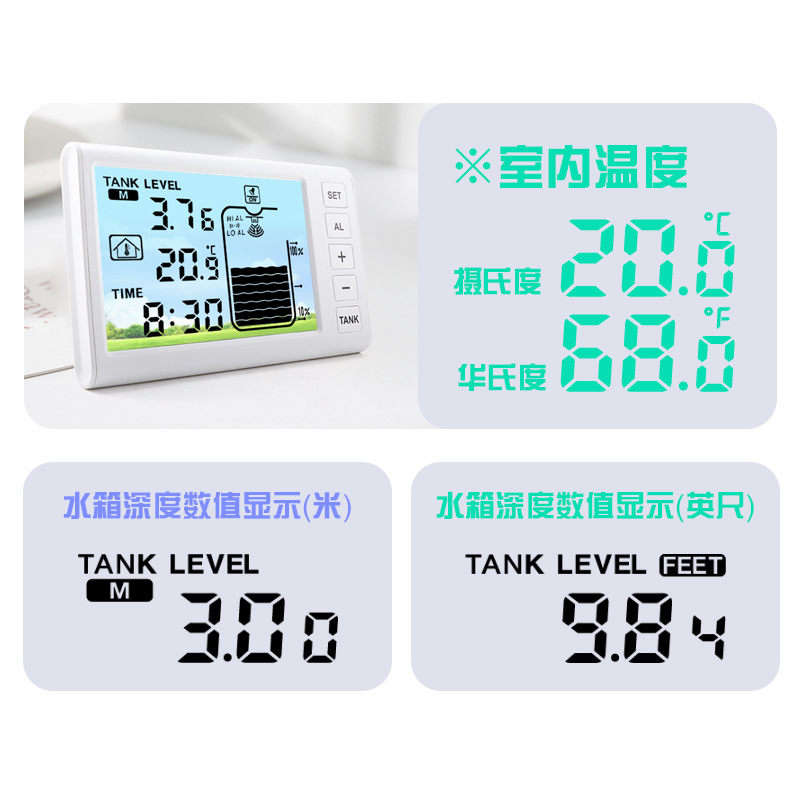

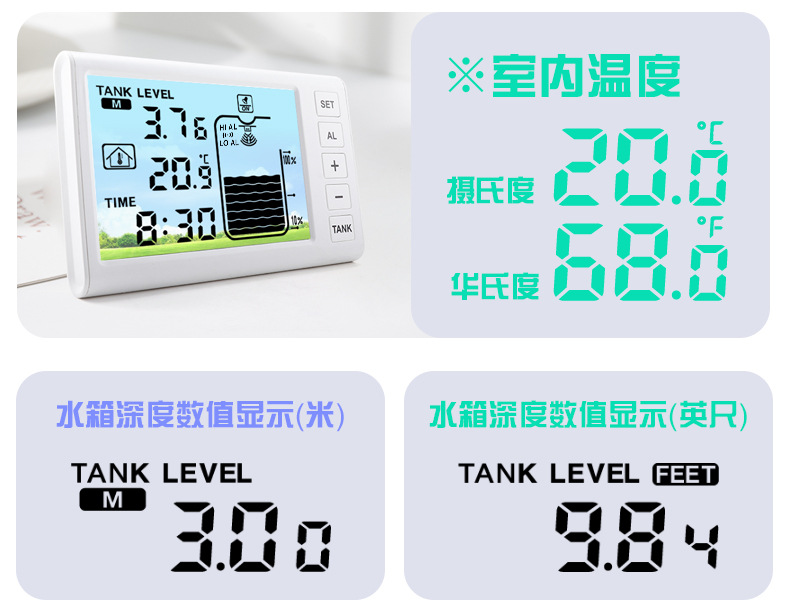

6. Indoor temperature °C/°F (Default °C)
7. Data Signal Indication
8. Tank temperature °C/°F (Default °C)
9. Tank level display unit: meters/feet (default: meters when power on)

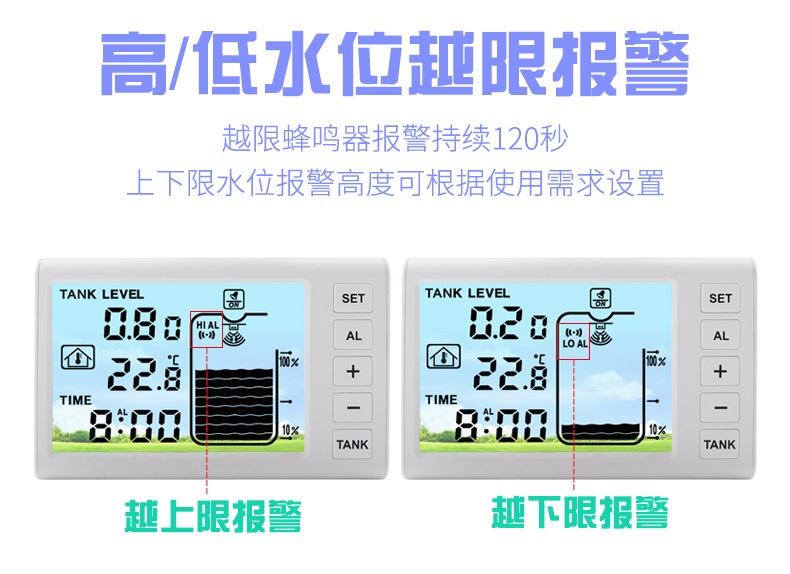

10. Tank Level High/Low Alarm Mode

11. Alarm sound on/off icon display, default on

Alarm duration: 120 seconds

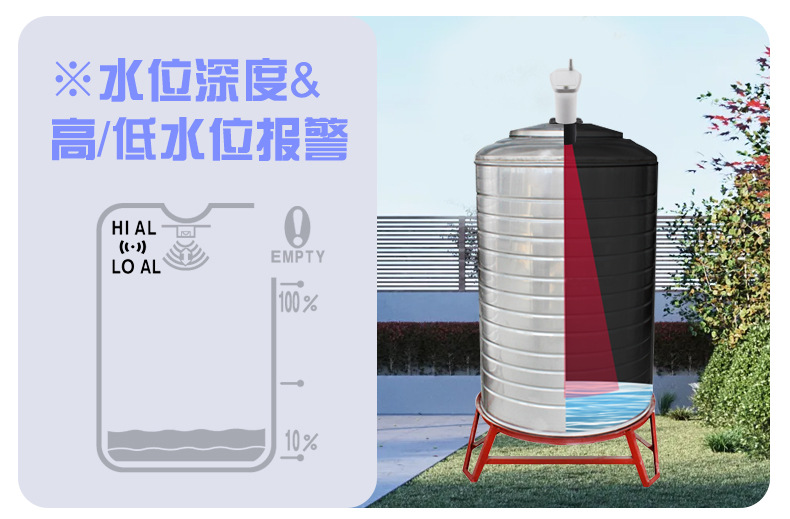

13. High/Low Water Level Icon Display

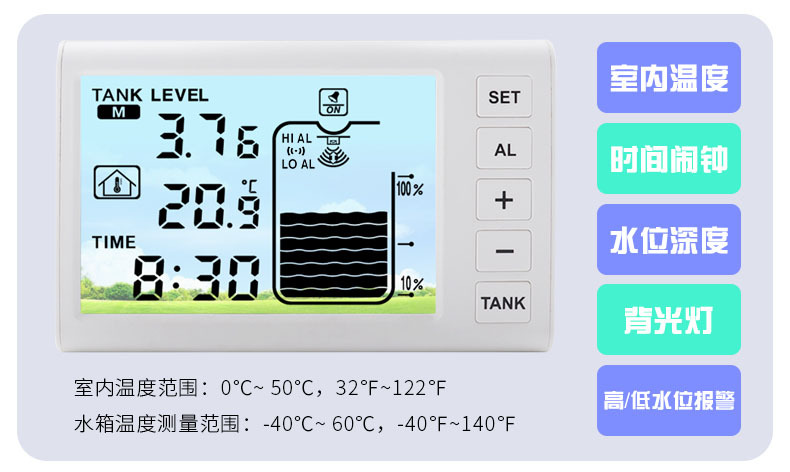

14. Simulate the display of water level depth on a 10-element LCD bar graph

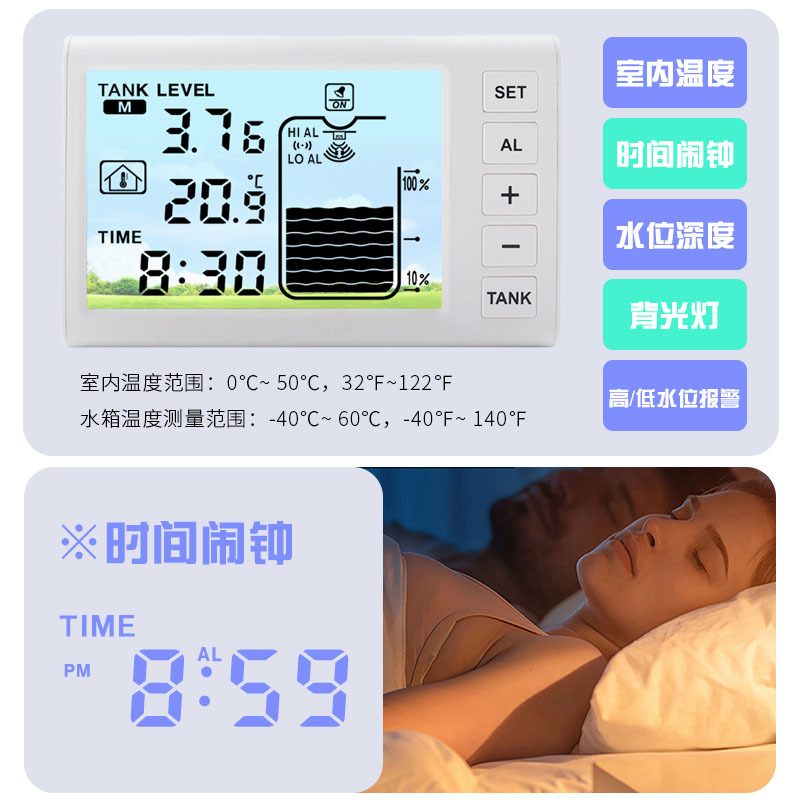

15. Receiver indoor temperature range: 0°C~50°C / -32°F~122°F

16. Transmitter tank temperature measurement range: -40°C~60°C/-40°F~140°F

Water level measurement range: 1~5m

18. Temperature Resolution: 0.1°C Accuracy: ±1°C

Water level resolution: 0.01m, accuracy: ±0.05m

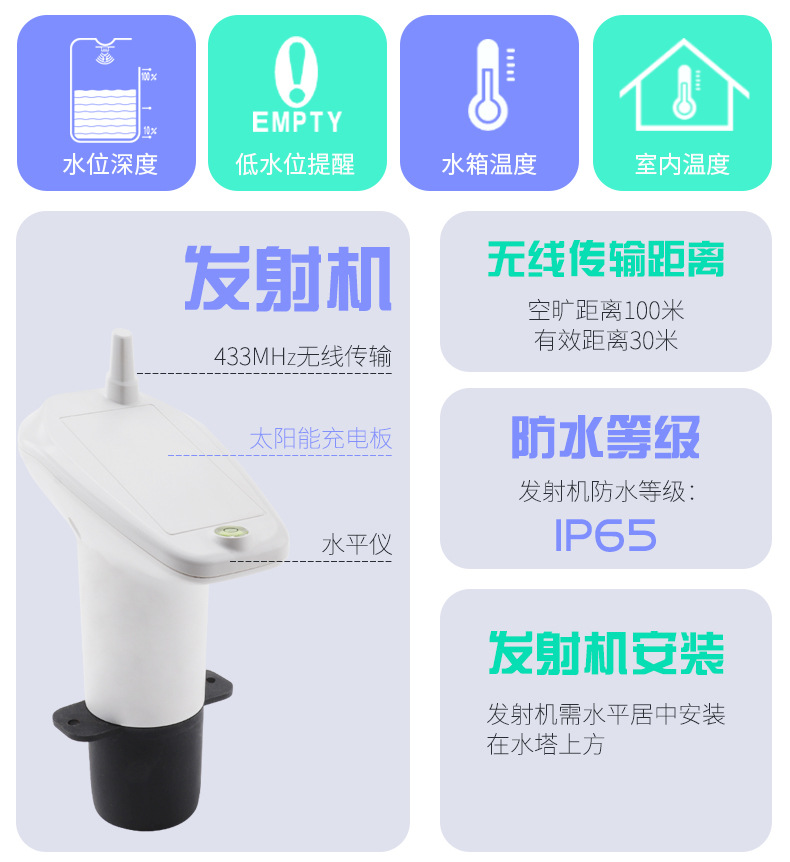

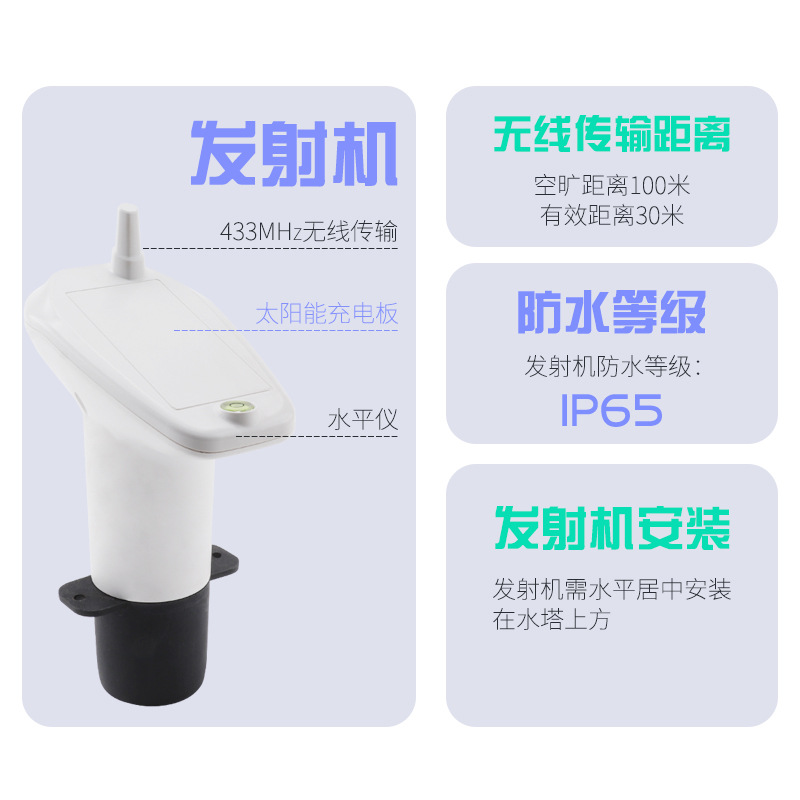

20. Transmitter protection level: IP65 (effectively protects against spraying rain from any direction)

21. Wireless transmission distance: open space distance is 100 meters

Screen size: 4.3 inches

23. Body Material: ABS

24. Product Certification: ① FCC-ID; ② ROHS; ③ CE-EMC; ④ CE-LVD; ⑤ IP65; ⑥ UL (60335-1) testing.

⑦ Salt Spray Test; ⑧ (-20°C-60°C) High-Low Temperature Test;

25. Power Supply Method (Battery Not Included in Shipping):

Receiver: Powered by 3*AAA batteries / Powered by TYPE-C power cable;

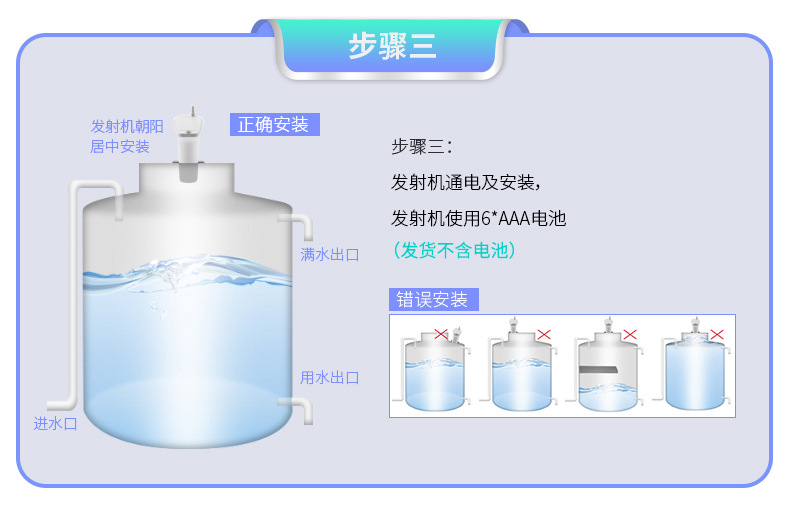

Transmitter: Powered by 6*AAA batteries.

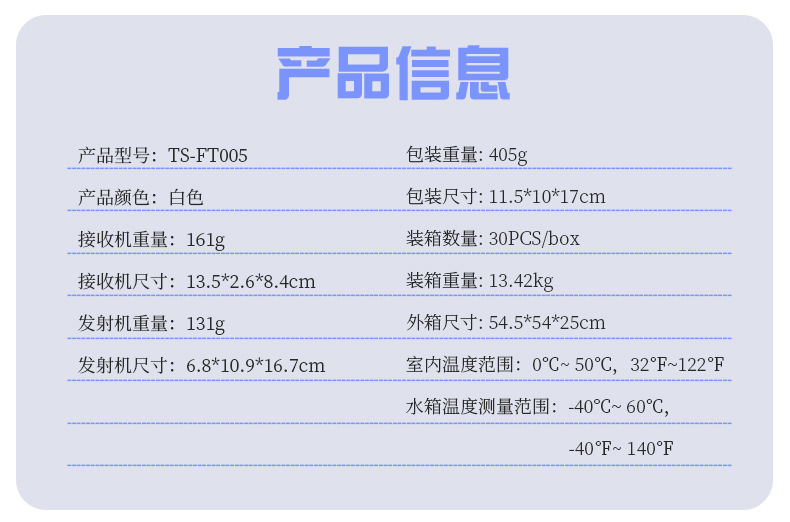

TS-FT005 Specification Introduction:

1. Product Size: Transmitter: 6.8*10.9*16.7cm; Receiver: 13.5*2.6*8.4cm;

2. Individual product packaging size: 11.5*10*17cm

3. Product Weight: Transmitter: 131g; Receiver: 161g;

4. Individual product packaging weight: 405g

5. Packing Quantity: 30PCS/box

6. Case Specification: 54.5*54*25cm

Gross Weight: 13.42kg

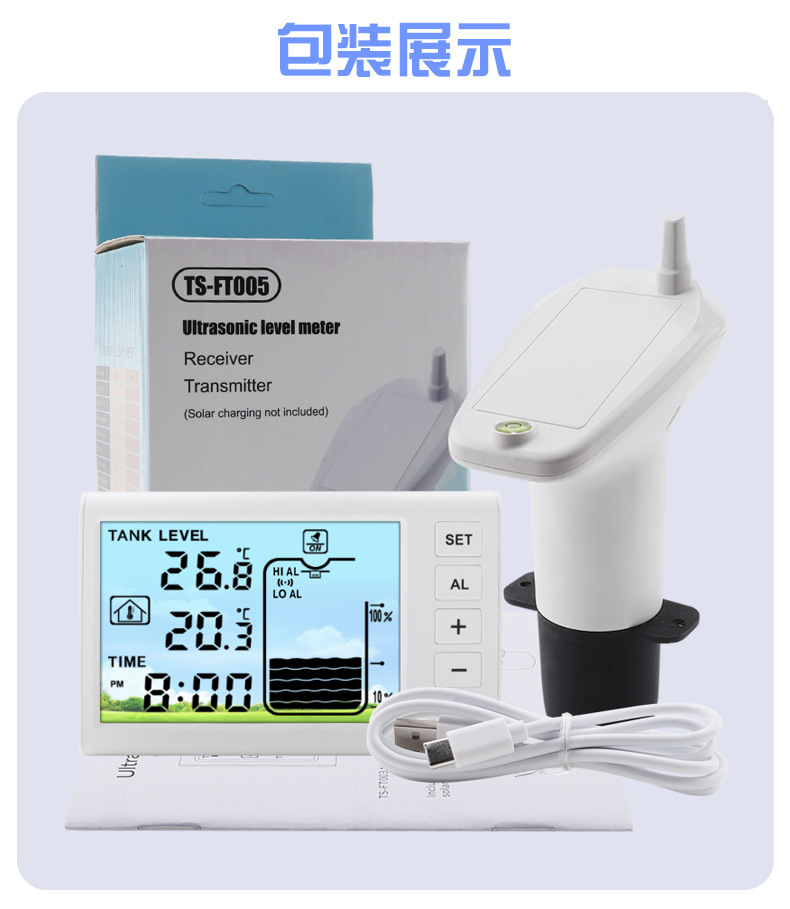

TS-FT005 Packing List:

Receiver * 1, Transmitter * 1, Installation Screws * 2, TYPE-C Power Cable * 1, Pearl Cotton Bag * 2, Bilingual Instruction Manual * 1, Transmitter White Box * 1, Color Box * 1
