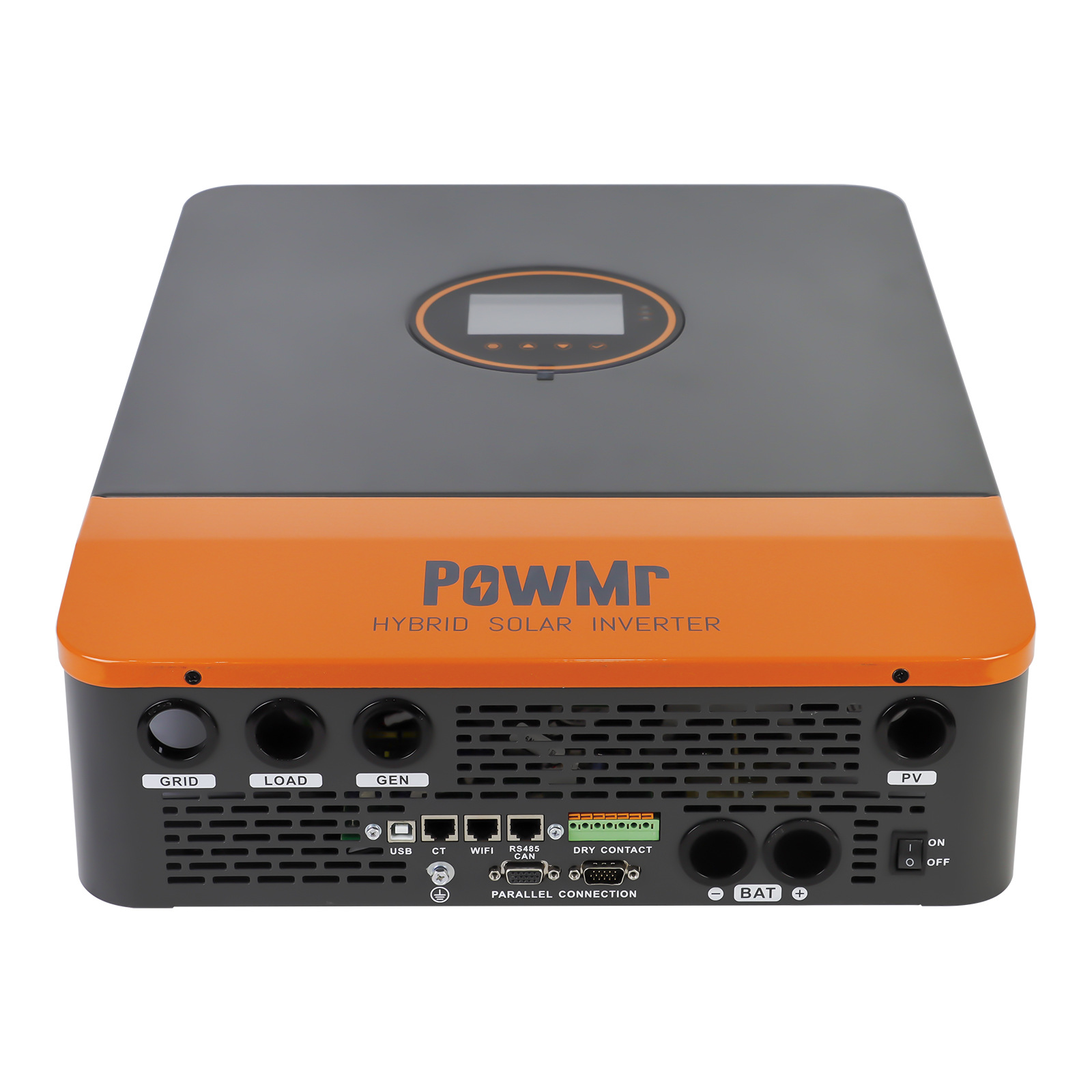

powmr 6.5kw photovoltaic inverter 110v/220v american standard split phase solar energy off-grid cross-border

LuchuEnergy 2yr.

Contacts Ashton Chat

Mobile 86-13520043897

E-mail 13520043897

luchu25

WhatsApp +8613520043897

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

application scope: household energy storage

adapter line length: 1m

communication protocol: bms485/bms232

external battery type: lithium battery, lead acid battery, no battery

product certification: ce

weight: 21kg

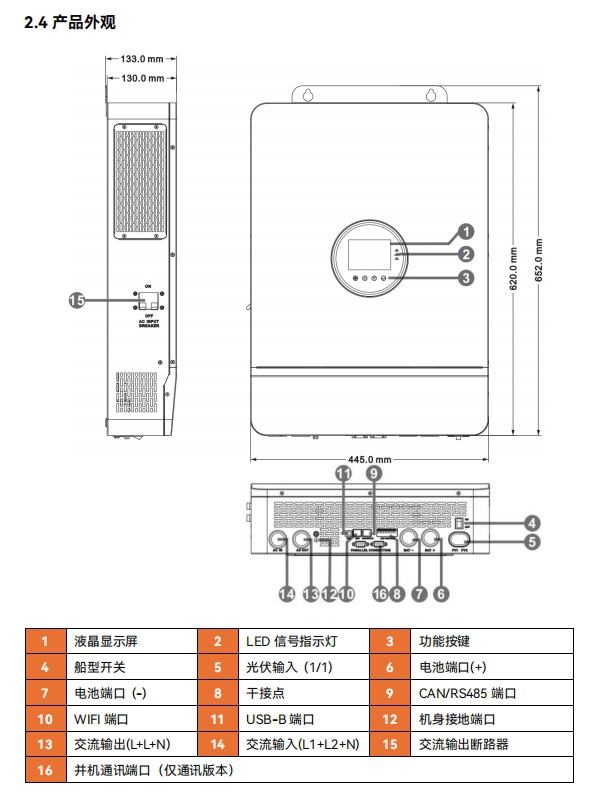

dimensions: 620*435 * 130mm

work efficiency: 94%

warranty: two years

protection level: ip20 indoor

Features
1. Support connection of lead-acid batteries and lithium-ion batteries.
2. The lithium-ion battery has a dual activation function when in standby mode; it can be connected to both grid power and photovoltaic power sources.Triggering the activation of the lithium-ion battery.

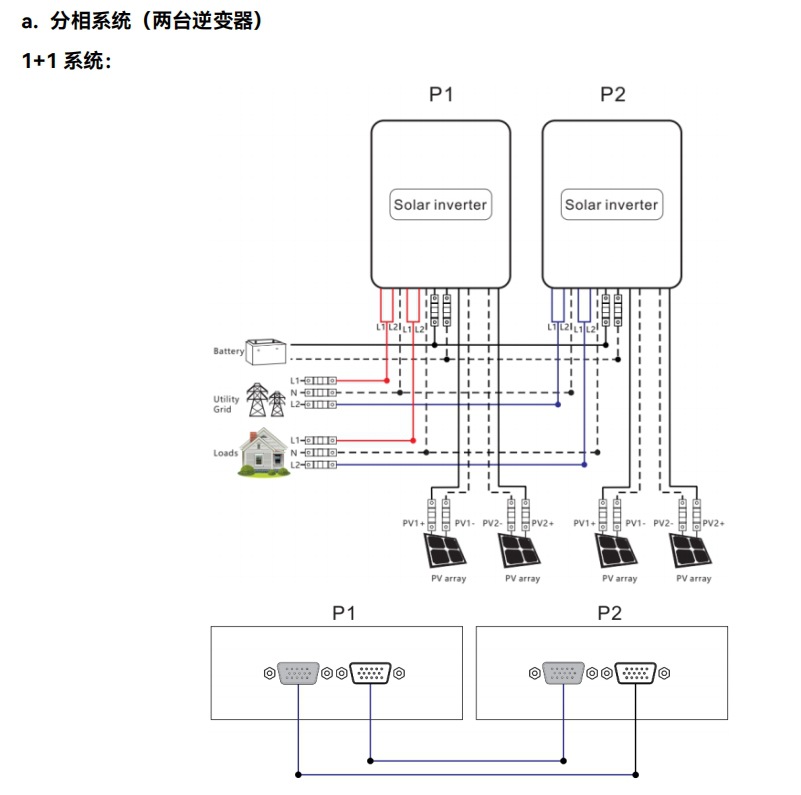

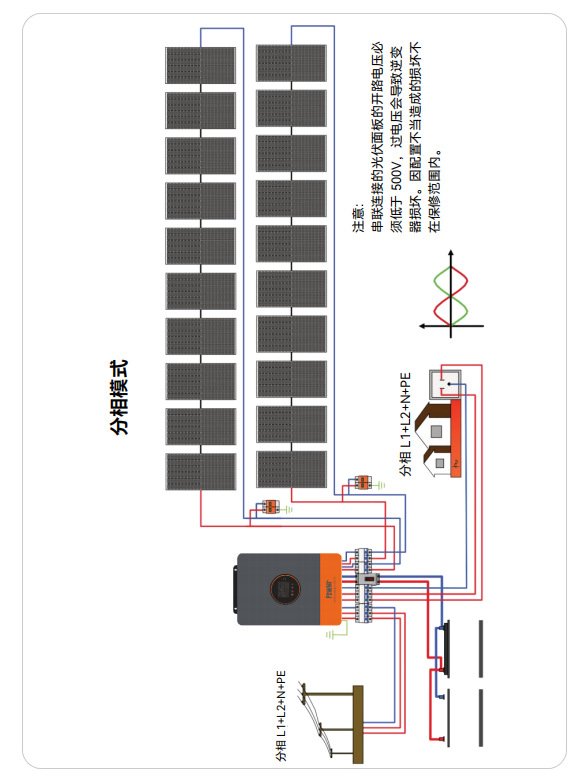

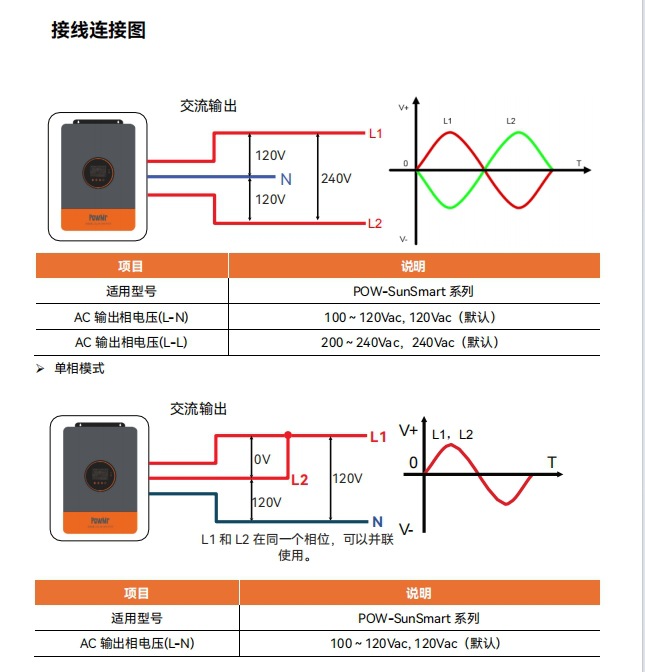

3. Supports phase-separated and single-phase pure sine wave output.

4. Each phase supports four different voltage levels: 100Vac, 105Vac, 110Vac, and 120Vac.

5. Supports two solar power inputs and simultaneous tracking for maximum power charging/portability of two solar sourcesCapacity and functions.

6. A dual MPPT single-circuit device with 99.9% efficiency and a maximum 22A current.Fully adapted to high levelsPower module.

7.4 charging modes are available: solar power only, power priority, solar priority, and hybrid power/pv charging.

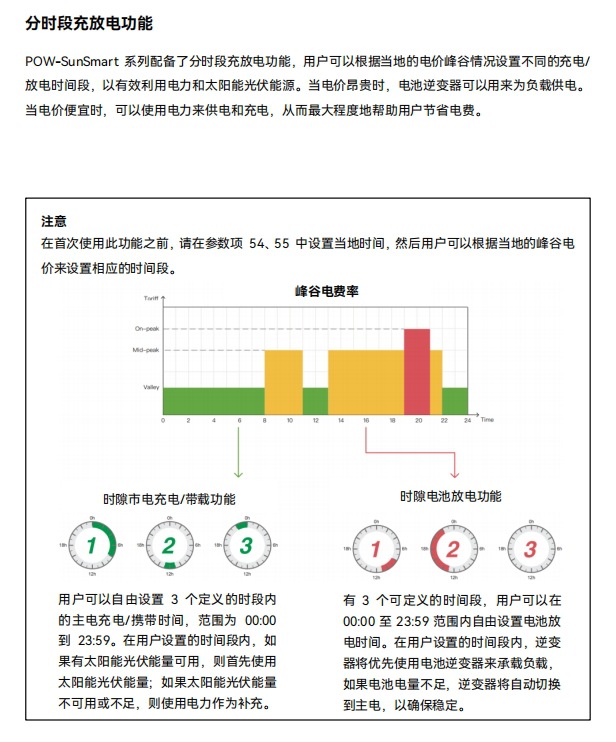

8. With the time slot charge and discharge settings function, you can set the cutting time intervals.

Enter/exit power charging, and switch between the battery discharge and power bypass time periods

Power mode.

9. Energy-saving mode function, reducing idle energy consumption.

10. It offers two output modes: utility bypass and inverter output, with an uninterruptible power supply function.

1.1. LCD large-screen dynamic flowchart design, making system data and operations easy to understandStatus.

1.2.3.6.0 ° Protection, complete short-circuit protection, overcurrent protection, overvoltage protection

Protection, overload protection, backfilling protection, etc.

1.3. Supports CAN, USB, and RS485 communication.

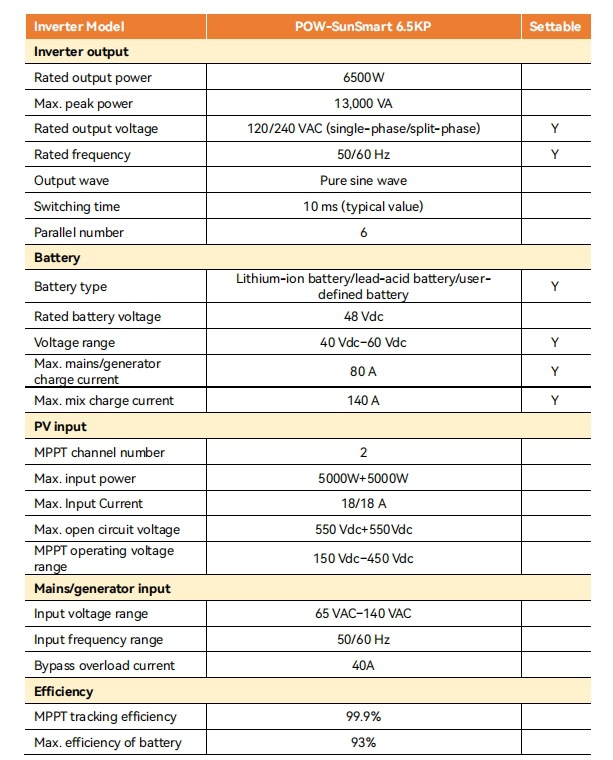

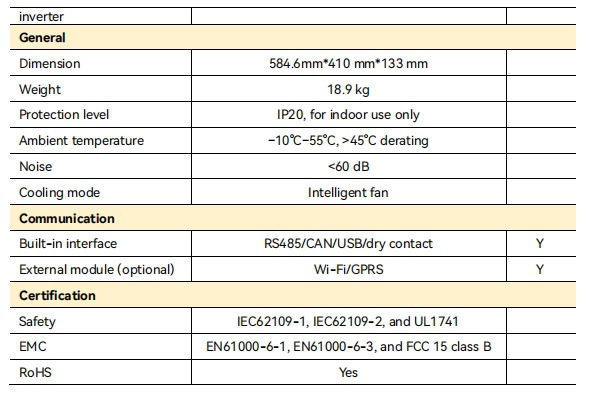

Specifications

model	POW-SunSmart 6.5KP
Rated output power	6500W
Maximum peak power	1,300,000 W
Rated output voltage	120/240 VAC (Phase split / Single phase)
Motor load capacity	6HP
Rated AC Conversion Rate	50/60Hz
Time Switch	10 milliseconds (typical value)
Battery Type	Lithium-ion / Lead-acid / User-defined
Rated battery voltage	48VDC
Voltage Range	40-60VDC
Maximum MPPT charging current	140A
Maximum power supply/generator charging current	100A
Maximum Mixed Charging Current	140A
Number of MPP trackers	2
Maximum Photovoltaic Array Power	5000W
Maximum input current	18/18A
Maximum open-circuit voltage	500VDC
MPPT Voltage Range	150-450VDC
Input Voltage Range	90-104VDC
Frequency Range	50/60Hz
Passing by the current flow	63A
MPPT Tracking Efficiency	99.9%
Maximum battery inverter efficiency	92%
Size	584410133MM
weight	19 kg
Protection Level	IP20, for indoor use only
Cooling Method	Internal fan
Warranty	18 months

The parameter comparison table for the US standard model versions is clear at a glance! For details on the models, please consult customer service and request the link.

产品对比表-1

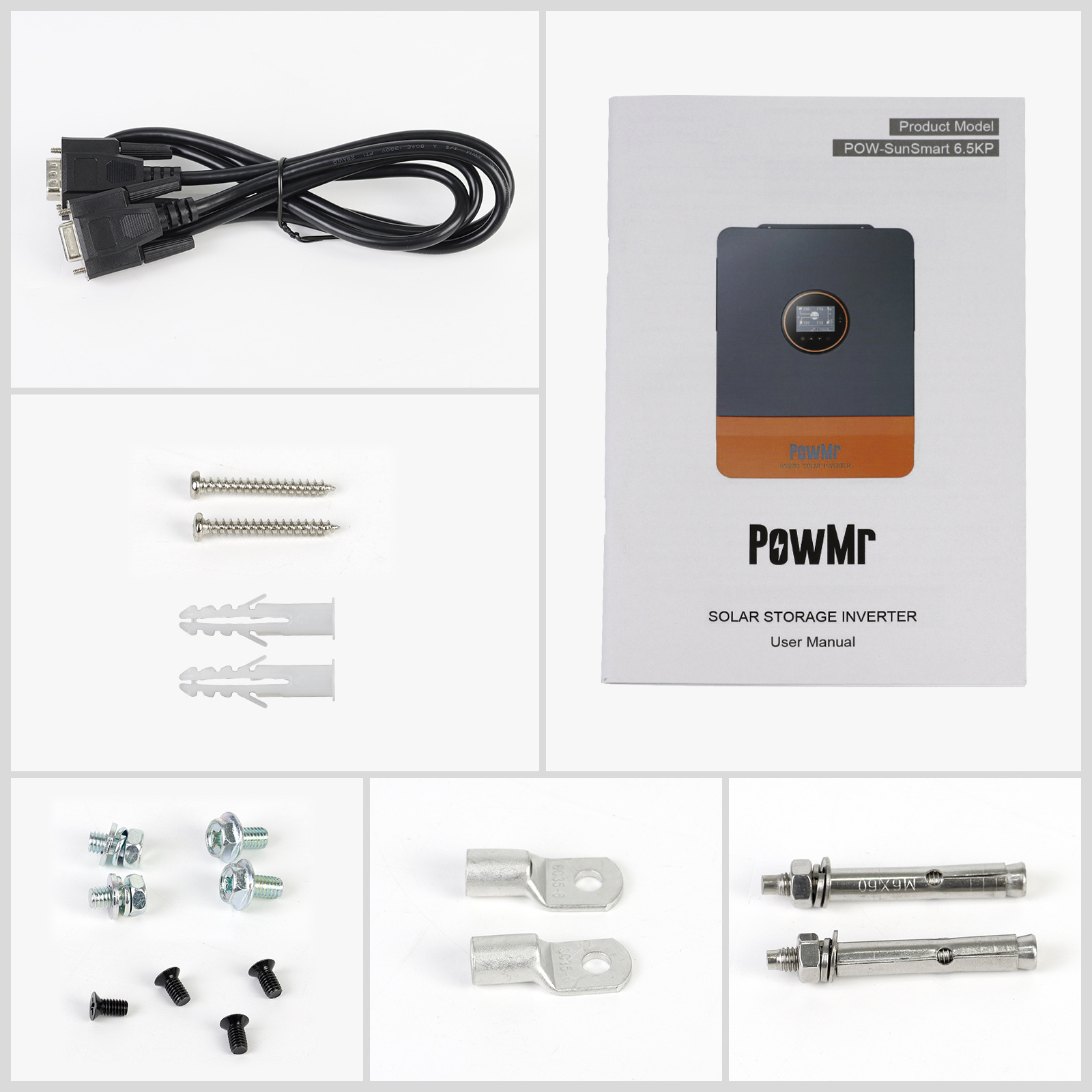

Packaging and delivery

undefined

undefined

Update time：20260816181905

6500w us-standard parallel model	CN¥ 6599.0
wifi-hf-n	CN¥ 250.0
