Description

protection type: overload, short circuit, over temperature, battery high voltage and low voltage protection, mains

application scope: ups (uninterrupted power supply), rv modification, photovoltaic energy storage

adapter line length: 50cm

communication protocol: rs-485 (optional)

product certification: ce

weight: see detail page

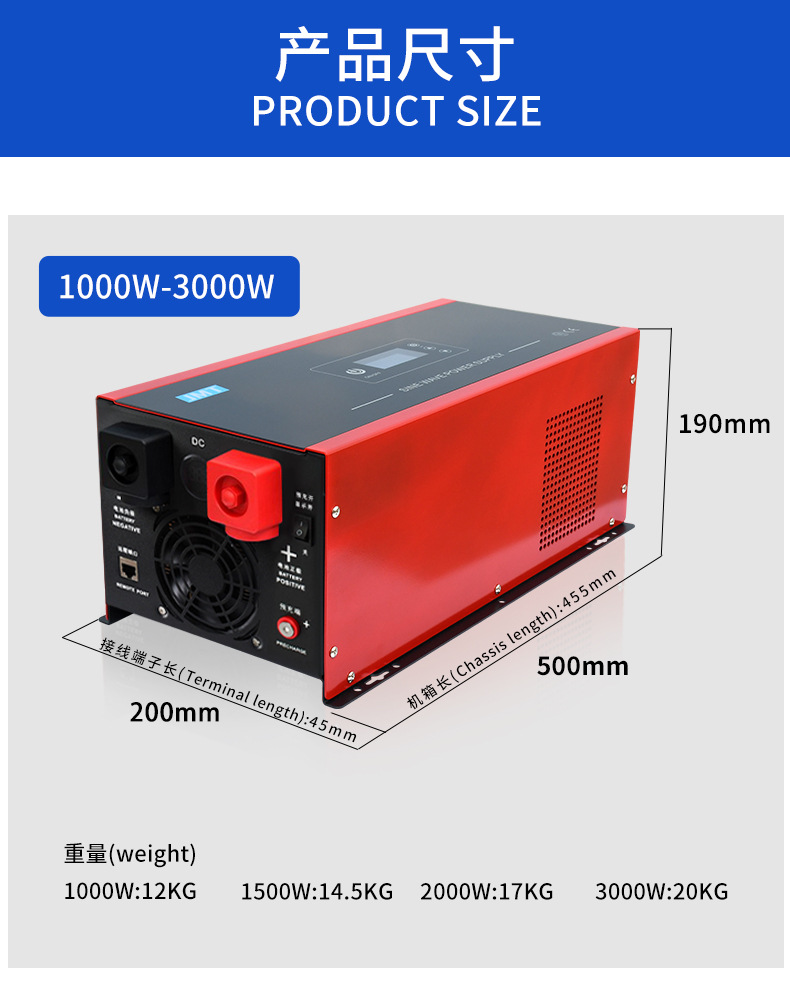

dimensions: 500*200 * 270mm

work efficiency: <85

warranty: 2 years

protection level: other

By default, the Chinese version is provided. If you need the English version, please contact customer service!

The default version is provided in Chinese. If you need an English version, please contact customer service!


The touch button inverter is an upgrade of the white inverter with a touch button panel. The machine uses imported components and features ultra-quiet cooling.
Touch buttons: Dustproof and waterproof in the operation area.

_{^{-Our Advantages-}}

OUR ADVANTAGES

- Hardware advantages
  1. Controlled by intelligent microcomputer CPU
  2. LCD display, providing an intuitive view of operating performance

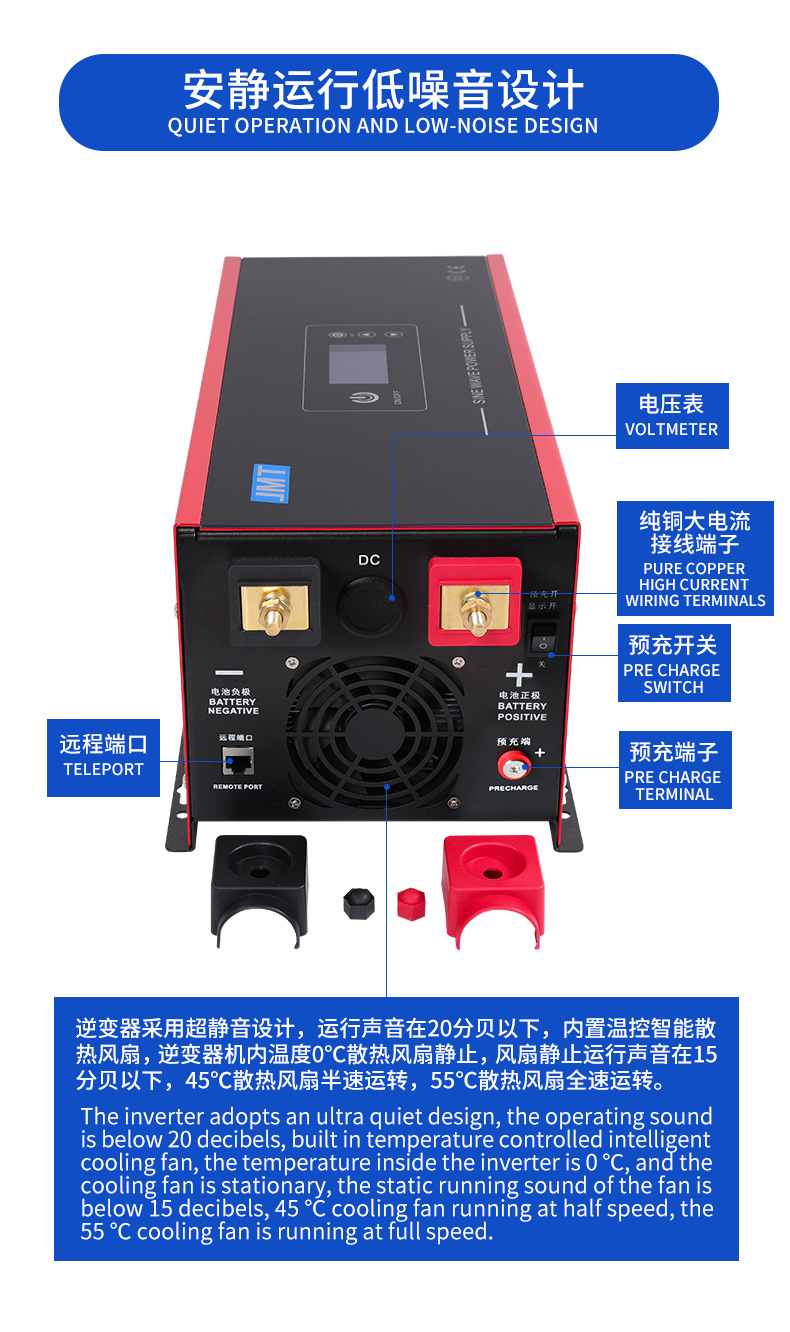

  3. Intelligent temperature control, low-noise cooling fan with high efficiency and no noise
  4. Fault Alerts
  5. Easy to install
  6. A remote control panel can be installed
vs
- Performance advantages
  1. Energy consumption is as low as 3–5W
  2. Adjustable charging voltage/charging current/low voltage
  3. Compatible with lithium iron phosphate, ternary, lead-acid, colloid, and non-conventional batteries

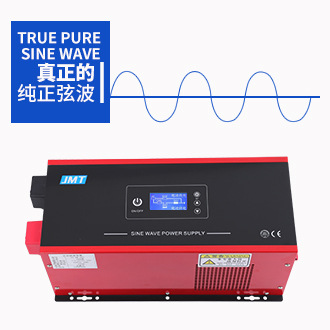

  4. Pure sine wave output voltage, capable of supporting large loads
  5. It has a wide voltage and frequency range, suitable for use around the world.
  6. Fourfold startup peak value

- Protecting Advantages
  1. Protect personal safety
  2. Temperature compensation, battery protection
  3. Overcharging of the battery, discharge protection
  4. Inverter overload, output short-circuit protection
  5. Overheat protection
  6. Positioning Protection
  7. Communication input, over-current protection for output
vs
- Material advantages

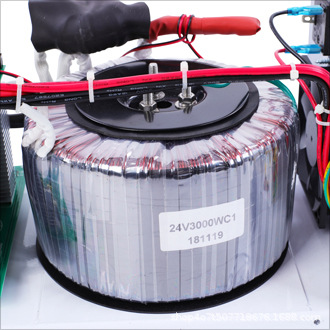

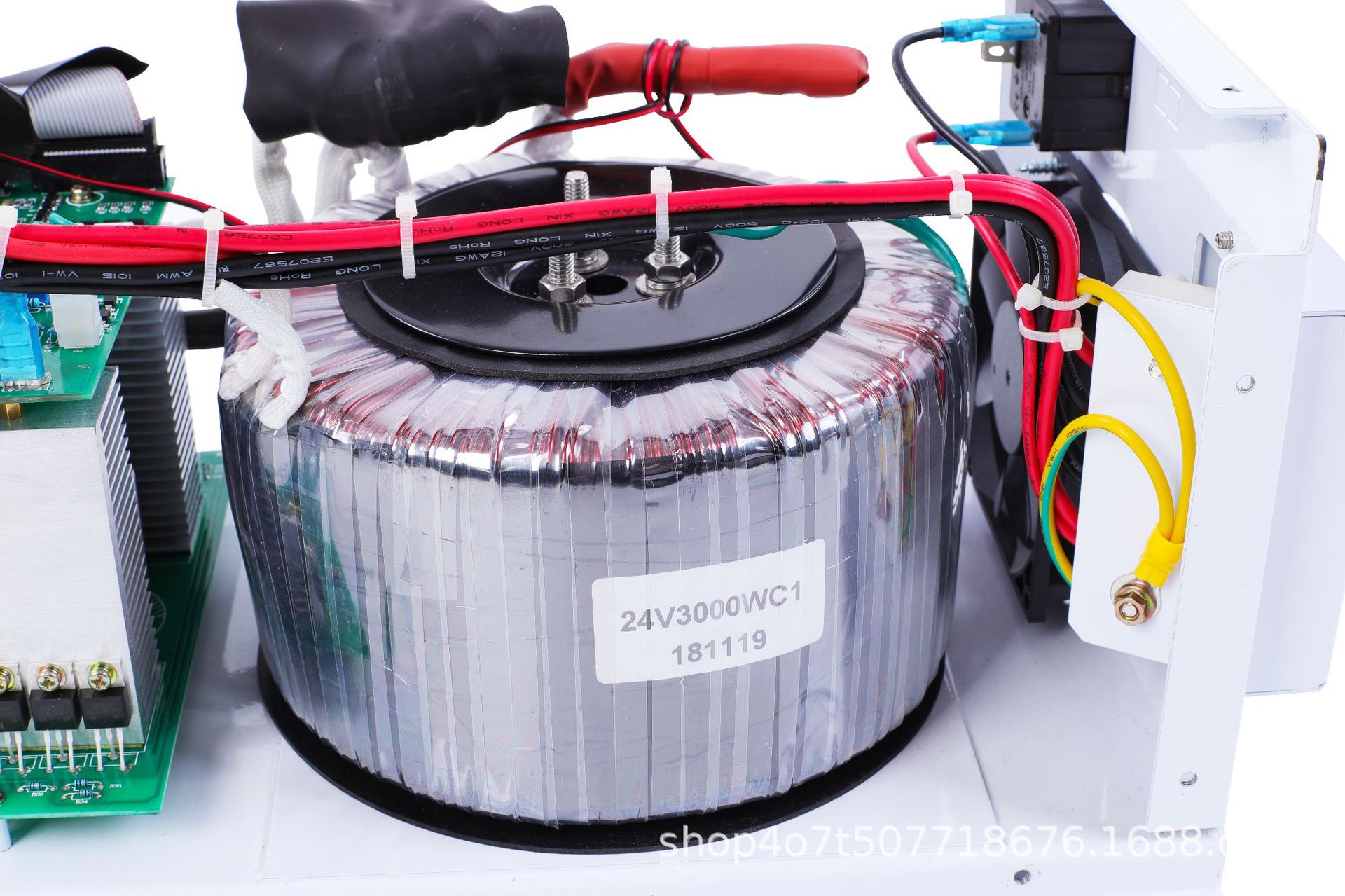

  1. We use all-copper materials for inverter transformers, circuits, etc. There are many suppliers in the market that use half-copper or aluminum.

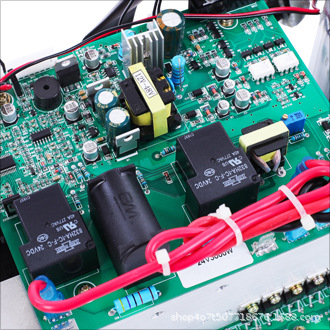

  2. To ensure the quality of our inverter, we have used sufficient electrolytic capacitors in the inverter.

  3. We select imported infrared field effect transistors in the inverter. These are well-known brand products in the market.

-core technologies-

CORE TECHNOLOGY

The inverter can adjust its parameters according to your needs.

The inverter can adjust parameters based on your requirements

Battery voltage input range

Battery Voltage Input Range:

1.2V (7.5–16.2V) 2.4V (15–32.4V) 4.8V (30–64.8V) 6.0V (37.5–81V) 7.2V (45–97.2V)

Charging Voltage Setting Range

Charging Voltage Setting Range:

1.2V (1.2–1.5.5V) 2.4V (2.4–3.1V) 4.8V (4.8–6.2V) 6.0V (6.0–7.75V) 7.2V (7.2–9.3V)

Low-pressure protection setting range

LOW VOLTAGE PROTECTION SETTING RANGE:

1.2V (7.5–11V) 2.4V (15–22V) 4.8V (40–54V) 6.0V (37.5–55V) 7.2V (45–66V)

Restore the battery power setting range

RESTORE DC POWER SUPPLY SETTING RANGE:

12V (10–13.5V) 24V (20–27V) 48V (40–54V) 60V (50–67.5V) 72V (60–81V)

Switch the mains power supply setting range

Converting AC Power Supply Setting Range:

1.2V (9–12.5V) 2.4V (18–25V) 4.8V (36–50V) 6.0V (45–62.5V) 7.2V (54–75V)


Inverter battery default parameters at the time of production

DEFAULT FACTORY PARAMETERS FOR INVERTER BATTERIES

Battery Type TYPE	Battery voltage input range Battery Voltage Input Range	Uniform charging voltage UNIFROM CHARGING VOLTAGE	Float charging voltage Floating Charging Voltage	Switch the battery power voltage SWITCHING BATTERY POWER SUPPLY VOLTAGE	Switch to the mains power voltage SWITCHING THE MAIN POWER SUPPLY VOLTAGE	Low pressure alert LOW VOLTAGE ALARM	Low Voltage Protection LOW VOLTAGE PROTECTION
Lead-acid battery Lead Acid Battery	7.5–16.2 V	1.4.2 V	1.3.8 V	13V	1.05V	10V	9.5V
Colloidal battery GEL BATTEERY	7.5–16.2 V	1.4.2 V	1.3.8 V	13V	1.05V	10V	9.5V
Iron lithium battery LITHIUM IRON BATTERY	7.5–16.2 V	1.4.6V	1.4.6V	1.3.6 V	11V	1.06V	10V
Triple-ion lithium battery (1 8650) TERNARY LITHIUM BATTERY (18650)	7.5–16.2 V	1.2.6V	1.2.6V	1.06V	9.5V	9V	8V
Customization Custom Settings	7.5–16.2 V	1.2 – 1.55 V	1.2 – 1.55 V	10–13.5 V	9-12.5V	8-11.5V	7.5–11V

Note: The above parameters refer to the voltage of a single cell: 1.2V cells, 2.4V cells X2, 4.8V cells X4, 60V cells X5, and 72V cells X6

UPSUninterruptible Power SupplyPower frequencyPure sine inverter

(<t_Uninterruptible Power Supply Low Frequency Pure Sine Inverter>)

Technical Data

TECHNICAL DATA

Model Number Models	JMT-S102	JMT-S150	JMT-S202	JMT-S302	JMT-S402		JMT-S502	JMT-S602	JMT-S702
Rated Power Rated power	1000W	1,500W	2000W	3,000W	4000W		5000W	6000W	7000W
Peak Power peak power	4000W	6000W	8000W	1,200,000 W	1,6000W		2000W	2,4000W	2,800,000 W
Battery voltage Battery voltage	1 2/2 4/4 8/6 0/7 2 V					2 4/4 8/6 0/7 2 V			48/60/72V
Physical DimensionsDimension L×W×H (mm)	500X200X190mm					540X250X195mm
Input voltage range for mains power AC Input Voltage Range (VAC)	170–260 VAC (220 V) 85–130 VAC (110 V)
Input frequency Input frequency (Hz)	45-65HZ
Battery voltage range Battery voltage range	7.5–16.5 VDC (voltage of a single battery)
Output voltage range Output voltage range (VAC)	Inverter mode: 110V/220V/230V/240V ±3%
Output frequency Outputfrequency(Hz)	50/60 ± 1%.
AC power output frequency range Utility output frequency range	50Hz/60Hz Automatic Tracking 50 Hz/60 Hz automatic tracking
Output waveform Output waveform	Pure sine wave
Efficiency Efficiency	＞8.5%
Time Switch Transfer time(ms)	≤5 ms
Compatible battery types Compatible battery type	Lead-acid battery / Gel battery / Iron lithium battery / Triple-ion lithium battery / Custom (special batteries) Lead-acid batteries, colloidal batteries, lithium-iron batteries, ternary lithium batteries, unconventional batteries
Charging Voltage Range Charging voltage range	1.2 – 1.5.5 VDC (Voltage of a single battery)
Protection Function Protection function	Short-circuit protection; High-voltage protection; Low-voltage protection; Overcharge protection; Overload protection; High-temperature protection Short circuit protection; high voltage protection; low voltage protection; overcharge protection; overload protection; high temperature protection
Overload Power Protection Overload protection	Overload protection – Inverter overload at 110%–150%, the device will trigger an alert. After maintaining this state for 6 seconds, it will shut down and restart three times; if the overload exceeds 150% and remains for 2 seconds, it will shut down directly.
Work Environment work environment	Temperature: -1.5℃ to 90℃ Humidity: 10% to 90%
No-load power consumption No-load power consumption	10W	1 2W	15W	20W	25W		28W	30W	32W
Energy conservation and power consumption Energy-saving state power consumption	Energy-saving mode: 3–5W Energy-saving status: 3-5W

Note: The above parameters are for reference only. Any changes to the specifications will not be notified in advance. For accurate parameters, please contact customer service.




About Us/ABOUT US

Foshan Starway Electronic Technology Co., Ltd. is a professional manufacturer of UPS power supplies and solar power generation. We are a technology enterprise engaged in the research, production, and export of UPS inverters, vehicle inverters, solar products, lithium batteries, and maintenance-free lead-acid batteries. The company has established a comprehensive service system that integrates R&D, manufacturing, domestic trade, and international sales.
Foshan Xingtu Electronic Technology Co., Ltd.’s integrity, strength, and product quality are recognized in the industry. Regarding our transaction process, we not only sell our digital instruments but also focus on customer satisfaction.

Q: Can you print our company logo on the nameplate and packaging?
Answer: Yes, we accept OEM orders.
2. Question: How to choose the right inverter?
A: Let us know your requirements, and our sales staff will recommend the appropriate inverter for you.
3. Question: What is the delivery time?
Answer: We can ship immediately if you order now; bulk orders take about 15 days.
4. Question: What is the warranty for the inverter?
Answer: Two-year warranty.
5. Question: How to address technical issues?
Answer: After 24 hours of service, a specialist will consult to resolve your issue.
6.Q: What kind of output can you provide?
Answer: Typically, the inverters we produce include 110V / 50Hz, 120V / 60Hz, 220V / 50Hz, 230V / 50Hz, and 240V / 50Hz. If you have any special requirements, please inform our engineers for consultation.
7. Question: What devices can your inverter support?
Answer: Our inverter can accommodate other household appliances with sensors, such as refrigerators, air conditioners, and water pumps.
