SOH - battery state of health, SOC - battery charger state, battery resistance, battery voltage 30-220AH, 100-2000CCA
Battery Test Systems and Solutions Battery Checker
KONNWE In KW218 car battery testner is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking capacity, battery health, and charge status. It provides accurateThe results of the calculation of the battery's cold cranking capability and the aging extent allow for a more precise car preparation. KW218 can display test results in both text and graphing, and the real-time battery voltage.showing in waveform
Cold Cranking Amps Measurement Range: Digital Vehicle Battery Tester
CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently used value for starting battery at 0°F (-18°C).
BCI: Battery Council international standard.
CA: Cranking Amps standard, effective starting current value at 0℃.
MCA: Marine Cranking Amps standard, effective starting current value at 0℃.
JIS: Japan Industrial Standard, displayed on the battery as a combination of numbers and letters, e.g. 55D23, 80D26.
DIN: German Auto Industry Committee Standard.
IEC: International Electrotechnical Commission Standard.
EN: European Automobile Industry Association Standard.
SAE: Society of Automotive Engineers Standard.
Automotive Tester DATAREADINGS:

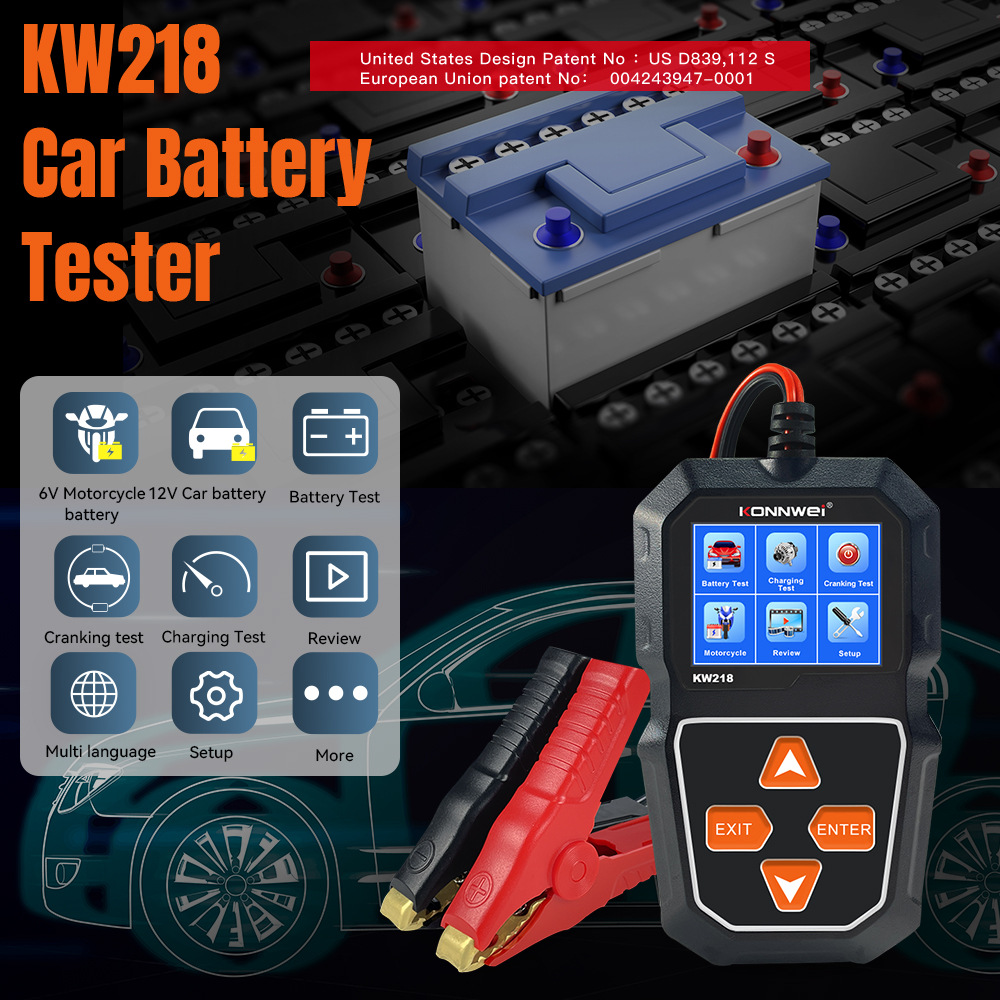

The KONNWEIKW218
A 12V battery tester is capable of effectively analyzing and reading important cardata such as voltage, internal resistance, cold cranking amp, battery health, and charge status.
6V 12V Lead Acid Car Battery Tester ACCURATE MEASUREMENTS This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery, and the aging extent, allowing for a quickernbspmorenbspprecisenbspcarnbsprepairing
12V LED Automotive Battery Tester: Widely Compatible: Whether you're a beginner or an expert, this car battery diagnostic tester can be used with a wide selection of 6V, 12V, 100-2000 mAh batteries.

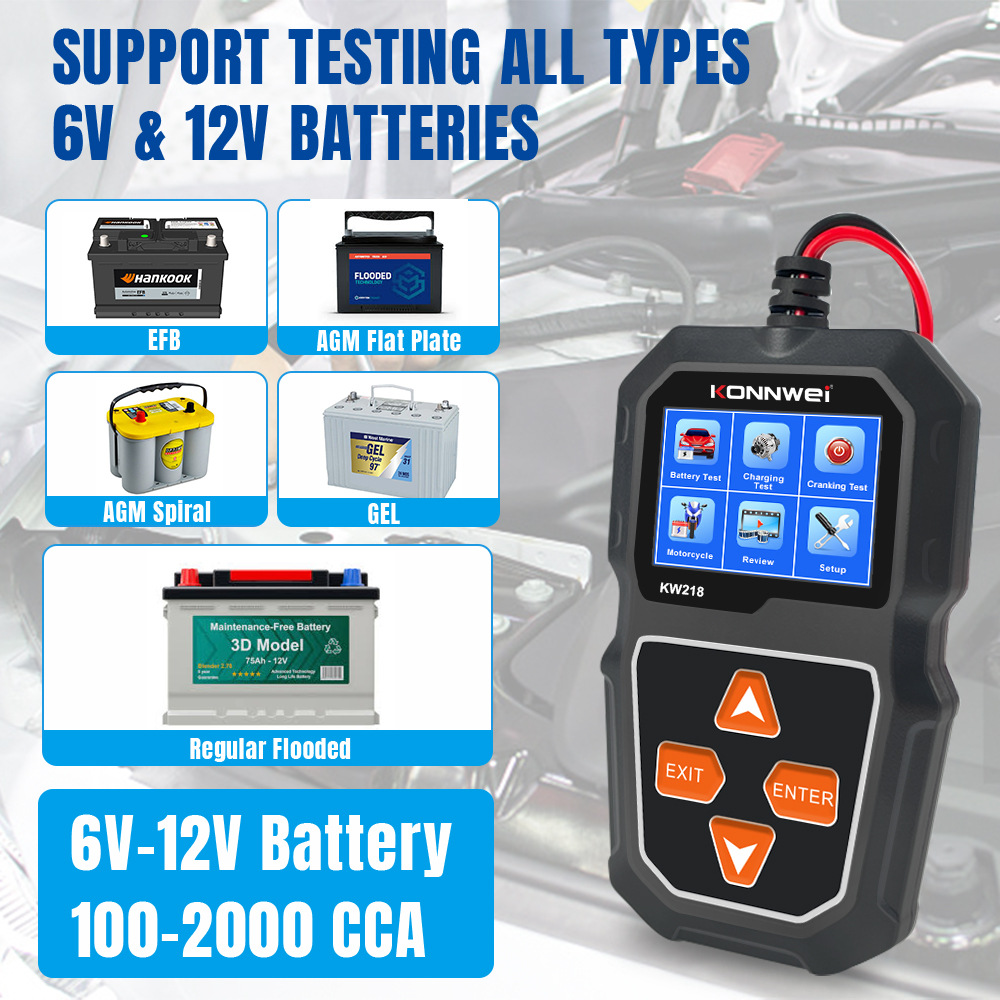

CCA regular flooded batteries, AGM flat plate, AGM spiral, as well as GEL batteries.
Auto Battery Tester Multilingual EXTRAN FEATURES car battery tester displays test results in text and graphing displaying the real-time battery voltage in an waveform With an intelligent 24 inch colorful LCD Screen reading accessIt is practical and rapid.
KW218电池测试仪主要功能:
Out of Vehicle Test
In Vehicle Test
Car battery test
Motorcycle battery test
Charging test
Cranking test
lReview
lwaveform
Language
lSet up
KW218电池测试仪特点:
1. System voltage: 6 Volts 12 Volts
2.Test Result: Good, Recharge or Replace
3. Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4. Internal resistance value (mΩ)
5. Life in percentage (%)
6. Cranking system
7. Charging system
8. Voltage test in waveform
9. Record and replay battery data
10. Battery test, cranking test, charging test and other additional functions.
KW218电池测试仪测量标准
1. Measure Standard
2.CCA:100-2000
3.BCI:100-2000
4.CA:100-2000
5. MCA: 100-2000
6.JIS:26A17-24SH52
7.DIN:100-1400
8.IEC:100-1400
9.EN:100-2000
10.SAE:100-2000
11. Display: 2.4 inch Colorful TFT LCD Screen
12.System Voltage: 6 Volts 12 Volts
13.Input Voltage Range: 6V-16V
14. Power Requirements: No internal batteries required.
15. Power on when hooked up during testing.
16. Operating Temperature: 0°C-50°C
17.Storage Temperature：-20℃-70℃
KW218电池测试仪支持的语言:
Chinese, English, German, French, Russian, Spanish, Italian, Polish, and more languages will be available, such as Japanese, Korean, Dutch, Portuguese, Persian.
KW218电池测试仪包装包括:
1*KONNWEI KW218
1*User’s Manual
1* colorful box
Product size (cm): 14*8*2.0
Packaging size (cm): 16.5*8.5*6.5CM
Product net weight (kgs): 0.2
Net weight of packaging (Kg):0.25
Packing quantity: 80pcs/cn
Box size: 51.5*35*41cm
Total box weight :20.5KG/carton
