Description

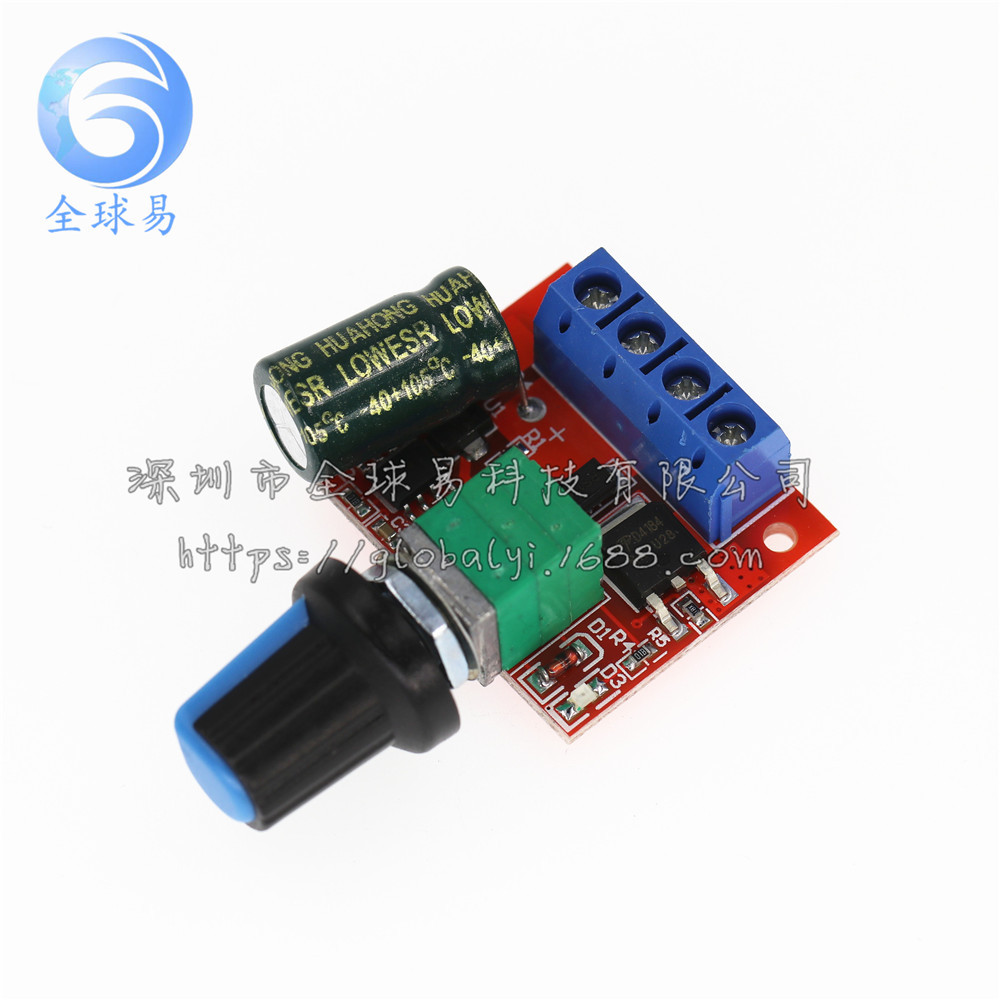

PWM DC Motor Speed Controller 5V-35V Speed Adjustment LED Dimming

请提供需要翻译的中文描述，我将为您翻译成英文。

Chinese description:

Product Parameters

1. Working Voltage: DC4.5V-35V

Output Current: 0-5A
Output Power: 90W (Max)
4. Static Current: 7uA (Standby Mode)
PWM Duty Cycle: 1%-100%
PWM Frequency: 20kHz

Size: Length 30MM x Width 26MM (excluding handle) x Height 14MM

8. Weight: 0.013KG

Notes:

· The input of the DC motor speed regulator is DC power, and it cannot be directly connected to AC power (such as: household 220V AC), otherwise it will be damaged!!!

· Do not reverse the positive and negative terminals of the direct current power supply, or the regulator may be damaged.

· Motors can operate without regard to polarity, and when the direction of rotation does not match the desired direction, it can be adjusted by changing the wire sequence to reverse the direction.

Adjusting the potentiometer knob can change the duty ratio of the speed regulator output, thereby changing the motor speed.

English description:

Features:

5A Mini DC Motor PWM Speed Controller

By turning the potentiometer, you can turn off the power supply output. High voltage and high current resettable fuse, overcurrent automatic disconnection, power off for cooling for a few seconds, and fuses will automatically recover.

Default disconnection of short circuit point. Please note: the operating voltage can be switched to 4.5V-35V by bridging the connectors marked '4.5V-35V' on the PCB.

规格:

Operating Voltage: DC 4.5V-35V

Output Current: 0-5A

"Control Power: 90W(Max.)

Quiescent Current: 7uA (Standby)

PWM Duty Cycle: 1% - 100%

PWM Frequency: 20 kHz

Size: 26x30mm/1.02x1.18"

Quantity: 1 Piece

Note:

Please allow 1-3mm error due to manual measurement. Please make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
