1000kv high voltage generator high-voltage module voltage inverter transformer boost module 3-6v 400kv

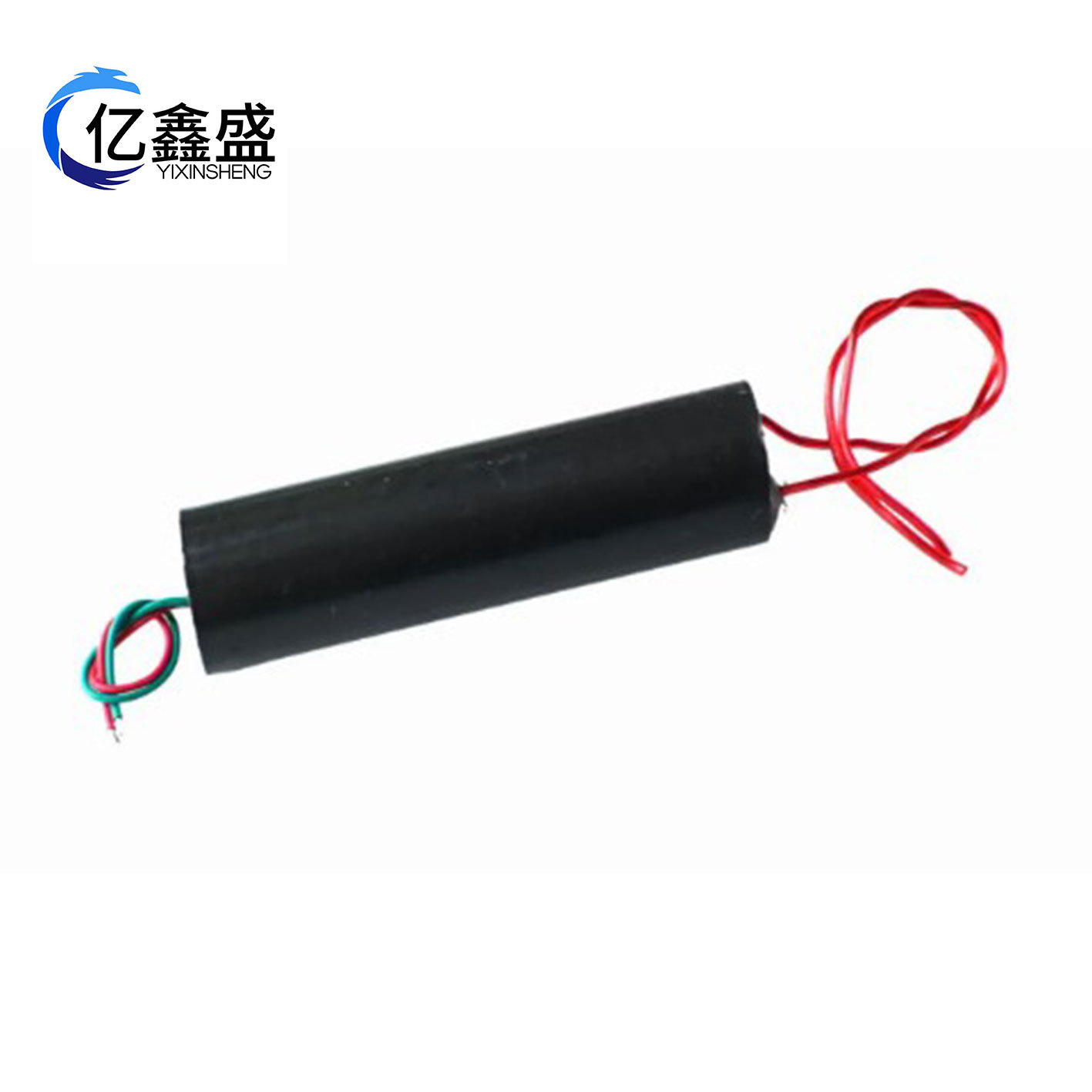

Size: 26*88MM

This module is a science project using a high-voltage inverter and transformer.SlashThe finished module of the transformer

When a DC voltage of 3.7V-6V is input at the input end, a DC high voltage of about tens of thousands volts can be obtained at the output end.

Can be used as a high-voltage source for middle school science experiments, electronic instruments, negative ion generators, and small scientific projects.

The module is made using the principle of a Tesla coil, producing high-voltage pulse currents, with a small volume and high efficiency.

The peripheral circuit is simple (just connect the switch and battery) and the discharge intensity is fierce.

Note: This is not a high-temperature arc, so it cannot be used to light cigarettes or paper.

Usage Method

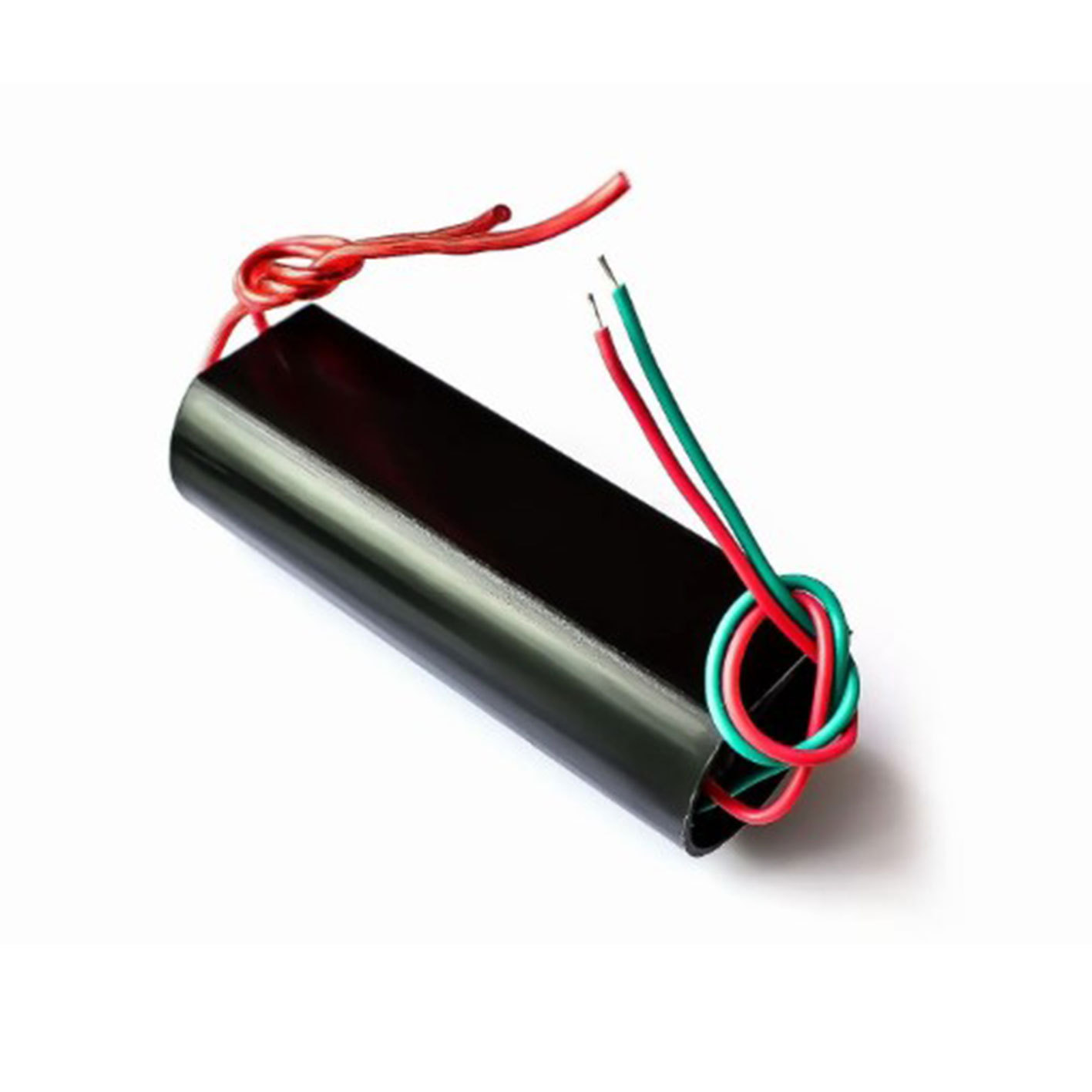

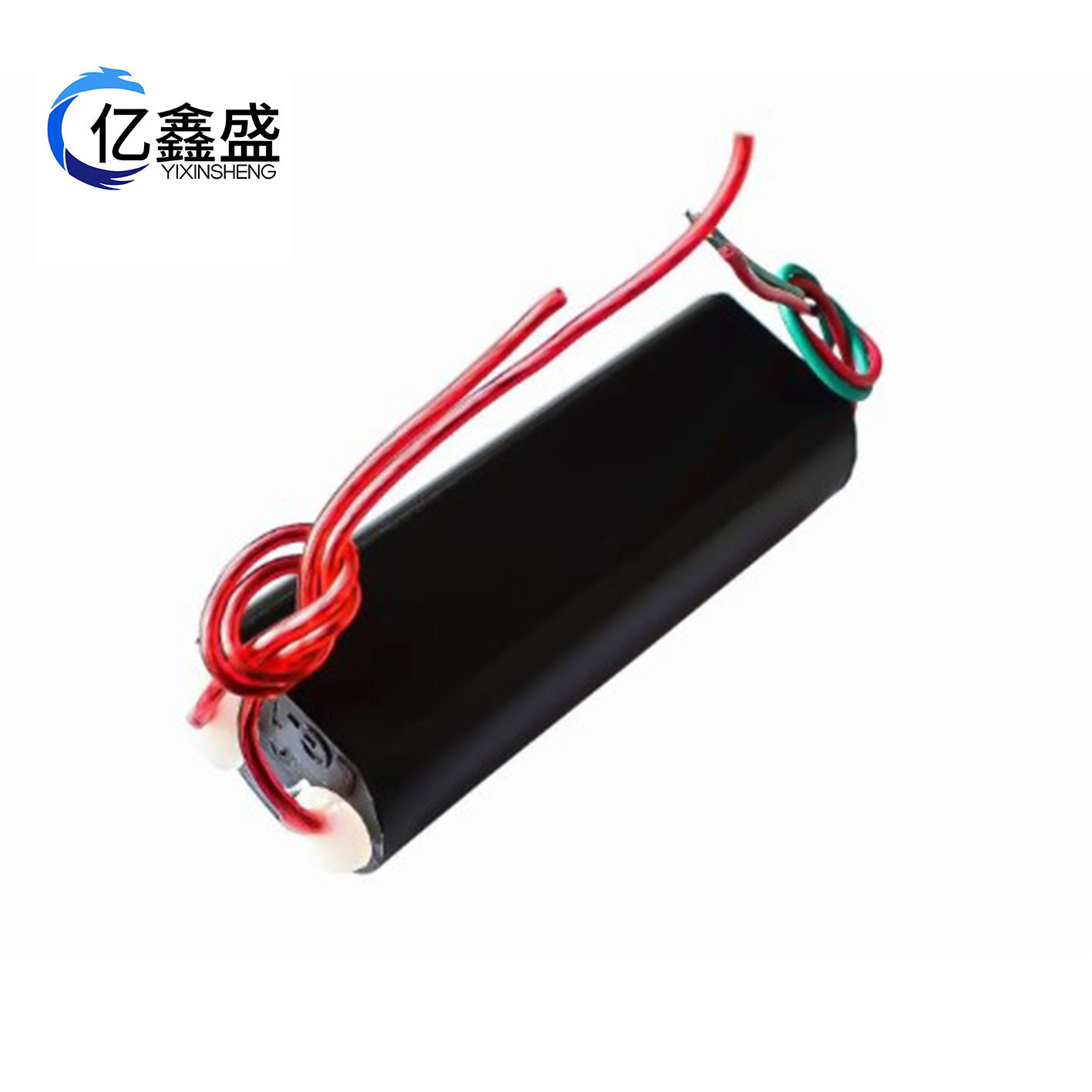

The module has input and output ends. The red and green wires are the input ends, with red being positive and green being negative.The output end is two identical-colored high-voltage lines, and connecting a battery to the input end can generate a high-voltage electric arc.

Please operate the module strictly according to the instructions and precautions, or it is easy to damage the module!

About the input power: It can be used with a single cell.3.7VLithium batteries or two in series, such as 18650 batteries, idle mobile phone batteries (to remove the protection board, recommended capacity over 2000mAh) or nickel-cadmium / nickel-hydrogen battery sets, 4V or 6V lead-acid batteries, etc. (6V batteries can achieve better results).

Attention

1. High-voltage modules should not be used with high voltage when they are empty, and the high-voltage line must be adjusted to the appropriate distance before power is turned on. The distance of the high-voltage line arc is proportional to the battery voltage and capacity used.

2. When testing the arc distance, it should be experimented from short to long. It is strictly prohibited to exceed the long pull arc distance when power is on, as the high-voltage energy cannot be released, which is extremely easy to damage the module.

3. The module's power is large, and it is not suitable for internal heat dissipation, so it cannot work for a long time. It is generally okay within 10 seconds.

4、To determine if the battery capacity can drive the output power, the method is to measure the battery voltage when arcing occurs. If the voltage is less than 10V, then the battery capacity is insufficient to drive the output power.6VIt can output power within a few minutes.

5. Two small capacity lithium batteries in series7.2VIn the arc state, the measured voltage has dropped to about 4V, and the smaller the capacity, the lower the voltage. Therefore, it is recommended to use a lithium battery with a capacity of 2000MA or more, and if possible, a battery with a capacity of 4000MA or more.

About power supply: it can be used with a single 3.7V lithium battery or two in series, such as 18650 batteries, unused mobile phone batteries (removing the protection board, with a recommended capacity of over 2000mAh) or nickel-cadmium/nickel-metal hydride battery sets, 4V or 6V lead-acid batteries, etc.
