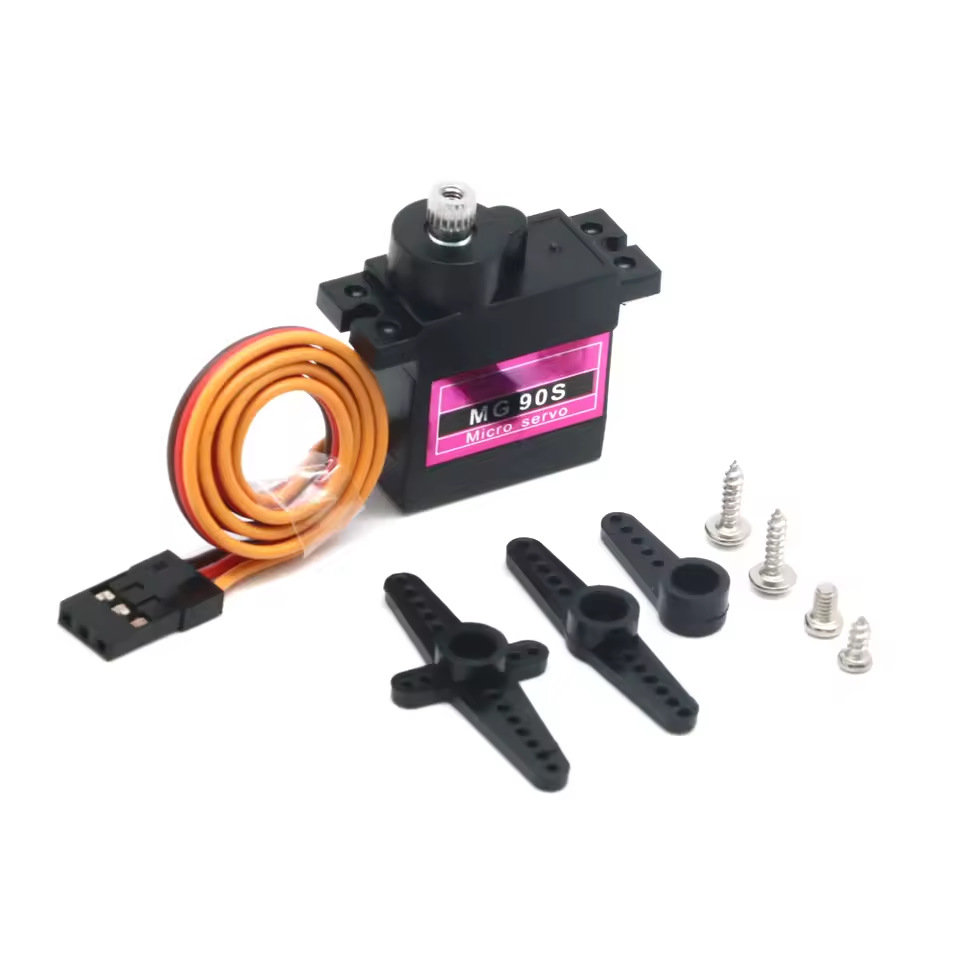

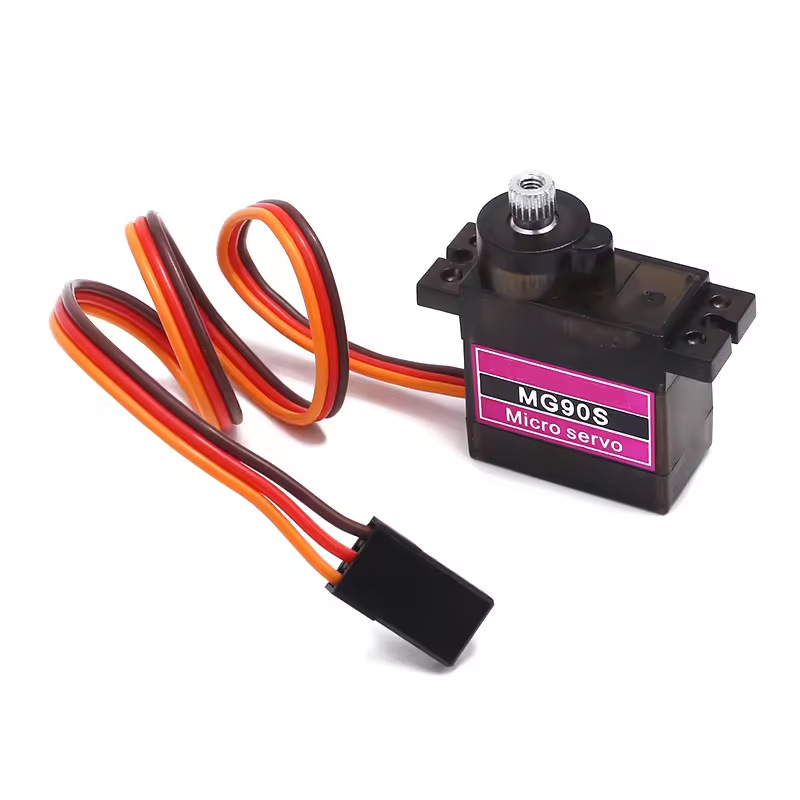

mg90s metal gear steering gear mg90s 3d cool fly 450 electric direct swash plate mg90 steering gear

EXW Price:

CN¥ 0.62 ~ CN¥ 11.09

Min. order: 2 piece

2 piece

Weight 0.2 kg/piece
Item No. 8mp5hu7n

specification model

Specifications

mg90 rubber teeth (180 degrees)	CN¥ 6.4
mg90 rubber teeth (360 degrees)	CN¥ 6.4
neutral label iron teeth (180 degrees)	CN¥ 8.01
mg90 iron teeth (180 degrees)	CN¥ 8.01
mg90 iron teeth (360 degrees)	CN¥ 8.01
mg90 semi-aluminum teeth (180 degrees)	CN¥ 9.86
mg90 semi-aluminum tooth (360 degrees)	CN¥ 9.86
mg90 aluminum teeth (180 degrees)	CN¥ 11.09
mg90 single accessory bag (excluding steering gear)	CN¥ 0.62

Send Inquiry Chat with supplier

Qingfeng Strength Factory 4yr.

Contacts:Xun Ping Chat

Mobile:86-13264805277

E-mail:860978550@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

Red voltage 棕色的地线，橙色的信号线

Technical Data
Size: 21.5mm X 11.8mm X 22.7mm
Weight: 9 grams
Unloaded Speed: 0.12 seconds/60 degrees (4.8V)
Blocking Torque:1.2-1.4 kg/cm² (4.8V)
Usage Temperature: -30 to +60 degrees Celsius
Dead Zone Setting: 7 microseconds
Working Voltage: 4.8V-6V

Product Name: MG90 14g Digital Servo

Product net weight: 13.4g

Product Size: 22.8*12.2*28.5mm

Product Torque: 1.8kg/cm (4.8v) 2.2kg/cm (6.0v)

Response Speed: 0.10sec/60degree(4.8v) 0.08sec/60degree(6.0v)

Working Voltage: 4.8V-6V

Temperature range: 0-55 degrees Celsius

Action Dead Zone: 5us

Gear medium: Plastic

Work Mode: Simulation
