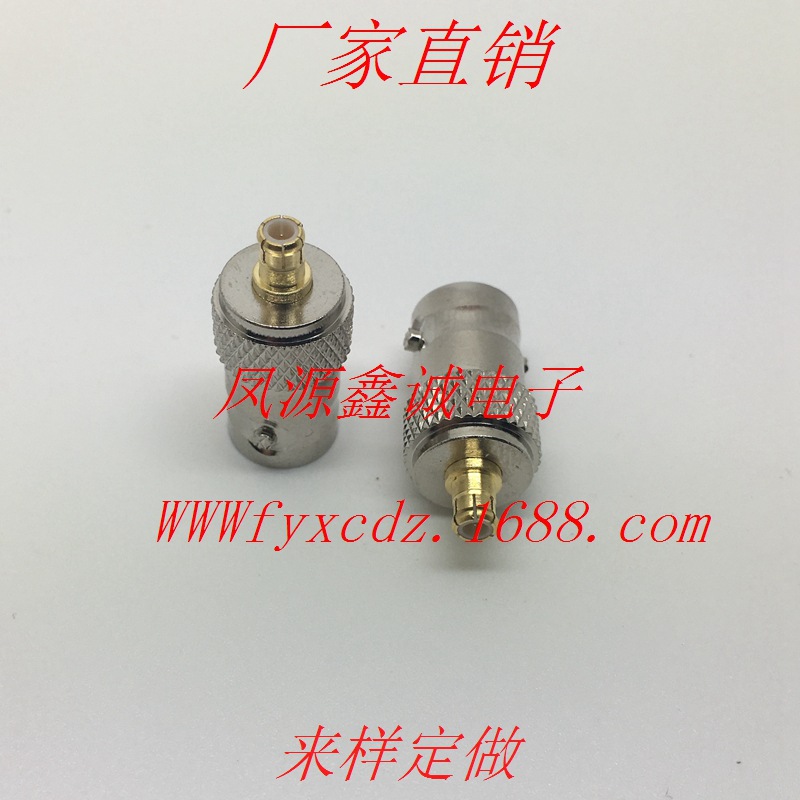

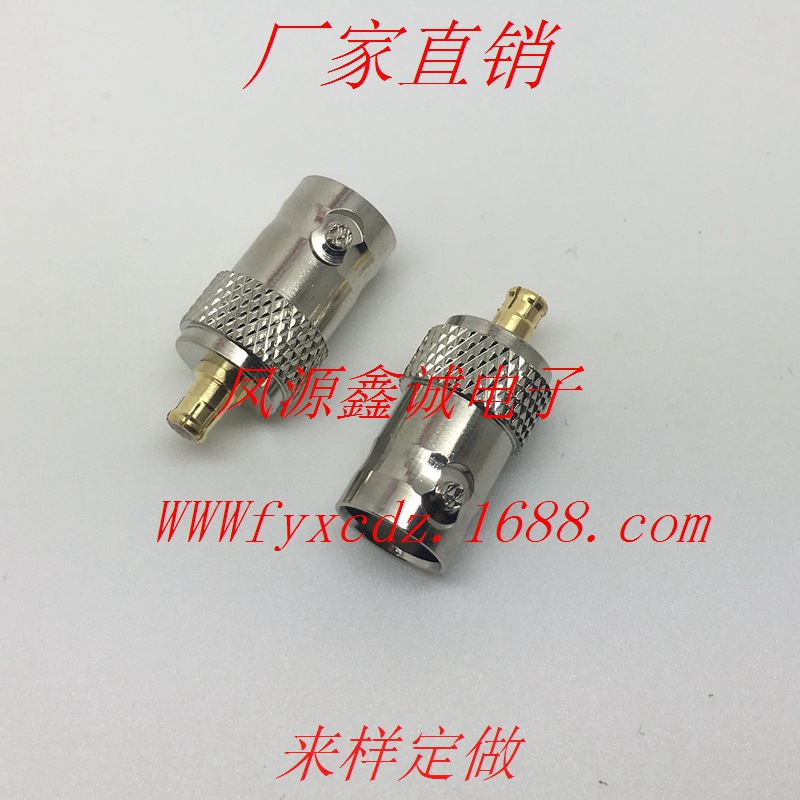

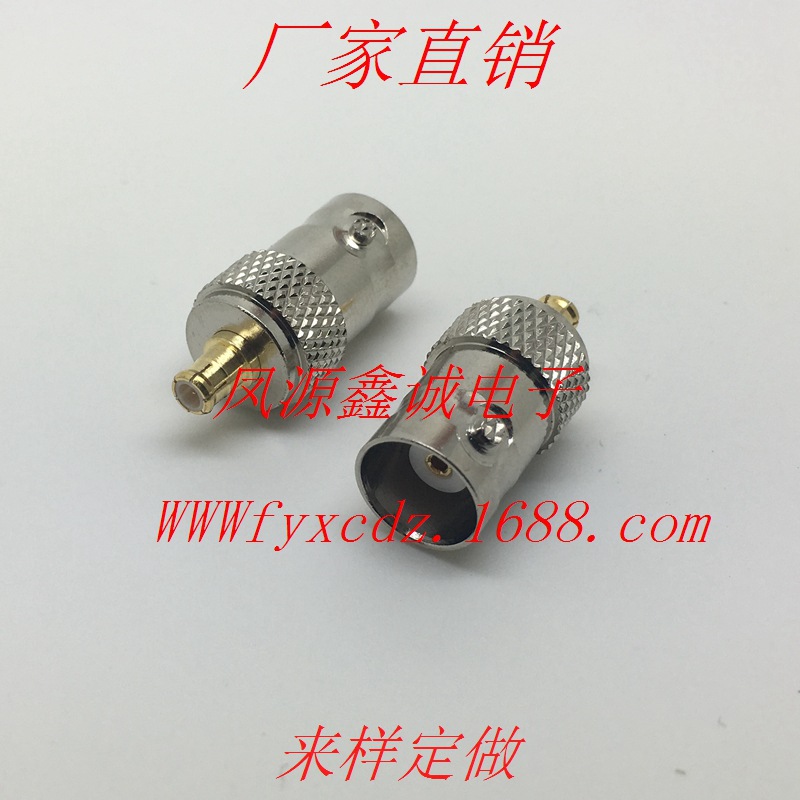

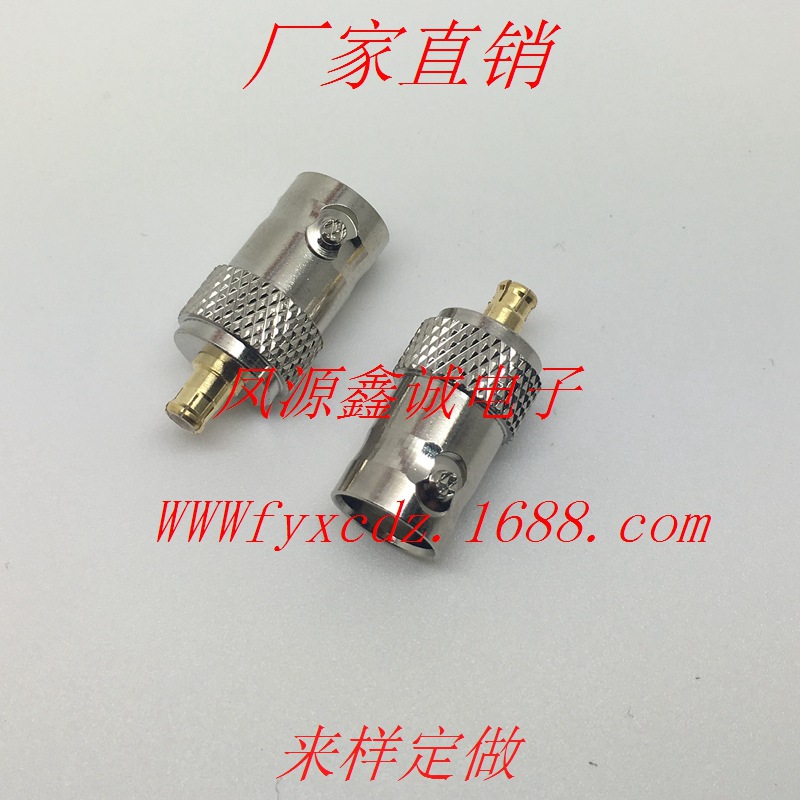

mcxj/bnck coaxial rf adapter copper high frequency adapter mcx male to bnc female

MCXJ/BNCK Coaxial RF Adapter, All Copper, High Frequency Adapter, MCX Male to BNC Female

























































Free to issue invoices for 1000 yuan or more in payment. Ordinary invoice.

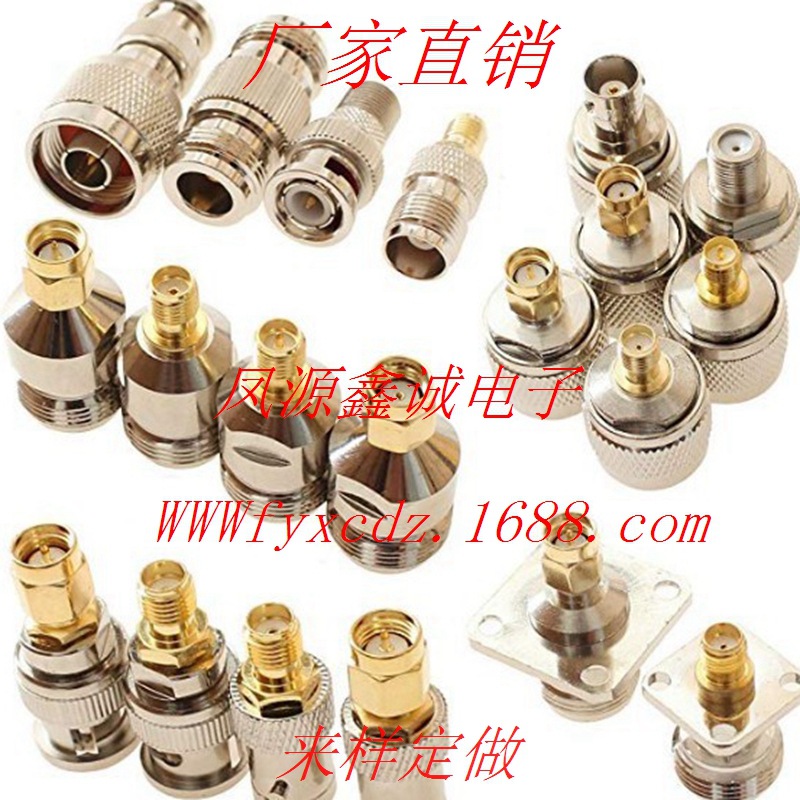

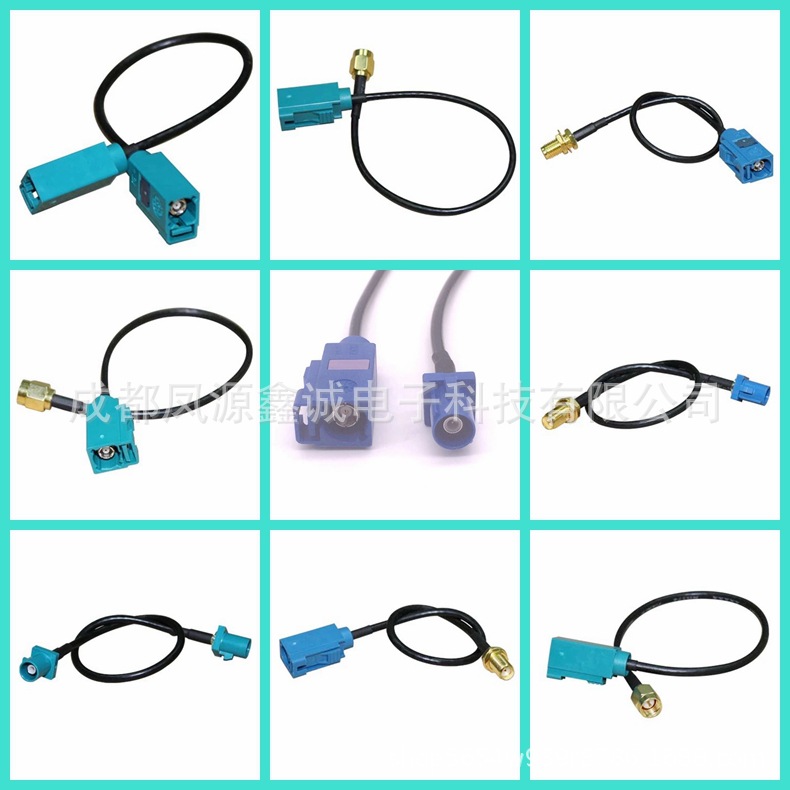

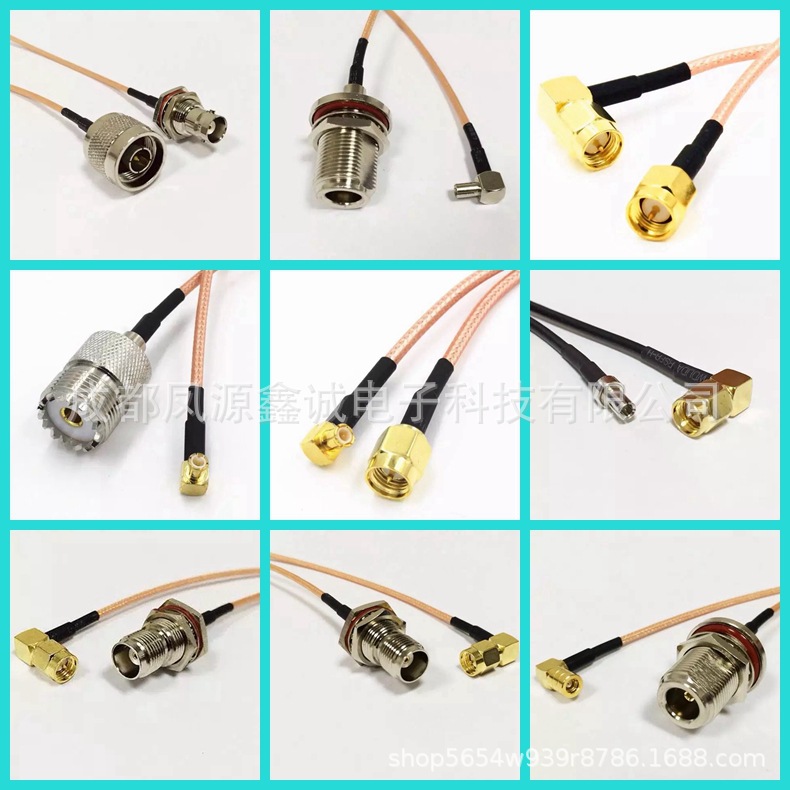

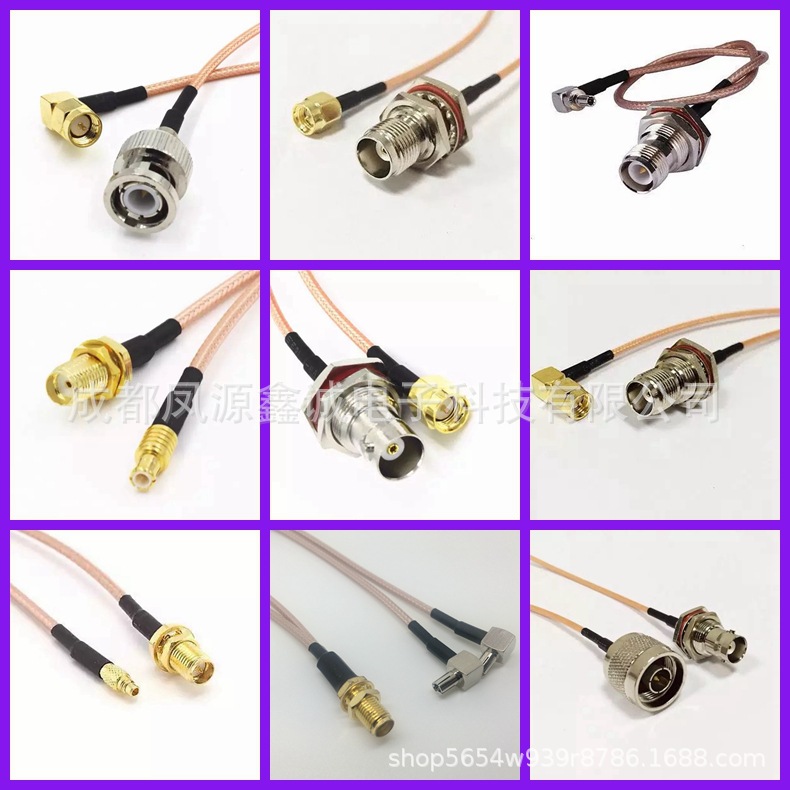

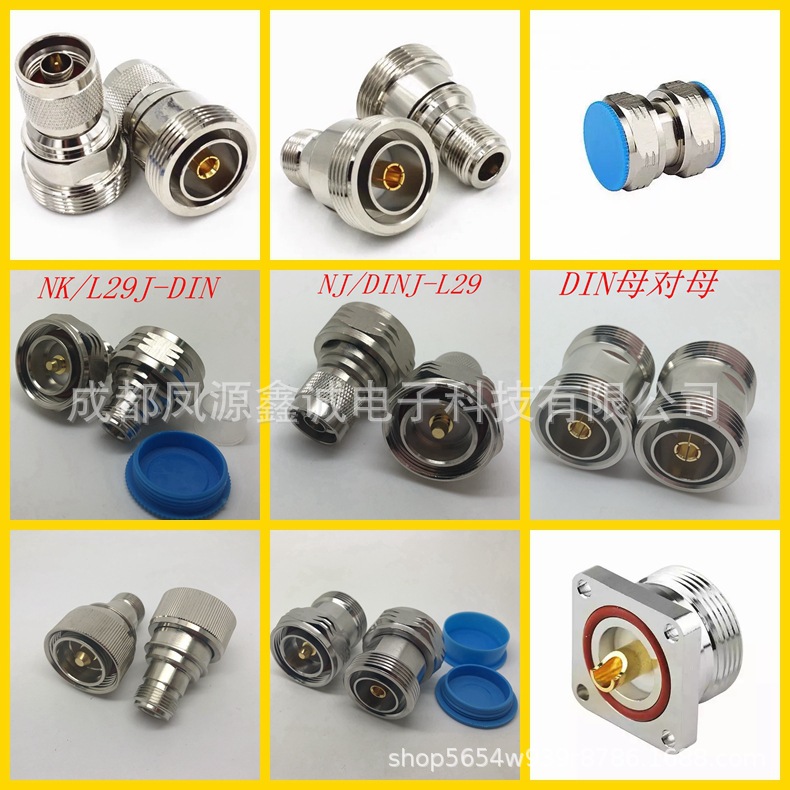

Temperature Range: Temprange 65～165°C PE Cable 40～85°C Vibration: MILSTD202 Method 213 Characteristic Impedance: Impedance 50Ω Frequency Range: Frequency Range DC～124GHz Semi-rigid Cable 0～18GHz Working Voltage: Working Voltage 335V max Effective Value Withstand Voltage: Withstand Voltage 1000V rms Sea Level Minimum Contact Resistance: Center Contact Resistance 3 mΩ Outer Contact Resistance: Outer Contact Resistance 2 mΩOmega Insulation Resistance: 5000 MΩ Insertion Loss: 0.15 dB at 6GHz Voltage Standing Wave Ratio (VSWR): Straight Soft Cable: ≤1100002f Semi-rigid Cable: ≤1050001f Right Angle Soft Cable: ≤1200003f Semi-rigid Cable: ≤1100001f Durability: ≥500 cycles Material and Coating: MATERIALPLATING 壳体 shell 黄铜 brass 镀硬金 gold plated 插针 contact pin 黄铜 brass 镀硬金 gold plated 插孔 socket 铍青铜 beryllium 镀硬金 gold plated 弹性接触件elastic contact 铍青铜 beryllium 镀硬金 gold plated 绝缘体 insulator 聚四氟乙烯 PTFE 压接套 crimp ferrule 铜合金 copper alloy 镀镍或镀金 nickel or gold plated o型密封件oring sealing 硅橡胶6146 silasticThe company's main products are: J male connectors, K female connectors, W bent connectors, F square plates, Y threaded washers, E insert plates, C press-fit connectors, RP reverse connectors, RF coaxial cable series such as RG58, RG316, RG174, RG178 IPEX, 113 IPEX, RG142, LMR195, LMR240, LMR4007DFB, LMR3005DFB, RG179, RG141, RG402, RG405, RG223, etc. 3 coaxial RF connectors series: SMA, SMB, SMC, MCX, MMCX, BNC.Q9, TNC, N, UHFM, FME, F, TV, FAKRA, CRC9, TS9S197, IP9MS156, MS147 or RF adapters are available for straight, right-angle, male, female, male pin, female pin
