source manufacturer plug-in terminal block one-piece terminal connector flame retardant fireproof customizable



	Crazy Sale ￥0.30	Crazy Sale 25 cents	Crazy Sale ￥0.31	Crazy Sale ￥0.46
	Crazy Sale ￥0.46	Crazy Sale ￥0.90	Crazy Sale ￥0.07	Crazy Sale ￥0.10
	Crazy Sale ￥0.94	Crazy Sale ￥0.10	Crazy Sale ￥0.34	Crazy Sale ￥0.10

Dear customers, please note that the detailed price is subject to communication through Alipay:

Product Model:

H2EDG 5.08/5.0 座+

开口直针H2EDGV5.08/5.0

Product Information:

Replaceable Terminal Connectors - Direct Manufacturer Sales - Quantity Discounts

PA66 UL94 V-0 Fire Retardant, Copper

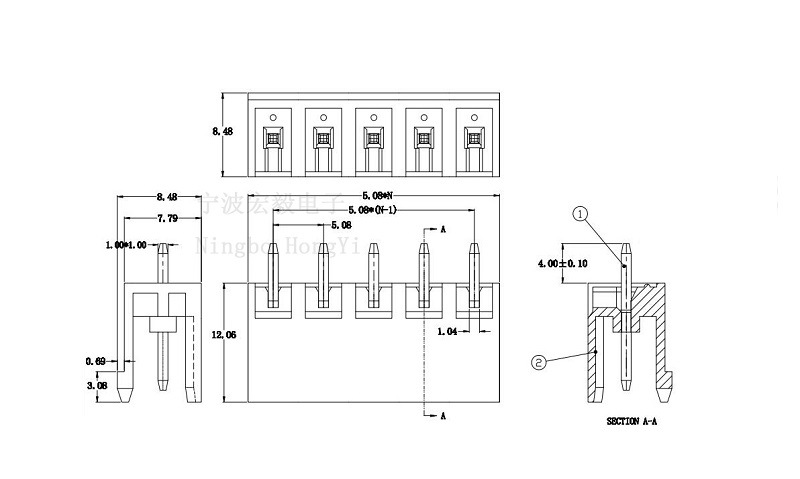

The relevant parameters and engineering drawings are as follows:

seat

Pitch: 5.0/5.08mm

1. Material and Electroplating

a.M3, steel, plated

b. Plastic part main body: PA66, UL94V-0

C. Copper Block: Brass, Nickel Plated

Clip: Phosphor Bronze, Nickel Plated

f. Lower Cover for Plastic Parts: PA66, UL94V-0

2. Electrical Performance

Reference Standard: UL

Rated voltage: 300V

Contact resistance: 20 mΩ

Resistance to Voltage: AC2500V\1 Min

Wire Size: 28~12 AWG 2.5m²

3. Mechanical Properties

Temperature range: -40°C to +105°C

Instantaneous temperature: +250℃ for 5 seconds

Torque: 0.5N.m (5.1kgf.m)

Bonded Wire Length: 6-7mm

needle

Pitch: 5.0/5.08mm

1. Material and Electroplating

a. Weld needle: Brass, tin plated

Plastic parts: PA66, UL94V-0

2. Electrical Performance

Reference Standard: UL IEC

Rated Voltage: 300V 400V

Contact resistance: 20 mΩ

Resistance to Voltage: AC3000V\1 Min

3. Mechanical Properties

Temperature range: -30°C to +105°C

Instantaneous temperature: +250℃ for 5 seconds

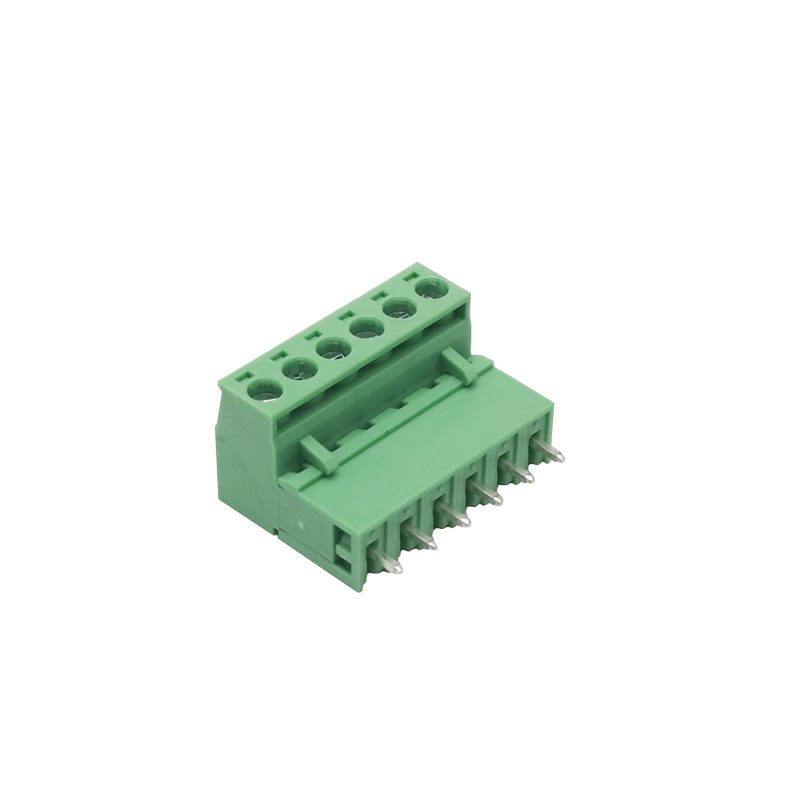

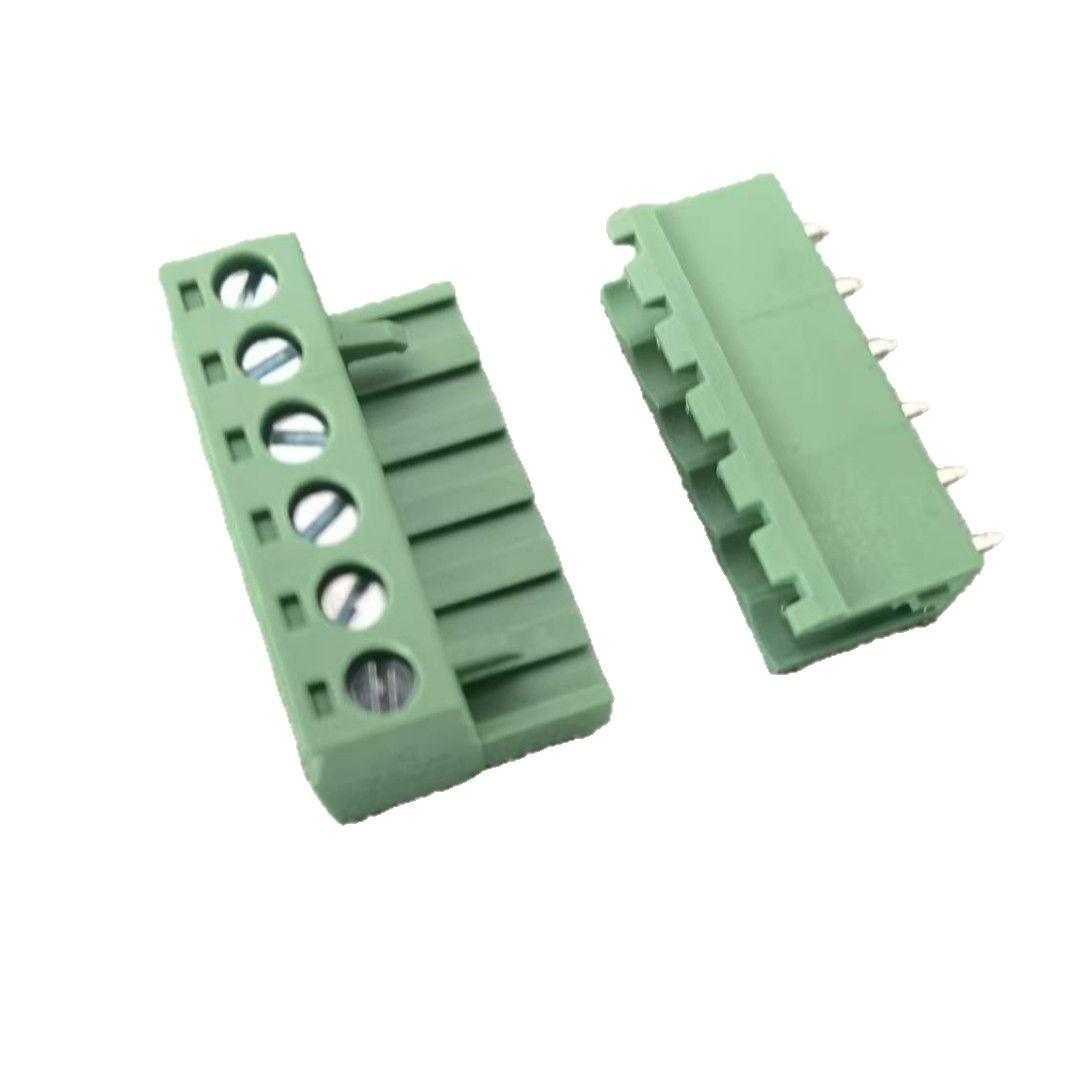

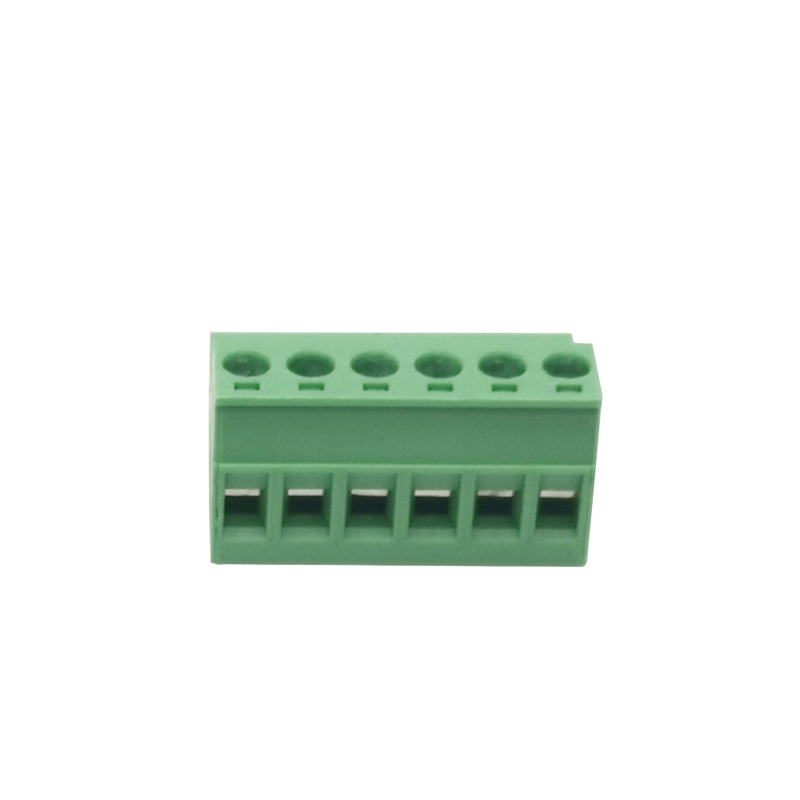

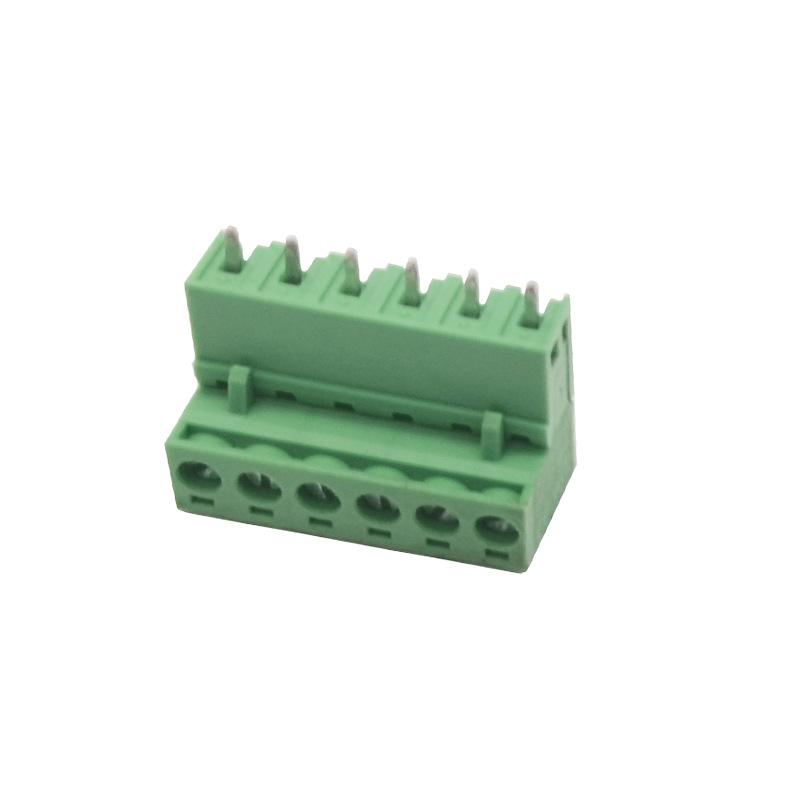

Product Real-Shot
