cross-border new arrival mma-200a electric welding machine portable household mini spot-welder small electric welding machine 跨境新款MMA-200A电焊机便携式家用迷你点焊机小型电焊机

EXW Price:

Price Negotiable

The price for this item is to be negotiated.
Please contact supplier for further information.

Send Inquiry Chat with supplier

Contacts HU XIAN Chat

Mobile 13064635558

WhatsApp 13064635558

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

origin: linyi

import or not: no

brand: new

model: mma-200a

item no.: mma-200a

working form: inverter welding

welding method: arc drawing type

current: dc

style: portable

drive form: manual

protective gas type: none

action object: welding

input voltage: 220v or 110v

frequency: 50/60hz

rated input power capacity: 3.5

no-load voltage: 56

output current adjustment range: 20-200

rated load renewal rate: 30

power: 3.5kva

power factor: 0.5

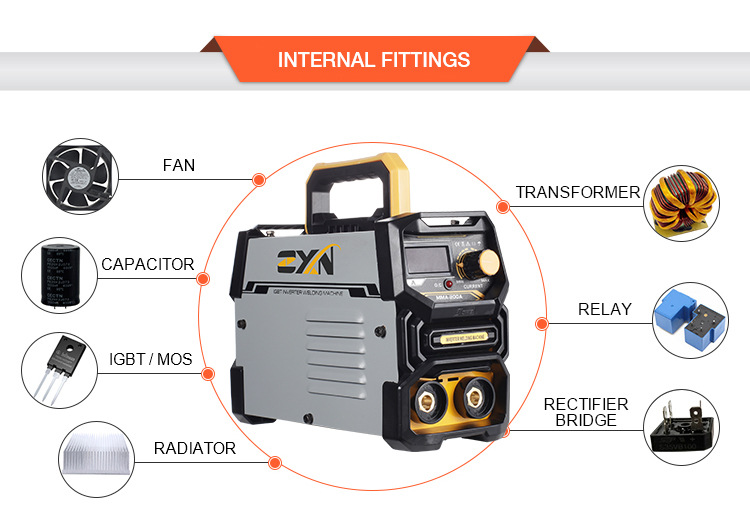

Type	IGBT 1 PCB
Real Amp(A)	120
AC Input Voltage (V)	220V (110V/220V)
Rated Input Power Capacity (KVA)	3.5
Input Frequency (Hz)	50/60
Non-load Voltage (V)	60
Current output range (A)	20 - 200
Rated Duty Cycle (%) </t_XXXXXXXX>	60%
Efficiency(%)	85%
Insulation Class	F
Case protection class	IP21
Diameter of electrode (mm)	1.6–3.2
Quick Joint Size (mm)	10-25
Input power cable (m)	1.2
N.W./G.W. (kg)	1.8/2.9
Machine Size (LxWxH mm)	250 * 105 * 170
Package (L x W x H mm) /8-in-1	510310530 kraft paper box

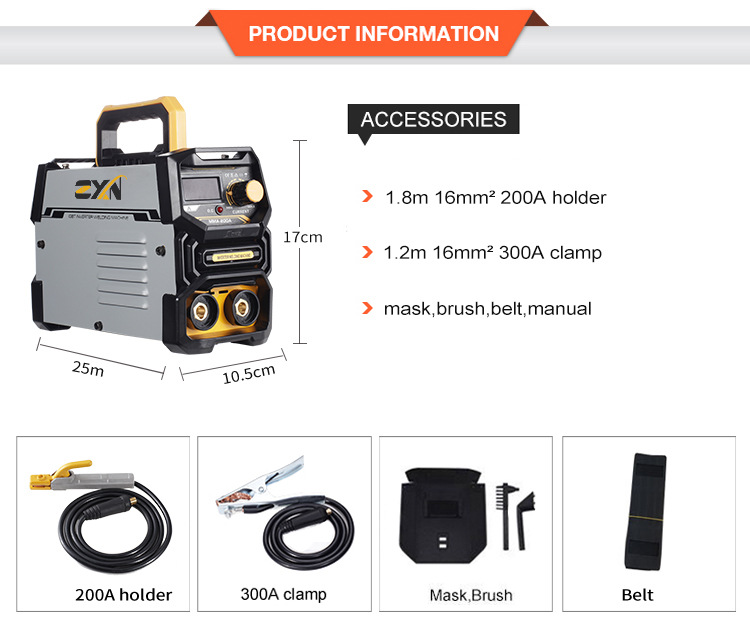

Accessories	1.8m 1.6mm² 200A holder
	1.2 m, 1.6 mm², 300A clamp
	mask, brush, belt, manual

Update time：20261026111549
