Description

SpecificationsSpecification parameter

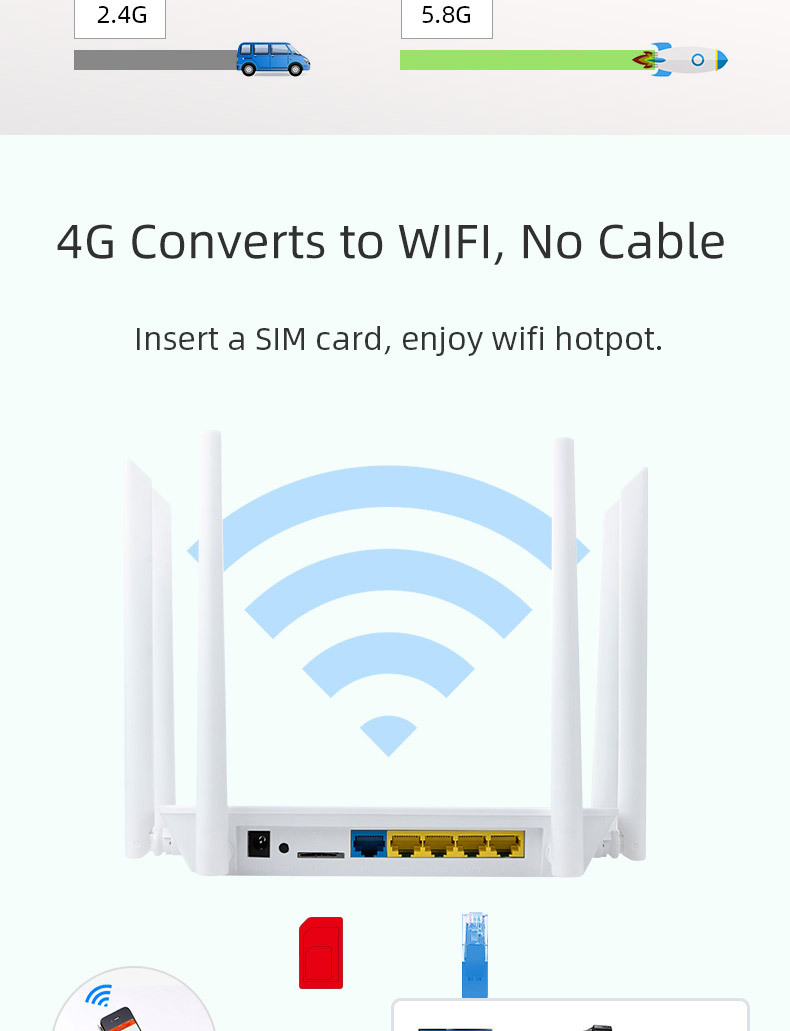

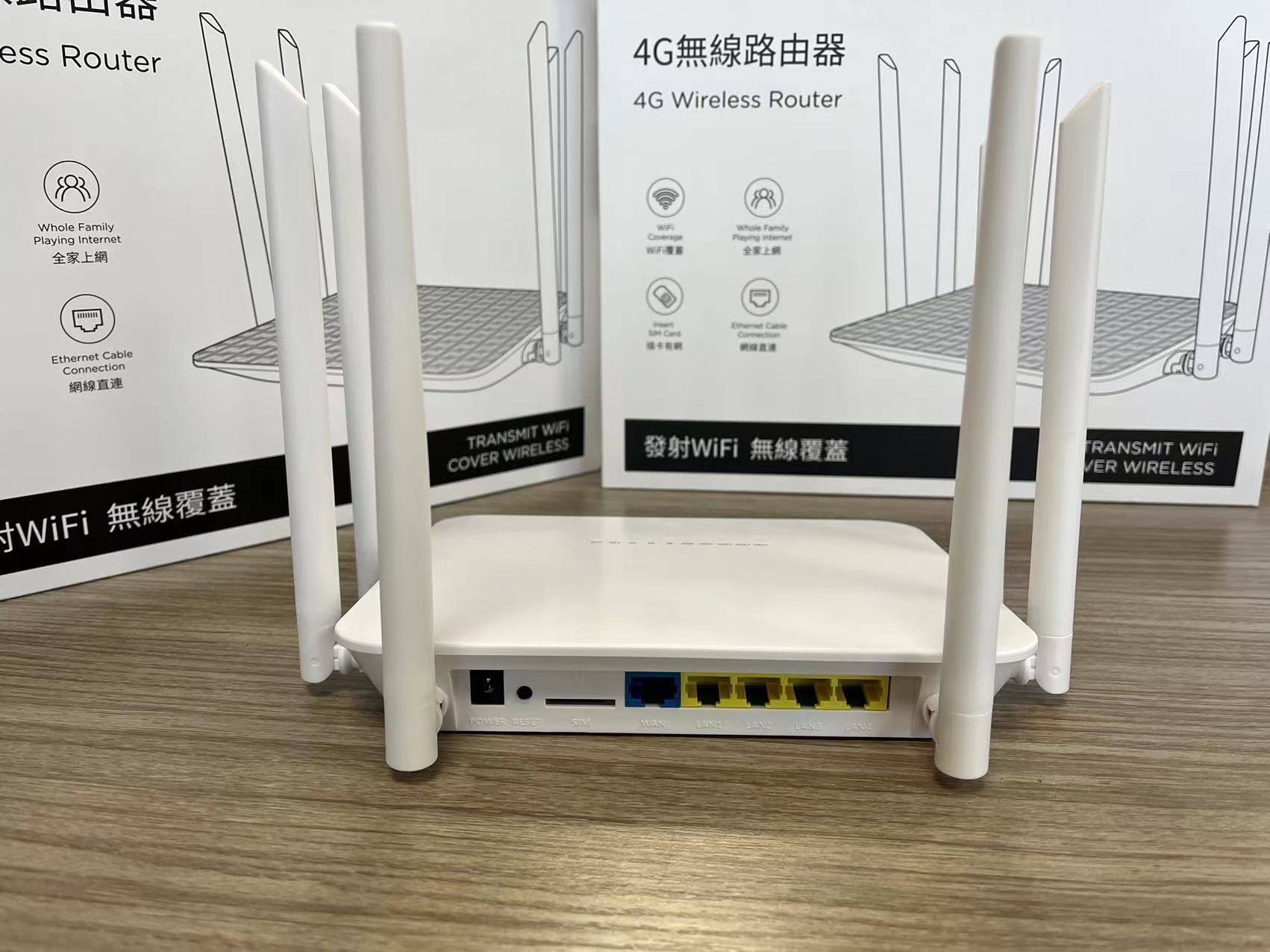

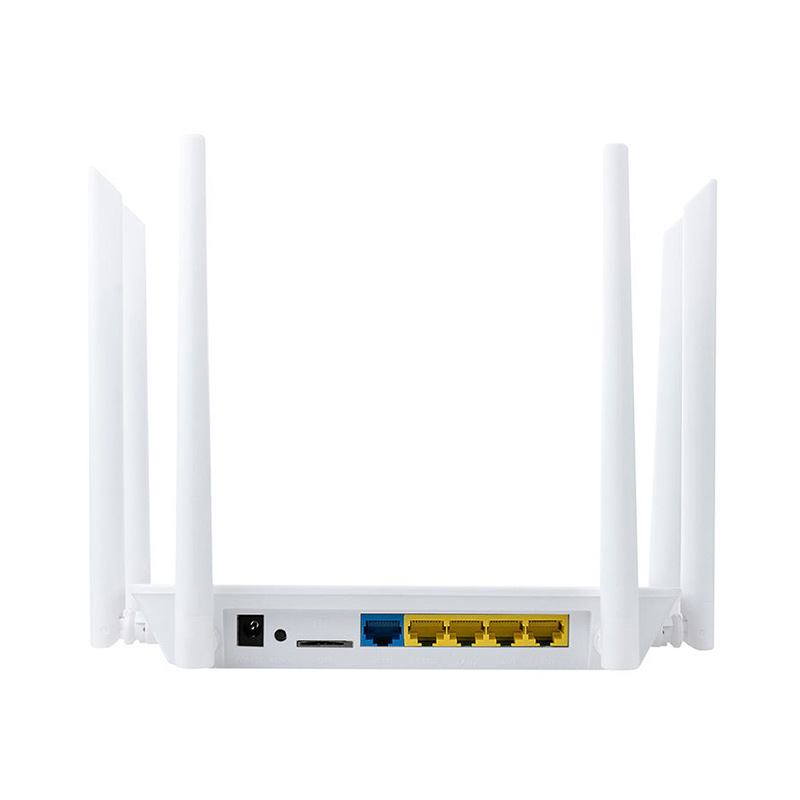

Interface interface	Network/Network port	4lan1wan
	SIM	2FF simulation
	Button/Button	reset
	DC adapterPower supply	Input voltage(Input12V 1.5A
SolutionPlan	Routing and WiFi chipset supplier	MTK

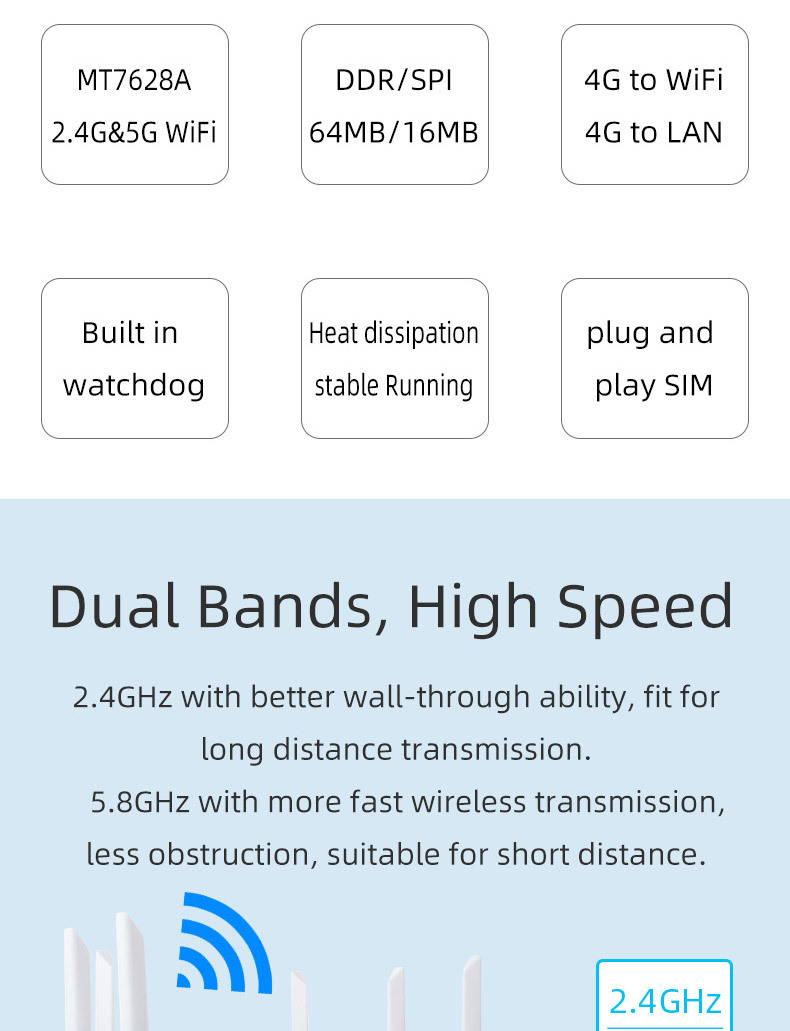

BASE Basic Information	Routing and WiFi chipset model	MT7628A+MT7612E
	Routing and WiFi processor information	IEEE 802.11 a/b/g/n/ac
	DDR/SPI	64MBytes/16MBytes
RF "射频"可以翻译为 "Radio Frequency" 或者 "RF".	Main antenna/Main Antenna	Internal antenna(Indoor antenna")
	Receive diversity antennaReceive antenna	Internal antenna(Indoor antenna")
	WiFi band/Wireless Frequency Band	2400MHz-2483.5MHz 5170MHz-5835MHz
	Multiple Input Multiple Output for WiFi	2.4G 5dBi x 2 5G 5dBi x 2
	WiFi的最大发射功率 Wireless Power	802.11a 14dBm±2dBm; 802.11b 22dBm±2dBm; 802.11g 18dBm ± 2dBm; 802.11n 16dBm±2dBm; 802.11ac 15dBm±2dBm;
Software Software	LanguageLanguage	Chinese & English
	APN Setting	Supported
	Device Settings	Supported
	WIFI Settings	Supported
	Routing Settings	Supported
	Firewall Settings	Supported
Technical standard Technical Specifications	LEDIndicator light	Supported
	WiFi standard/Wireless Standards	802.11 a/b/g/n/ac
	WiFi securityEncryption Method	WPA/WPA2
	OS/Operating System	Windows XPandWindows VistaandWindows 7andWindows 10andMACandLinux
	Browser/Browser	Internet Explorer (8.0 and later)andFirefox (3.0 and later)andSafari (4.0 and later)andOpera (10.0 and later)andChrome (10.0 and later)
Environment environment	Operating temperature	0 to 50° C
	Storage temperature	-40 to 70° C
	Humidity	5% to 95%

The device features a plastic housing and is specifically designed with anti-interference capabilities for vehicle use, offering good anti-interference performance. It is equipped with a vehicle-specific power supply design that supports a 12V vehicle power system, effectively preventing damage to the device caused by power fluctuations in the vehicle.

The equipment is equipped with a plastic shell and is specially designed for vehicle anti-interference, with good anti-interference performance. It is equipped with a car-specific power supply design, supporting a car 12V power system, and can effectively prevent equipment damage caused by fluctuations in the car power supply.
