● Sampling and Analysis
----------------------------------
Acquisition and record standard 12 lead ECG simultaneously ( I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 ).
Sampling rate 32000Hz.
High accuracy digital filter system. Automatic base line adjustment.
Accurate pulse pace identification function.
Excellent auto-interpretation function can analyze over 200 types of abnormal ECG for reference. ( Analysis
data base: Minnesota Code ).
● ECG Record
---------------------------------------
High resolution thermal printing system.
Four working modes: Auto, Manual, R-R, Store, to meet different clinical requirements.
Recording format: : 3chx4+3R, 6chx2, 6chx2+R, 12x1 and 1 minute of rhythm lead record.
Printing paper size: 210mmx30m, roll paper.
● Patient Information and File Management
-------------------------
With alphanumeric keyboard, very easy to input and edit patient information.
Can record detailed patient information, including name, ID, gender, age, height, weight, blood pressure
and hospital name.
Can store, replay and edit 250 ECG cases with internal memory card.
Patient ECG report can be transferred to external USB disk ( optional ).

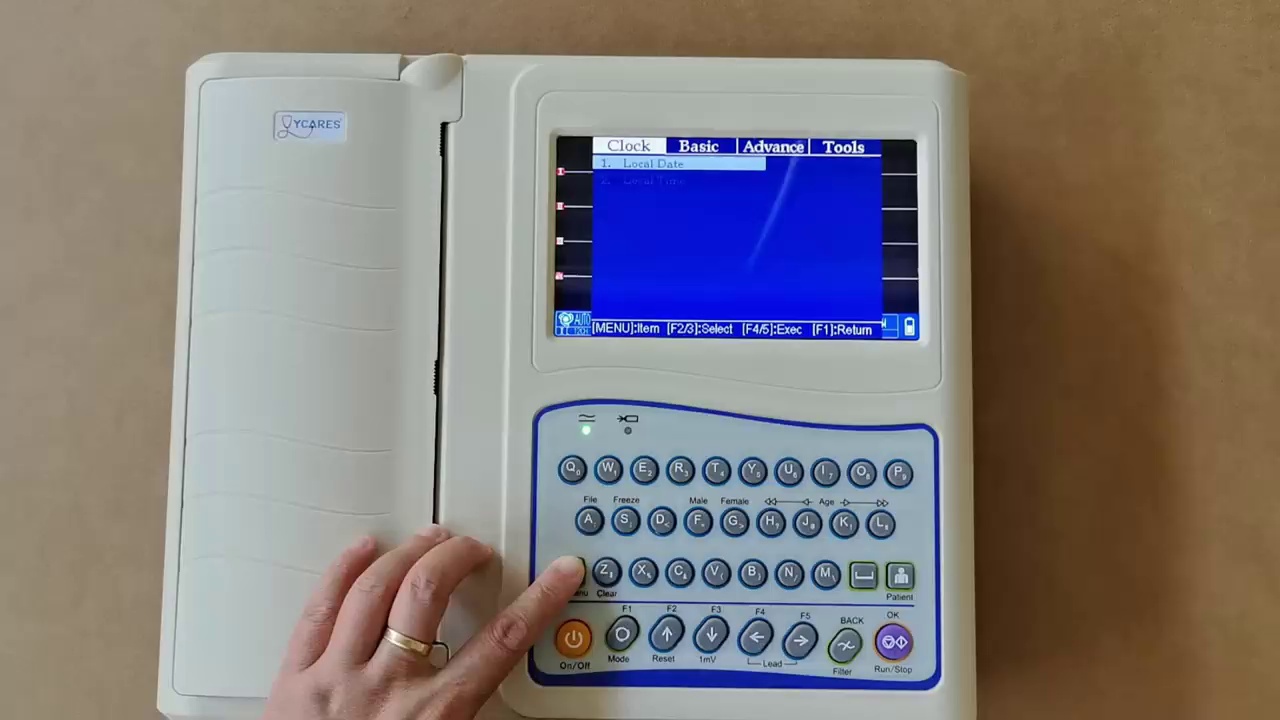

● Display and Keypad
800x480 graphic, 7 inch color LCD to display detailed ECG waveform and working status ( lead waveform,
patient information, sensitivity, paper speed, filter, date and time, HR., battery level, errors, and etc. )
With alphanumeric keyboard to fast operate and input information.
One-key operation to support fast ECG examination.
● Power Supply
Rechargeable Lithium battery, 2200/4400mAh, 14.4V, support to continuously work about 9/18 hours.
Low-power consumption and fast charging design, about 2.5/4.5 hours to charge full.
Automatic voltage regulation design, adapt for power supply of 110-230V, 50/60Hz.
● Physical Design
Compact and ergonomic design, easy to carry and operate.
Proper size, very convenient for mobile diagnostics.
Measurement: 347mmx293mmx83mm, 4.8kgs.
● Interface and Communication
With UART and USB communication port.
Support transferring ECG files to external USB disk for storage (optional).
Support connecting to computer to manage ECG data with PC ECG Management Software. (optional).
