origin: china

import or not: no

operating voltage: dc9-35v

item no.: smoke and warmth

brand: haoshuo

alarm current: 10-45

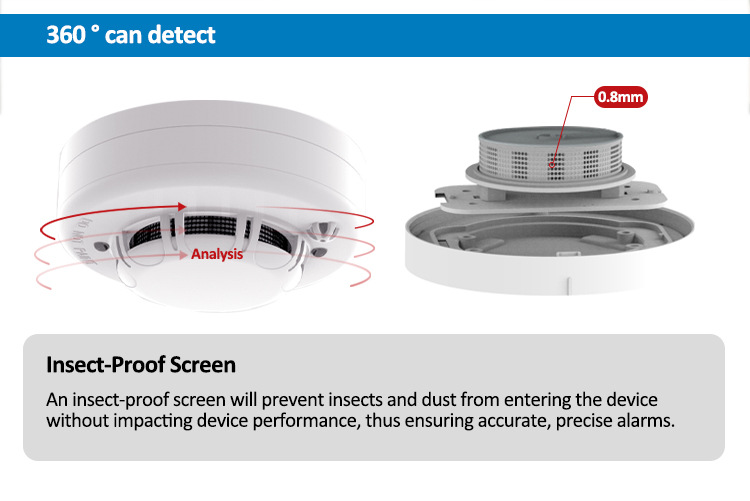

detection angle: 360

static current: 55

operating temperature: -10+50

detection distance: 100

scope of application: hotels, apartments, hospitals, buildings

type: temperature detection alarm

model: hs-613h

installation method: ceiling type

communication mode: normally open and normally closed optional

weight: 0.2

alarm mode: led indication

order number: hs-613h

item number: hs-613h

minimum number of packs: 100pcs

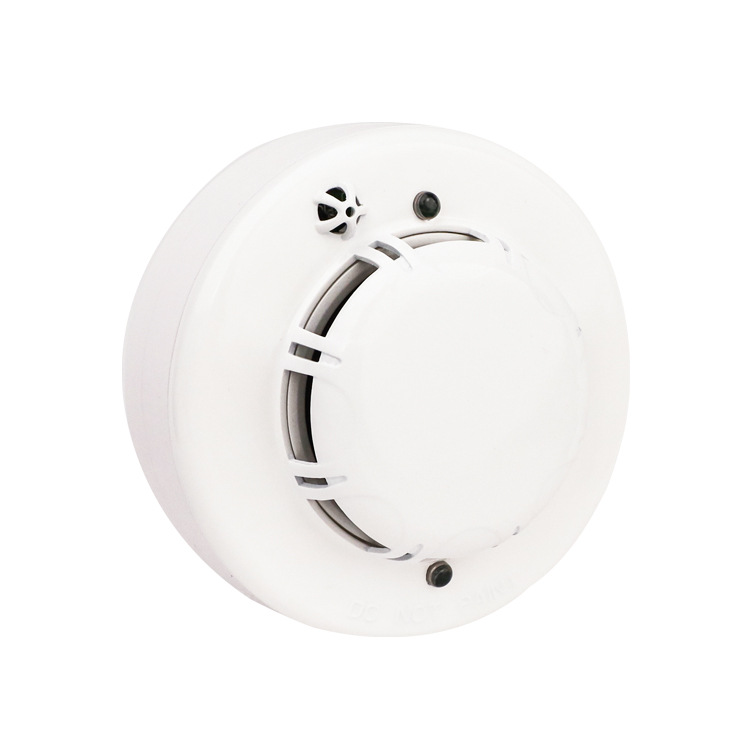

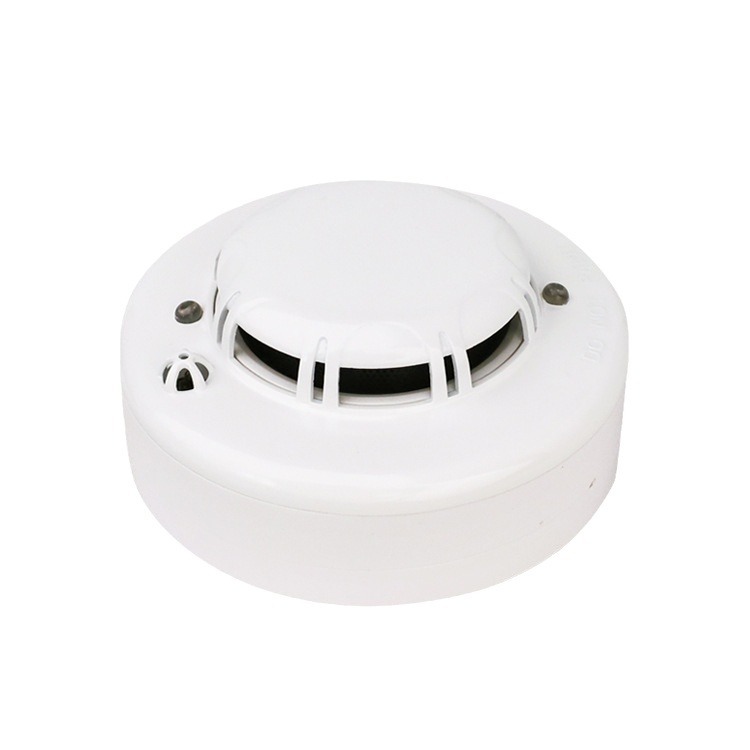

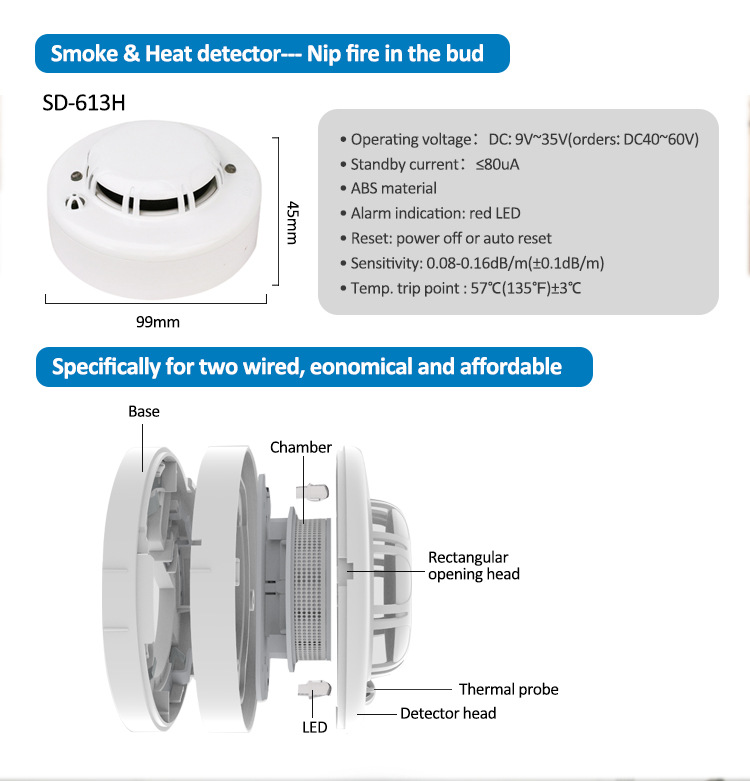

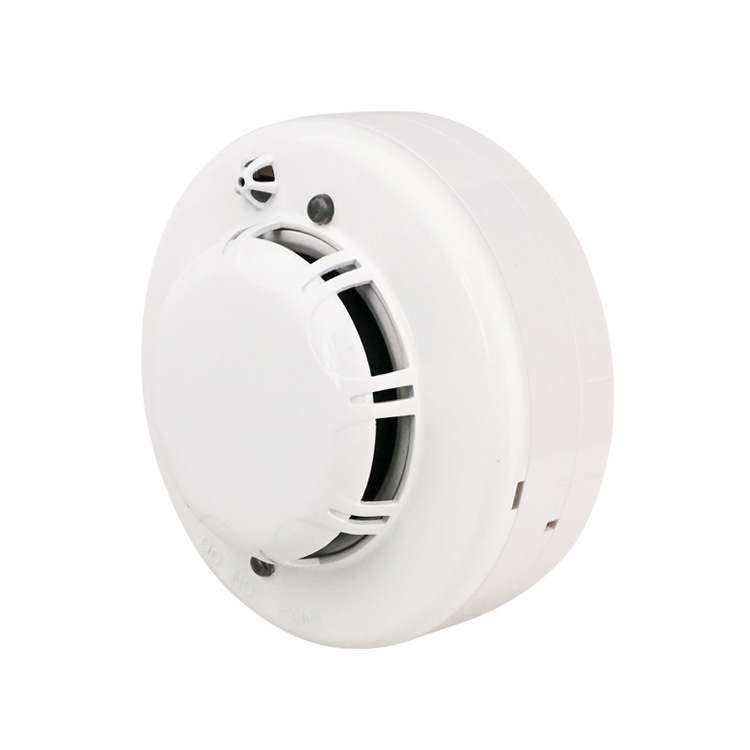

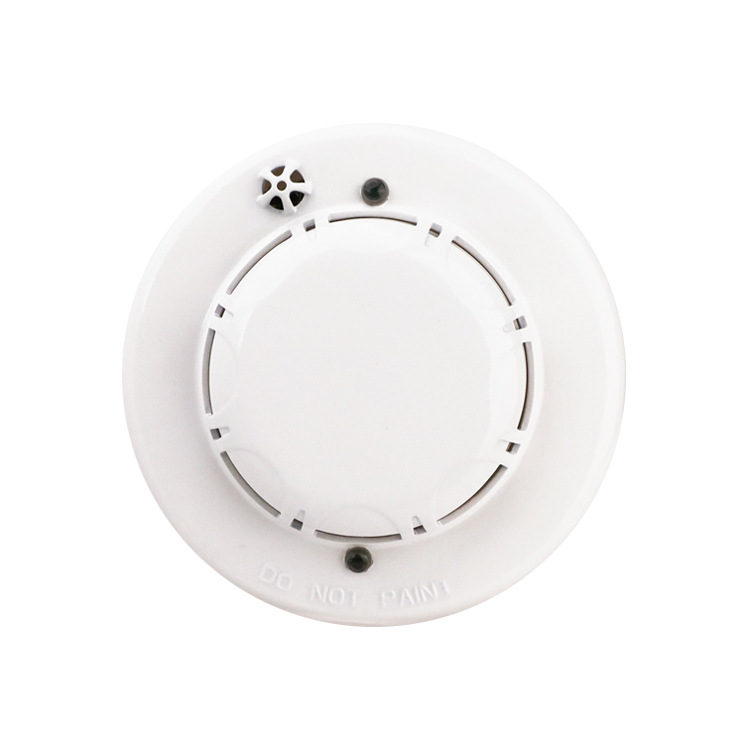

HS-613HWired Smoke and Temperature Detectors - 2-wire/4-wire options available

Product Features:

1. SMT process, high stability

2. Low static current

3. Anti-interference design

4、9~35V wide-voltage design

5. Dual LED, 360° visibility

6. LED Blinking Power Indicator Light

technologyParameter

Product Type	2线	4线
Working Voltage	DC: 9V~35V
Static Current	≤55uA
Alarm Current	≤55mA@DC24V	≤25mA@DC24V
Alarm Indicator Light	The red light is on.
Reset	Power-off reset, optional for automatic reset
Working temperature	-10℃ +50℃
Work humidity	≤95% Relative Humidity
Alarm Output	Remote LED	Relay Output
CONTACT RATING	N/A	0.5A@DC28V
Sensitivity	0.5 dB/m (±0.1 dB/m)
Standard	EN54-7 UL268
Size	103mm diameter * 48mm deep

undefined

系统图

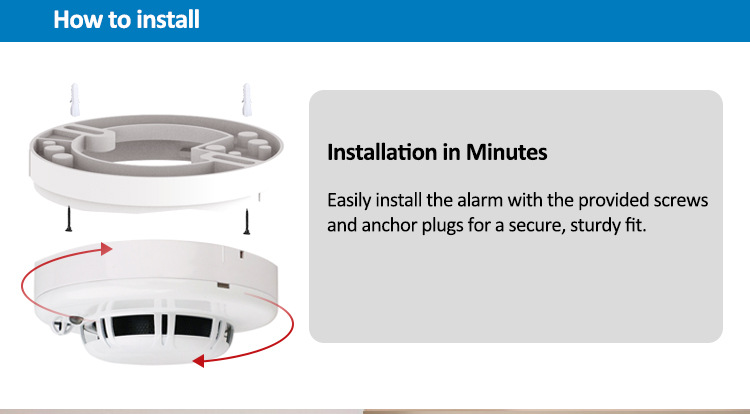

Installation and Test
