| 1， 2， 3， 4， 6， 10， 13， 16， 20， 25， 32， 4 | CN¥ 0.0 |
Product Description

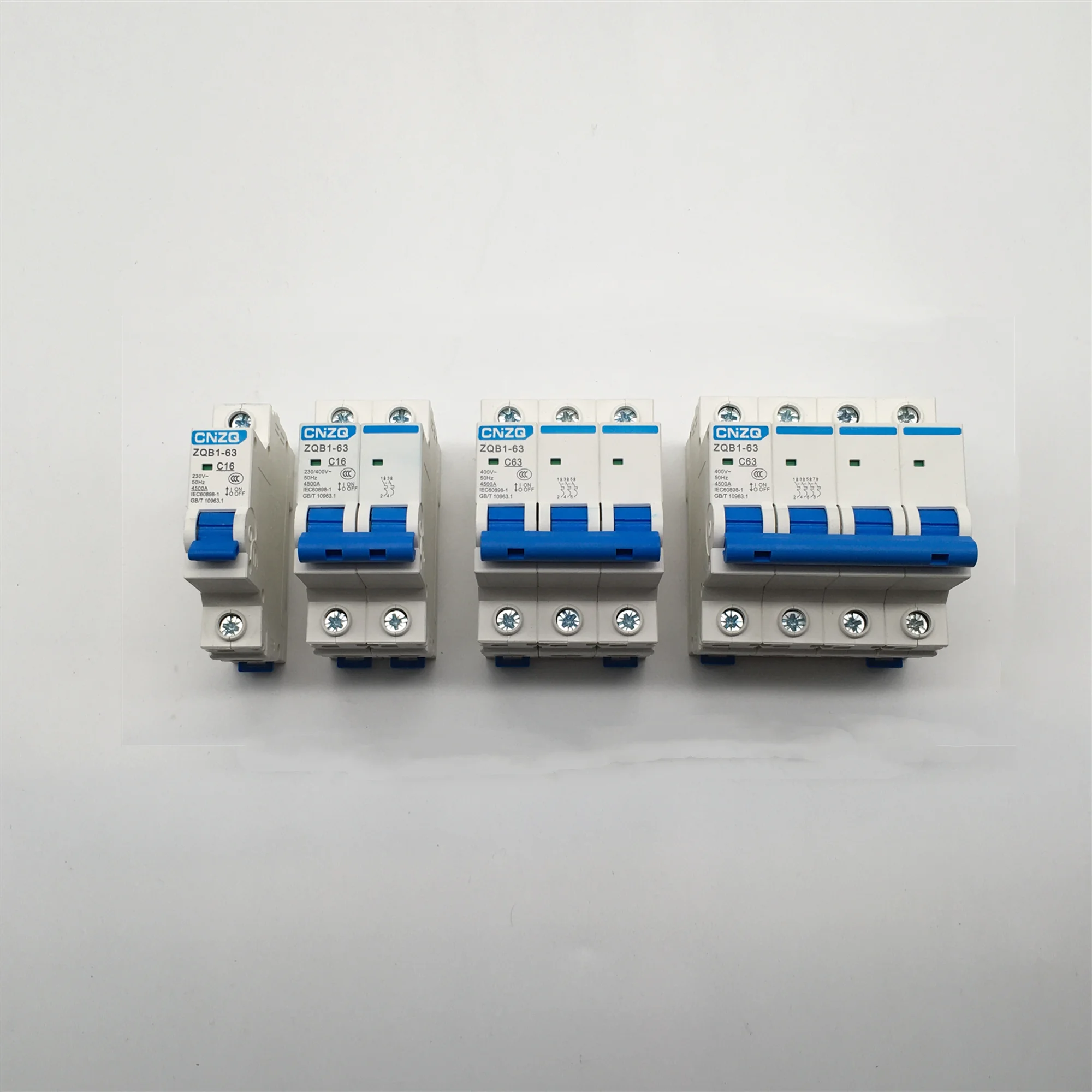

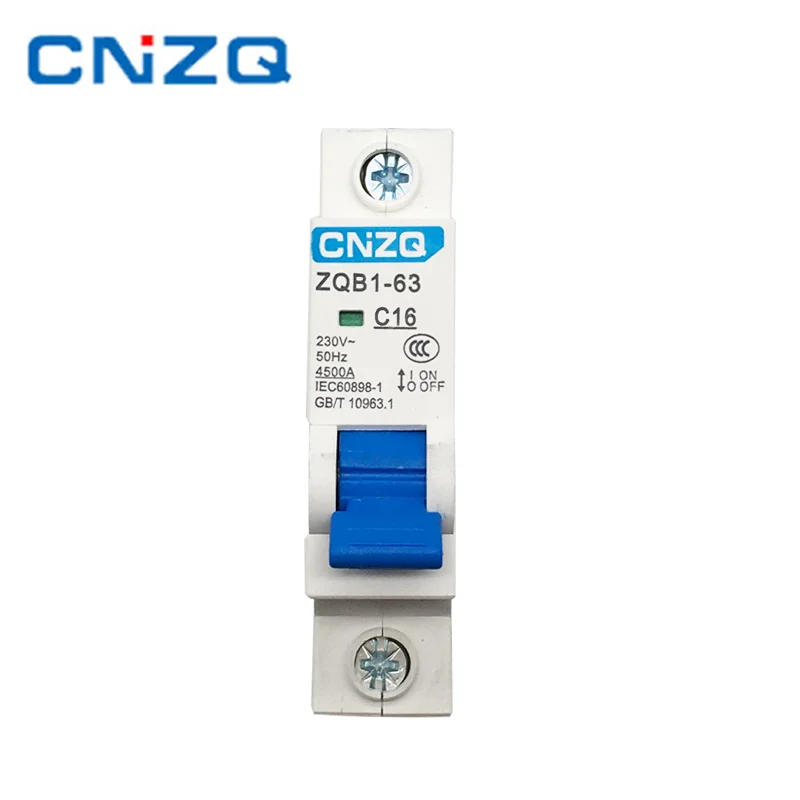

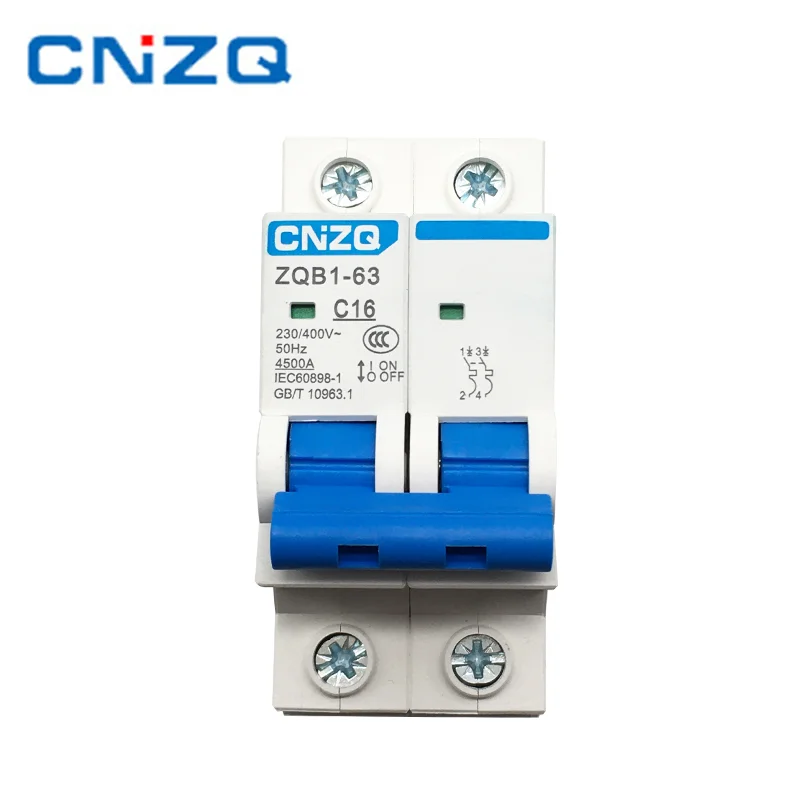

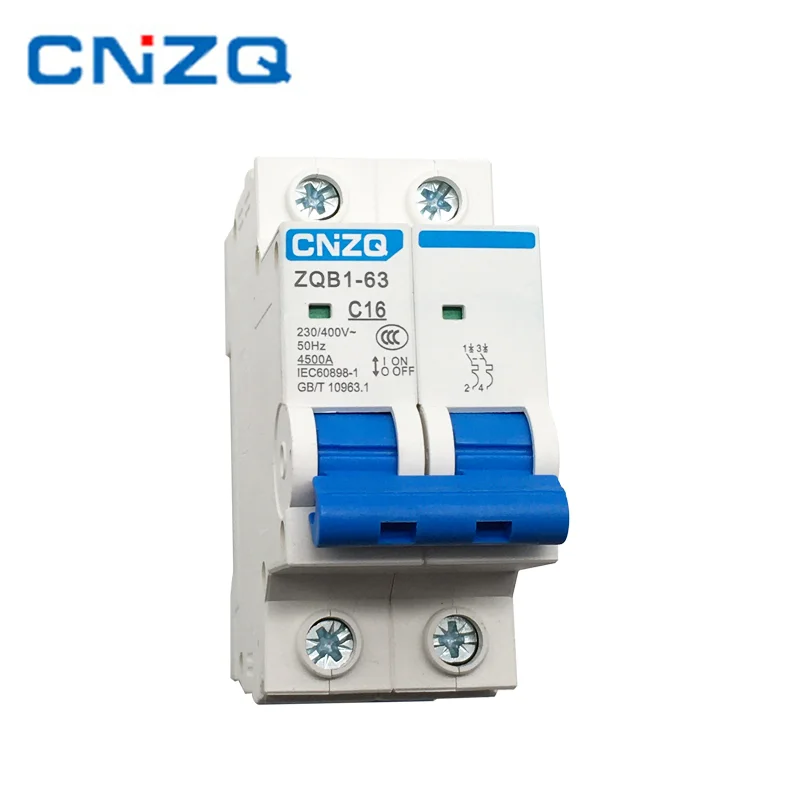

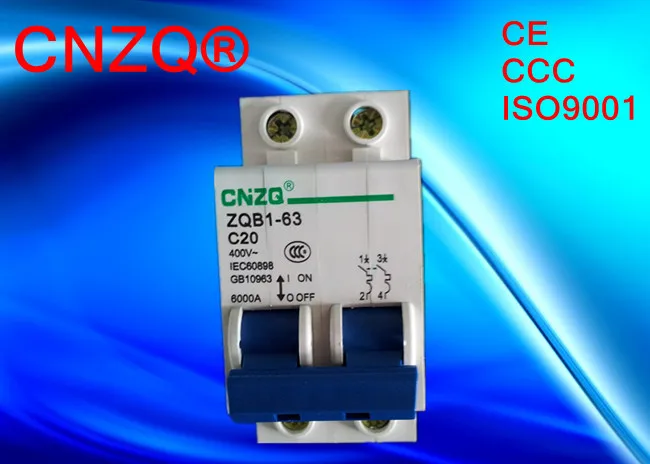

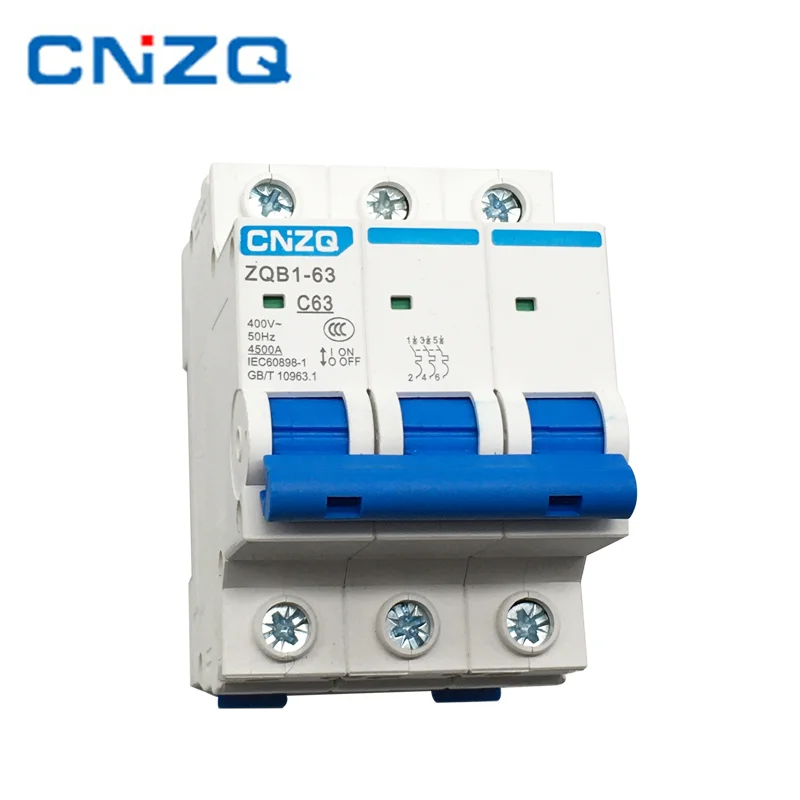

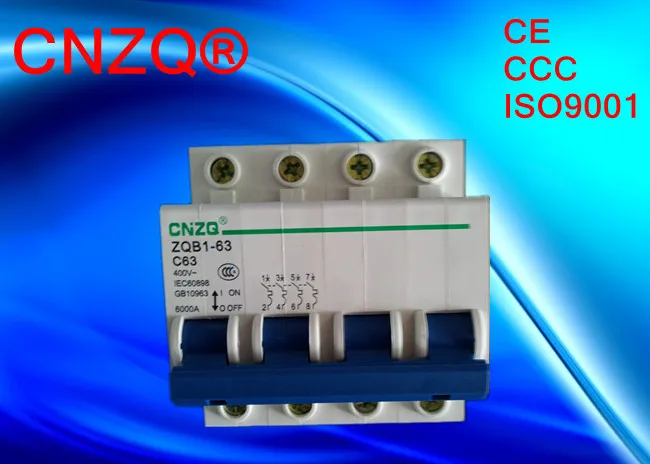

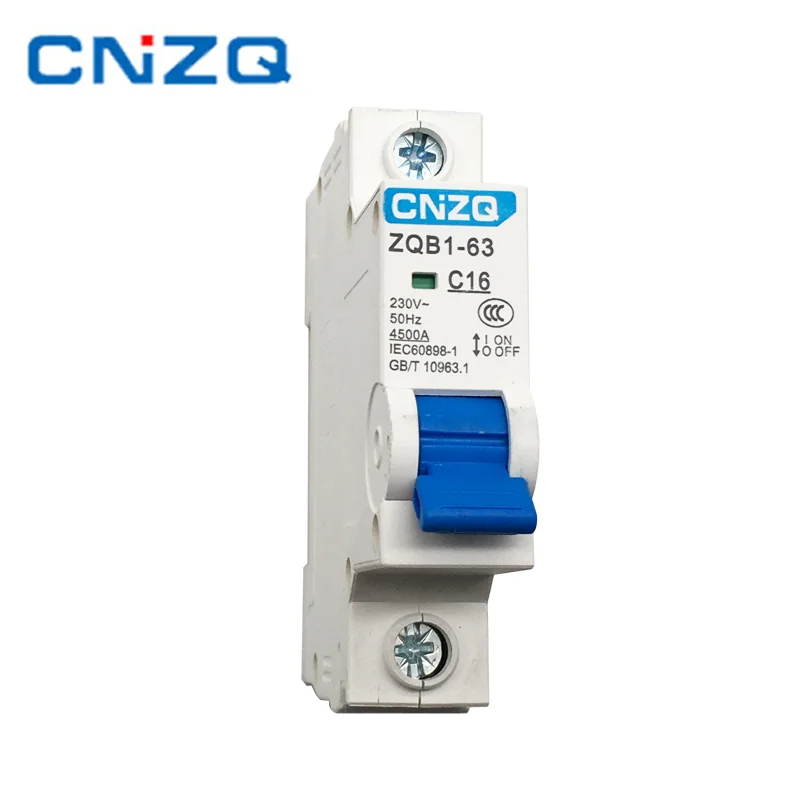

ZQB1 Series Miniature circuit breakers are mainly suitable for the circuit line of AC 50HZ/60HZ ,rated working voltage 230V/400V and below ,rated current to 63A.This breaker is mainly used for protecting electrical line and equipment of modern building from overload,short circuit .it also can be used for infrequently operating and isolating in the line .
| Constrcution and Feature | |||||
| 1)Protection against both overload and short circuit breaker | |||||
| 2)High short-circuit capacity | |||||
| 3)Easy mounting onto 35mm DIN rail | |||||
| Technical Data | |||||
| 4)Pole No.: 1 .2 . 3 . 4 | |||||
| 5)Rated Voltage : AC 230/400V | |||||
| 6)Rated Current(A): 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 | |||||
| 7)Tripping curve: B, C, D | |||||
| 8)Rated short-circuit capacity(Icn): 3KA , 4KA ,4.5KA ,6KA | |||||
| 9)Rated frequency :50Hz/60Hz | |||||
| 10)Enerygy limiting class : 3 | |||||
| 11)Rated impulse withstand voltage: 6.2kV | |||||
| 12)Electro-mechanical endurance : 4000 | |||||
| 13)Connection terminal : pillar terminal with clamp | |||||
| 14)Connection capacity : Rigid conductor up to 25mm2 | |||||
| 15)Fastenning torque: 2.0Nm | |||||
| 16)Installation: On symmetrical DIN rail 35mm /Panel Mounting | |||||
| 17)Terminal Connection Height: 21mm | |||||
| Accessories | |||||
| 18)F2 Auxiliary | |||||
| 19)S2 Shunt tripper | |||||
| 20)U2+O2 over-voltage & under-voltage tripper |
Packaging & Shipping
Our Service
Modern Technology: Strict streamlined operation line, each process is fine and complete, and precision production equipment makes products closer to perfection.
Professional Technical Team: We hav an independent R&D room and has obtained a number of patent certifications to meet the different needs of customers.
Professional After-sales Team: It is our purpose to serve customers 24/7, solve their problems. Our commitment to customers is to work in an effcient way.
Certificates
Company Information
Zhejiang Zhongqiao Electric Appliance CO.,Ltd. is committed to the field of high and low voltage electrical industry. The company has strong technical force, rich production experience, excellent manufacturing equipment, advanced technology, and capable staff, and is equipped with multiple production lines and testing equipment. Understand the latest information in the industry in all directions, continuously introduce and absorb the latest technological achievemnets.
FAQ
Q1: Are you a manufacture factory?
A1: Yes, we are professional in manufacturing low voltage electric products for more than 15 years,special owned high quality control team to ensure every detail.
Q2: Can I get a sample before the order because I really don t know how is your quality?
A2: Of course! We also agree that sample order is the best way to build the trust for ourcooperation.
Q3: Does your products can print a logo?
A3: Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
Q4: What's your warranty?
A4: Normally 2 years, some products can be more.
Q5: What's the delivery time?
A5: It usually takes 3-25days after we confirm the payment, but specific time should be based on theorder quantity.
Q6: What's your benefit?
A6: ZHONGQIAO ELECTRICAL CO., LTD focus on the filed of low voltage circuit breakers for 20 years. Specializing in the ROCB RCCB MCB. More than 13 years business experience on export, clients are widespread all over the world. And we have passed ISO9001:2008 Quality Management System and CCC, CE.
WELCOME YOUR INQUIRY~
