| 600 millimeters | CN¥ 0.0 |
| 420mm | CN¥ 0.0 |

|
Model
|
NW-DTF420 & 600Pro
|

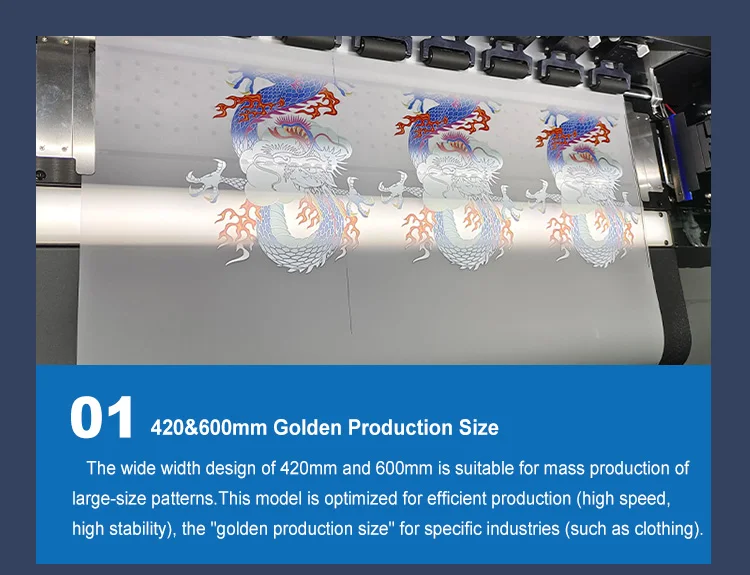

Media Length
|
420/600 mm
|
||
|
Maximum Printing Height
|
2 millimeters
|
power consumption
|
2000W
|
||
|

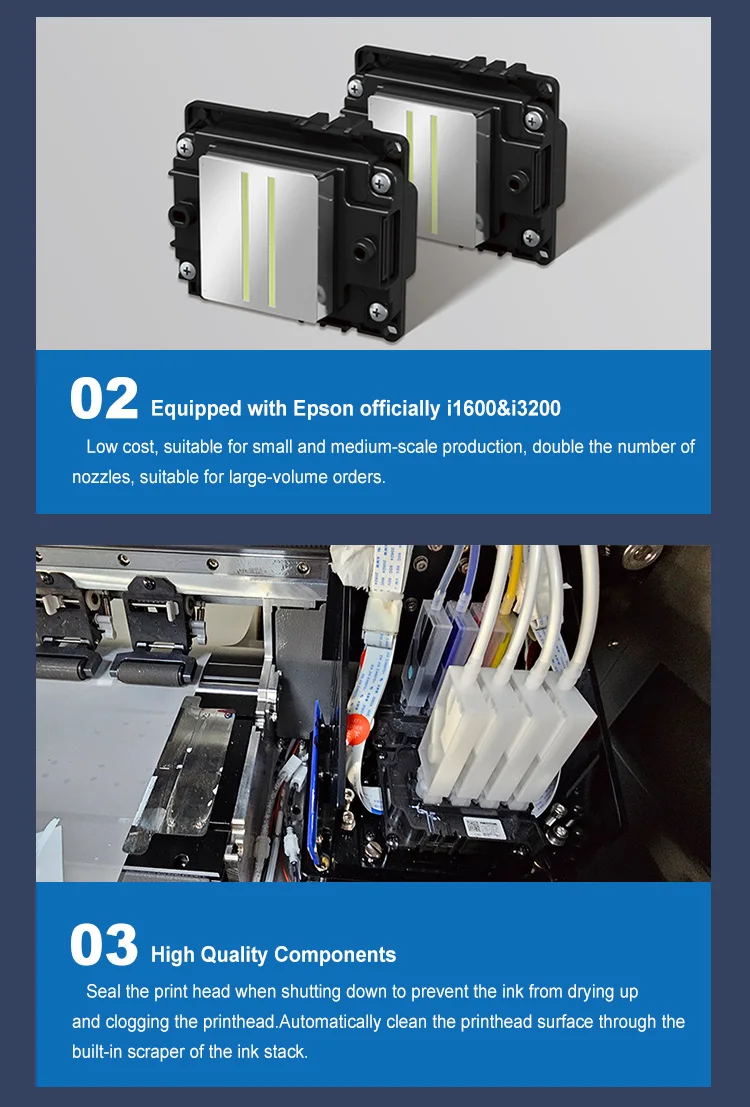

printer head
|
2 pieces of Epson I3200A1, 2 pieces of Epson I1600A1
|
|
|
||
|
Materials to be printed
|
Heat Transfer Polyester Film
|
|
|
||
|
Print Speed
|
I3200A: 6 channels at 4 m²/h, 8 channels at 2 m²/h,
I1600A: 6 passes at 2.5 m²/h, 8 passes at 1.5 m²/h |
|
|
||
|

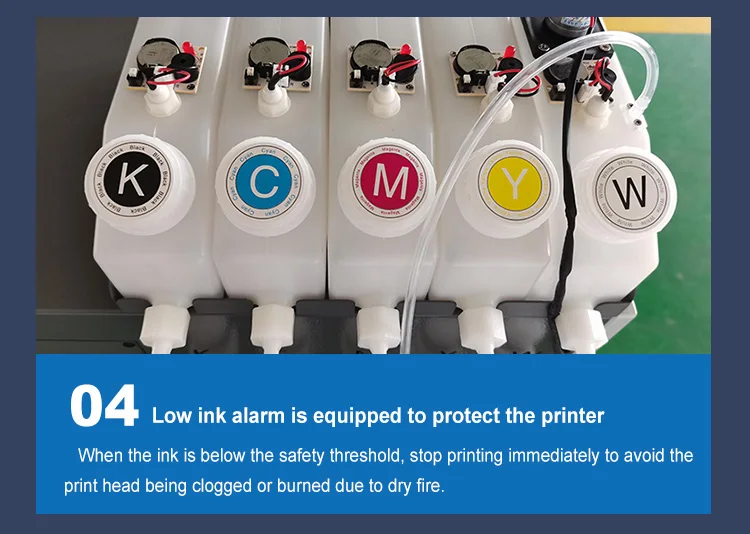

墨水颜色
|
Cyan, Magenta, Yellow, Key (Black), White
|
|
|
||
|
Machine Function
|

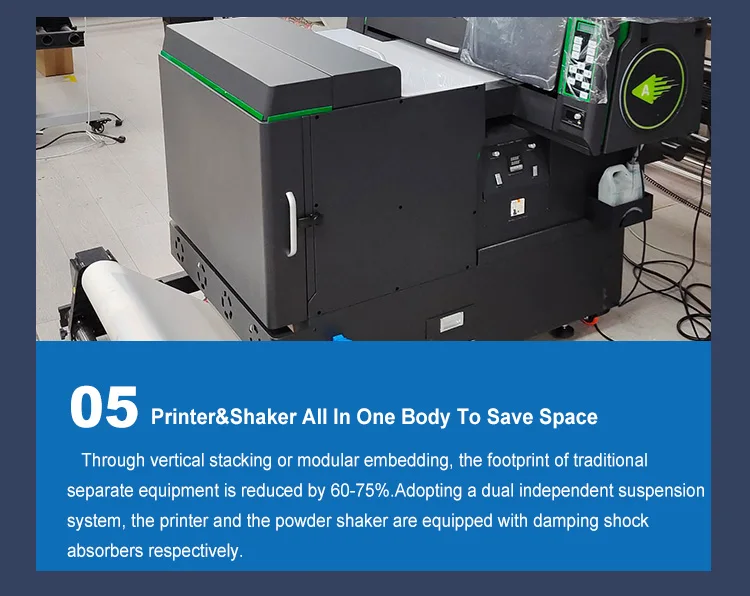

Integrated printer and powder vibrator, white ink stimulation, 8-color printing
|
|
|
||
|
Machine Configuration
|
Hiwin Guiderail, Leadshine Motor, White Ink Stimulation, Integrated Machine (Optional)
|
|
|
||
|
File Format
|
PDF、JPG、TIFF、EPS、Postscript and so on
|
|
|
||
|
Software
|
Maintop / Photoprint
|
|
|
||
|
Work environment
|
1340*1850 * 1330毫米空间,1000W
Power, 25 ℃-30 ℃ humidity 50%-70% |
|
|
||
|
Packing Information
|
1440*1400*1450,270kg,2.54m³
|
|
|
||
