uv 6090 printer double three-head tx800 xp600 flat uv 6090 printer

  • EXW Price: Min. order:
    CN¥ 34223.0
    ≥ 1 piece
    CN¥ 26687.1
    ≥ 2 piece
  • 1 piece
  • Weight 15.0 kg/piece
  • mixed batch
  • Specifications
    1260w * nw-uv6090h * 600mm * 900mm CN¥ 0.0
Send Inquiry Chat with supplier

caina 2yr.

Contacts:ANN Chat

Mobile:86-19550525187

E-mail:1931817002@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email: yiwubuy@yiwugo.com

  • Description
ink type: uv ink
ink type: uv ink
printing nozzle: xp600, tx800
printing nozzle: xp600, tx800
brand: caina
brand: caina
origin: zhejiang, china
origin: zhejiang, china
degree of automation: automatic
degree of automation: automatic
printing color number and surface number: multicolor
printing color number and surface number: multicolor
status: new
status: new
connectivity: usb
connectivity: usb
control method: application
control method: application
control type: button
control type: button
size (length × width × height): 1700*1370 * 760mm
size (length × width × height): 1700*1370 * 760mm
operating voltage: ac 110-220v
operating voltage: ac 110-220v
printing plate type: flatbed printer
printing plate type: flatbed printer
power mode: power supply
power mode: power supply
print media: bottle, acrylic, pattern board, tile, foam board
print media: bottle, acrylic, pattern board, tile, foam board
print resolution: 720*720dpi, 360 *
print resolution: 720*720dpi, 360 *
printing speed: normal mode (59 seconds for a4 photos) standard mo
printing speed: normal mode (59 seconds for a4 photos) standard mo
printer function type: printing
printer function type: printing
print material: flexographic printing
print material: flexographic printing
resolution: 720dpi, 1080dpi
resolution: 720dpi, 1080dpi

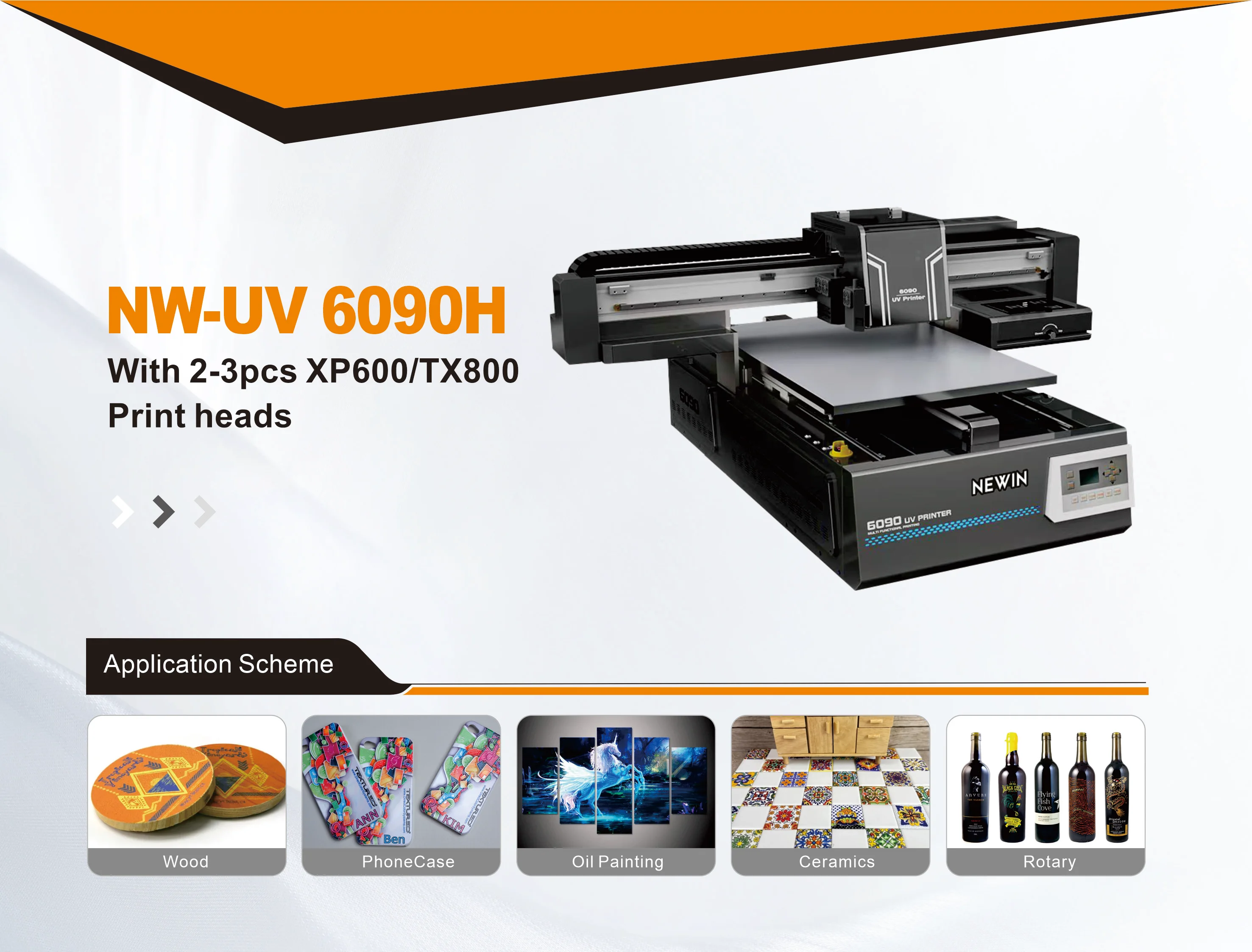

UV 6090 printer with dual three-head Tx800 and Xp600 flatbed, UV 6090 printer phone case kit board, acrylic
Model
NW-UV6090H
Maximum Printing Size
23.62 inches x 35.43 inches (60x90 centimeters)

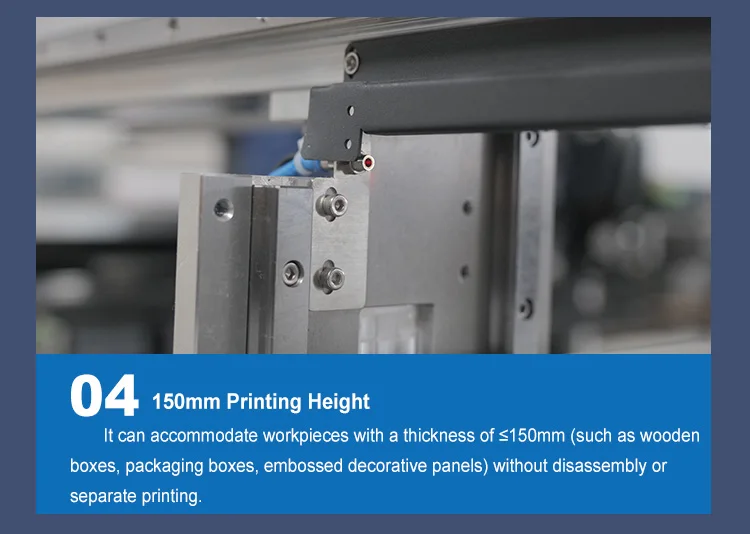

Maximum Printing Height
150 millimeters
power consumption
1260W

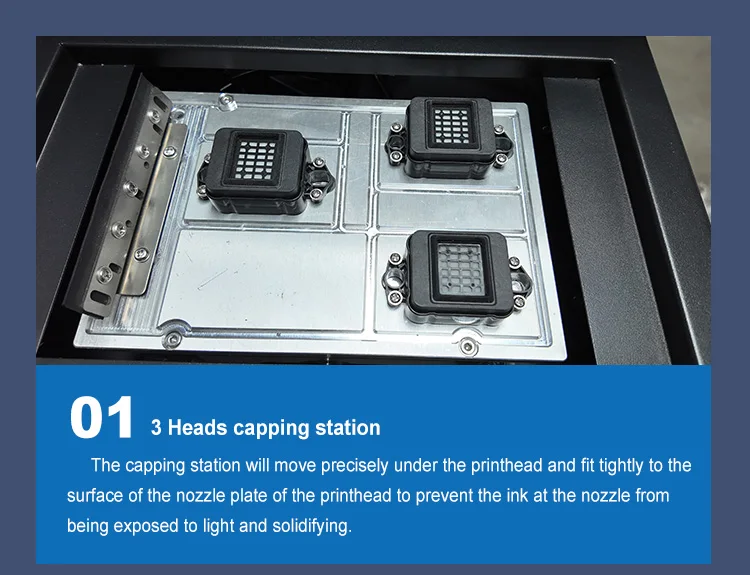

printer head
2-3pcs XP600/TX800 print heads
power
High-precision servo motor
Print Speed
Tx800:
6 through + 360 × 1080 + bidirectional + clothing 60%: 7'35"
8 through + 720x720 + bidirectional + clothing 60%: 10'44"

Xp600:
Normal Mode (59 seconds for A4 photos)
Standard Mode (2 minutes for A4 photos)
Quality Mode (4 minutes for A4 photos)
Printing precision
Printable images with resolutions of 720/1440/2880/5760 dpi

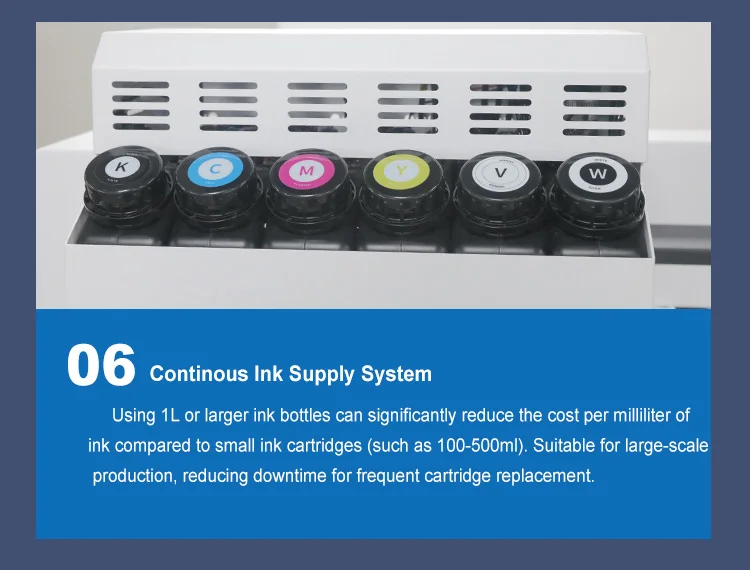

墨水颜色
Cyan, Magenta, Yellow, Key (Black), White, and Vivid (Color intensity)
File Format
PDF、JPG、TIFF、EPS、AI
Software
Ripprint/蒙泰
Work environment
Temperature: 15-35 ℃ Humidity: 20-30%
Device size and weight
1700*1370 * 760毫米; 140千克" Translation: "1700*1370 * 760 millimeters; 140 kilograms
I only have a small shop. I want to start some printing business. What can I do?" Check this NEWIN NW-6090H A1 UV printer.
Small body, small investment, needs small space, multi-function! Not only suitable for soft materials like paper, but also suitable for various types of rigid materials, such as Pen, golf, USB flash drive, leather bag, CD/DVD, cup, phone case, etc.
Smart Partner for New Business!
Frequently Asked Questions
Q1: What materials can UV printers print on?
Answer: The printer is a multi-functional printer: Aily uv printer is used on bottles and any material (such as phone cases, leather, wood, plastic, acrylic, pens, golf balls, metals, ceramics, glass, textiles, and fabrics, etc...

Q2: Can LED UV printers print embossing effects?
Answer: Yes, it can print press flower effect. For more information or sample pictures, please contact our representative salesperson.

Q3: Must the product be pre-coated?
Answer: Some materials require pre-coating, such as metals, glass, etc.

Q4: How do we start using the printer?
Answer: We will send the manual and the teaching video using the printer's packaging. Before using the machine, please read the manual and watch the teaching video, and strictly follow the operation structure. We will also provide high-quality service by offering free technical support online.

Q5: What about the warranty?
Answer: Our factory provides one-year warranty: any parts that are used normally (except for print heads, ink pumps, and ink cartridges) will be replaced with new ones within one year (excluding shipping costs). After one year, we only charge for the cost.

Q6: How much does printing cost?
Usually, it costs about $1 per square meter. The printing cost is very low.

Q7: How to adjust the print height?
Answer: Aily UV printer is equipped with infrared sensors to enable the printer to automatically detect the height of the printing object.

Q8: Where can I buy spare parts and ink?
Answer: Our factory also provides spare parts and inks, and you can purchase them directly from our factory or other local suppliers in the market. Customization is also available, and we welcome you to contact us now!
