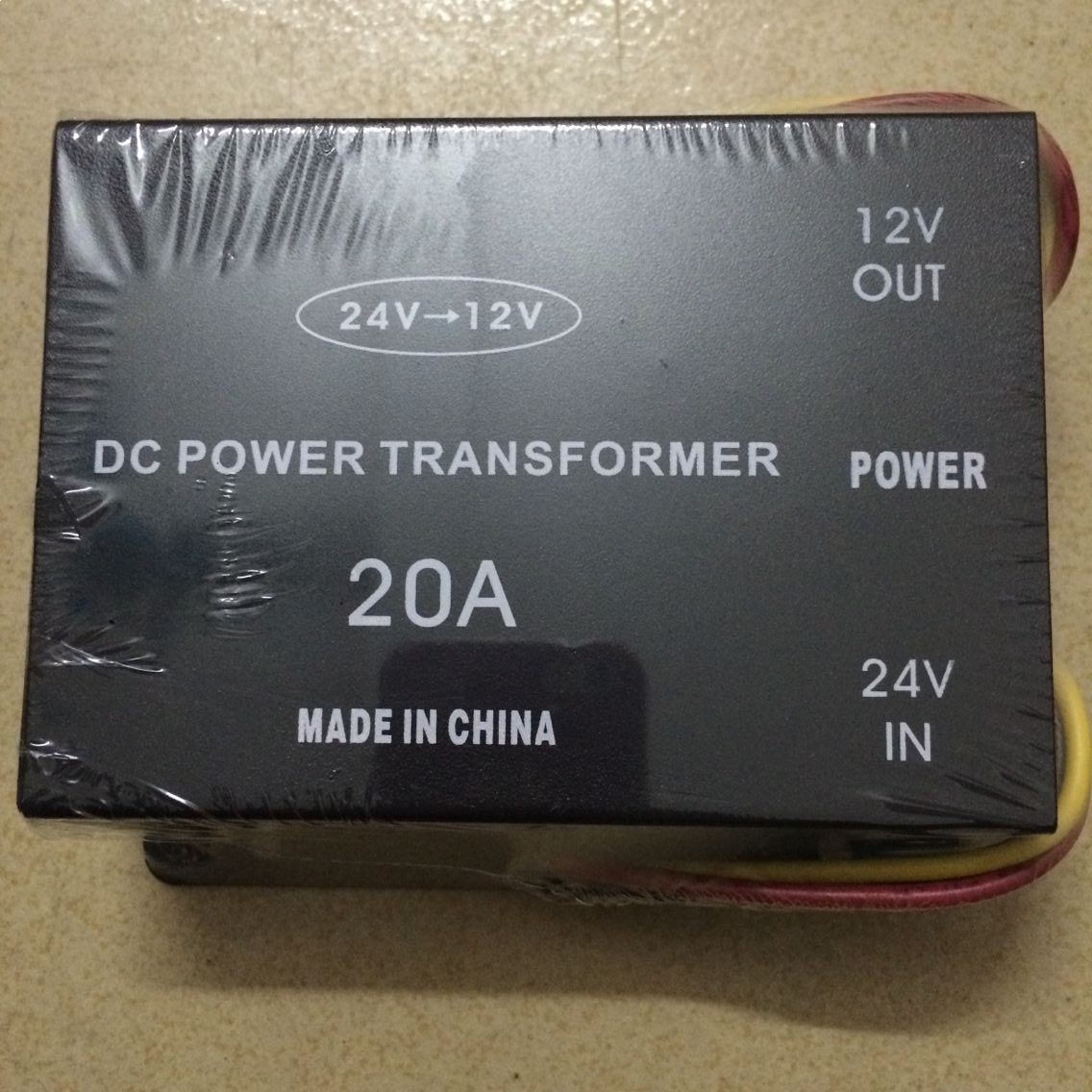

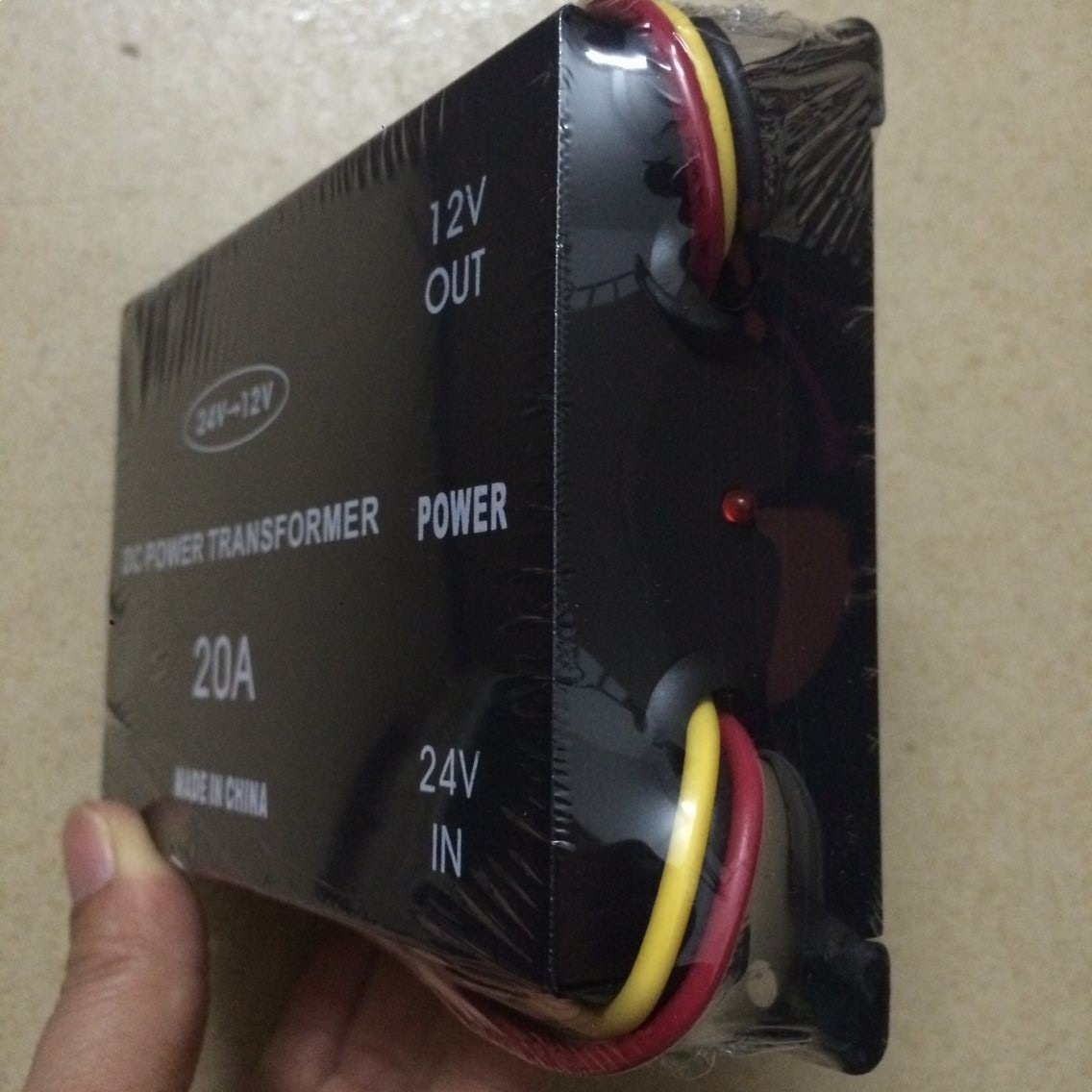

This product is manufactured using imported integrated switch-mode stabilization modules, which can convert unstable voltages.
13-40V DC power source converts to a stable 12V DC output. It features
Automatic protection functions such as overpressure, overcurrent, overtemperature, and short circuits are available, and it can recover under certain conditions.
After normal operation. It is a product of the in-car audio-video system (especially suitable for)
Vehicles equipped with a 24V power source
Product Main Parameters:
1. Input Voltage: DC 20-30V
2. Output Voltage: DC 12V
3. Output Current: 20A
4、 Six-string (with a memory line)
5. Iron shell structure.

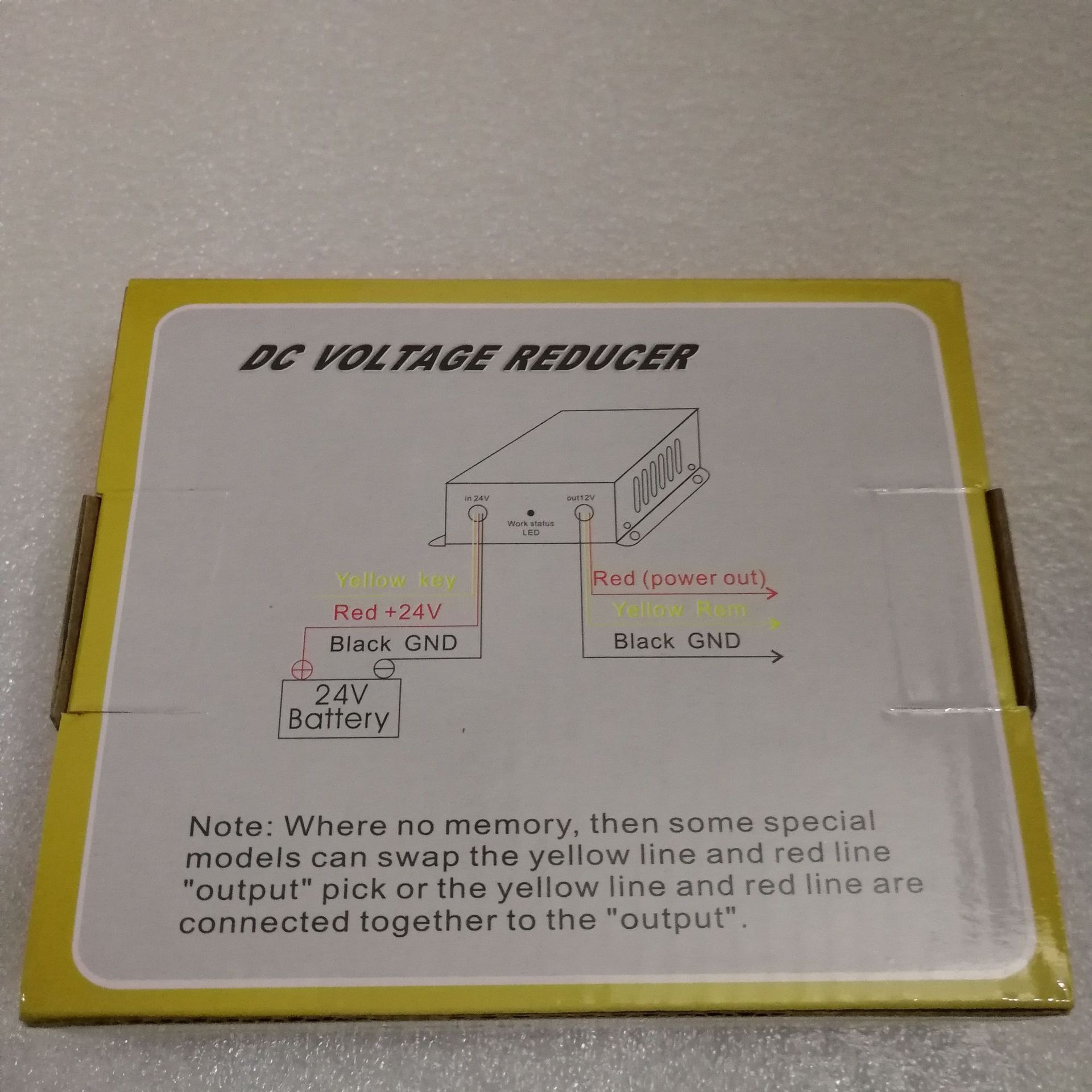

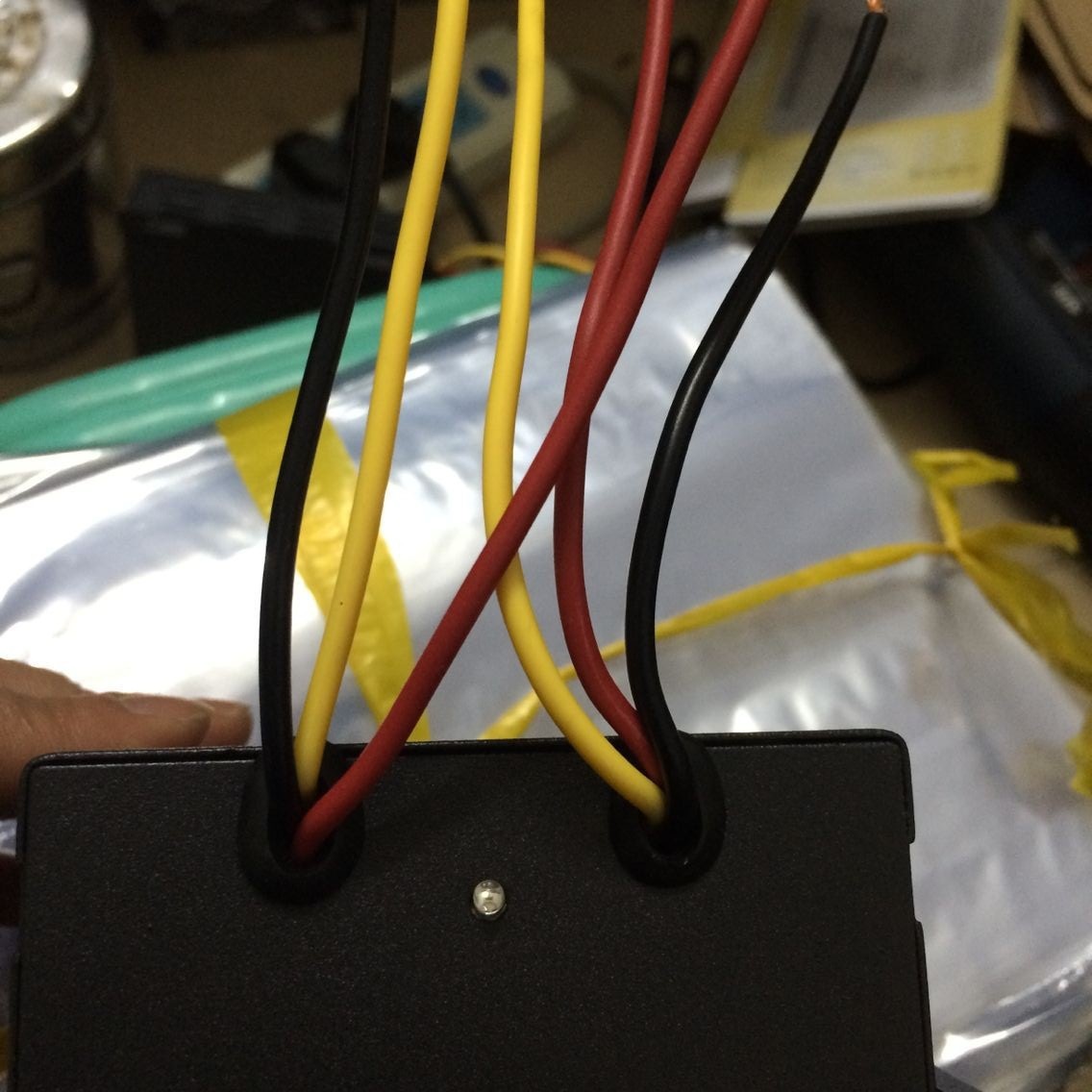

24V Input Wiring Instructions:
Red line: The main power line, connected to the positive terminal of the battery.
yellow lineACC line with memory function, connected to the car key switch.
Black wire: connect to the negative battery terminal or the vehicle's ground wire.
12V Output Wiring Instructions:
Red line: the main power line for connecting electrical appliances.
Yellow line: ACC line, with memory line, connected to the control of electrical equipment.
