warwolf 200cc all-terrain vehicle gy6 axis drive atv site rental mountain atv quad frenzy atv

yongkang tieyong scrambling motorcycle co., ltd. 1yr.

Contacts:lu meiyun Chat

Mobile:86-15057990588

E-mail:2698693789@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

displacement: 200cc

customized processing: yes

brand: atv-ty

model: wolf war 200cc

engine model: wang ye

overall dimensions of the whole vehicle: 210x115x95cm

item no.: wolf war 200cc

main downstream platforms: ebay, amazon, wish, aliexpress, independent

major sales areas: africa, south america, southeast asia

have authorized private brands: yes

whether cross-border export is exclusively available: yes

New model Wolf Warrior 200CC automatic transmission convenient hand shift model Length × Width × Height: 2100 × 1150 × 1100mm
Shaft distance 1300mm
Front wheel track: 900mm
Rear wheel track: 860mm
Minimum Ground Clearance: 220mm
Cushion height 780±20mm
Chassis height 260mm
Hand height 1100mm
Packing Size: Length × Width × Height = 2100mm × 1150mm × 810mm
Front mechanical suspension travel 75mm
Post-mechanical suspension device travel 90mm
Minimum turning diameter: 3500±500mm
Turning angle <45° (actual 39°)
Side slip amount <5m/km
Rated Load Capacity: 300kg
Empty vehicle net weight: 220kg
Gross Weight of the Pallet: 260kg
Brake Type (Front/Rear) Front Hydraulic
Brake Operating Method (Front/Rear) Rear Disc Brake
Wheel Type (Front/Rear) 10-inch Hub Can Be Upgraded to Aluminum Wheels 12-inch
Tire Specification (Front/Rear) - Vacuum Tire/Front - 23×7-10/Rear - 22×10-10

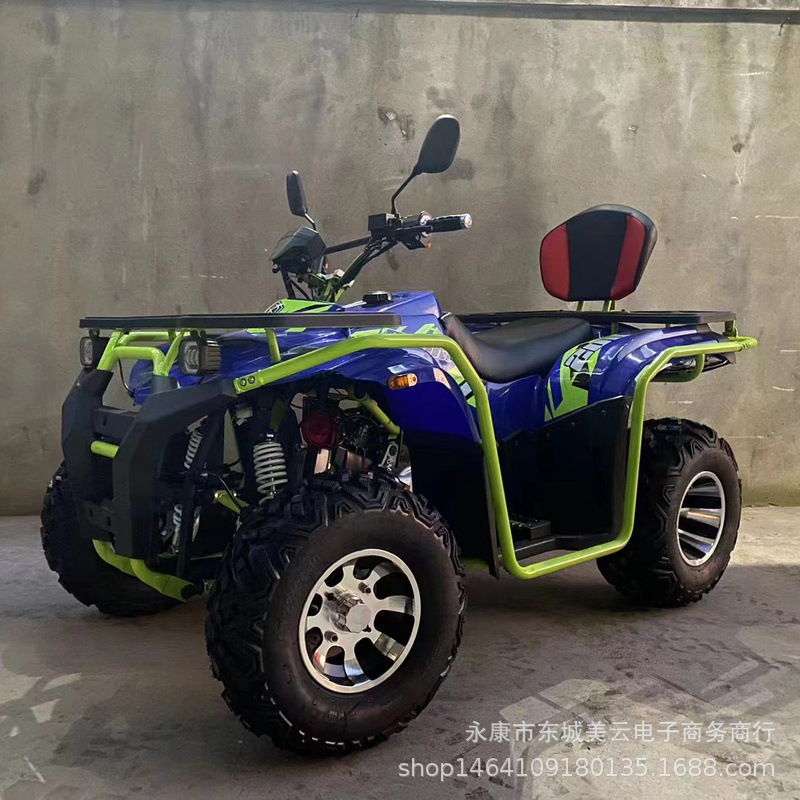

funcreduce_image-days1-9323360

funcreduce_image-days1-8614444

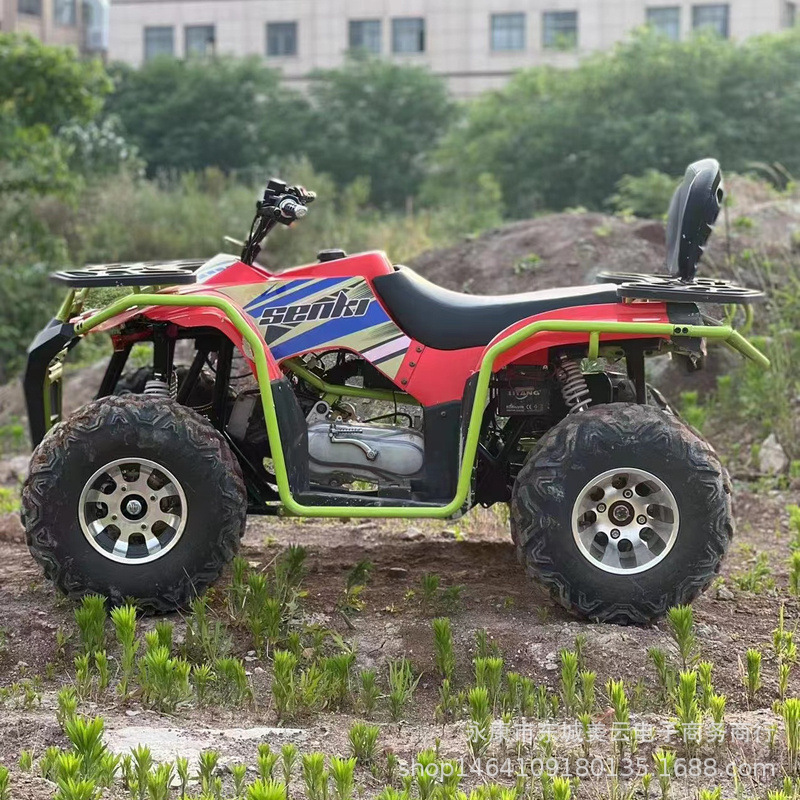

funcreduce_image-days1-6854725

funcreduce_image-days1-4600074

funcreduce_image-days1-4579649

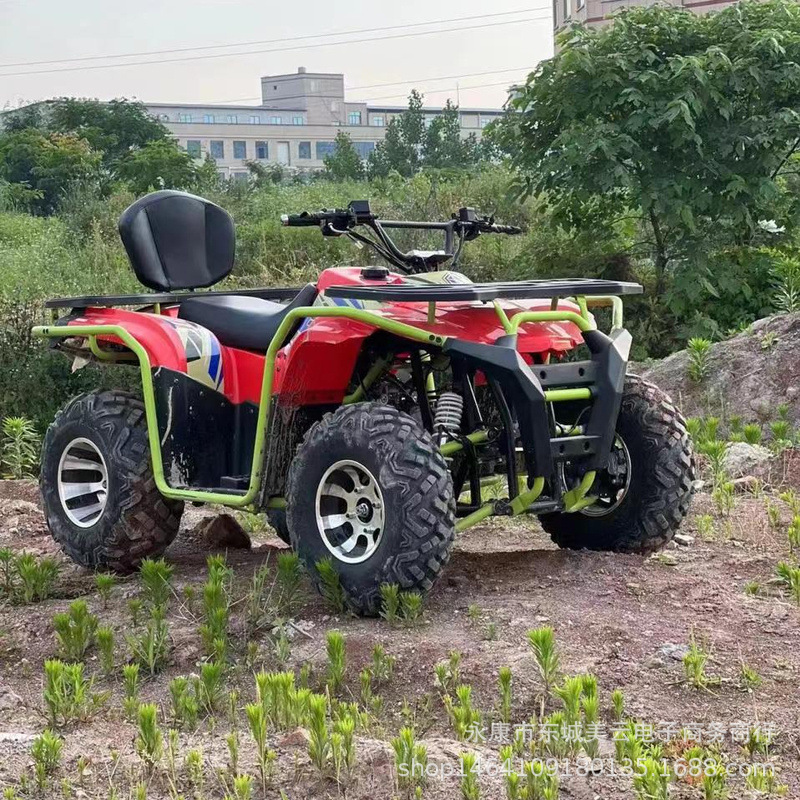

funcreduce_image-days1-4114536

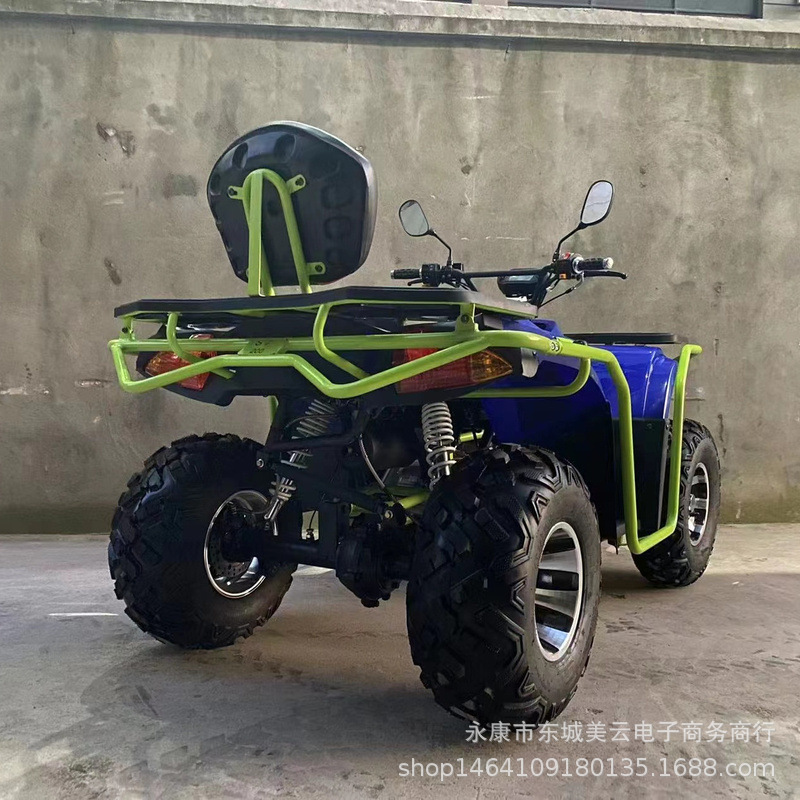

funcreduce_image-days1-2470295

Update time：20260409233406
