wholesale rod type window opener, push rod window opener, push rod motor window opener, stroke 400mm

Global Trade 1yr.

Contacts:x Chat

Mobile:86-15907040403

E-mail:670019239@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

origin: shanghai

import or not: no

order number: db-lg400

model: db-lg400

item no.: db-lg400

brand: dolby

suitable for door weight: 60-100

suitable door width: 800-2000

closed door speed: 8mm/second

locking strength: 100

type: automatic window opening device, electric window opener

whether cross-border export is exclusively available: no

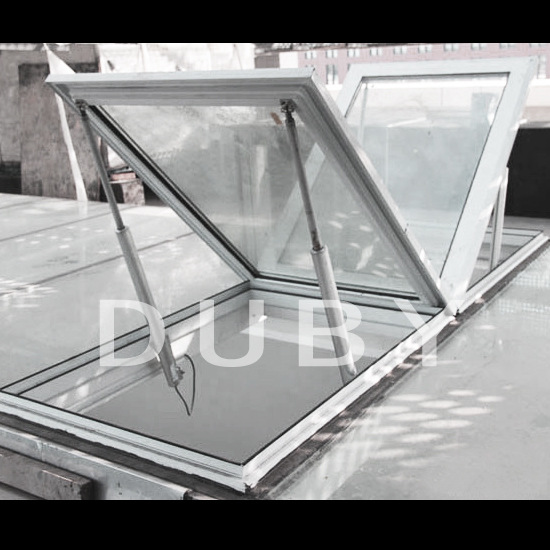

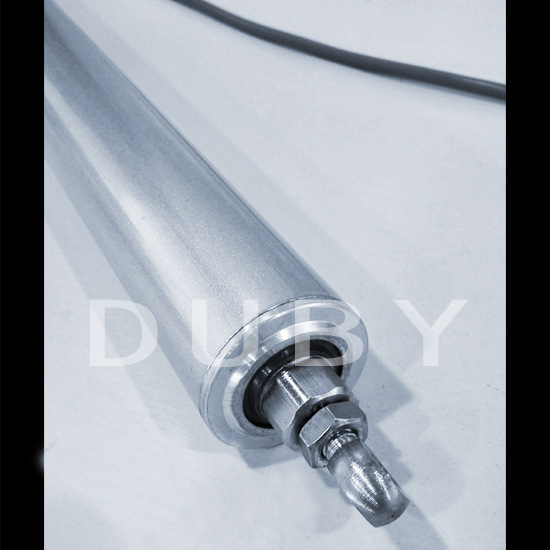

This product is a 400mm stroke screw-type electric window opener, mainly used for skylights! The appearance length is 690mm. If you need other strokes, please take a picture of the corresponding product! Thank you!

The screw window opener operates on 24V voltage, please confirm the power supply connection!

Company website:www.chduby.com

Direct from the manufacturer: 18021024855

undefined

Product Description

The elegant and elegant appearance design;

Smooth, powerful output;

Self-locking function; Dustproof and waterproof function;

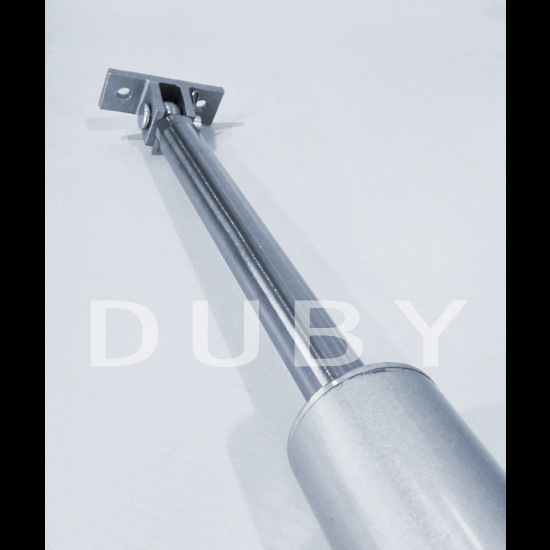

Stainless Steel Push Rod;

Appearance dimensions: diameter 47mm, length adjustable according to window type.

Line Specification: RVV 2*0.5m2; RVV 3*0.5m2

Wiring length: 800 mm

Shell material: Aluminum alloy (gray anodized)

More than 10,000 times of push and pull testing;

Maximum Tension: 1200N;

Static locking tension: 3000N

"螺杆式"可以翻译为 "screw-type".ElectricWindow-opening technology parameters: (customizable travel distance)

screwWindow-type opener	Unit	Technical Data	Technical Data	Technical Data	Technical Data
Model Specification	DB-LG	DB-LG300	DB-LG400	DB-LG500	DB-LG600
thrustSlash"拉力"可以翻译为 "tension" 或 "pulling force"。	N	1000	1000	1000	1000
environmental temperature	"℃" is the symbol for Celsius temperature scale.	-10~+70	-10~+70	-10~+70	-10~+70
propulsion speed	millimeter per second	6	7	7	8
Working Voltage	V	24VDC	24VDC	24VDC	24VDC
Maximum Current	A	1.0	1.0	1.0	1.0
Protection Grade	IP	65	65	65	65
Itinerary distance	mm	300	400	500	600
Shell Material	Slash	High-quality aluminum alloy	High-quality aluminum alloy	High-quality aluminum alloy	High-quality aluminum alloy
