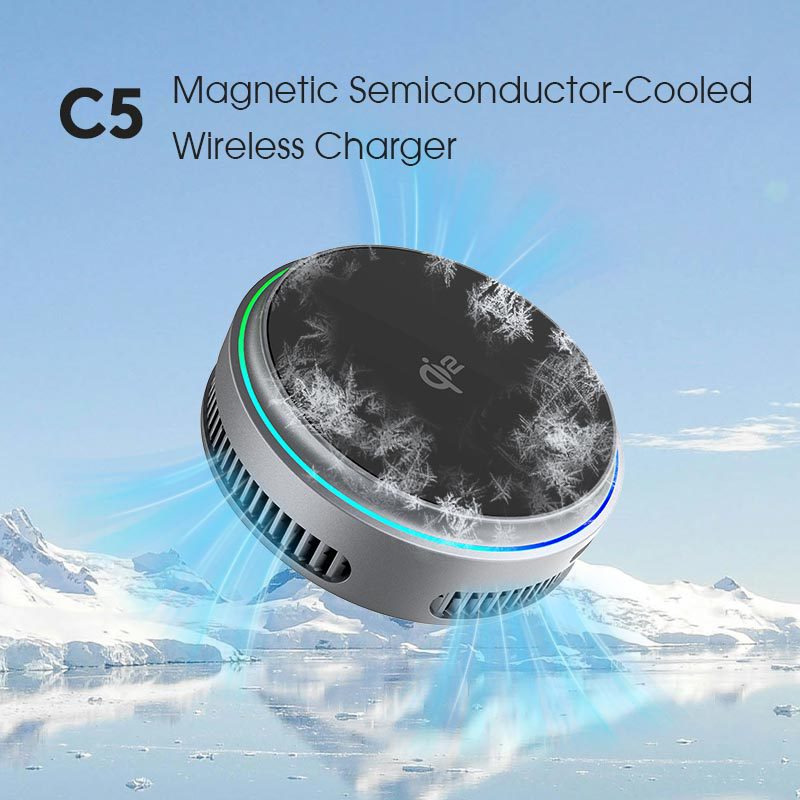

qi2.2 mpp 25w fast charging for apple 16 magnetic magsafe semi-conductive refrigeration wireless charger

Sample Machine Shipment Detail(Machine + C-C wire (without packaging), no single item shipping, no retail, no retail, no retail.The order price is subject to the quotation.

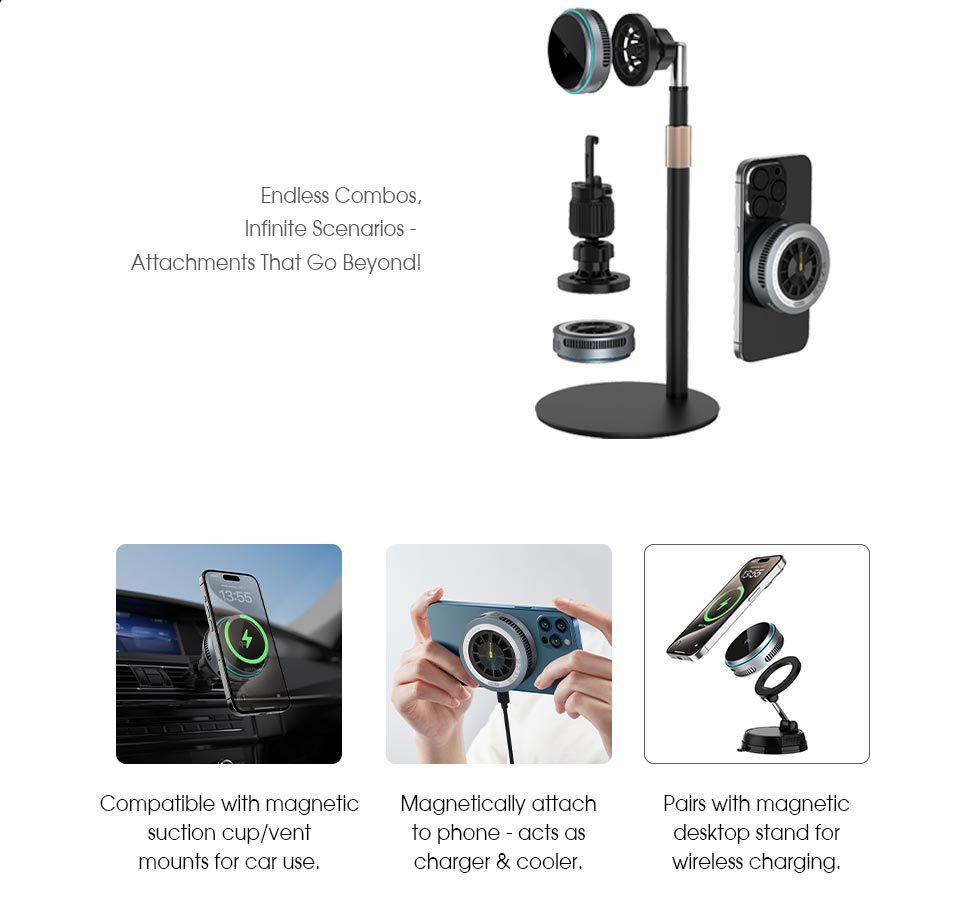

The product is suitable for three scenarios.

.1 Separate cooling (suitable for gaming)

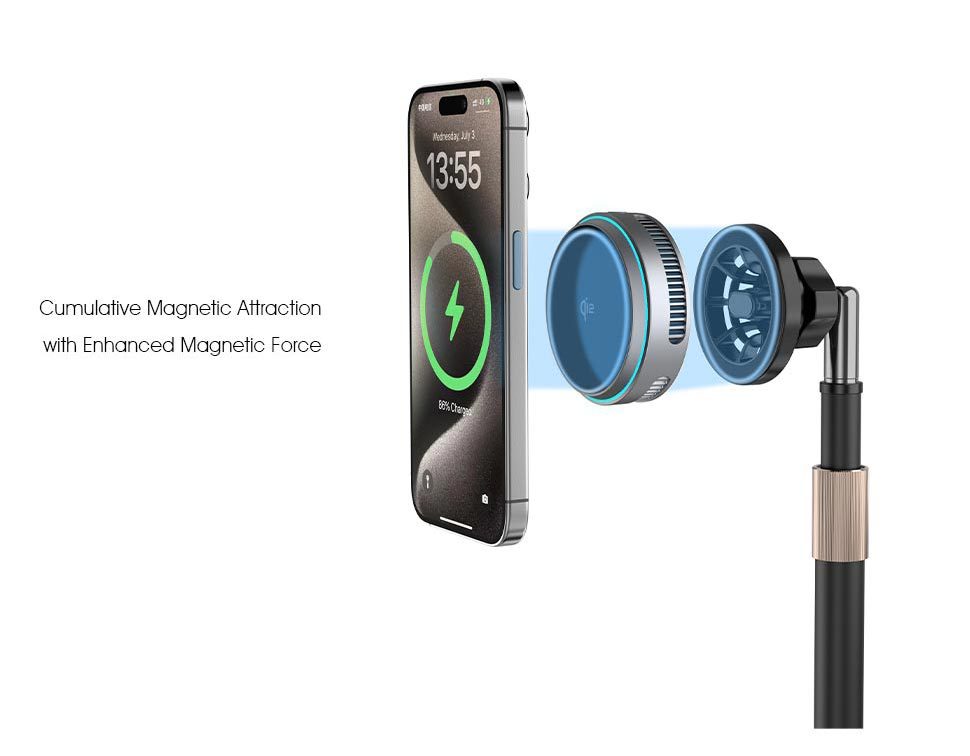

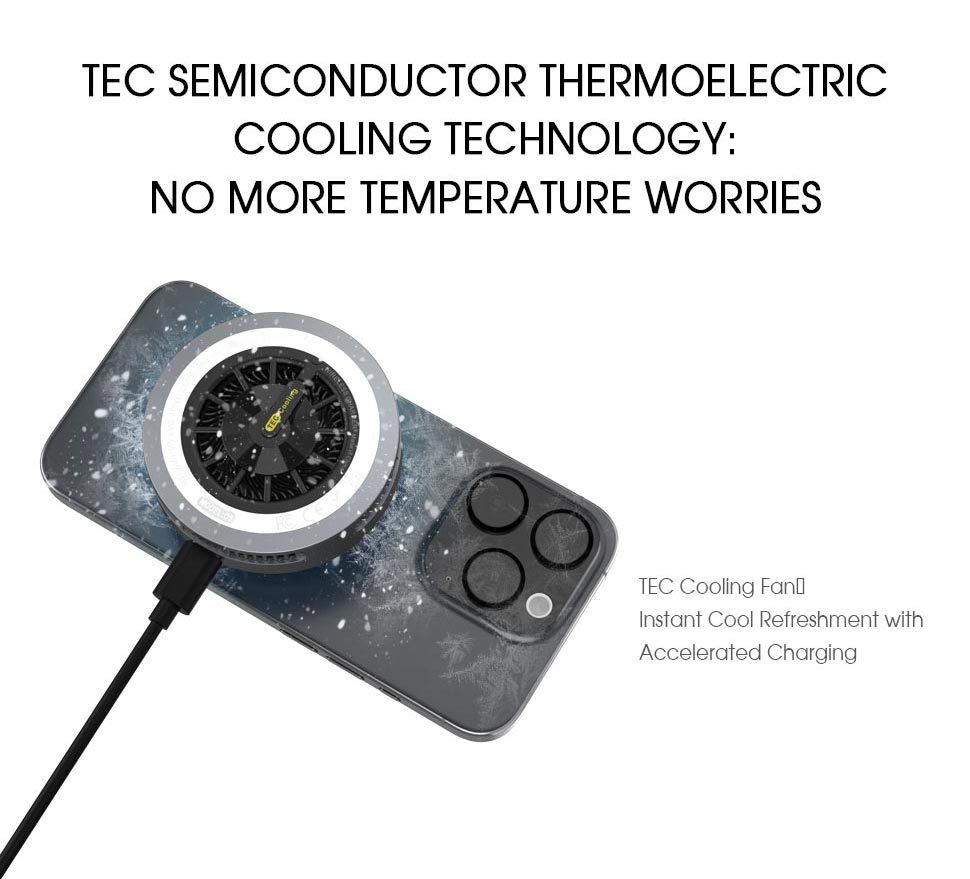

.2 magnetic suction hollow support for live streaming and phone cooling and charging

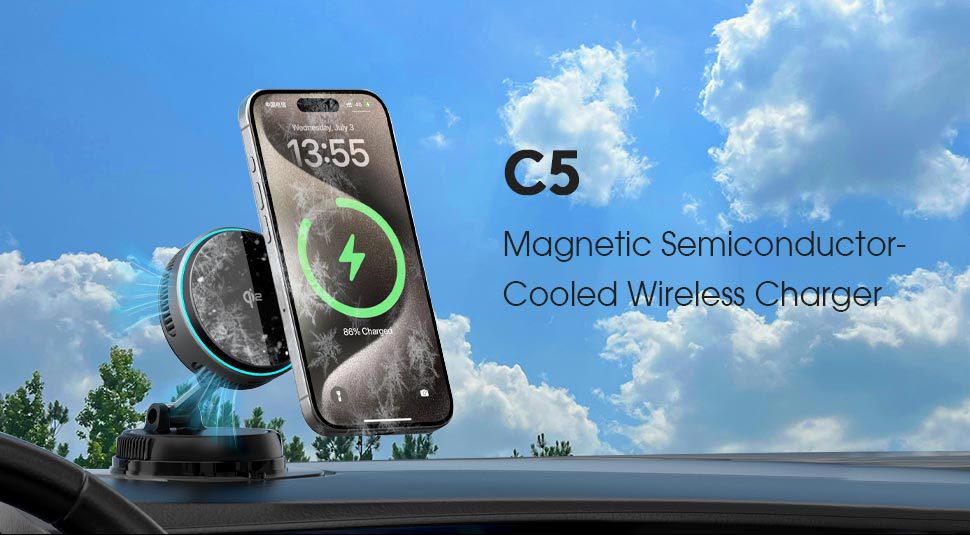

.3 car magnetic suction hollow stand can be used in the car air outlet or the center console.

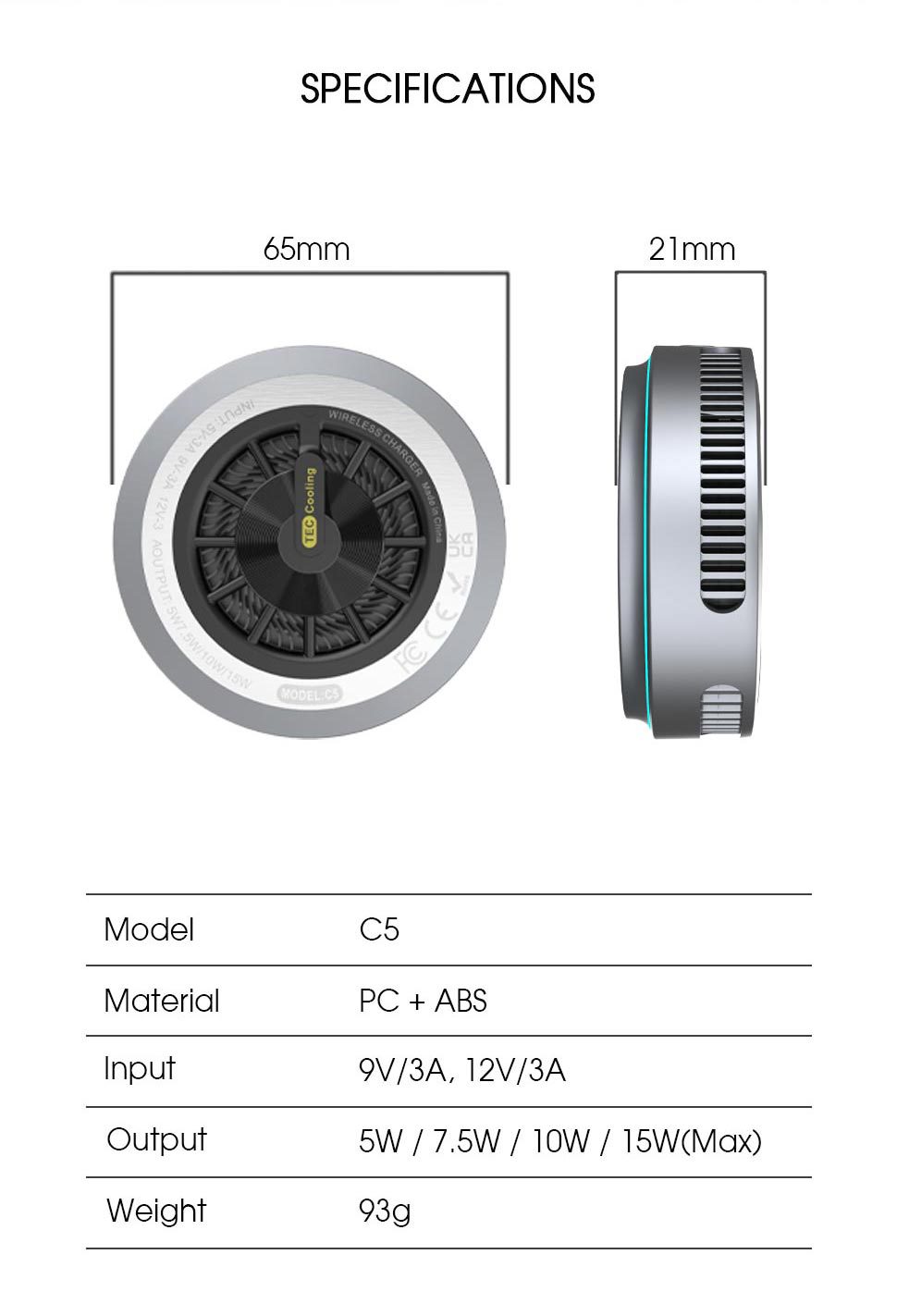

Section 3: Product Specifications

1. Input Voltage Range: 4.75V-16V

2、Rated Input: 5V-3A/9V-3A/12V-3A/15V-3A

3. Input Interface: USB-C

4. Wireless charging output for mobile phones: 5W/7.5W/10W/15W/25W

5. Charging distance for mobile phones: ≤4MM

6、Work Frequency: 360kHz

7、Working Temperature: 0～40℃

8、Storage temperature and humidity: -20℃～70℃ 35～75%RH

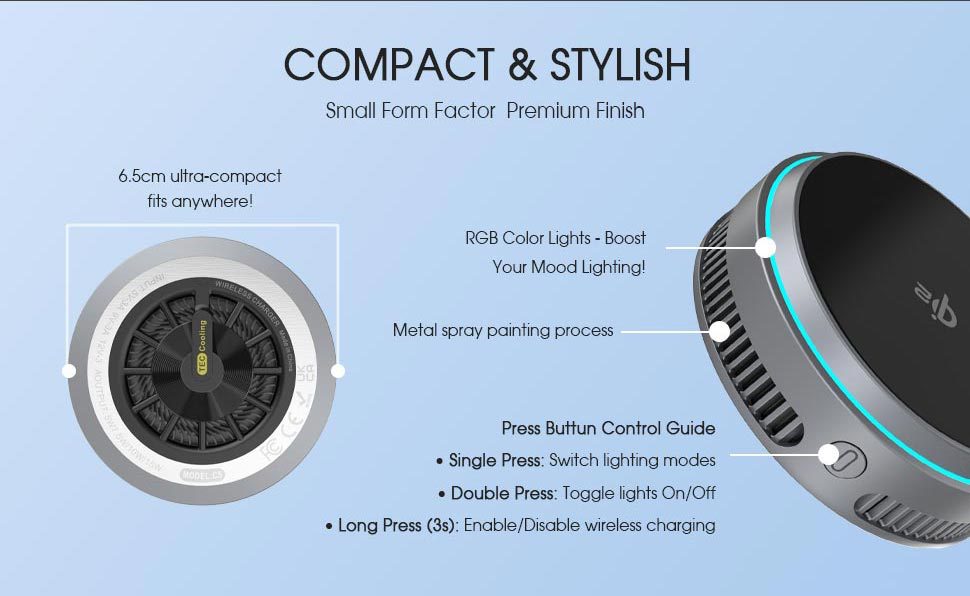

9、Size: 65.49mm*22.7mm

10、Net Weight: 93g

Color: Silver

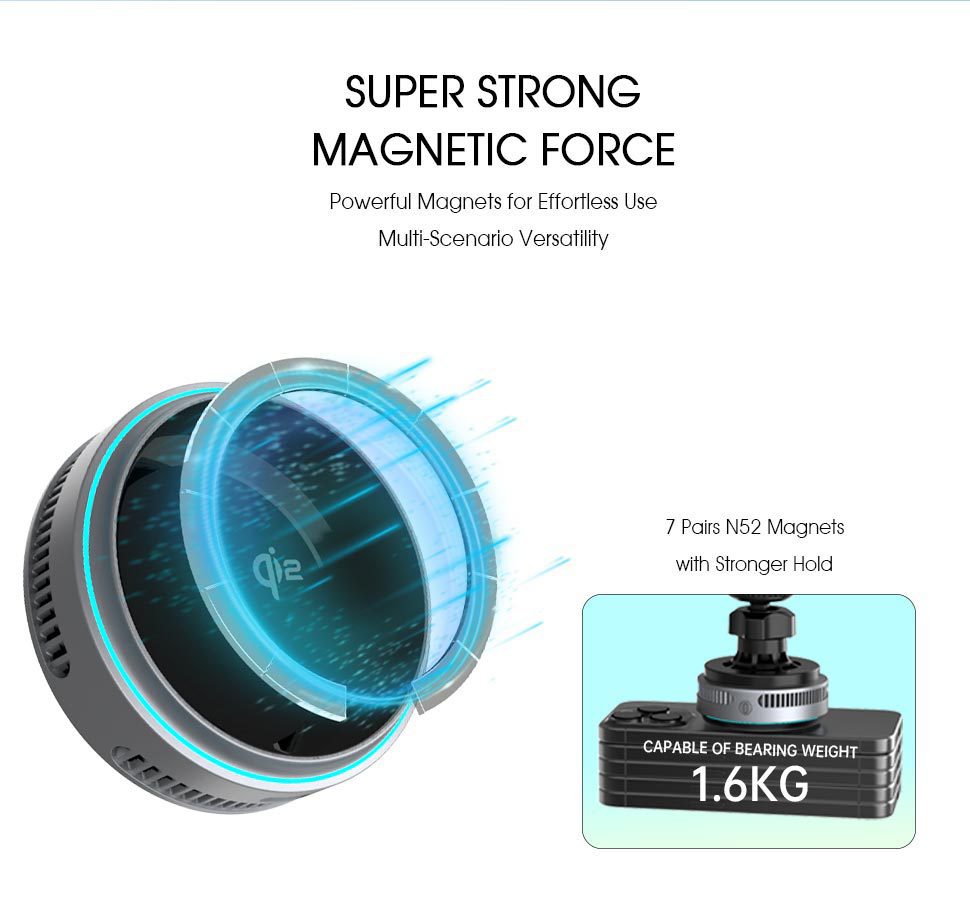

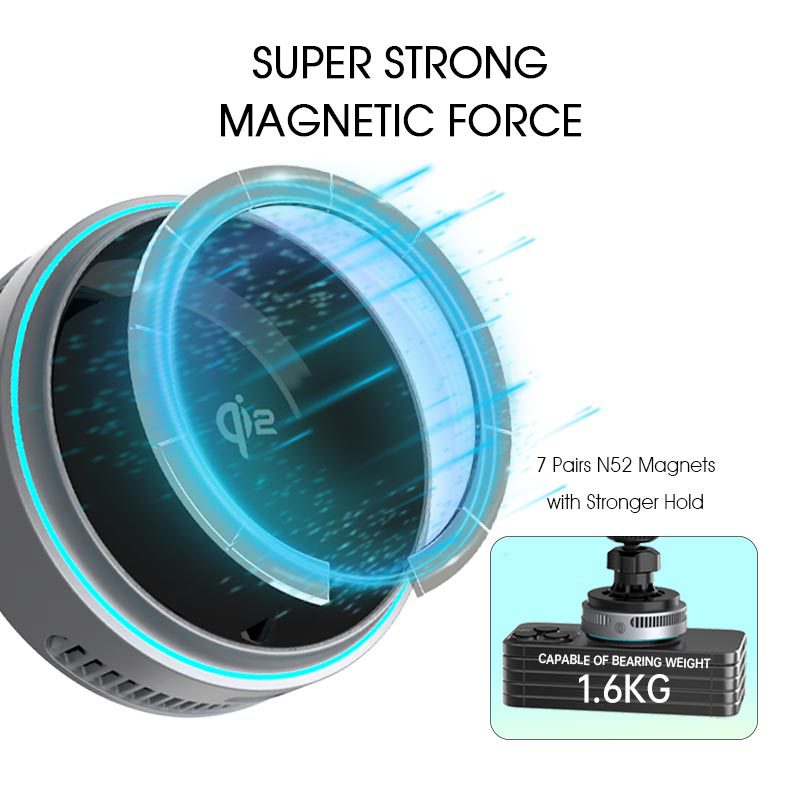

12、Magnetism: 1.6Kg

Usage Method:

1. Input compatibility: QC/PD 3.0 and other protocols

When the input voltage is 5V, due to the low voltage, the 12-16 series phones cannot enter the fast charging mode, and the cooling does not work.

3. When input is greater than 12V/3A, the maximum charging power for the 16 series mobile phone is 25W.

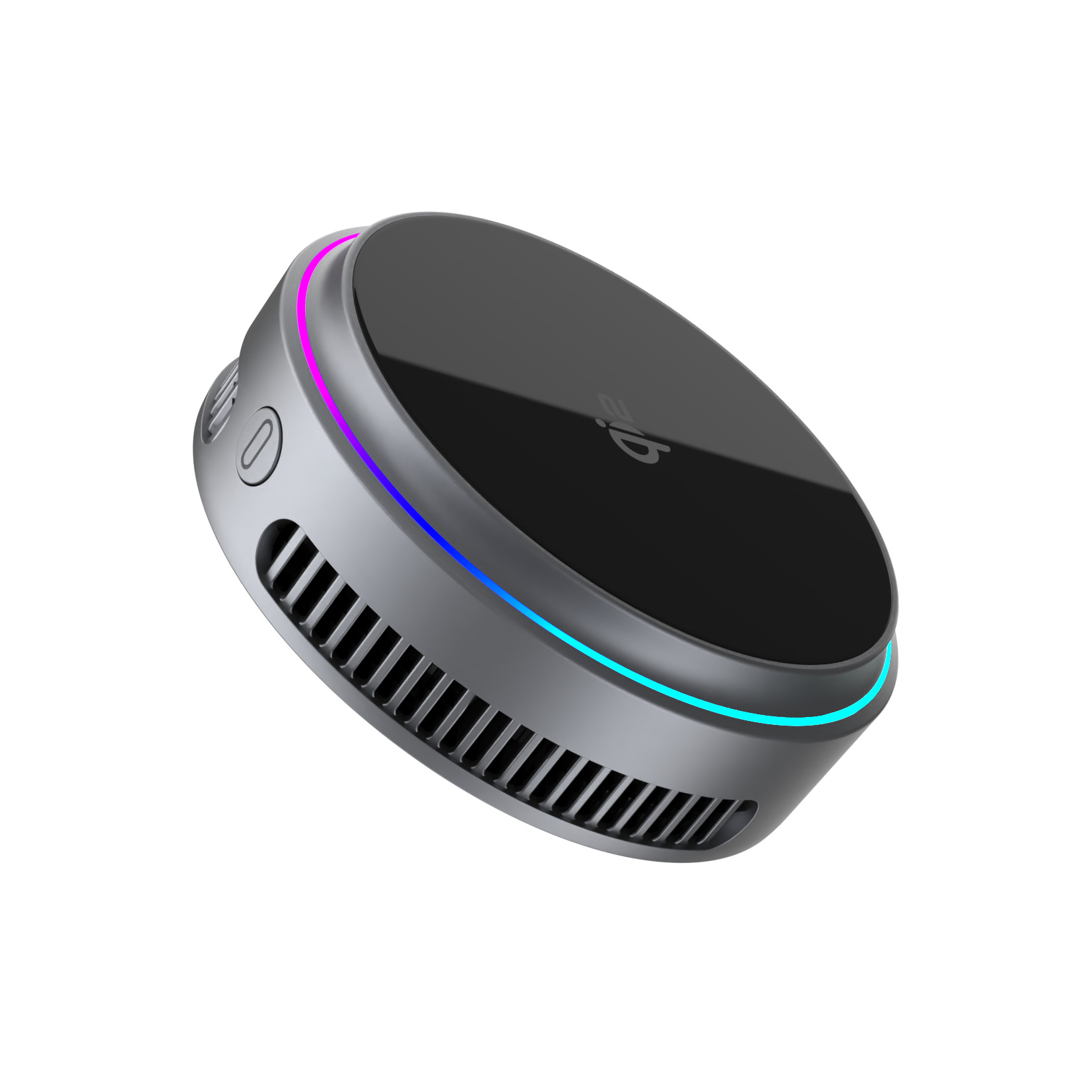

4. Indicating the status of the work light:

.1. Power-on Prompt: Run two laps and then stay on continuously.

Standby prompt: Color lights rotate slowly, monochrome lights remain on continuously.

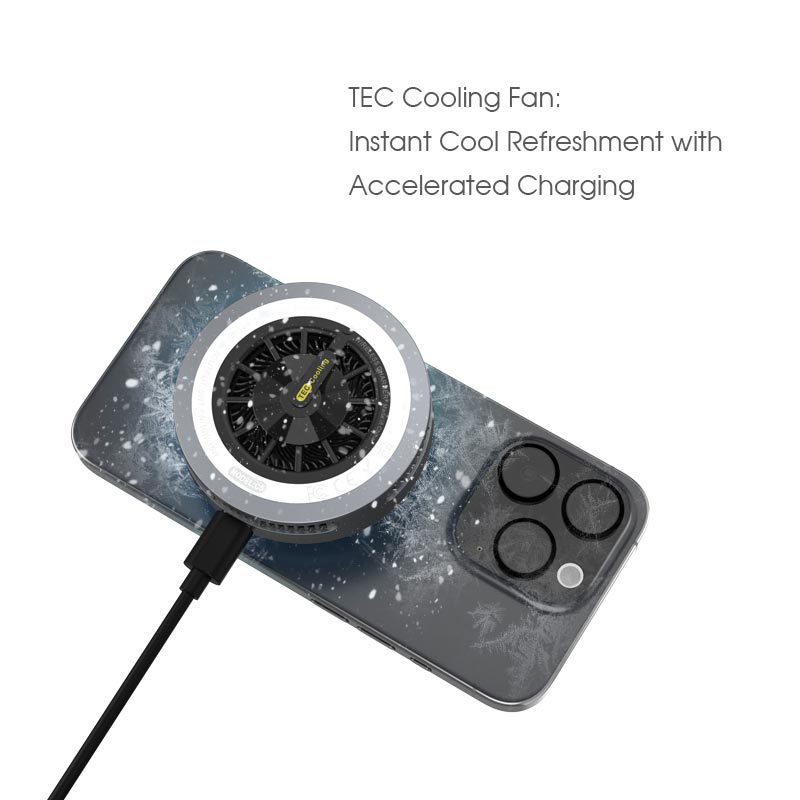

Charging indication: Colorful lights rotate slowly, single-color lights breathe, and the fan cools simultaneously.

.4. Full of hints: Colorful lights slowly rotate, single-color lights remain on, and the fan stops cooling.

.5. Turn off wireless charging: Green light breathing

.6. Metal foreign body detection prompt: Red light flashes for 5S and then goes out.

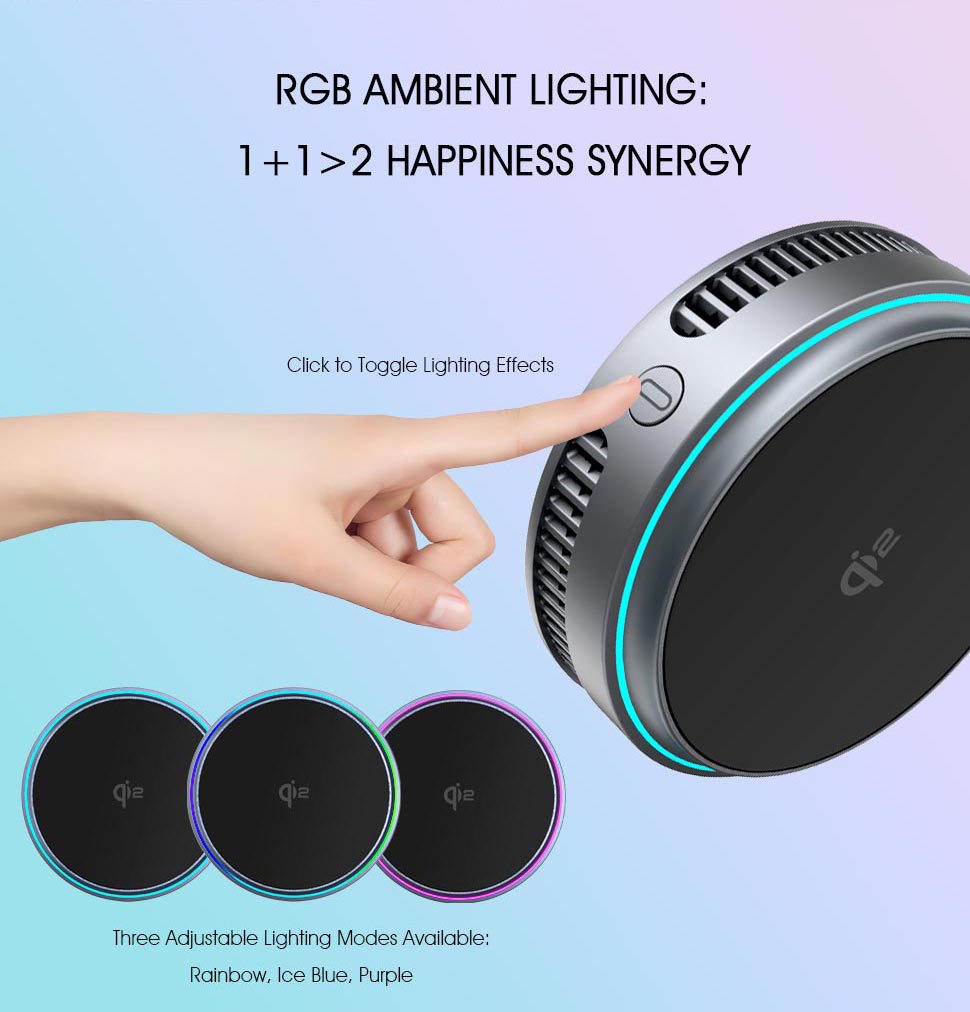

Touch buttons: single click to switch the light (rainbow, ice blue, purple), double click to turn on/off the light, long press for 3 seconds in charging state to turn on/off wireless charging, green light breathing (long press for 3 seconds in standby state to turn on cooling and fan, turn off wireless charging, green light breathing).
