Appearance Patent Certificate: ZL 2021 3 0008755.7
Utility model patent: ZL 2021 2 2313571.9
FCC认证IDENTIFIER：2A4RO-M6
CE Certification: 2020SZ0111481
ROHS Certification:2020SZ0111481

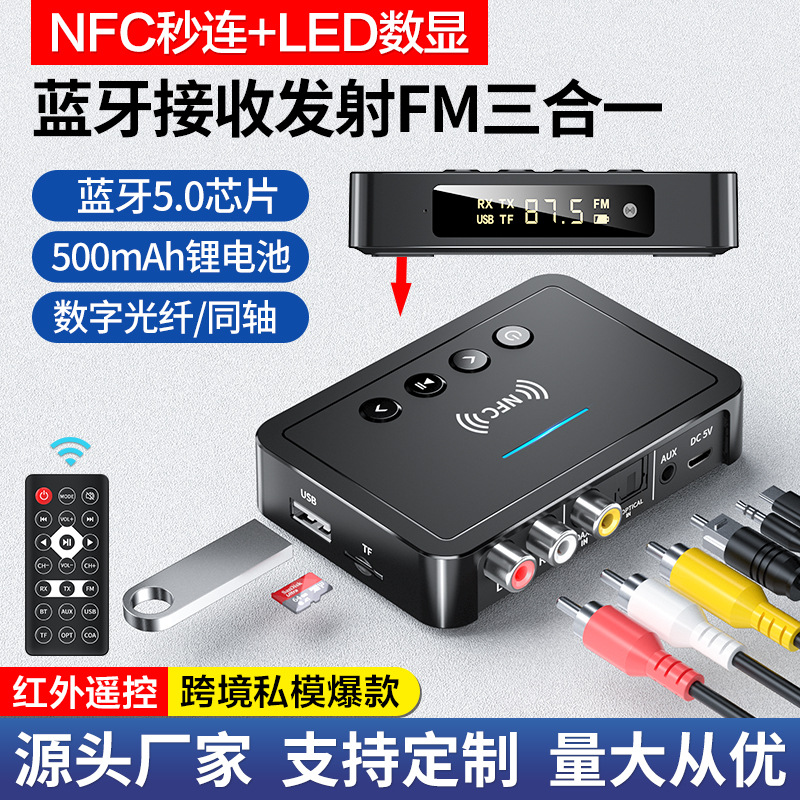

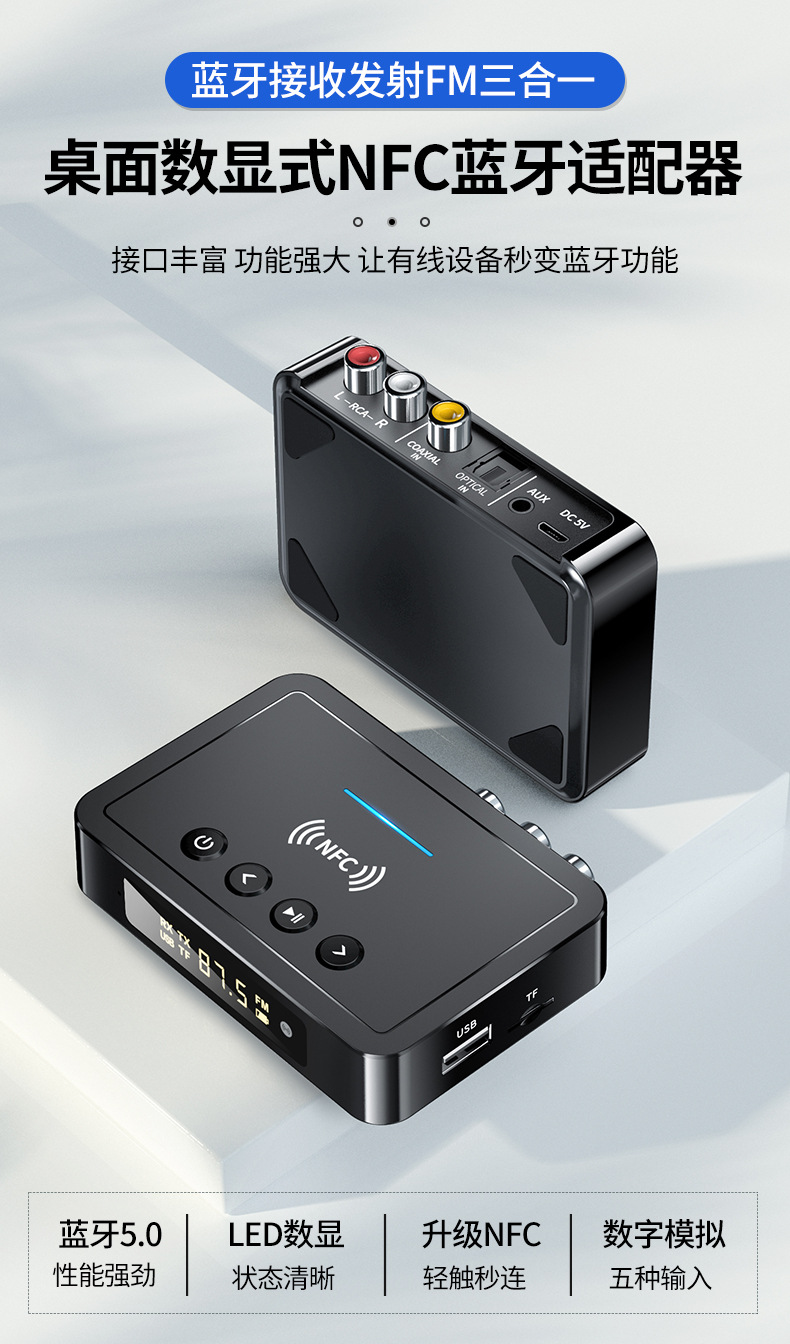

| Product Name | M6 NFC Bluetooth 5.0 Receiver and Transmitter | |
| Main Features |

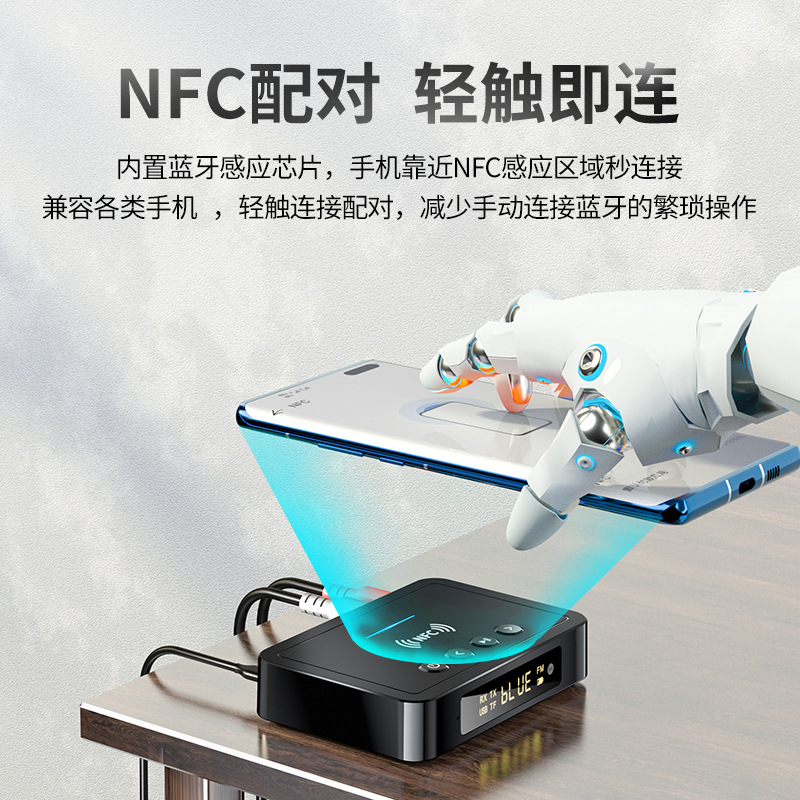

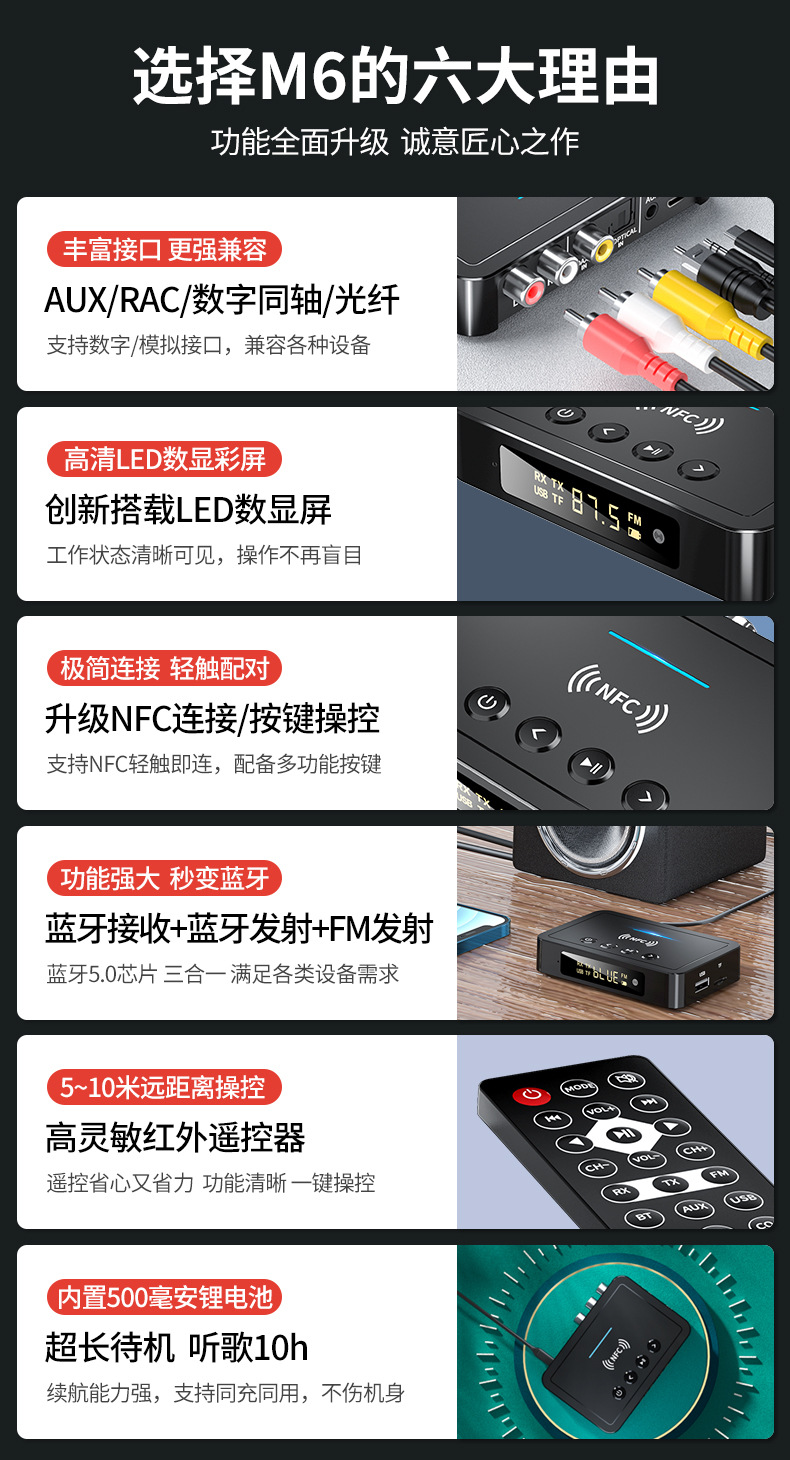

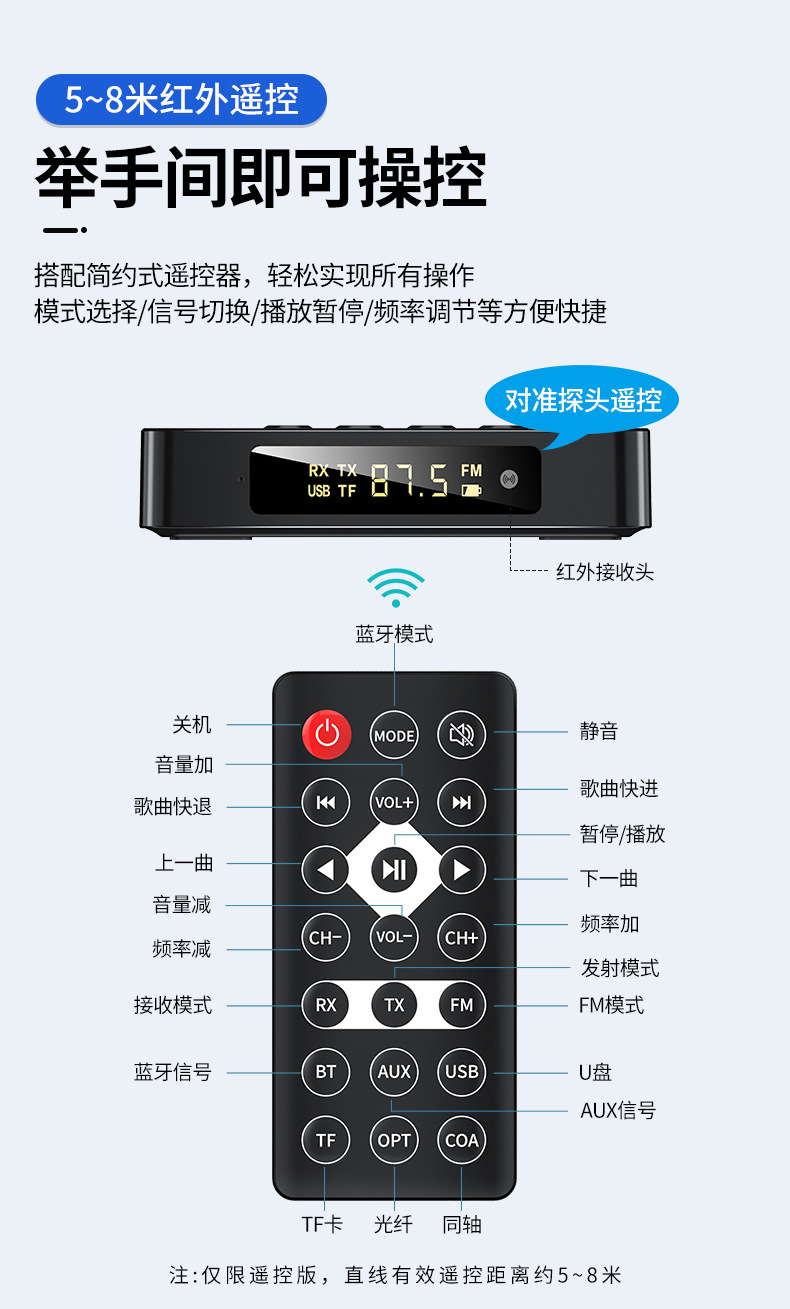

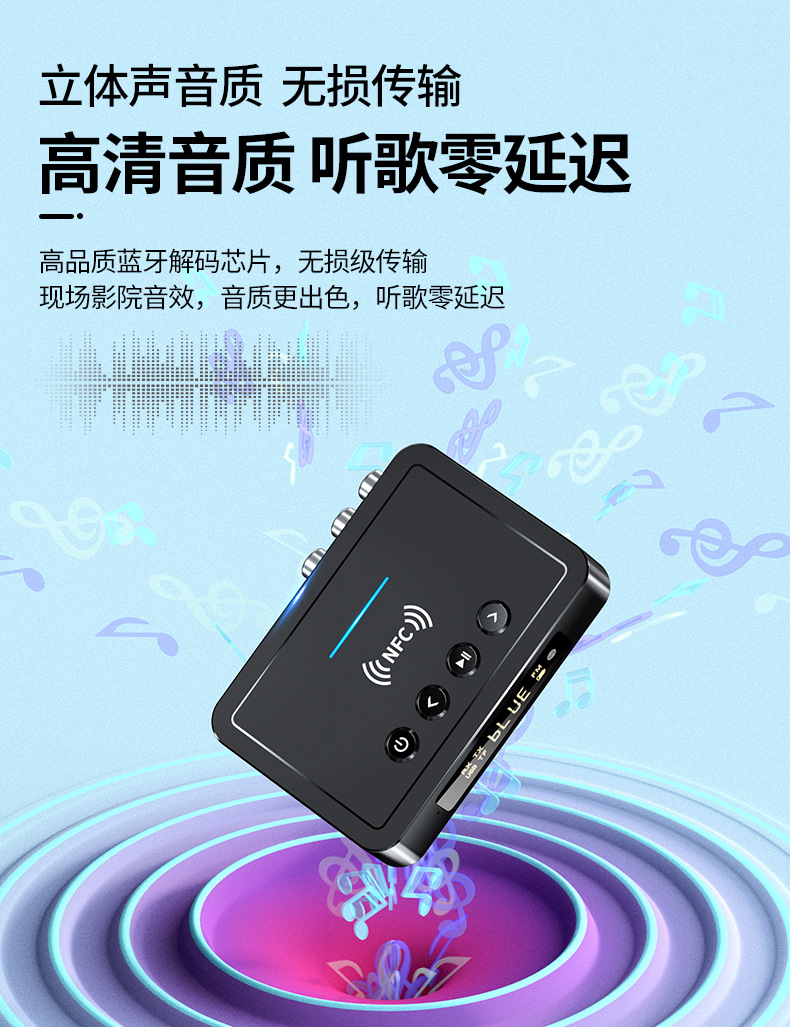

The product has a beautifully designed appearance. ◆ Designed with Bluetooth 5.0 chips, it offers stronger compatibility and stability. ◆Bluetooth reception (RX), Bluetooth transmission (TX), and FM transmission in one integrated design. ◆ Equipped with a high-definition LED display, the working state and Bluetooth mode are clearly visible. ◆ Built-in digital-to-analog converter chip, supports digital optical, coaxial, AUX, RCA interfaces. ◆Upgrade NFC functionOne touch and your phone is connected. Cool breathing light, red/blue dual color, soft and not irritating. ◆ Built-in 500mAh rechargeable lithium battery, long battery life. ◆ Supports USB (USB flash drive) and TF card playback and transmission. ◆Support FM transmissionThe frequency can be adjusted from 87.5 to 108. ◆ Supports 5~8 meters redOuter line remote controlAll kinds of functions are complete. Built-in high-definition microphone, supports wireless music listening, hands-free calling, and navigation. ◆ Product connection is simple, without any complicated driver installation or downloading an APP.
|
|

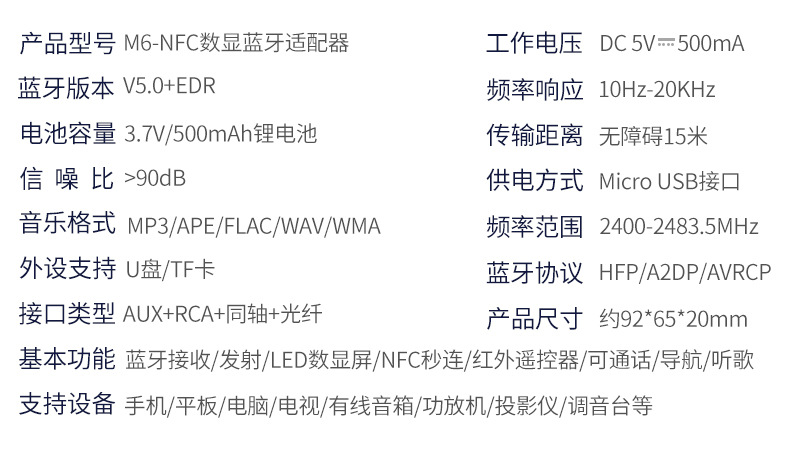

| Product Parameters | Product Model | M6 |
| Bluetooth version | Bluetooth V5.0 | |
| Support Agreement | RX：A2DP AVRC TX：A2DP | |
| Work Frequency Band | 2.402GHz - 2.480GHz | |
| Power Grade | Power Grade 2 (Class II) | |
| Sensitivity | -85dBm | |
| Signal-to-Noise Ratio | ≥90dB | |
| Distortion degree | ≤0.1% | |

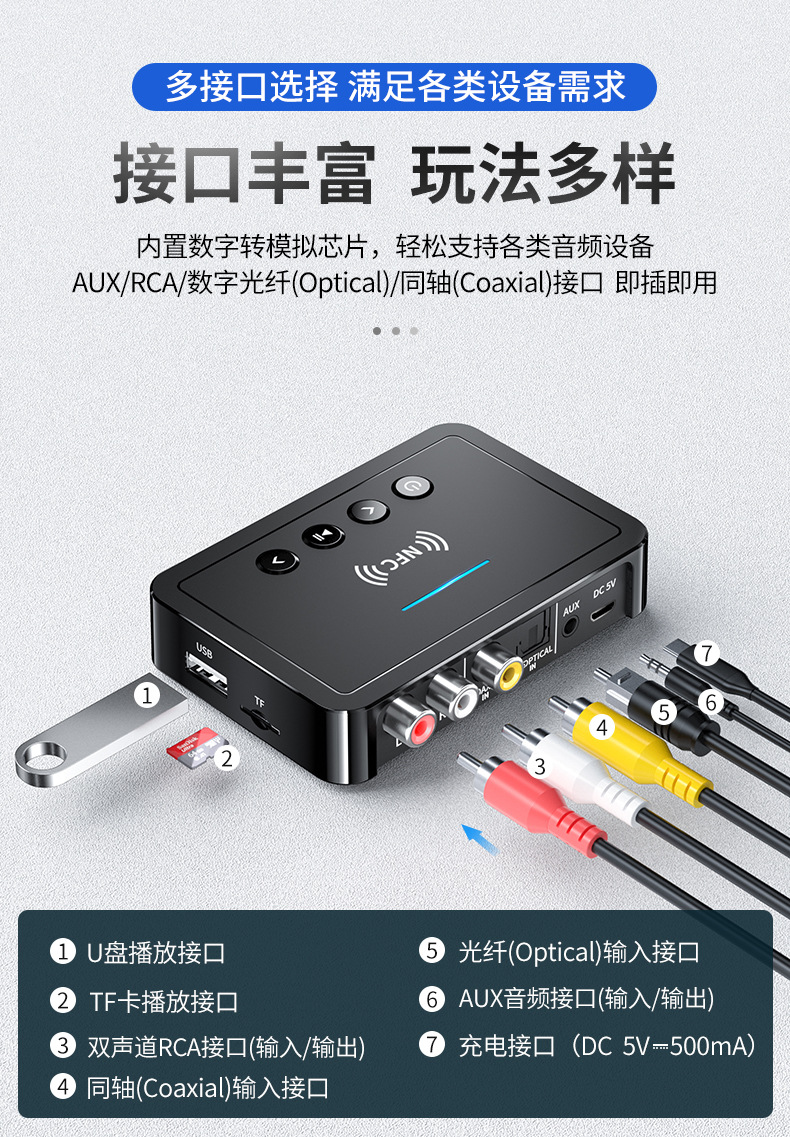

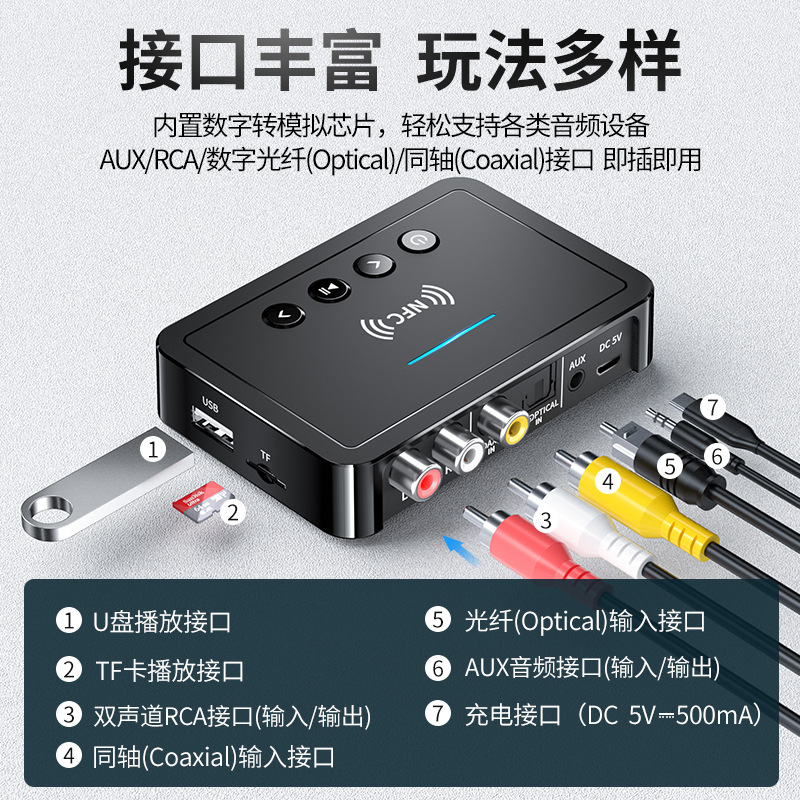

| Interface Type |

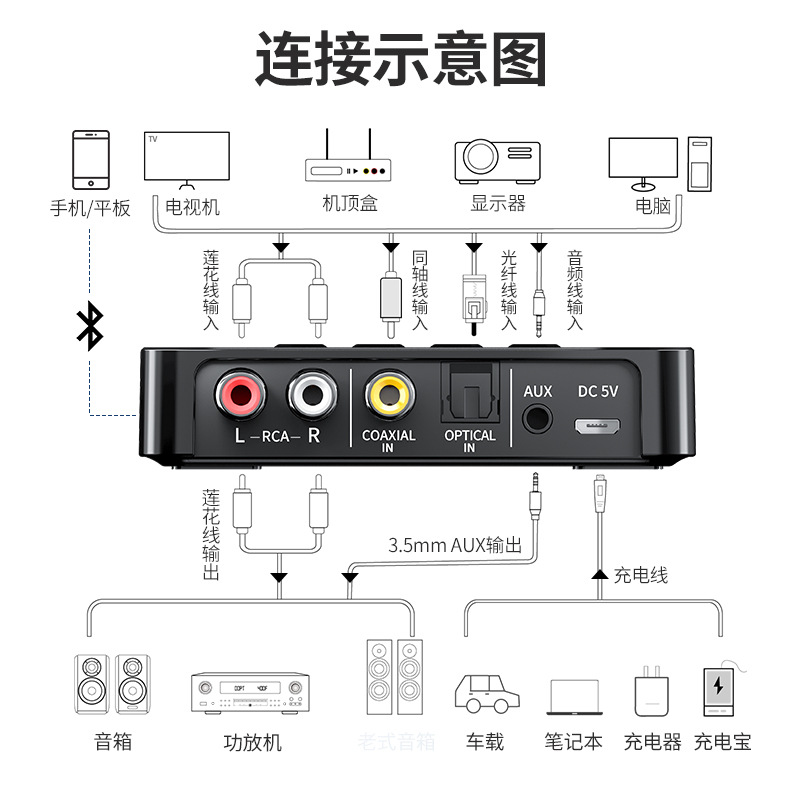

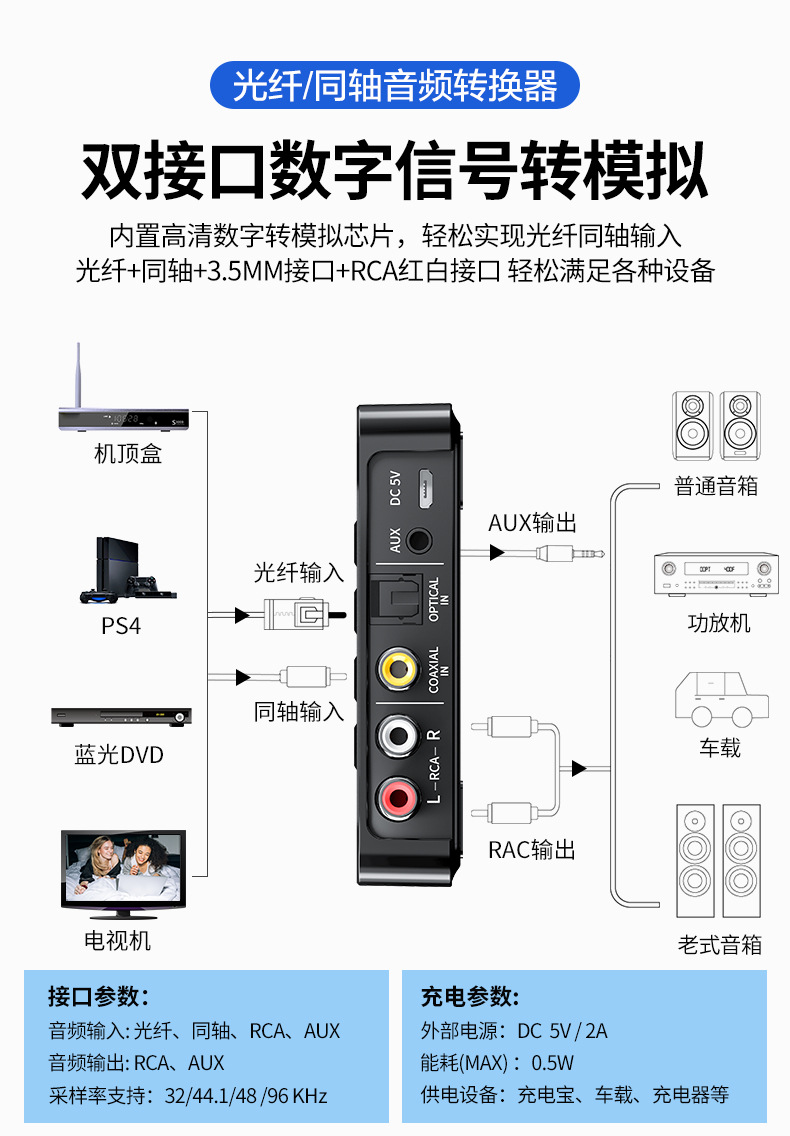

Input: 3.5mm AUX+RCA+Optical+Coaxial+USB+TF interface Output: 3.5mm AUX+RCA |
|
| Fiber Optic Parameters | Supports optical fiber input, 16M, sampling rate 99kHz | |

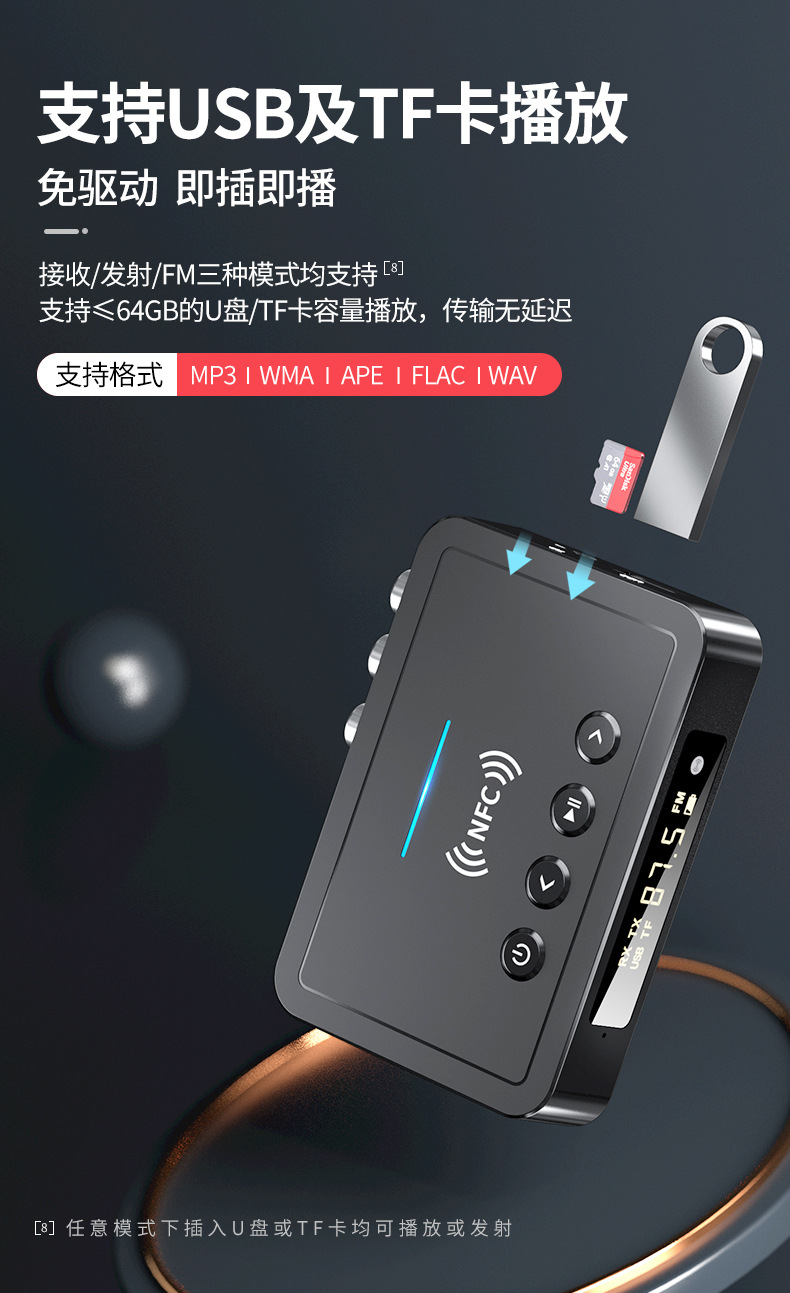

| Supported formats |
MP3/WAV/WMA/APE/FLAC/G729/M4A/ALAC/AMR/DTS/MIDI/G726/MTY |
|
| Screen Size | 36*8MM | |
| Working Current | Less than 40 milliamps | |

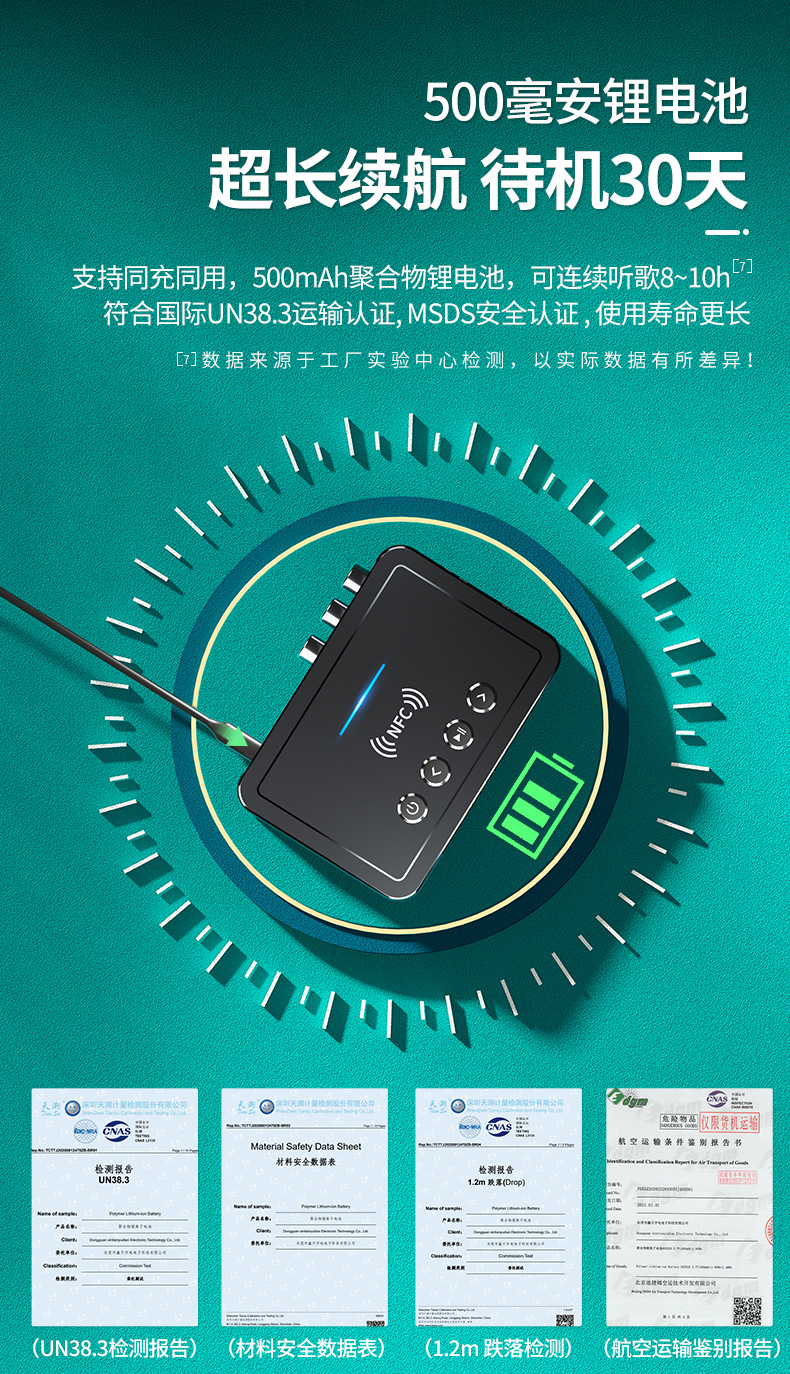

| Built-in Battery | 3.7V/500mAh | |
| Charging Current | Approximately 400mA | |
| Charging Time | About 2 hours | |
| Battery life | RX about 10 hours, TX about 8 hours | |
| Bluetooth range | ≤10M (open space) | |
| Charging Method | Micro USB 5V/0.5A | |
| Compatible Devices |
Android, iOS system phones and PAD, active speakers, amplifiers, and Bluetooth speakers or headphones supporting A2DP/Apt-X protocol can be connected for use. |
|

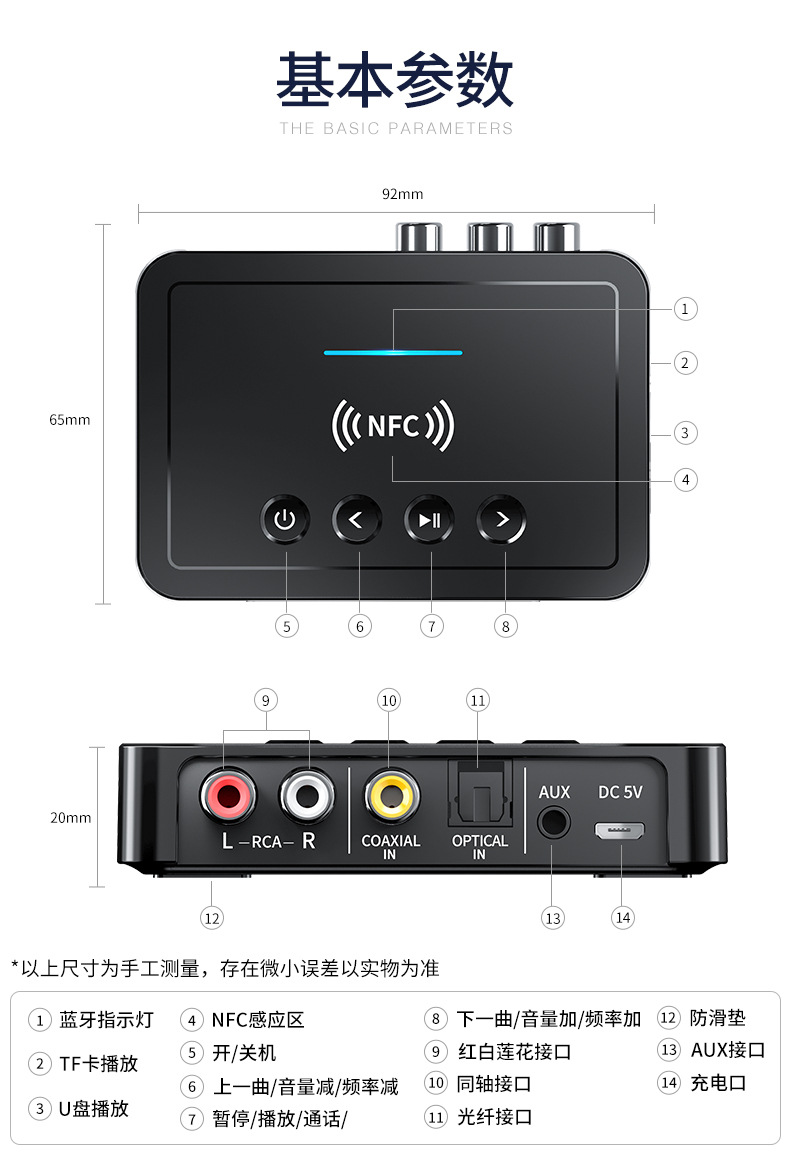

Product Size:Product dimensions: 92mm x 65mm x 20mm (length x width x height) Product weight: 75g
Packing Size: 120*120*35mm (length*width*height) complete set weight: 155g in color box

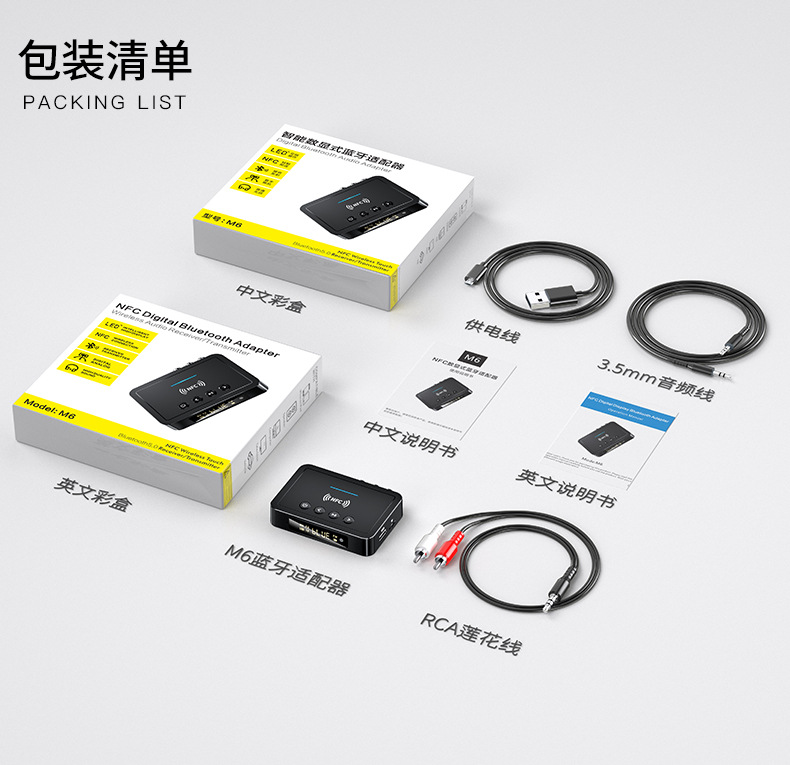

Packing List:
Bluetooth adapter host x1
Micro USB Charging Cable x1
3.5mm Audio Cable x 1
Red and white RCA flower line x1
Instruction Manual x1 (Chinese/English optional)
Packing Box x1 (Chinese/English optional)
Note: Optical fiber cables and coaxial cables are optional accessories.
The following is the content of the package, which is being updated continuously:
