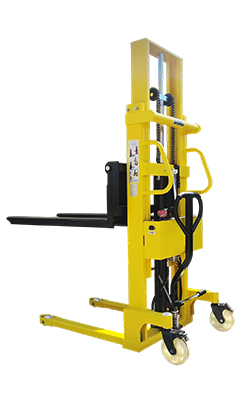

Manual & hydraulic stacker
![]() |
The dual-mode integrated design of the flashlight allows for free switching between manual and electric operation, adapting to different work intensity and scenarios. The hydraulic lifting system operates smoothly, with gentle start-up and stop buffering, ensuring stable and secure stacking, handling, and loading of goods. The body structure is robust and durable, with simple and easy operation, flexible steering, and the ability to easily navigate narrow spaces. It is energy-saving and environmentally friendly, with long battery life. It is highly efficient and convenient for daily warehouse, workshop, and goods stacking and handling, with strong practicality and a wide range of applications.
The integrated manual and electric dual-mode design allows for freely switchable operation to adapt to different working intensities and scenarios. The hydraulic lifting system operates smoothly with soft start and stop buffering, ensuring safe and stable loading and stacking of goods. It features a sturdy and durable body, making it simple to operate.The vehicle features energy-saving operation and flexible steering, allowing it to easily navigate through narrow spaces. It is energy-saving and eco-friendly, with a long battery life, enabling efficient and convenient cargo stacking and handling in daily warehouse and workshop operations. It is highly practical and has wide application.
|
experienced |
source factory |
Support Customization |
Shipping is fast |
Eexperienced |
SSource FFactory |
Customization |
Fast delivery |
| Type | 1T | 1T | 2T | 2T |
| Column steel | 12号C型钢NO.12C-shaped steel |
12号C型钢NO.12C-shaped steel |
12号C型钢NO.12C-shaped steel |
12号C型钢NO.12C-shaped steel |
| Lift height | 1.6m | 3m | 1.6m | 3m |
| Effective fork length | 1150mm | 1150mm | 1150mm | 1150mm |
| 单叉宽度Single-branch width | 120mm | 120mm | 120mm | 120mm |
| Max fork outer width | 740mm | 740mm | 740mm | 760mm |
| Effective leg length | 800mm | 800mm | 820mm | 1000mm |
| Outrigger width | 70mm | 70mm | 100mm | 80mm |
| Outer side outrigger width | 700mm | 700mm | 690mm | 720mm |
| Outrigger width | 535mm | 535mm | 490mm | 490mm |
| Outrigger ground clearance | 75mm | 75mm | 75mm | 80mm |
| Front wheel size | 74*70 |
74*70 |
74*70 |
74*80 |
| Rear wheel size | 50*180 |
50*180 |
50*180 |
50*180 |
| Total length | 1720 | 1720 | 1720 | 1720 |
| Total width | 785mm | 785mm | 785mm | 800mm |
| Total height | 2045mm | 2015mm | 2045mm | 2015mm |
| Total weight | 150kg | 240kg | 220kg | 297kg |
Note: The above dimensions are measured by hand and there may be errors. Please refer to the actual goods received!
![]() |

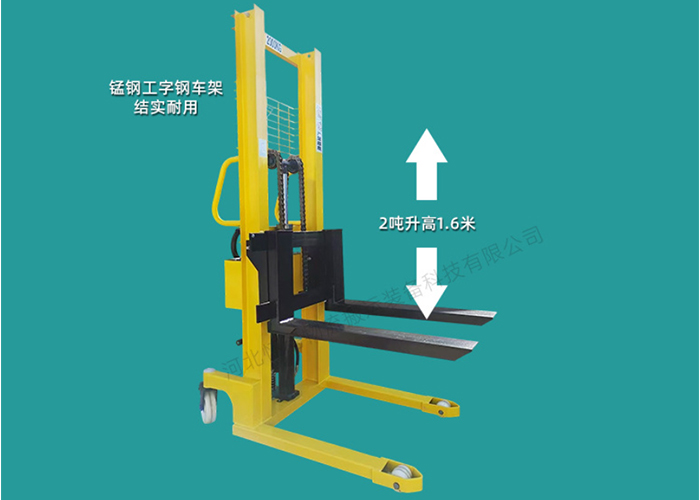

1. Manganese steel I-beam body is strong and durable.The body is made of manganese steel I-beams, which is sturdy and durable. |
![]() |

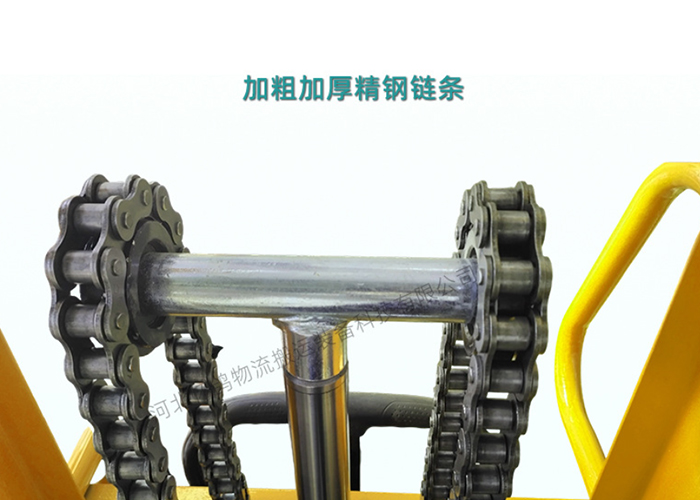

2、Thickened and reinforced stainless steel chainThickened reinforced fine steel chain |
![]() |
3. Thickened forks are less likely to deform or break, and they have strong load-bearing capacity.Thickened forklift forks, non-deformable and unbreakable, with strong load-bearing capacity. |

4. Nylon wheels are not easily corroded or damaged, suitable for different road conditions.
Nylon wheels are corrosion-resistant, not easy to damage, and suitable for various ground conditions.
|
Electrically powered for efficiency and ease, manually operated as a backup, suitable for a variety of work scenarios. The body is solid and durable, the lifting and lowering operation is stable, and the stacking operation is more stable. Sealed to prevent oil leakage, lift and lower with controllable cushioning, smooth and durable operation. Equipped with braking and overloading protection, effectively avoiding operational risks. Turns easily, navigates narrow spaces with ease, and is adaptable to a wide range of cargo. |
Switch freely between electric labor-saving operation and manual emergency use, suitable for various working scenarios. Solid and durable overall frame with stable lifting performance for steady stacking operation. Adopts leak-proof sealing design with buffered and controllable lifting and lowering for smooth operation. Equipped with braking and overload protection devices to effectively avoid operational risks. Features flexible steering, easy movement in narrow spaces and strong cargo compatibility. |
