1p leakage 63a busbar 20 a- 70a red copper brass leakage protection connection row circuit breaker terminal block kt007

1 m

Specifications

brass 1p leakage 20a-1.0*5 45mm	CN¥ 12.95
brass 1p leakage 40a-1.2*5 45mm	CN¥ 14.74
brass 1p leakage 60a-1.4*5 45mm	CN¥ 16.5
1p leakage 32a-1.0*5 red copper 45mm	CN¥ 16.55
1p leakage 40a-1.2*5 red copper 45mm	CN¥ 19.13
1p leakage 60a-1.4*5 red copper 45mm	CN¥ 21.43
1p leakage 60a widened 1.2*7 red copper 45mm	CN¥ 25.16
1p leakage 63a-1.2*8 red copper 45mm	CN¥ 27.1
1p leakage 63a-1.4*7 red copper 45mm	CN¥ 27.48
1p leakage 70a-1.4*8 red copper 45mm	CN¥ 30.4

Send Inquiry Chat with supplier

Contacts:zhenghuiying Chat

Mobile:86-13017998217

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

brand: kate electric

application scope: -

product certification: ce

whether it is exclusively for foreign trade: no

product series: 1p leakage 63a-1.4*7 red copper 45mm

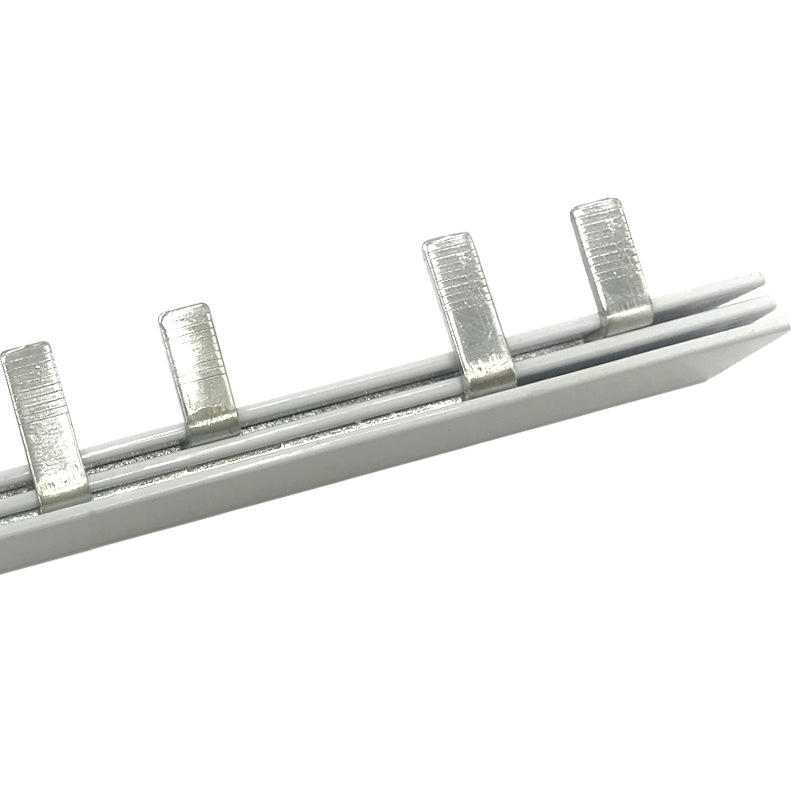

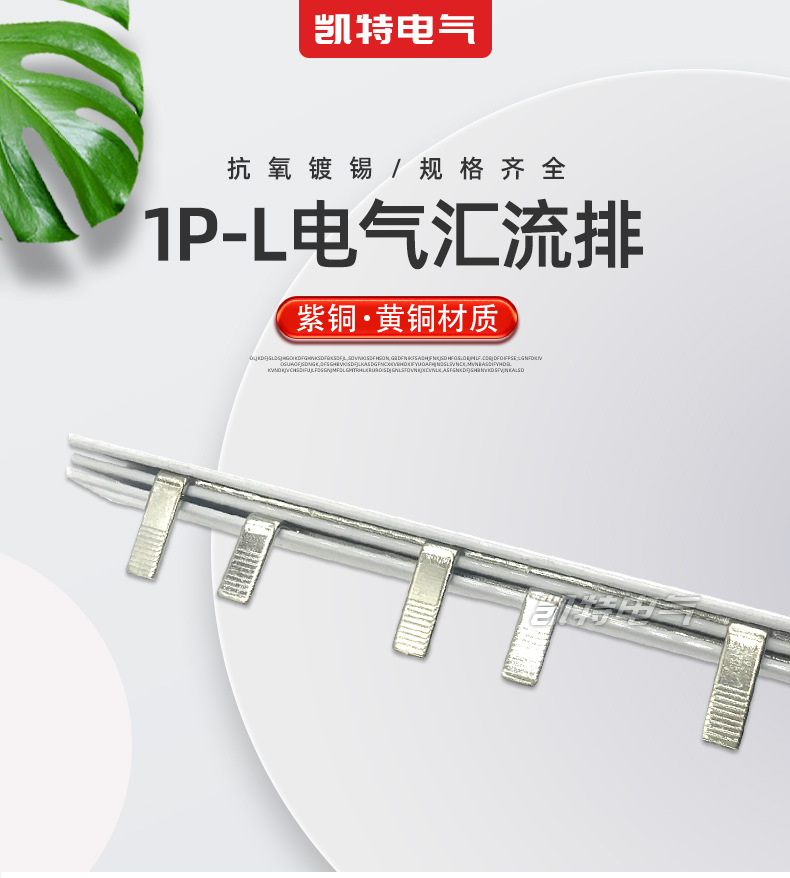

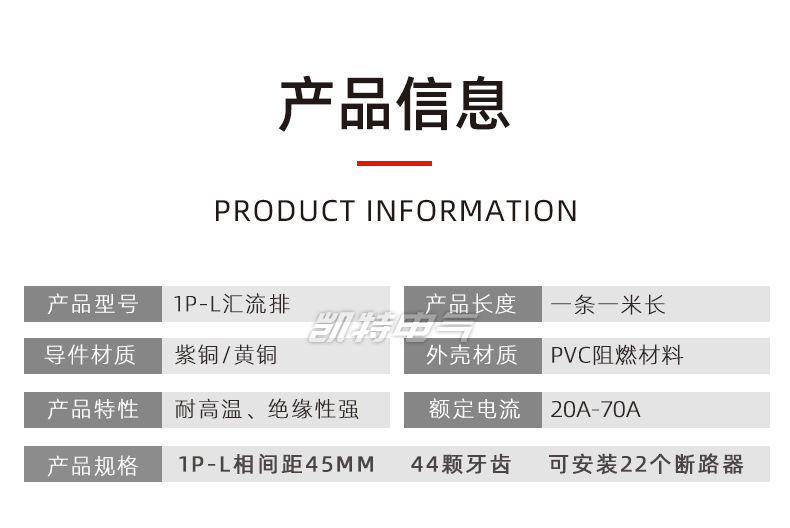

Product Name: 1P Leakage 63A Busbar
Thickness and width: The market says 1.5mm thick * 7mm wide.

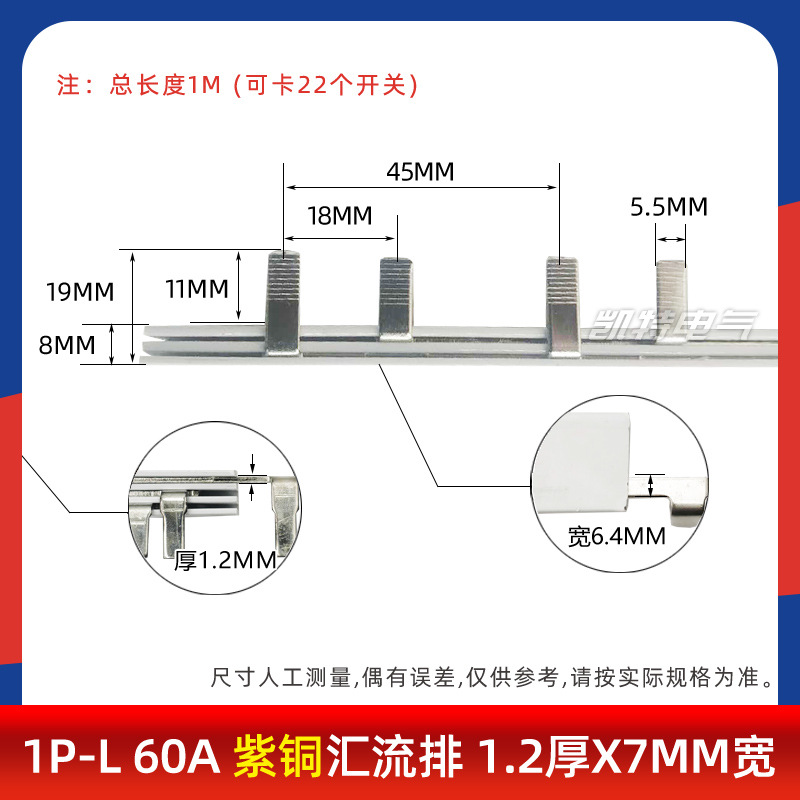

Actual Specification: 1.4mm thick * 6.4mm wide (manually cut, width is ±0.2mm). Tooth width is 5.5mm.
Product spacing: A-phase to A-phase spacing is 45mm, and one meter can accommodate 22 switches.
Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).

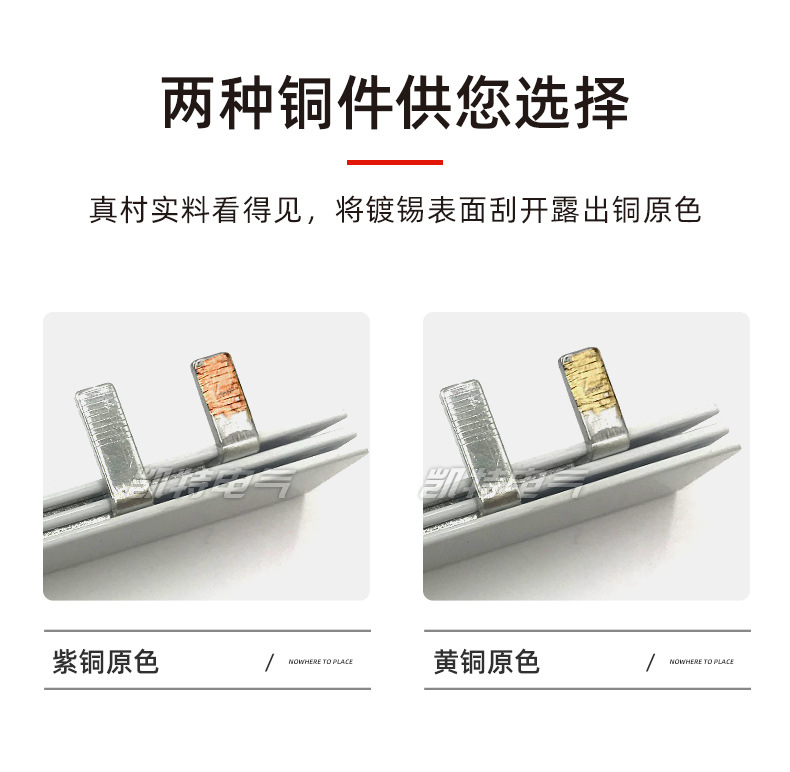

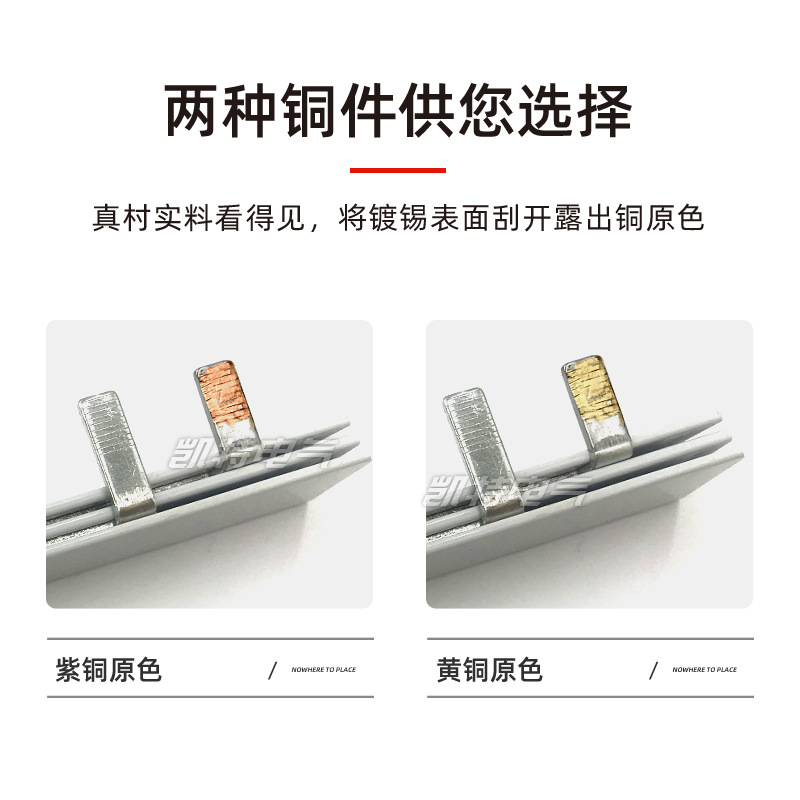

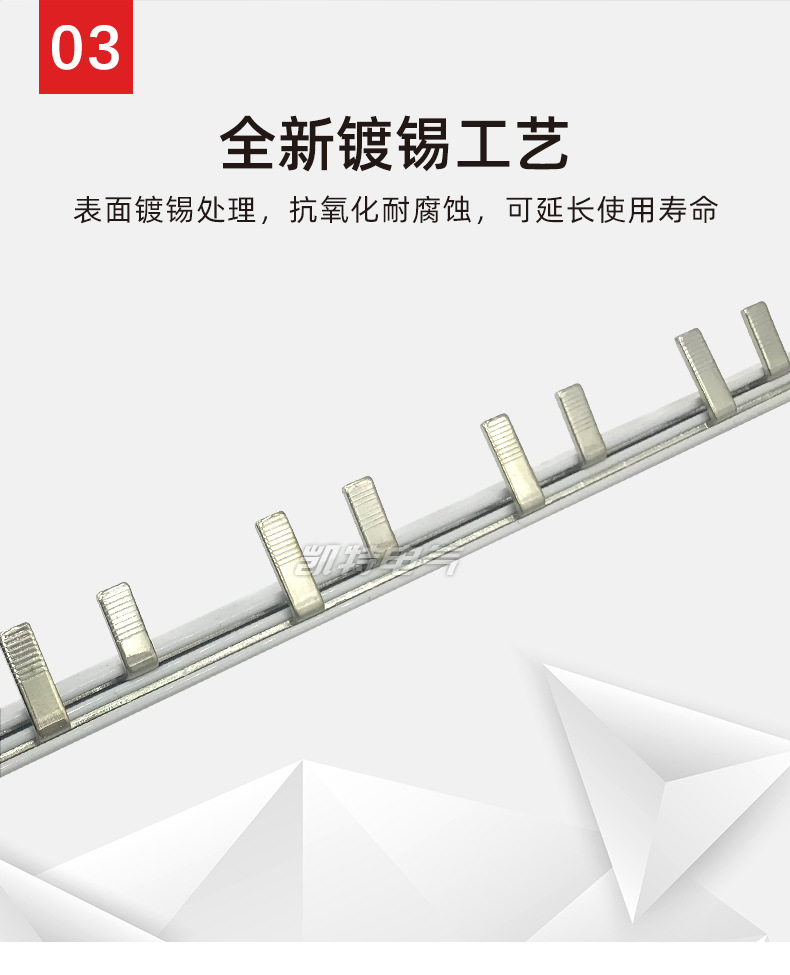

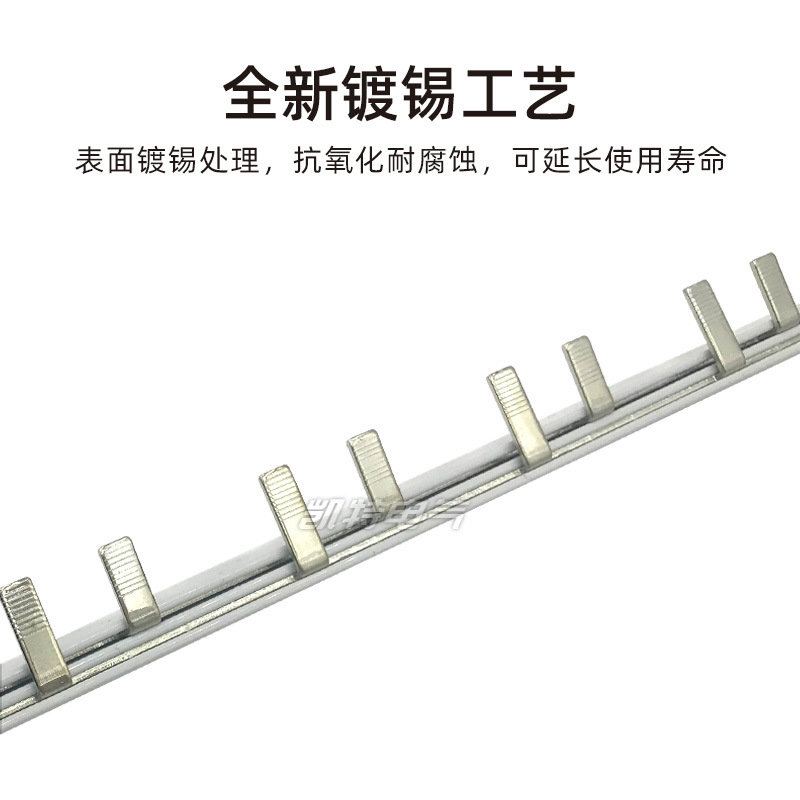

Product material: Copper, product surface antioxidant electroplating (can be scratched to see the original color of copper).
Length packaging: 1 meter per piece, 10 pieces per bundle.

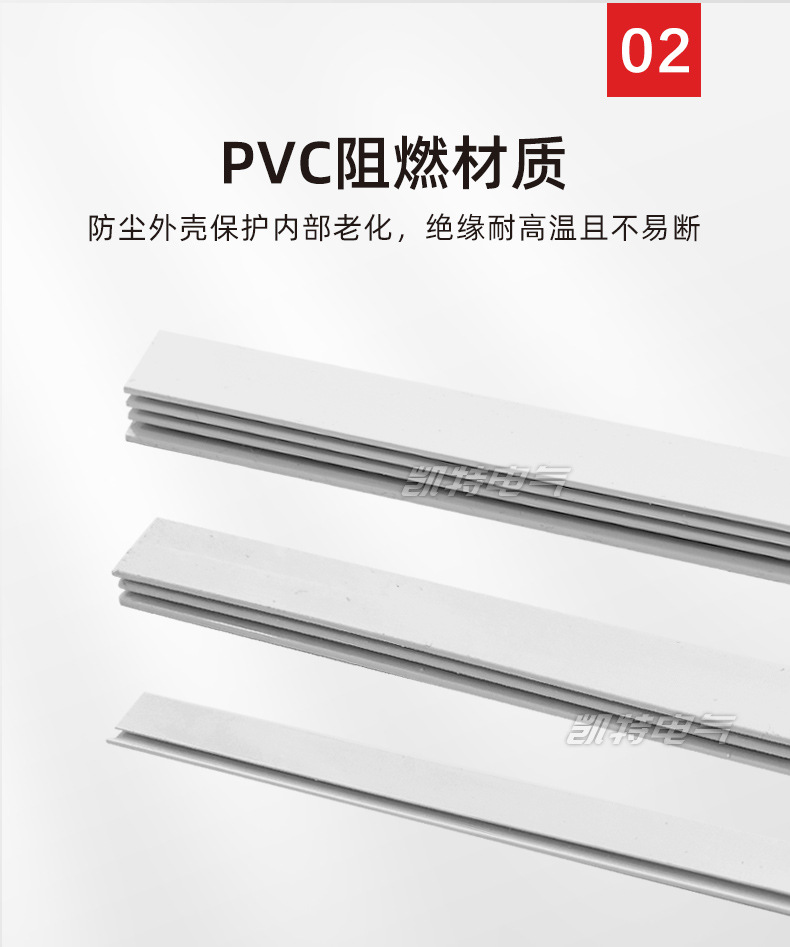

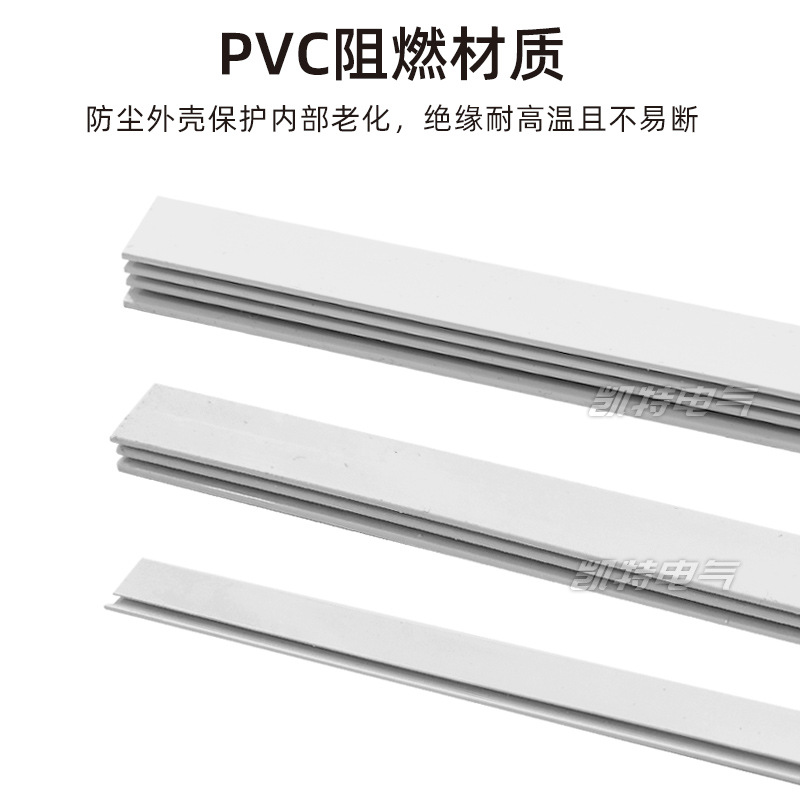

Product Insulation: PVC Flame-Retardant Plastic.

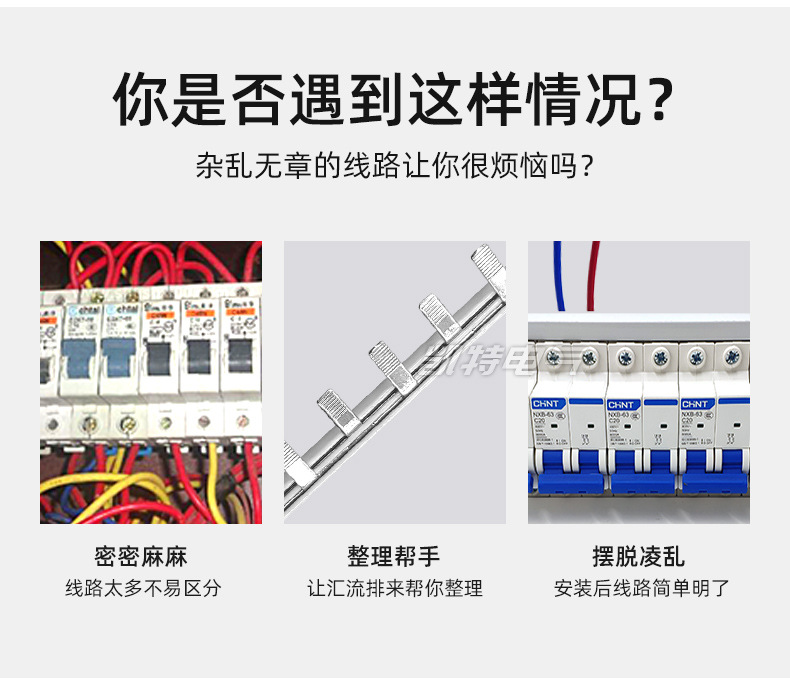

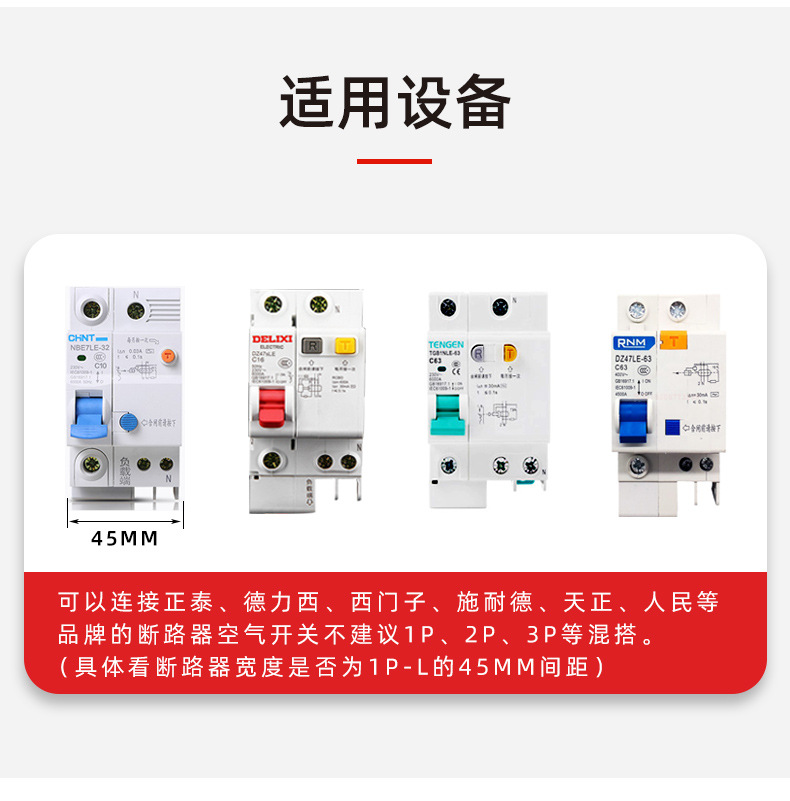

Application: Can be connected to C45, DZ47, 1P+N leakage type and other small circuit breakers and air switches (specifically depending on the phase spacing of the circuit breaker, it is not recommended to mix and match).
Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.

Update time：20260429172339
